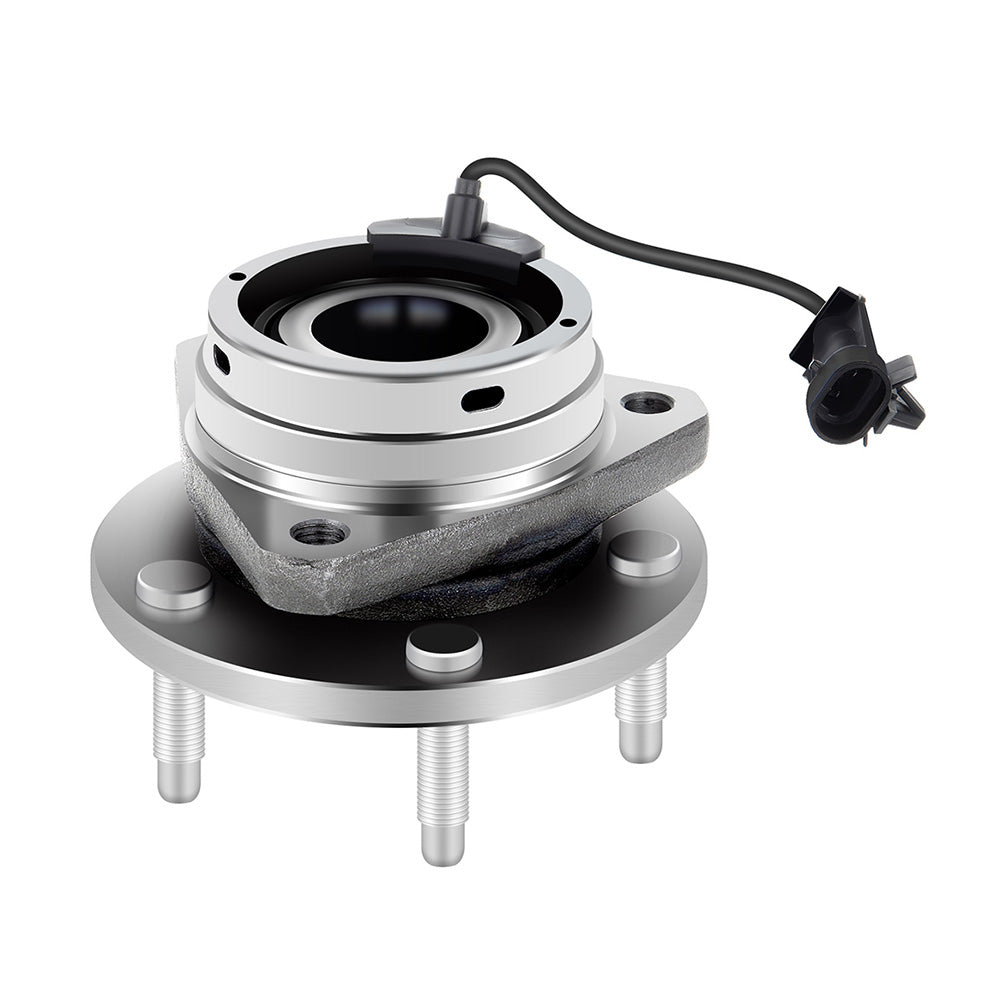

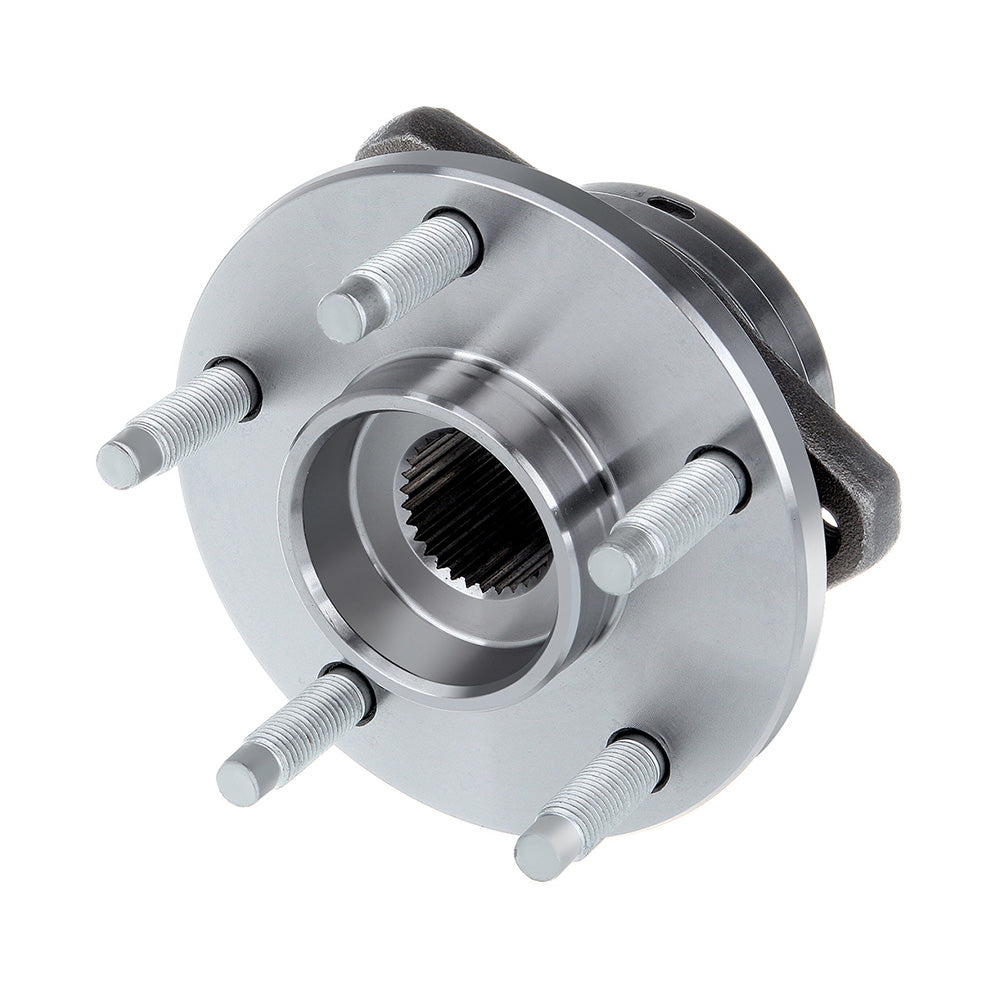

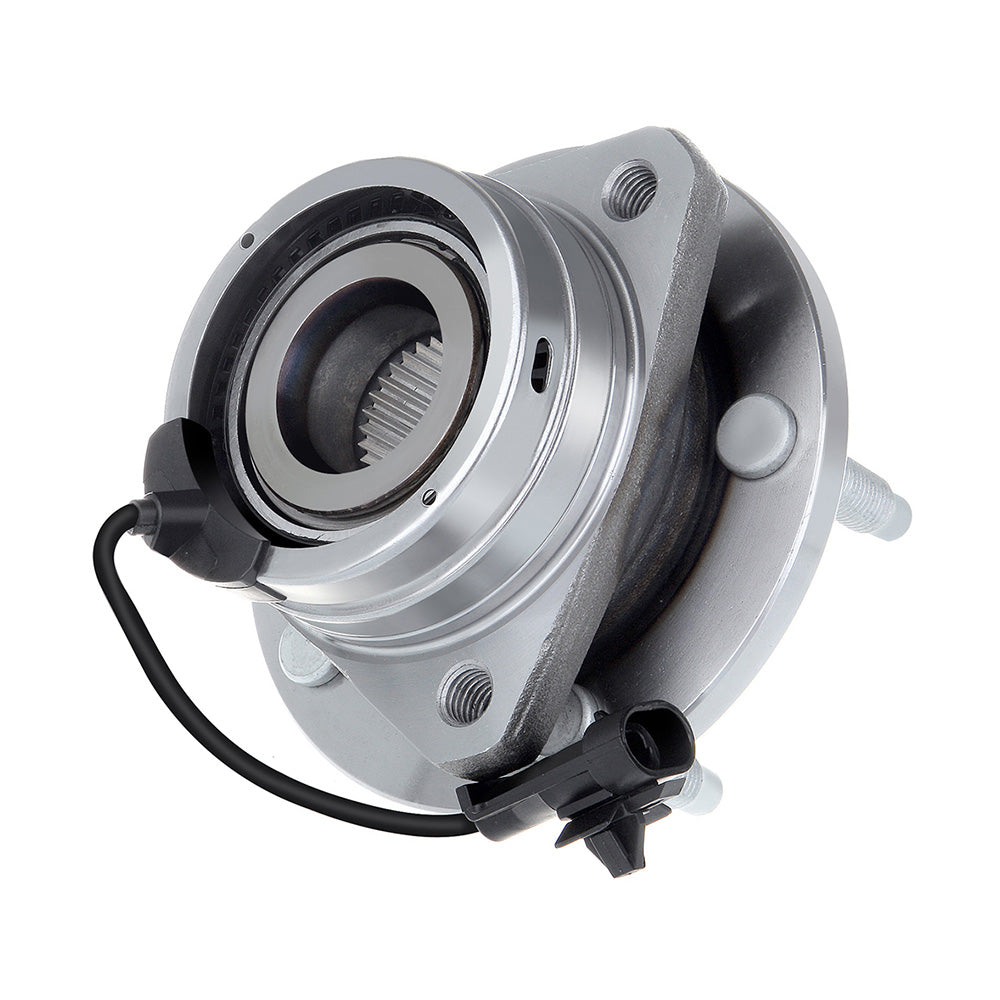

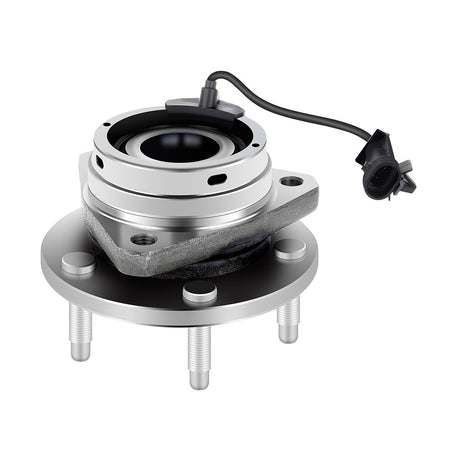

Front Wheel Bearing & Hub For 2008-2010 Chevrolet Cobalt Chevrolet HHR

Fitment

• Chevrolet | Cobalt | 2008~2010 | 2.0L
• Chevrolet | HHR | 2008~2010 | 2.0L
• Chevrolet | Malibu | 2004~2012 | 2.2L/2.4L/3.5L/3.6L/3.9L
• Pontiac | G6 | 2005~2010 | 2.4L/3.5L/3.6L/3.9L
• Saturn | Aura | 2007~2009 | 2.4L/3.5L/3.6L

Product Specifics

• Material: Steel
• Bolt Flange Hole Quantity: 3
• Wheel Stud Quantity: 5
• Placement on Vehicle: Driver Side or Passenger Side Front
• Surface Finish: Polished, Rust Protected

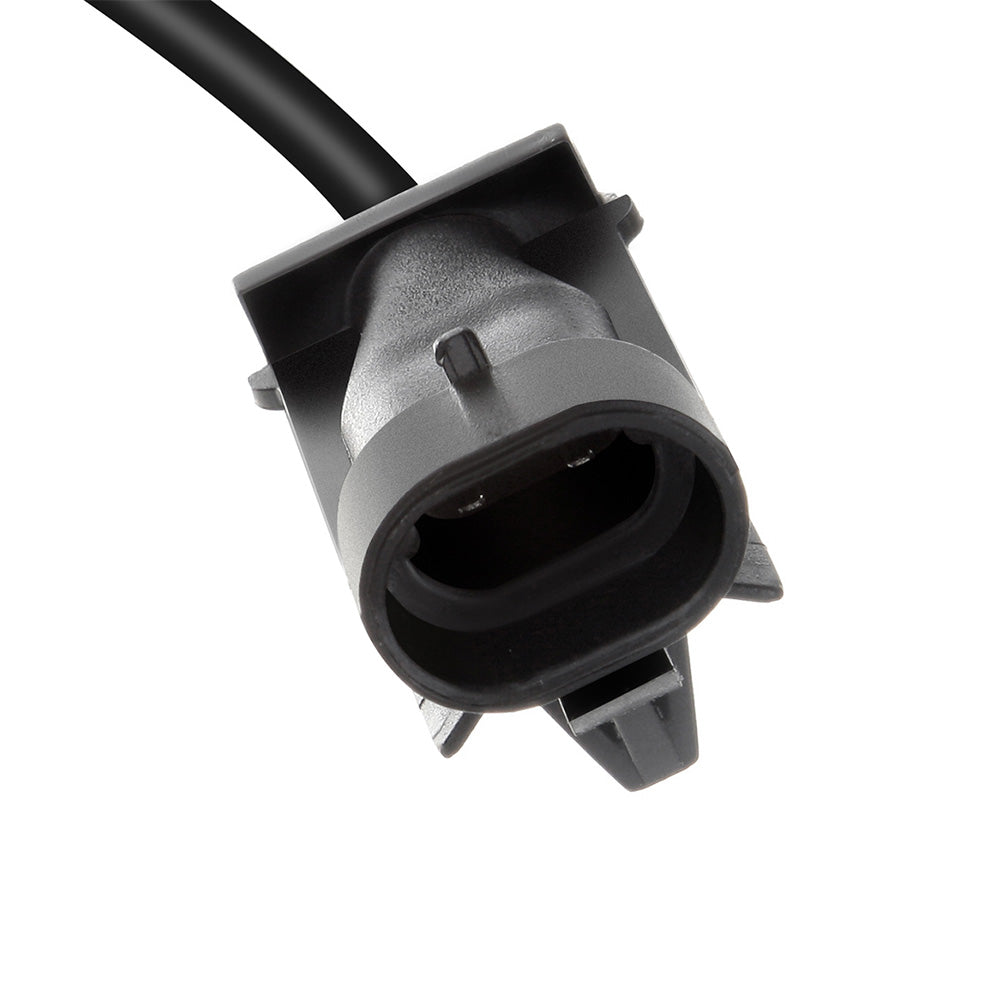

• ABS Sensor: Has ABS with integral Sensor
• Spline Quantity: 30
• Flange Shape: Triangle
• include: 1 X wheel bearing
• Weight: 8.82LB
• Bolt Circle Diameter: 4.33In.
• Brake Pilot Diameter: 2.57In.
• Flange Offset: 1.54In.
• Flange Offset: 1.54In.
• Hub Pilot Diameter: 3.54In.
• Wheel Pilot Diameter: 2.56In.
• Wheel Stud Size: M12 x 1.5
• Other Part Numbers: 12413083, 12413084, 12413166, 12413274, 15793213, 20964319
• Replaces dealer part numbers: 513214,12413083, 12413084, 12413166, 12413274

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
