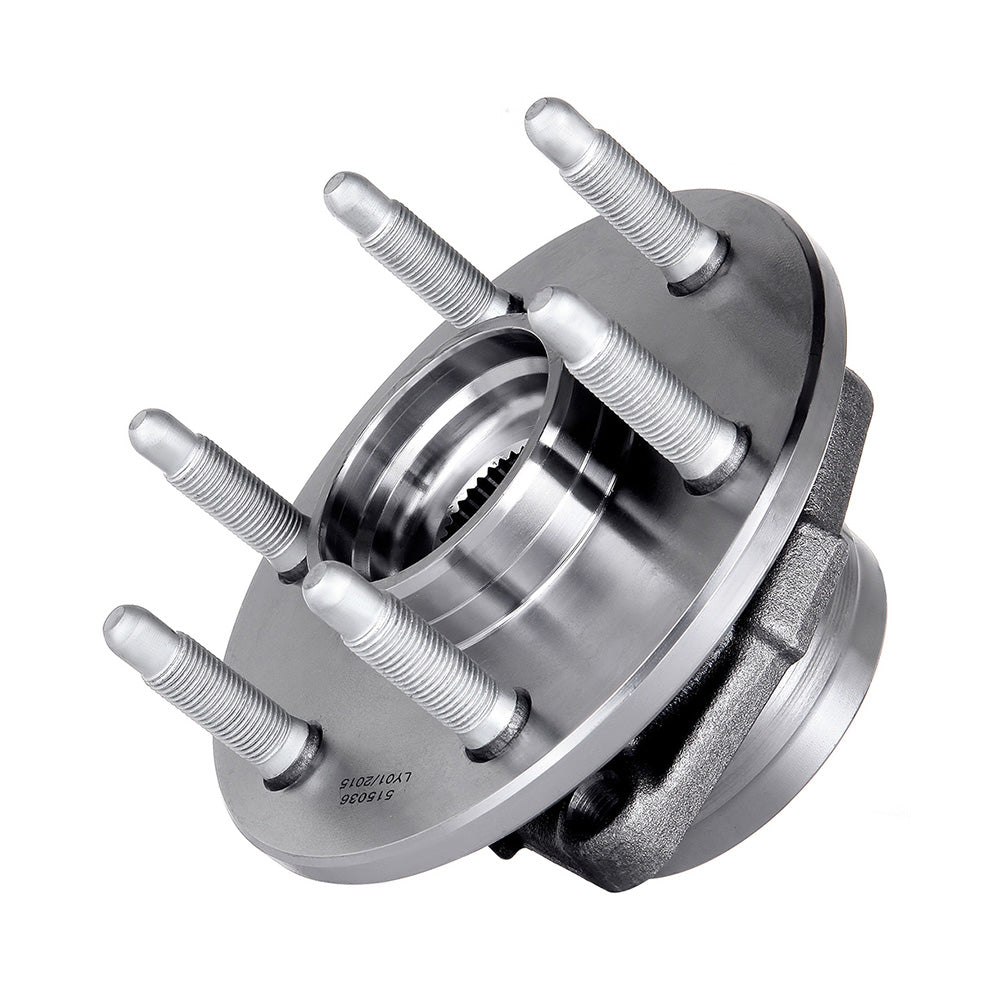

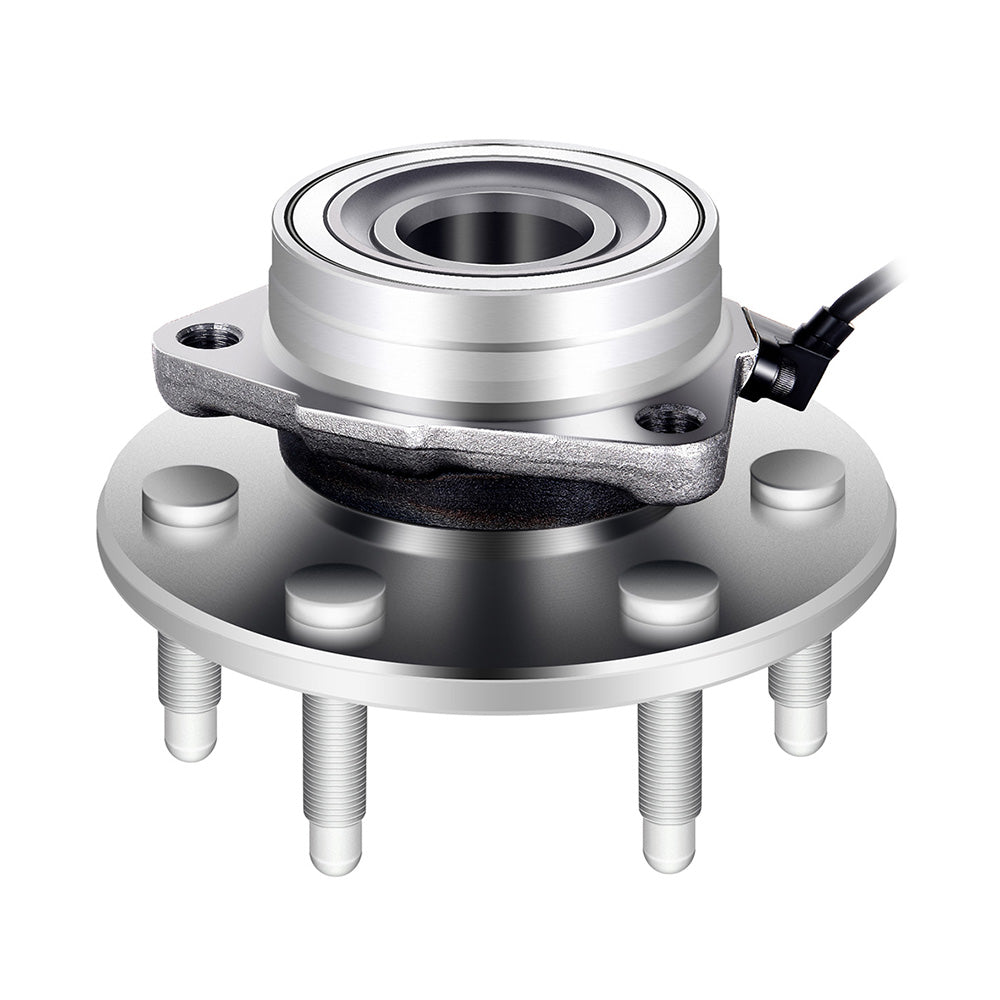

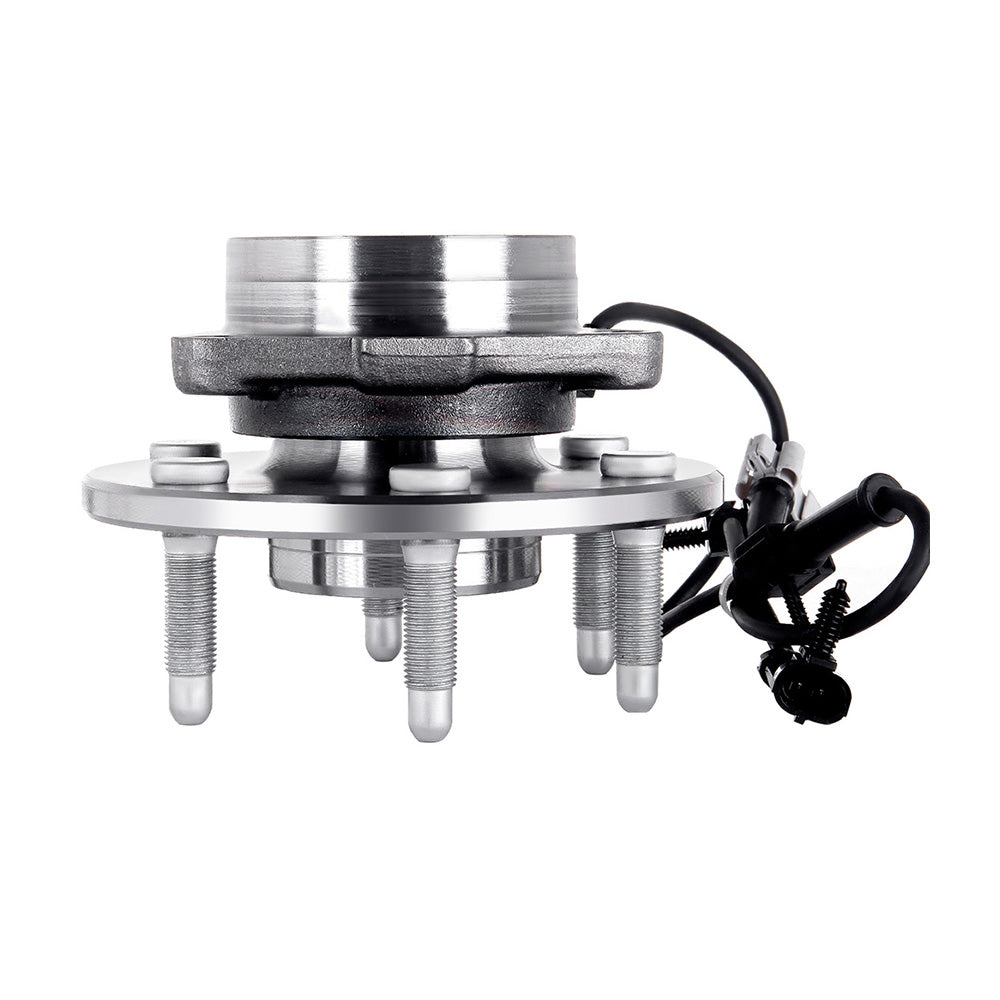

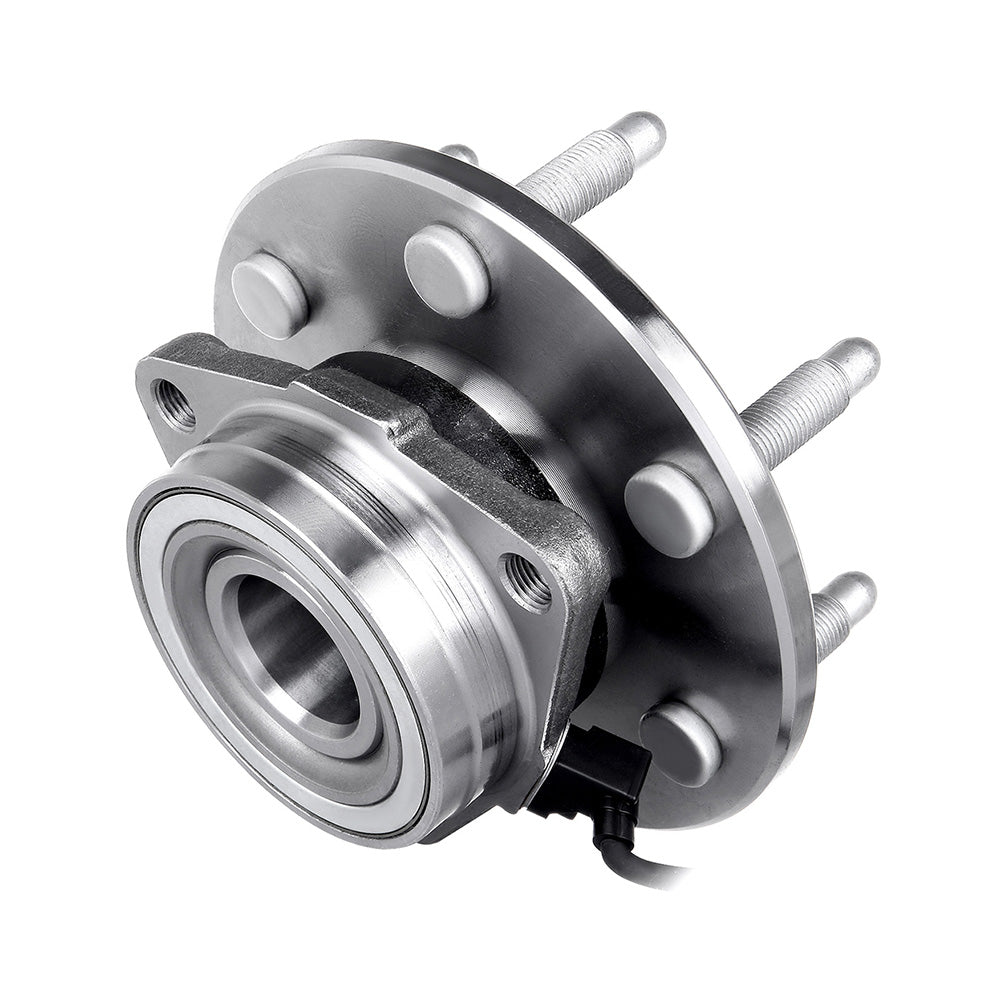

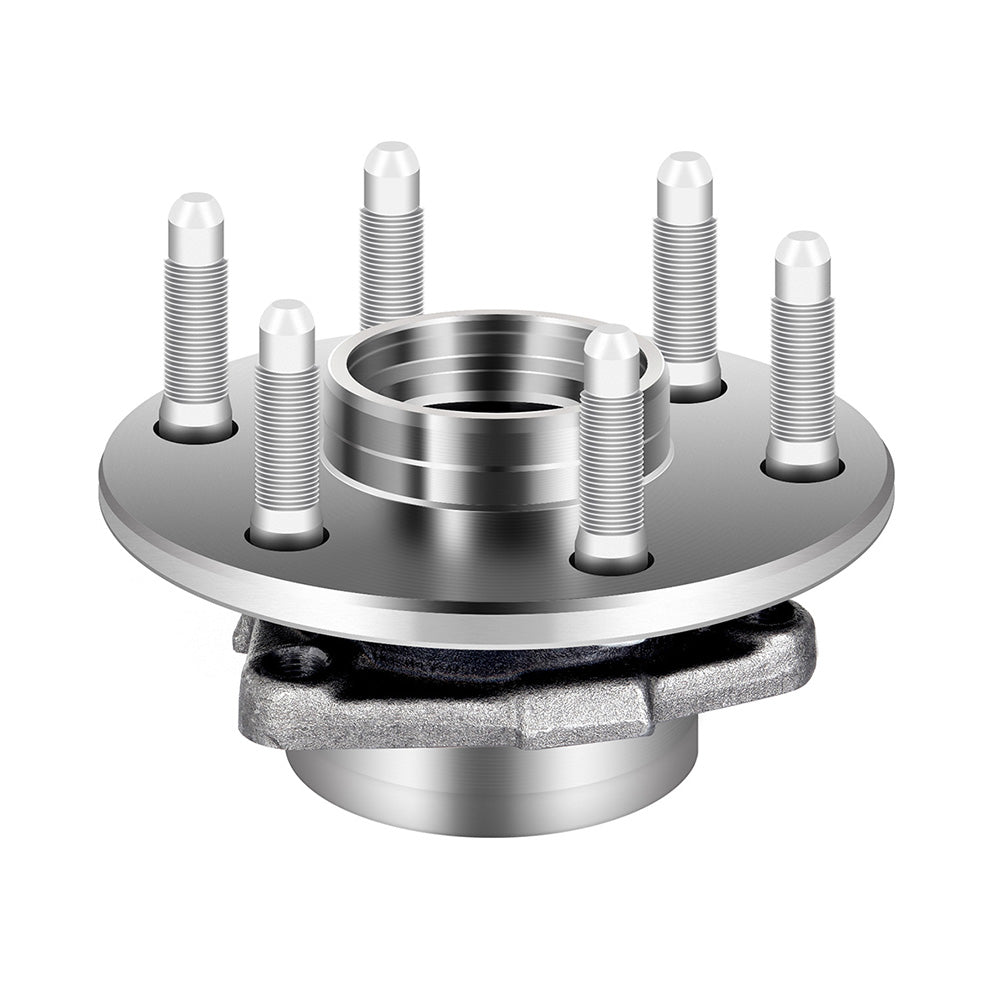

Front Wheel Bearings For 2002-2006 Cadillac Escalade Cadillac Escalade EXT

Fitment

• Cadillac | Escalade | 2002~2006 | 5.3L/6.0L
• Cadillac | Escalade ESV | 2003~2006 | 6.0L
• Cadillac | Escalade EXT | 2002~2006 | 6.0L
• Chevrolet | Avalanche 1500 | 2002~2006 | 5.3L
• Chevrolet | Express 1500 | 2003~2014 | 4.3L/5.3L
• Chevrolet | Express 2500 | 2003~2005 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Suburban 1500 | 2000~2006 | 5.3L/5.7L/6.0L
• Chevrolet | Tahoe | 2000~2006 | 4.8L/5.3L
• GMC | Savana 1500 | 2003~2014 | 4.3L/5.3L
• GMC | Savana 2500 | 2003~2005 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• GMC | Yukon | 2000~2006 | 4.8L/5.3L/6.0L
• GMC | Yukon XL 1500 | 2000~2006 | 5.3L/6.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with tegral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 6
• Flange Bolt Hole qty: 3
• Manufacturer Part Number: OFA051403
• Spline Quantity: 33
• Bolt Circle Diameter: 4.91 In
• Wheel Pilot Diameter: 3.06 In
• Brake Pilot Diameter: 3.08 In
• Flange Diameter: 7.08 In
• Flange Offset: 1.96 In
• Hub Pilot Diameter: 3.9 In
• Other Part Number: 10393163, 15102294, 15112382, 15134584, 15233113, 15740291
• Material: steel
• Weight: 13LB
• Include: 1 X wheel bearing
• Replaces dealer part numbers: 515036,15863441, FW311, PT515036, 715036, 295-15036PL

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
