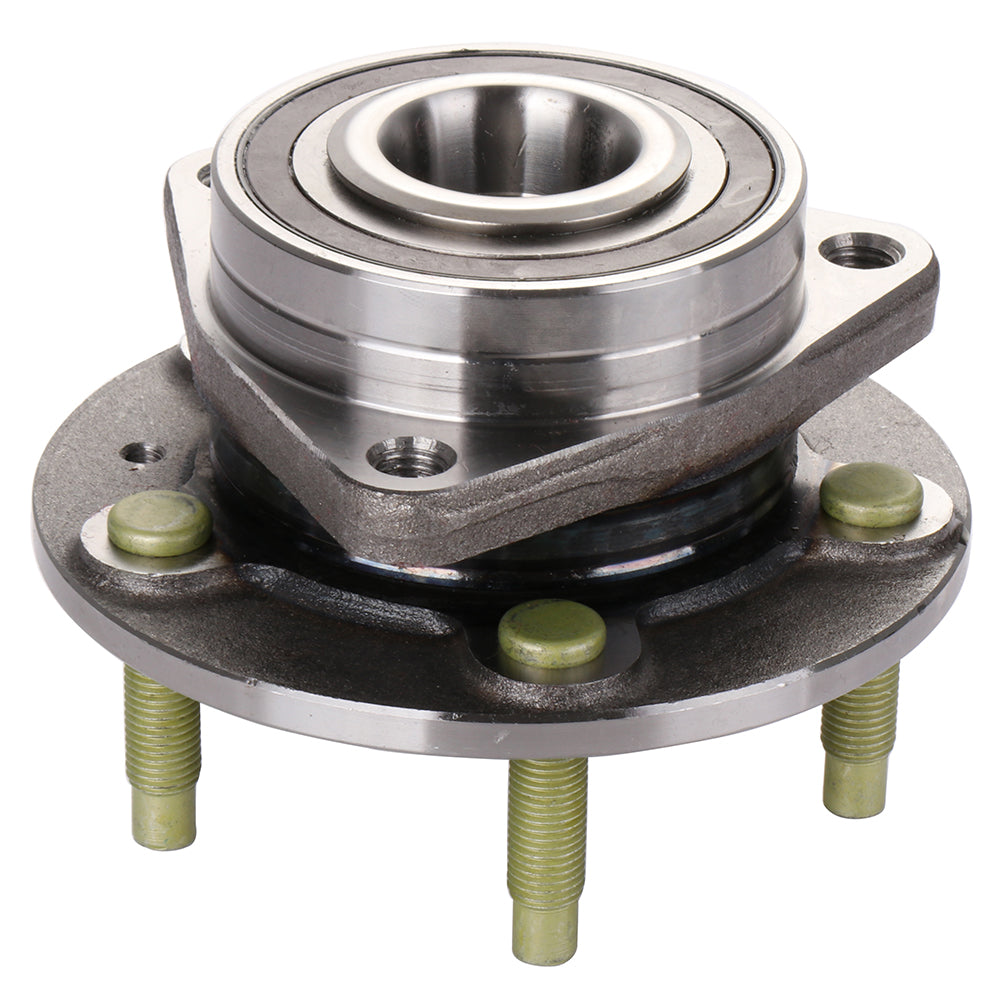

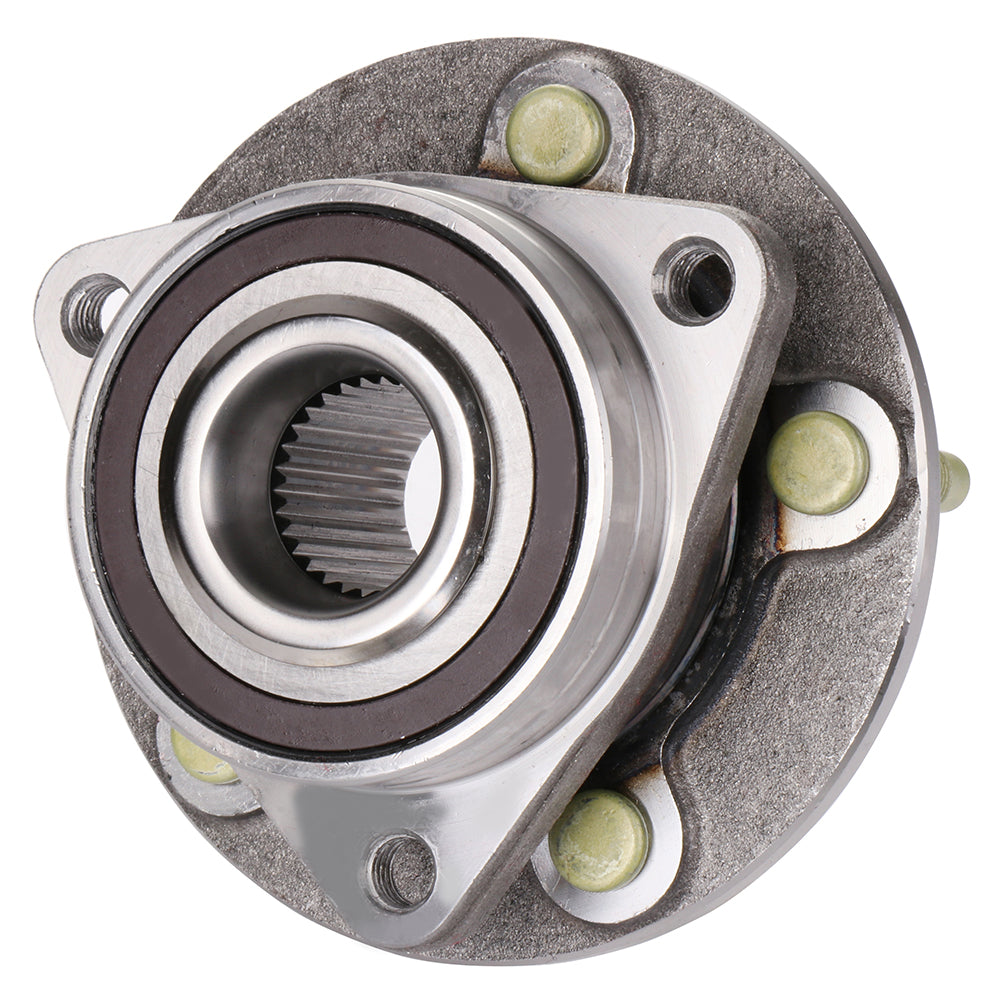

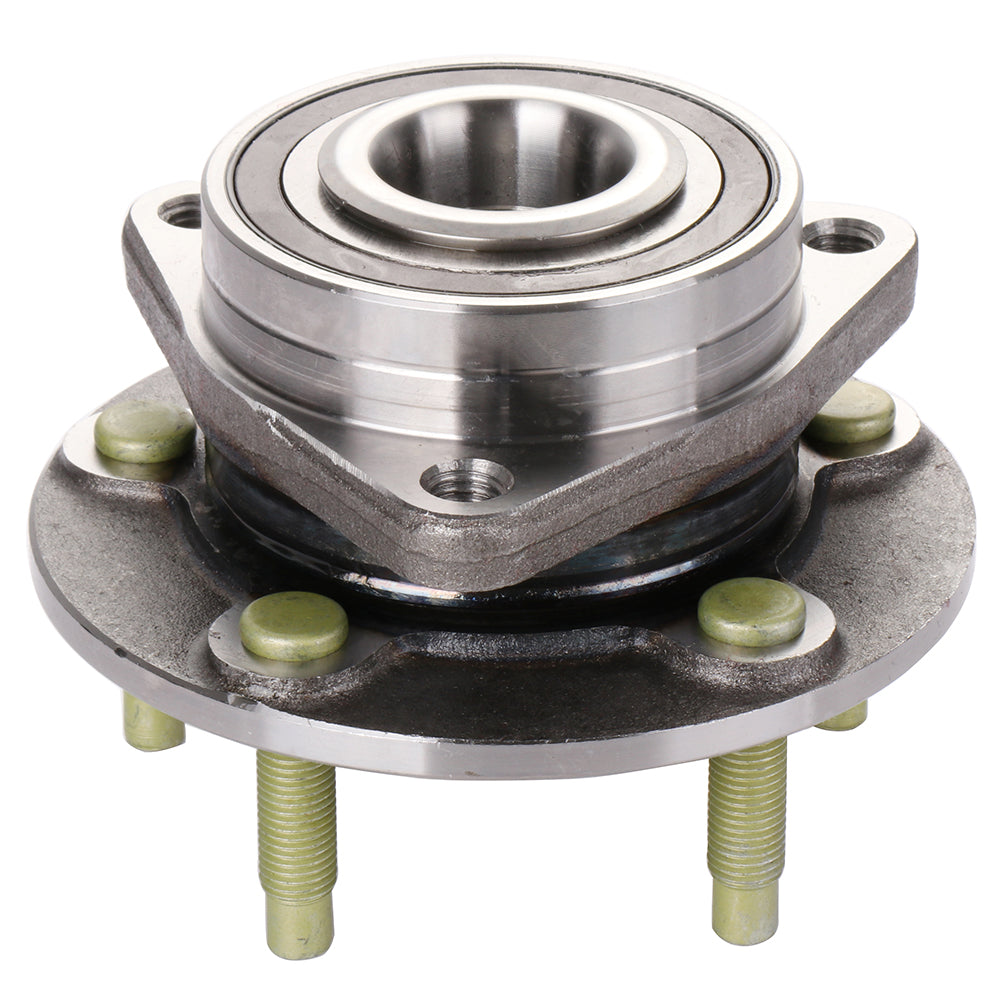

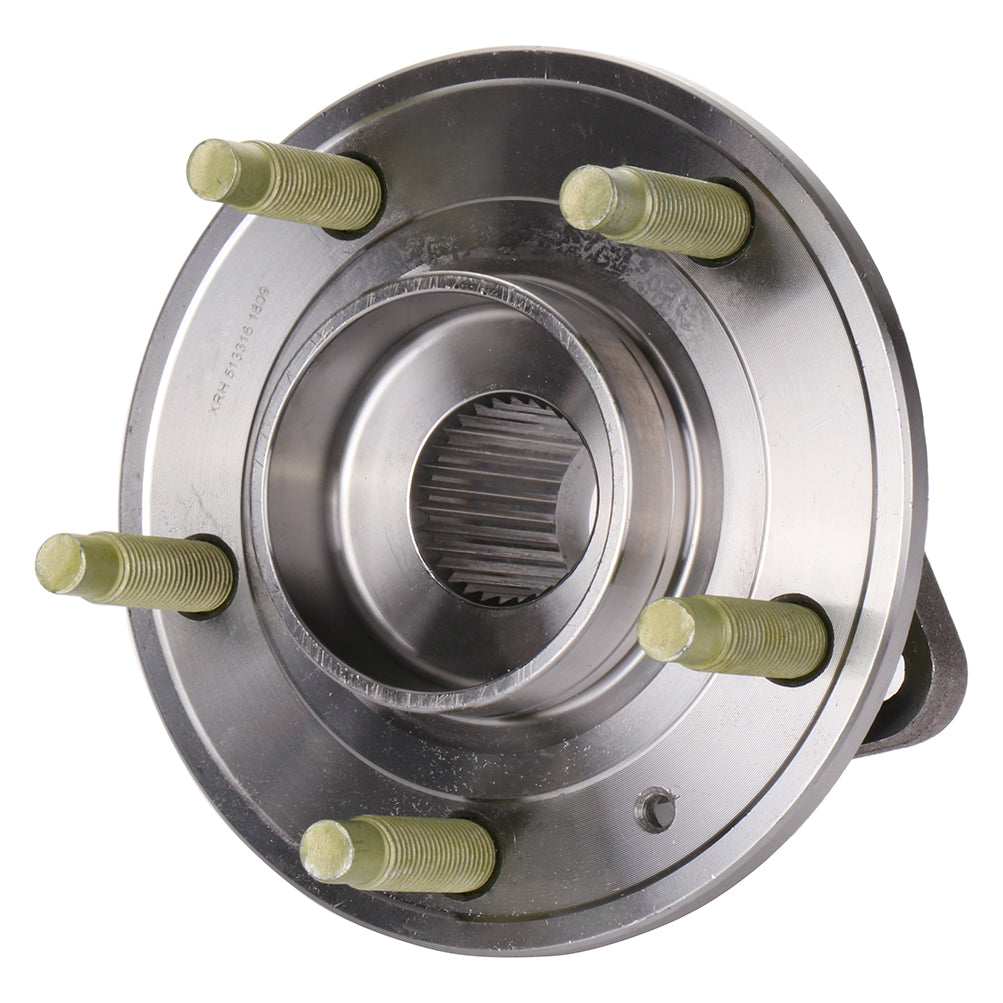

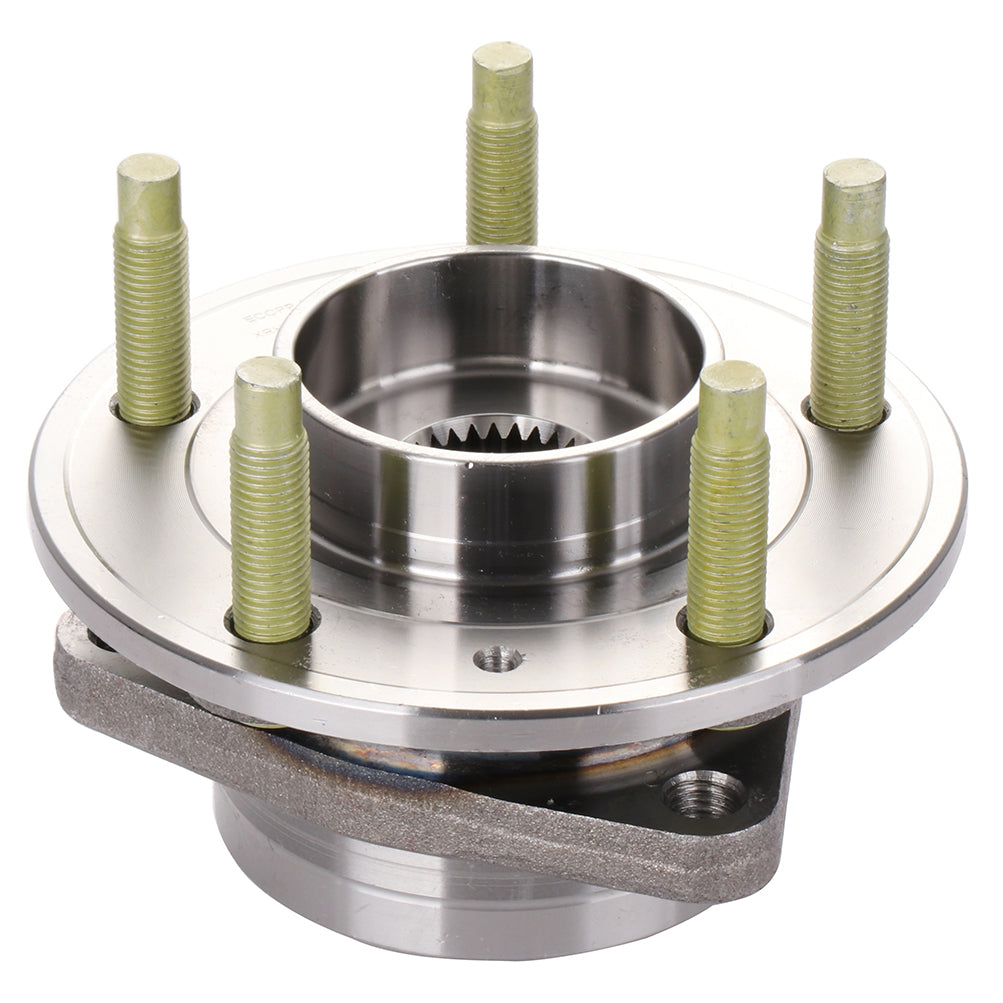

Front Wheel Hub And Bearing For 13-17 Cadillac ATS 14-15 Chevrolet Cruze

Fitment

• Buick | Cascada | 2016~2017 | 1.6L
• Buick | Verano | 2012~2017 | 2.0L/2.4L
• Cadillac | ATS | 2013~2017 | 2.0L/2.5L/3.6L
• Chevrolet | Cruze | 2014~2015 | 2.0L
• Chevrolet | Orlando | 2012~2014 | 2.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 30
• Bolt Circle Diameter: 4.49 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.7534 In
• Flange Diameter: 5.69 In
• Flange Shape: Triangular
• Flange Offset: 1.64 In
• Hub Pilot Diameter: 3.56 In
• Other Part Number: 13502829, 13580686
• Material: steel
• Weight: 8LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513316, WA513316, WB513316,713316,29513316

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
