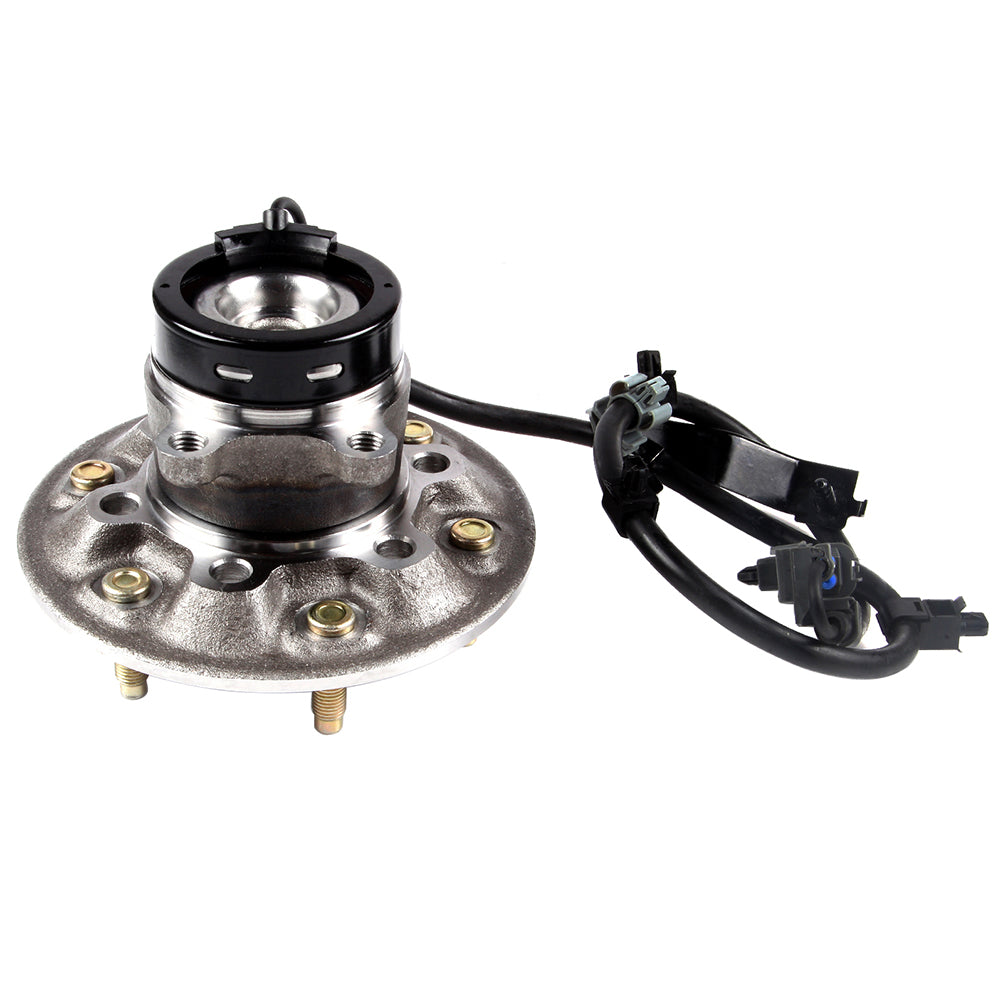

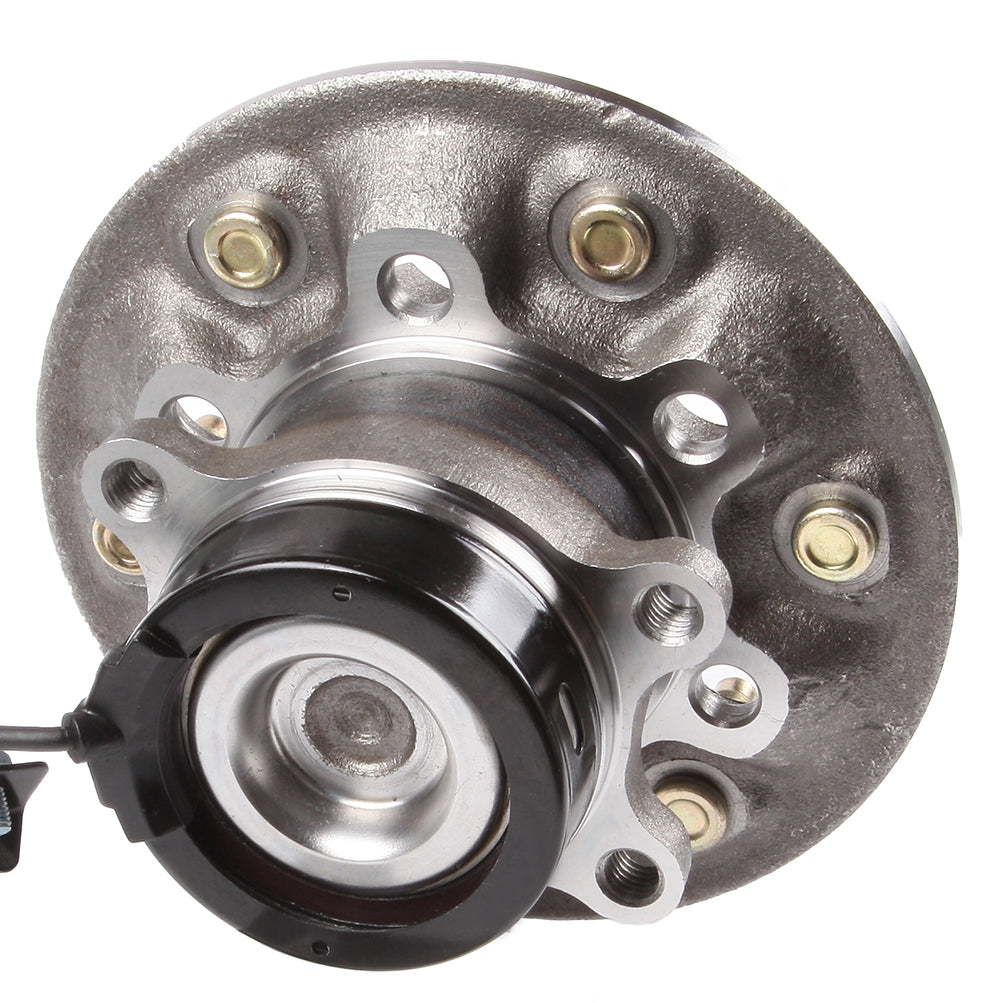

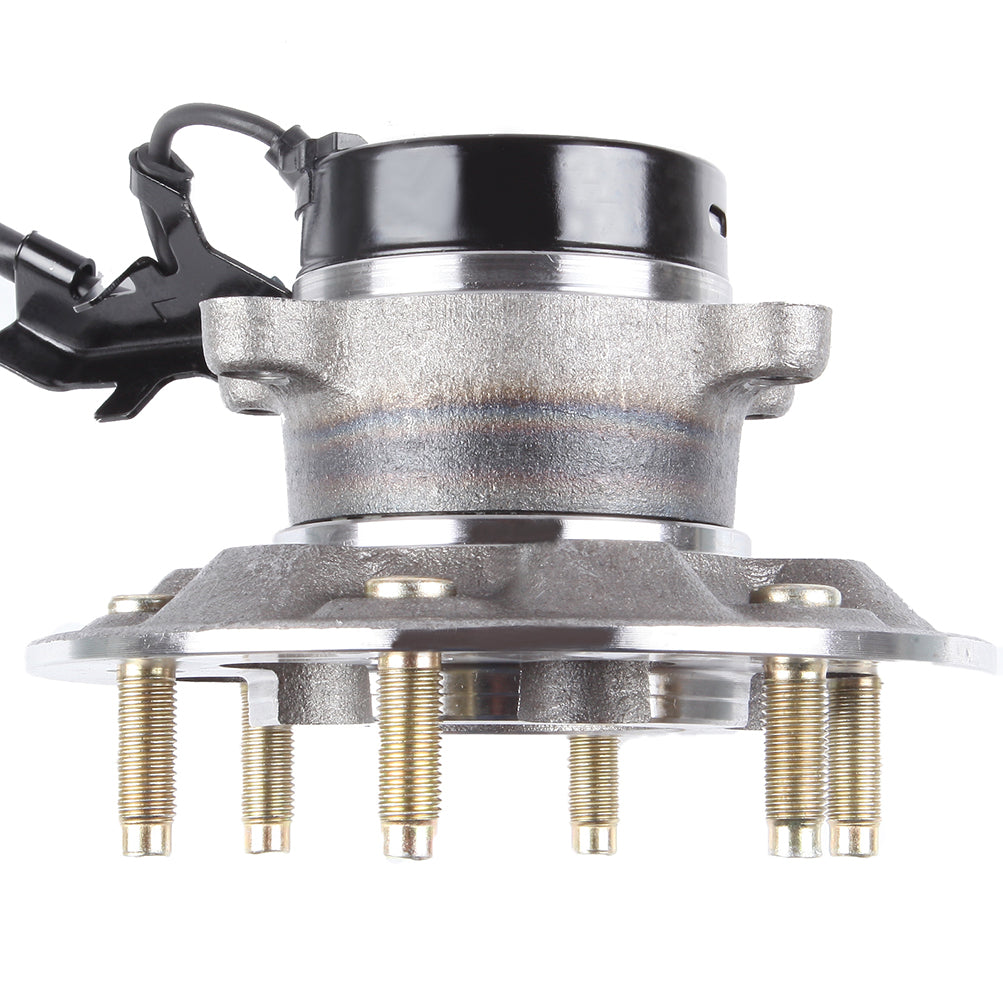

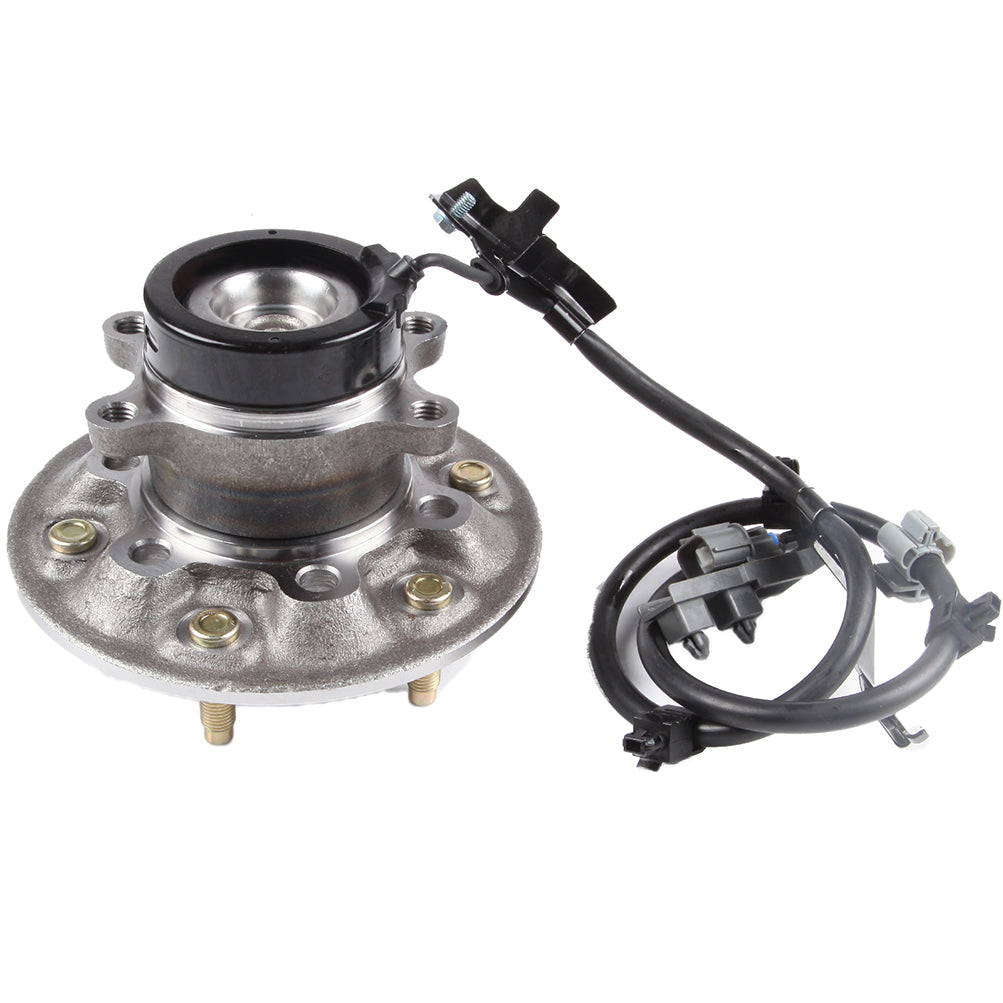

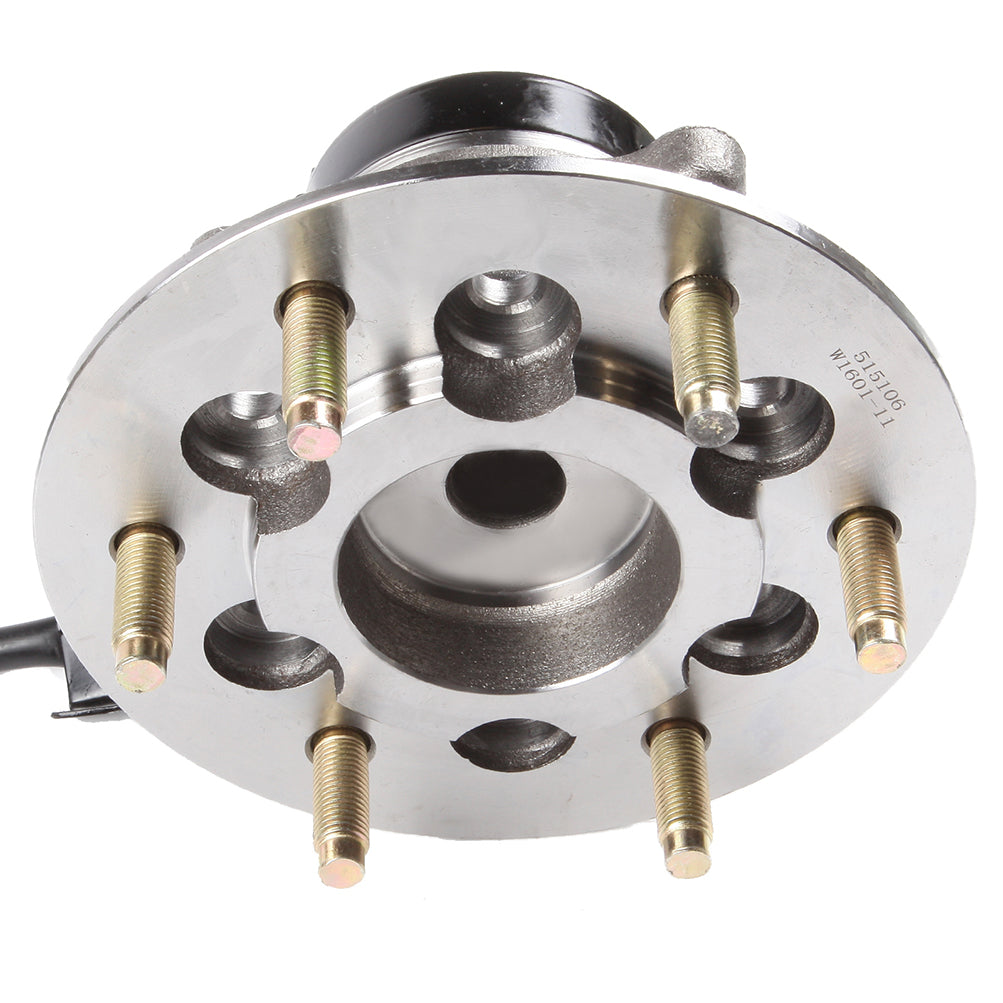

Front Wheel Hub Bearing Assembly 06-08 GMC Canyon 04-08 Chevrolet Colorado

Fitment

• Chevrolet | Colorado | 2004~2008 | 2.8L/2.9L/3.5L/3.7L
• GMC | Canyon | 2006~2008 | 2.8L/2.9L/3.5L/3.7L
• Isuzu | i-280 | 2006 | 2.8L
• Isuzu | i-290 | 2007~2008 | 2.9L

Product Specifics

• Placement on Vehicle: Driver-Side Front

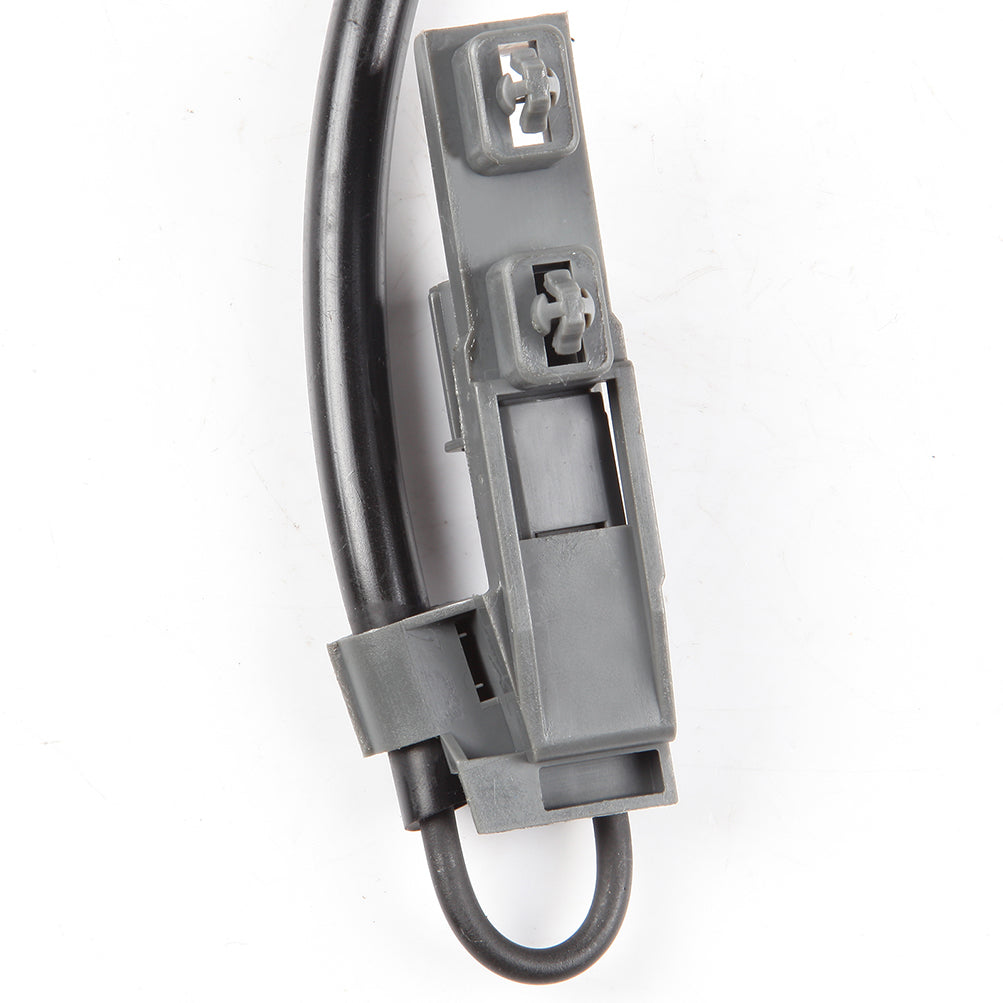

• ABS Sensor: Has ABS with Integral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 6
• Flange Bolt Hole qty: 3
• Spline Quantity: N/A
• Bolt Circle Diameter: 5.45 In
• Wheel Pilot Diameter: 3.88 In
• Brake Pilot Diameter: 3.9078 In
• Flange Diameter: 7.18 In
• Flange Shape: Rectangle
• Flange Offset: 2.63 In
• Hub Pilot Diameter: 3.32 In
• Other Part Numbers: 15176699, 15178884, 8151788840
• Material: steel
• Weight: 14LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 515106,29515106,15176699, 15178884, 8151788840

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
