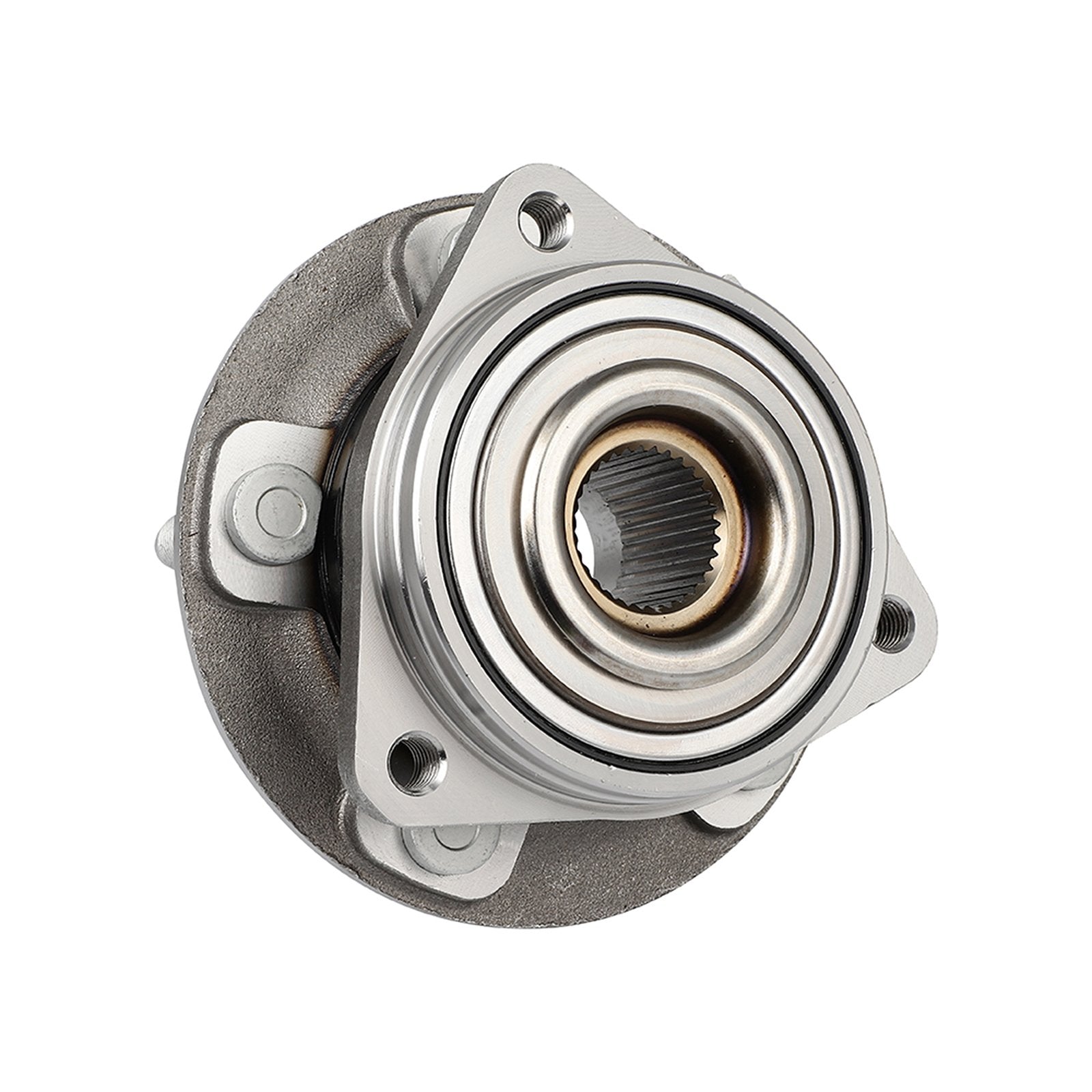

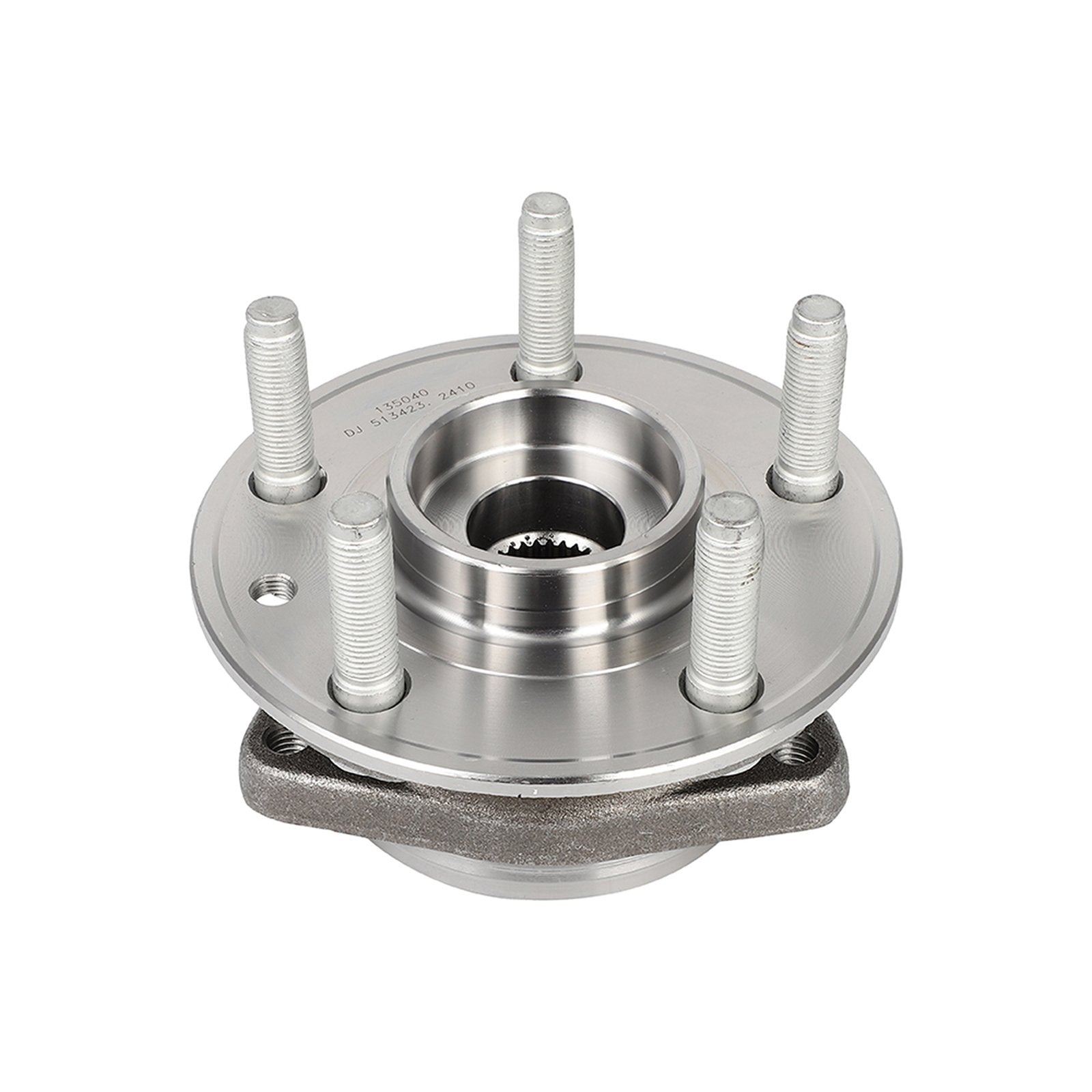

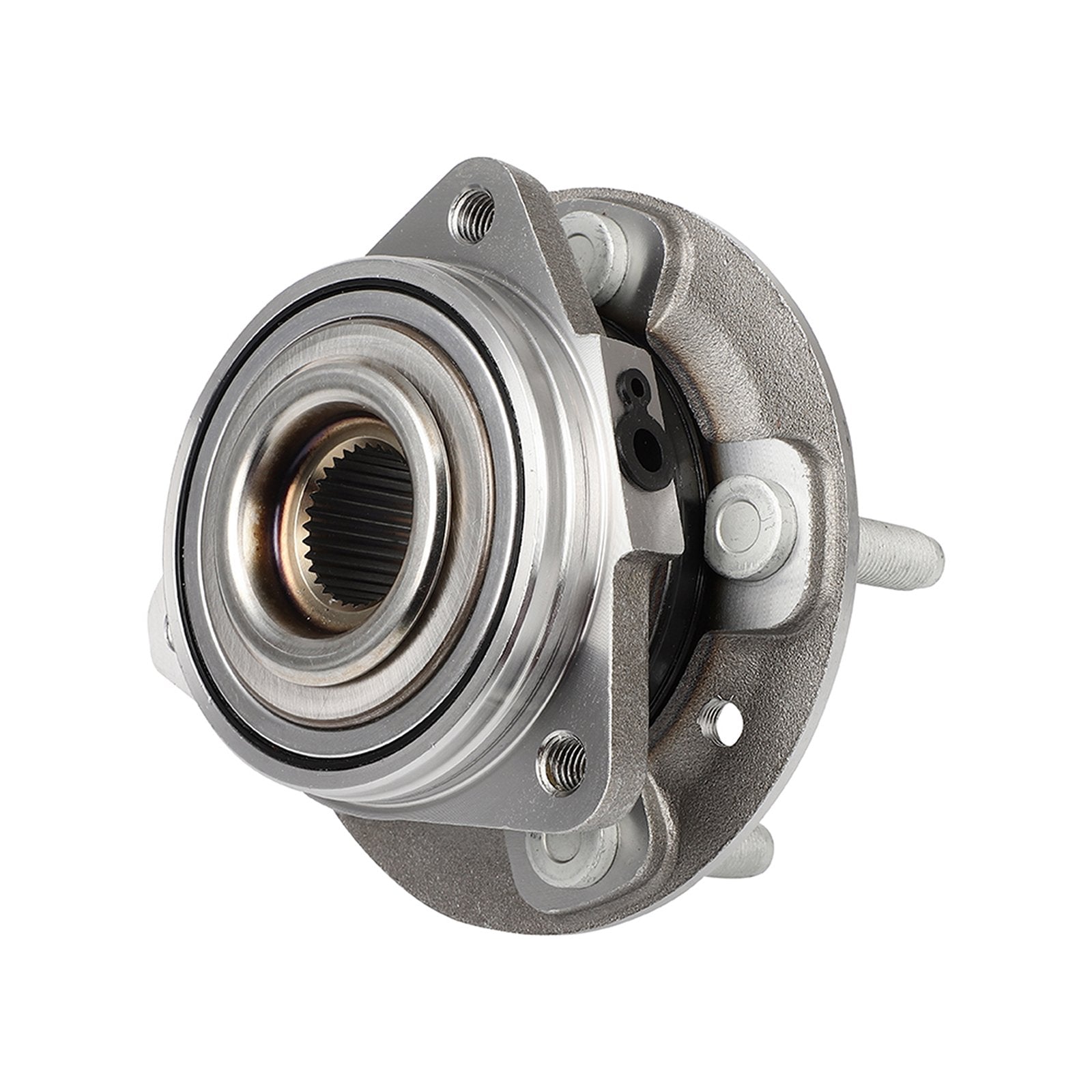

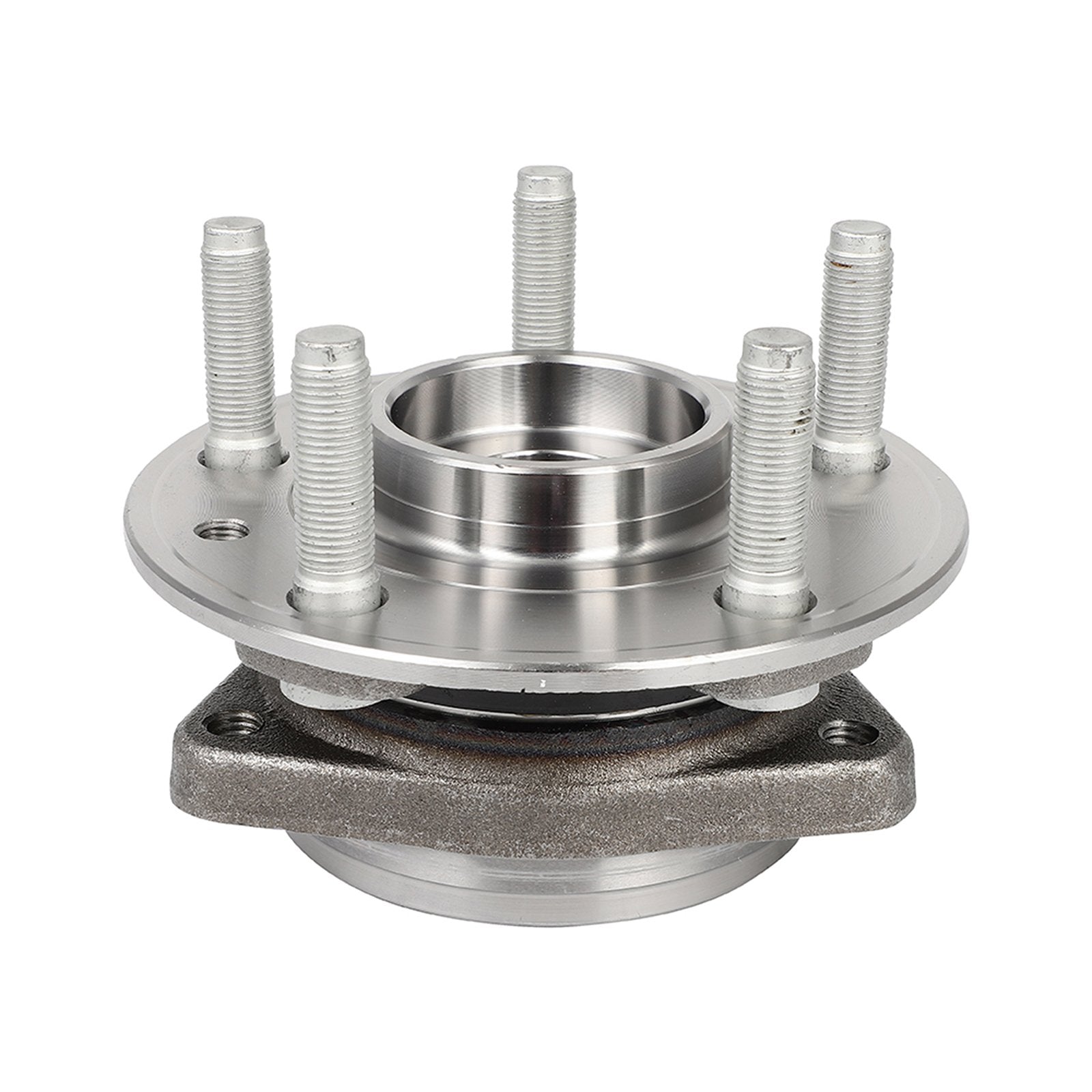

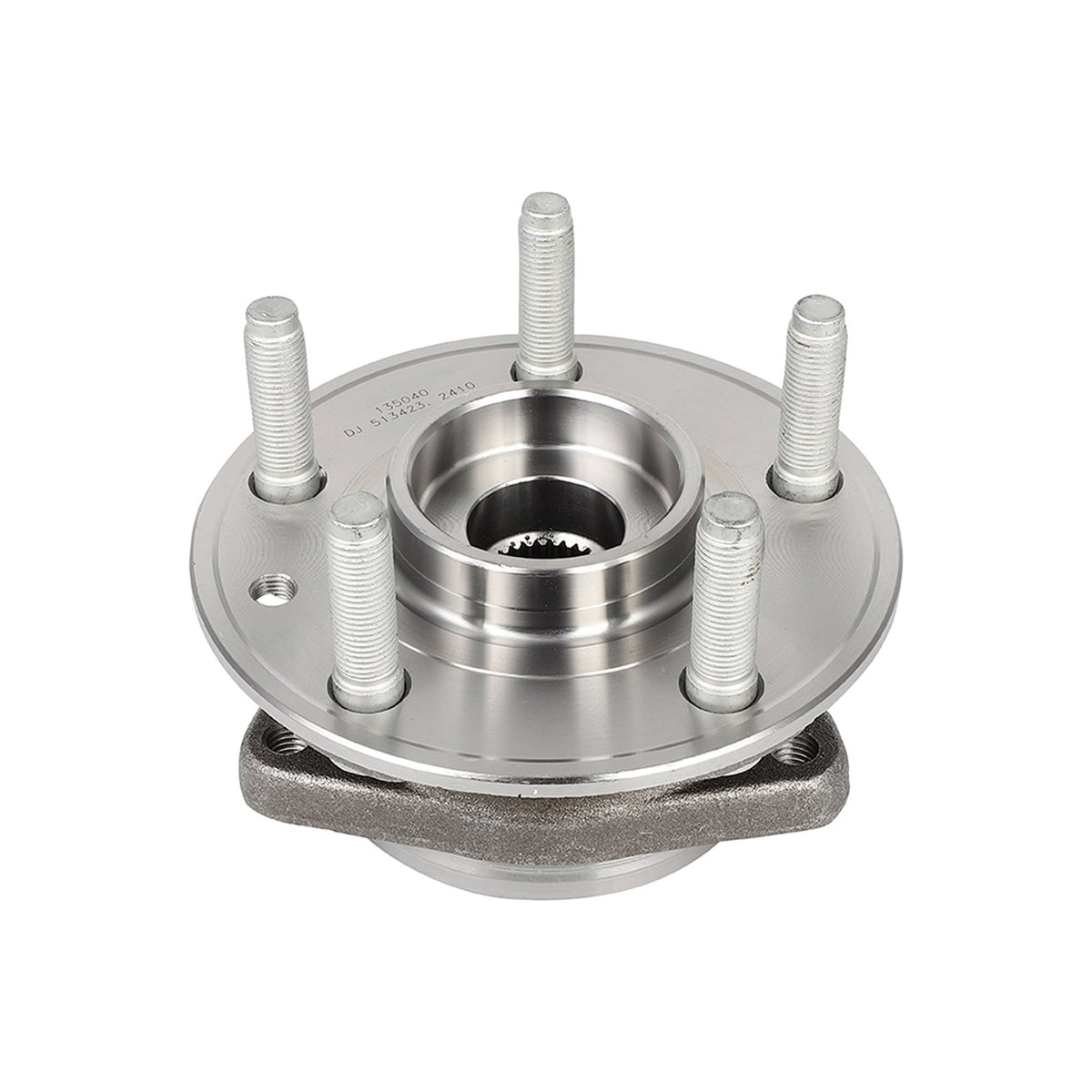

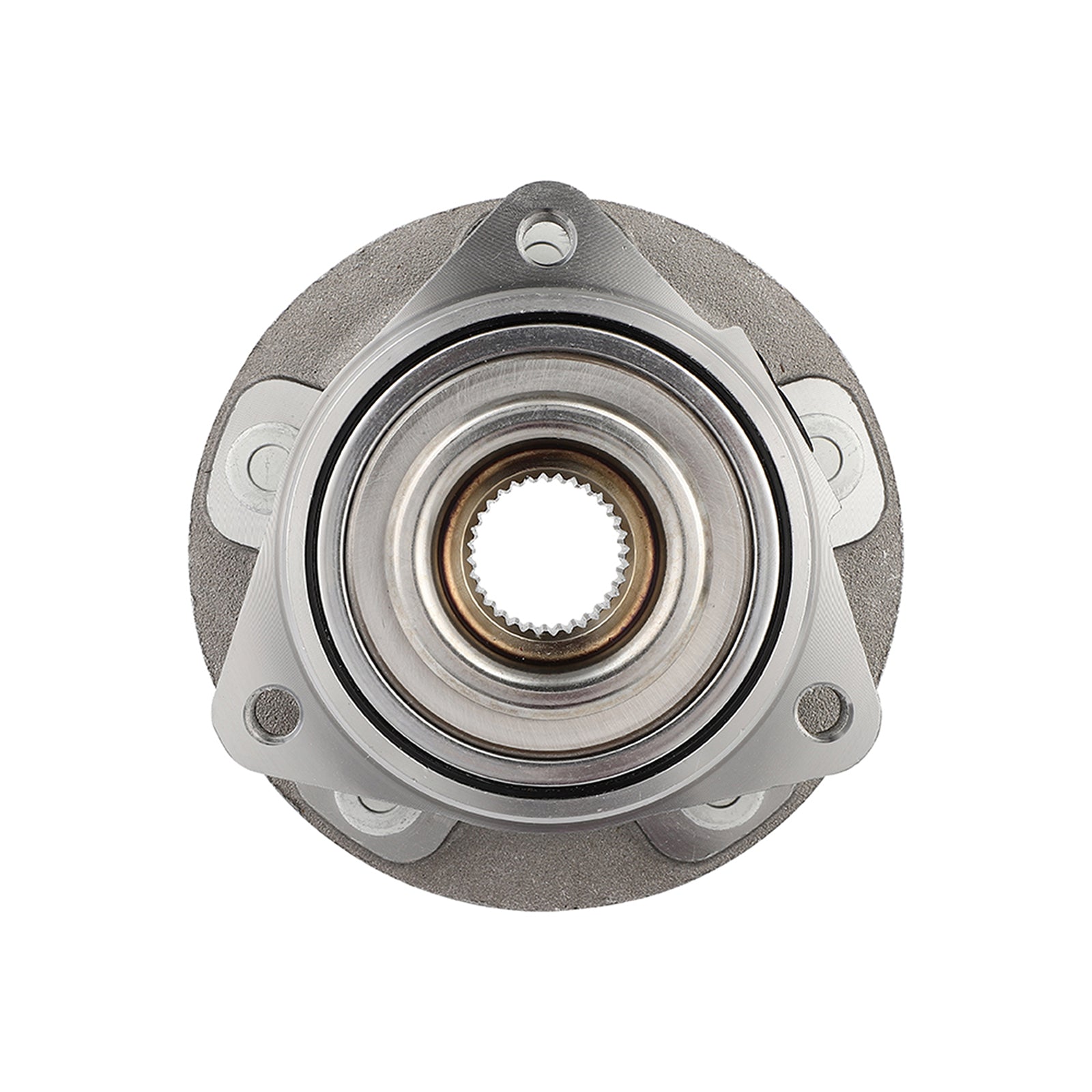

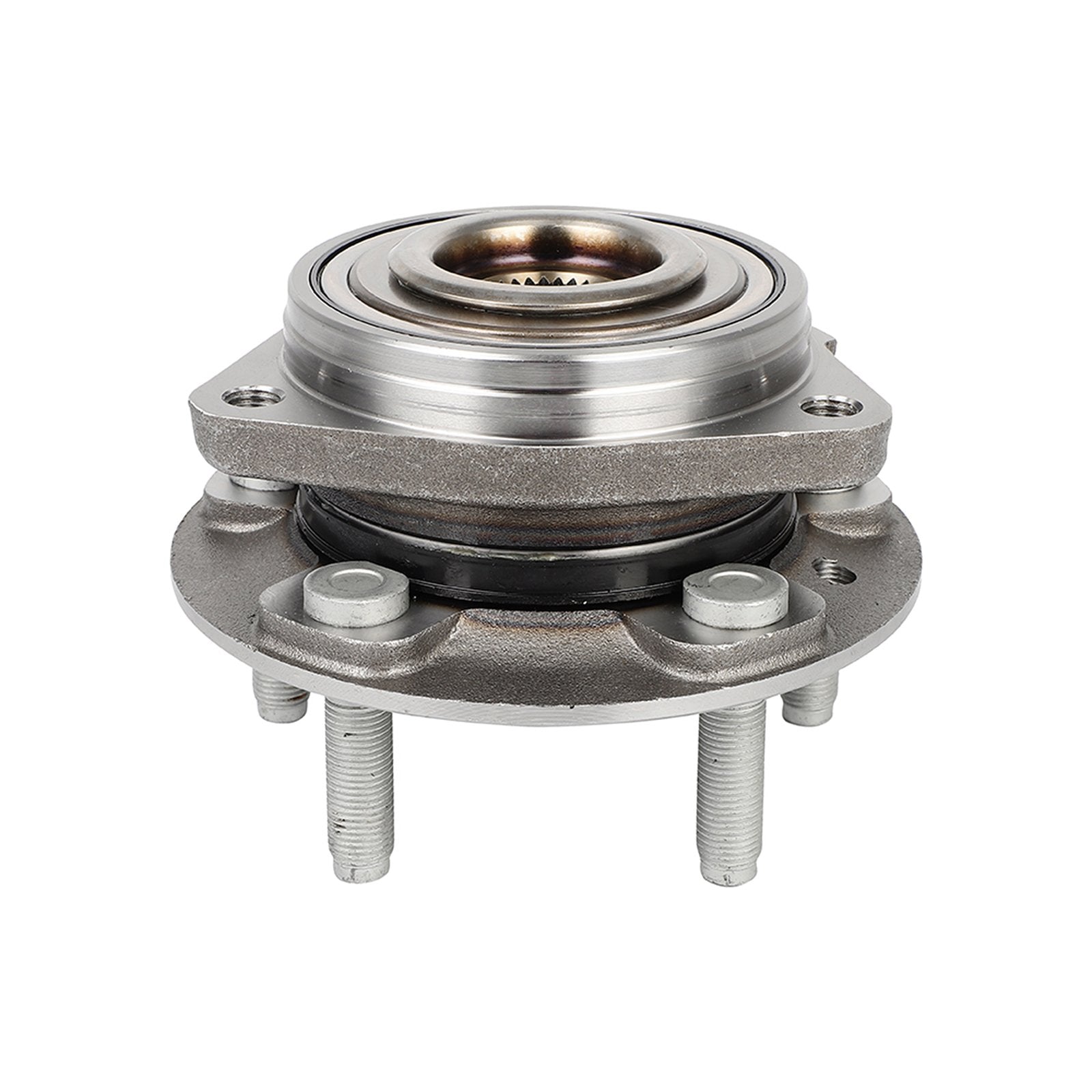

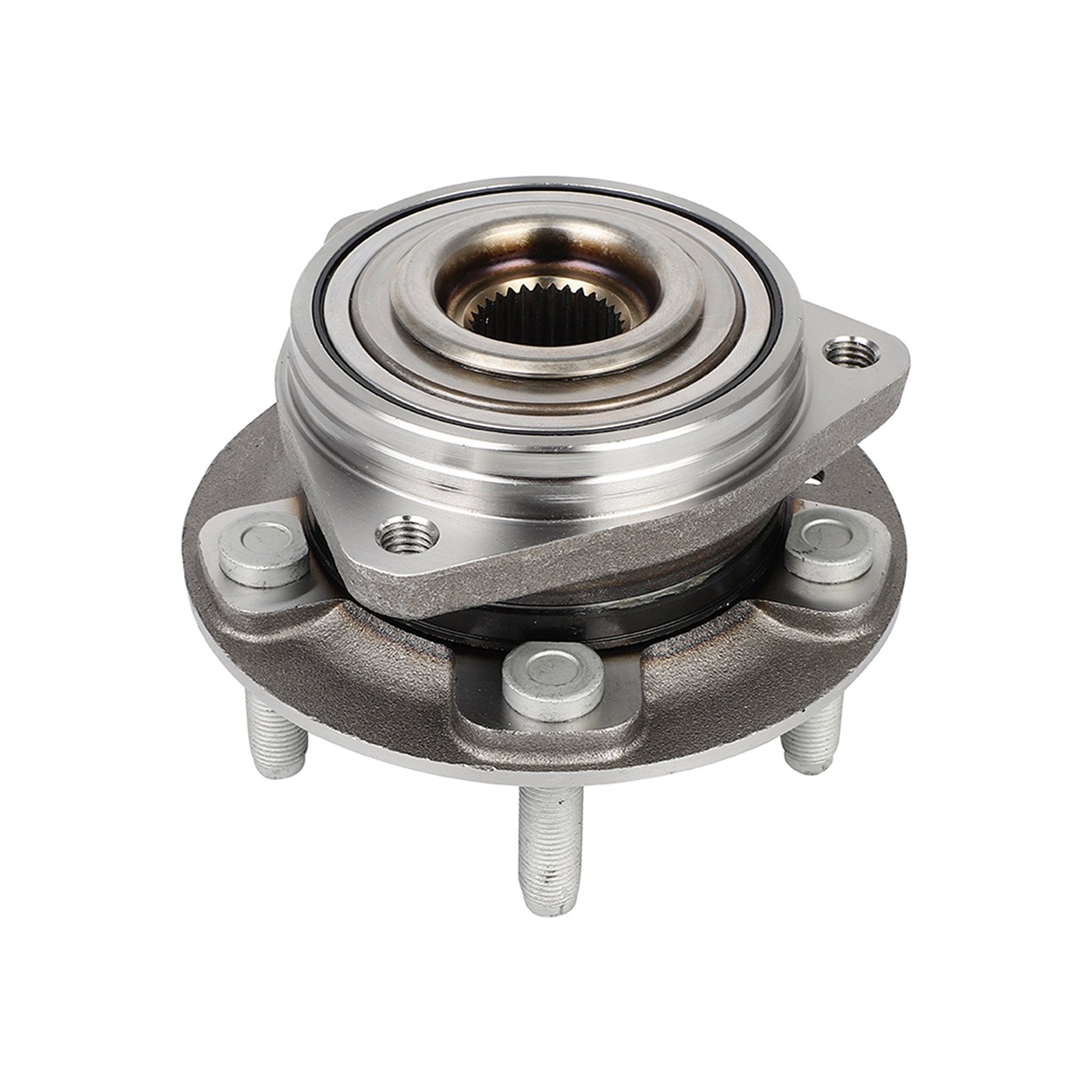

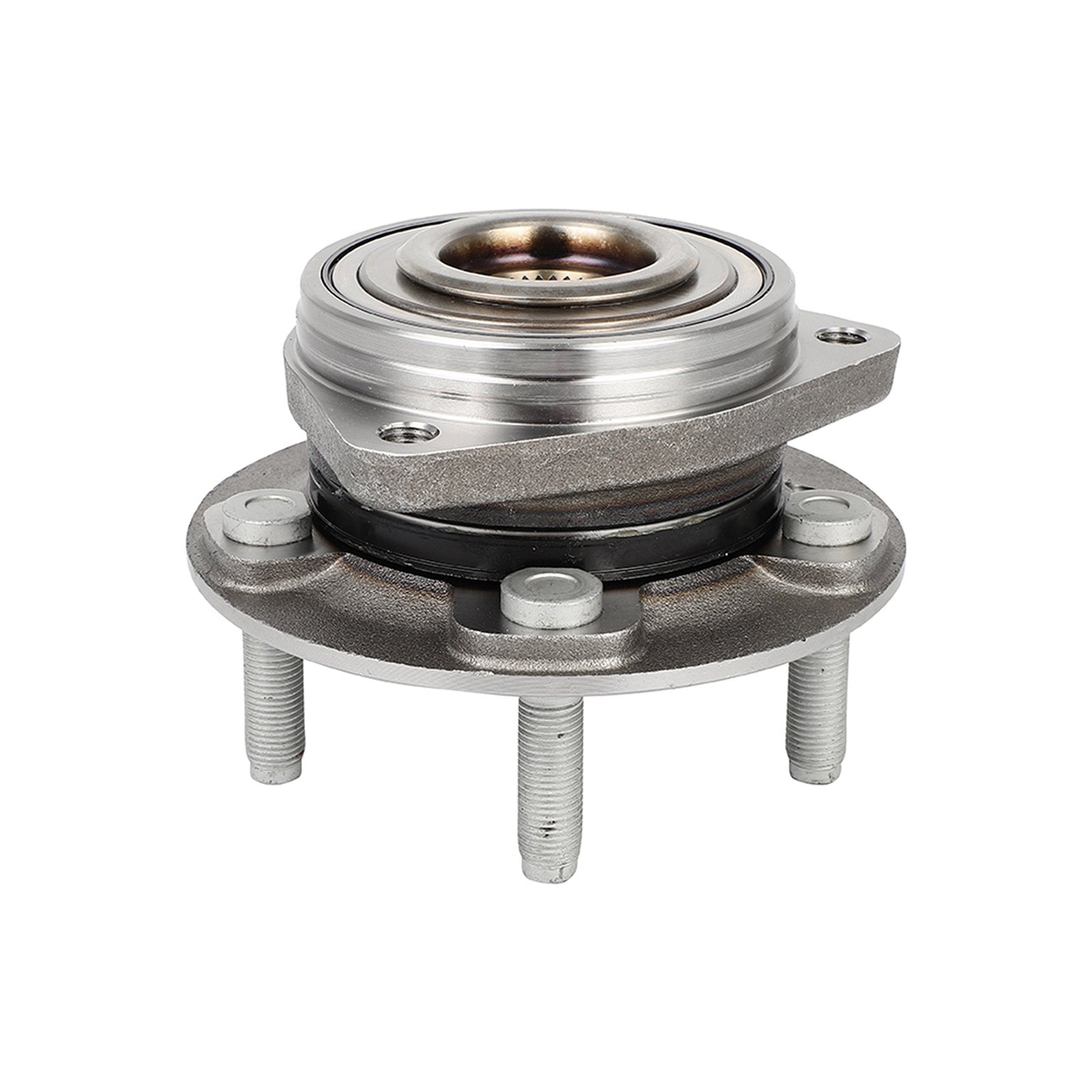

Front Wheel Hub Bearing Assembly For 2018-2023 Jeep Wrangler 2020-2023 Gladiator

Product Specifics

• ABS Sensor: Non-ABS
• Placement on Vehicle: Front
• Material: Steel
• Finish: Polished, Rust Protected
• Type: Wheel Hub & Bearing Assembly
• OE/OEM Part Number: 513423
• Quantity: 1
• Drive Type: AWD/ 4WD/ FWD
• Interchange Part Number: BR931194, MB25324, 52060398AC, 68272624AC, WA513423, WH513423
• Anti-lock Braking System: No
• Bolt Pattern: 5 x 5 in (5 x 127 mm)
• Spline Quantity: 32
• Driven Or Non-Driven Type Hub Assembly: Driven
• Bolt Circle Diameter: 5 in. / 127 mm
• Brake Pilot Diameter: 2.83 in. / 71.9 mm
• Flange Bolt Hole Quantity: 3
• Flange Bolt Size: M12x1.75
• Flange Bolts Included: No
• Flange Diameter: 6.36 in. / 161.5 mm
• Flange Offset: 1.91 in. / 48.6 mm
• Flange Shape: Triangle
• Wheel Pilot Diameter: 2.81 in. / 71.4 mm
• Wheel Stud Quantity: 5
• Wheel Stud Size: M14x1.5
• Wheel Studs Included: Yes
