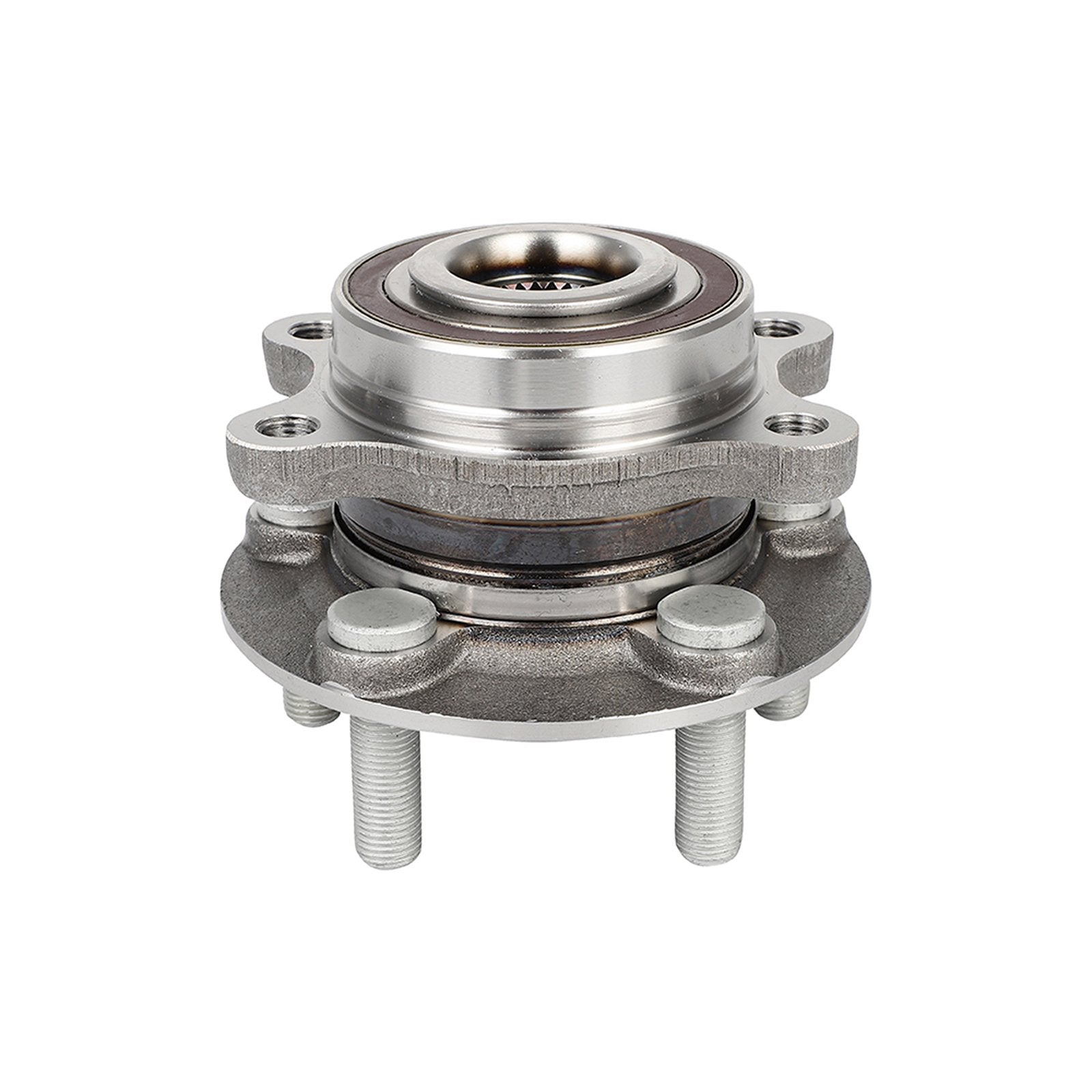

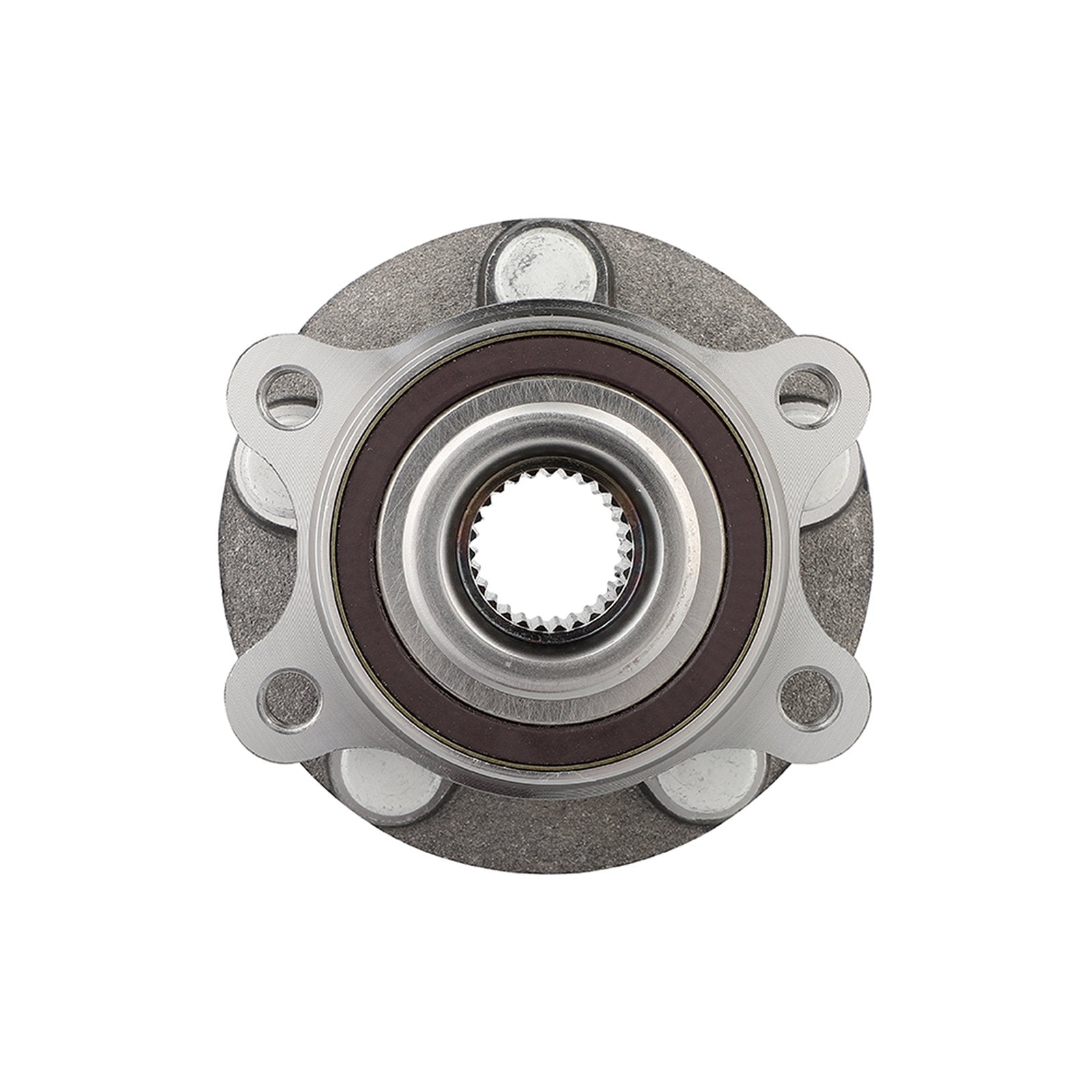

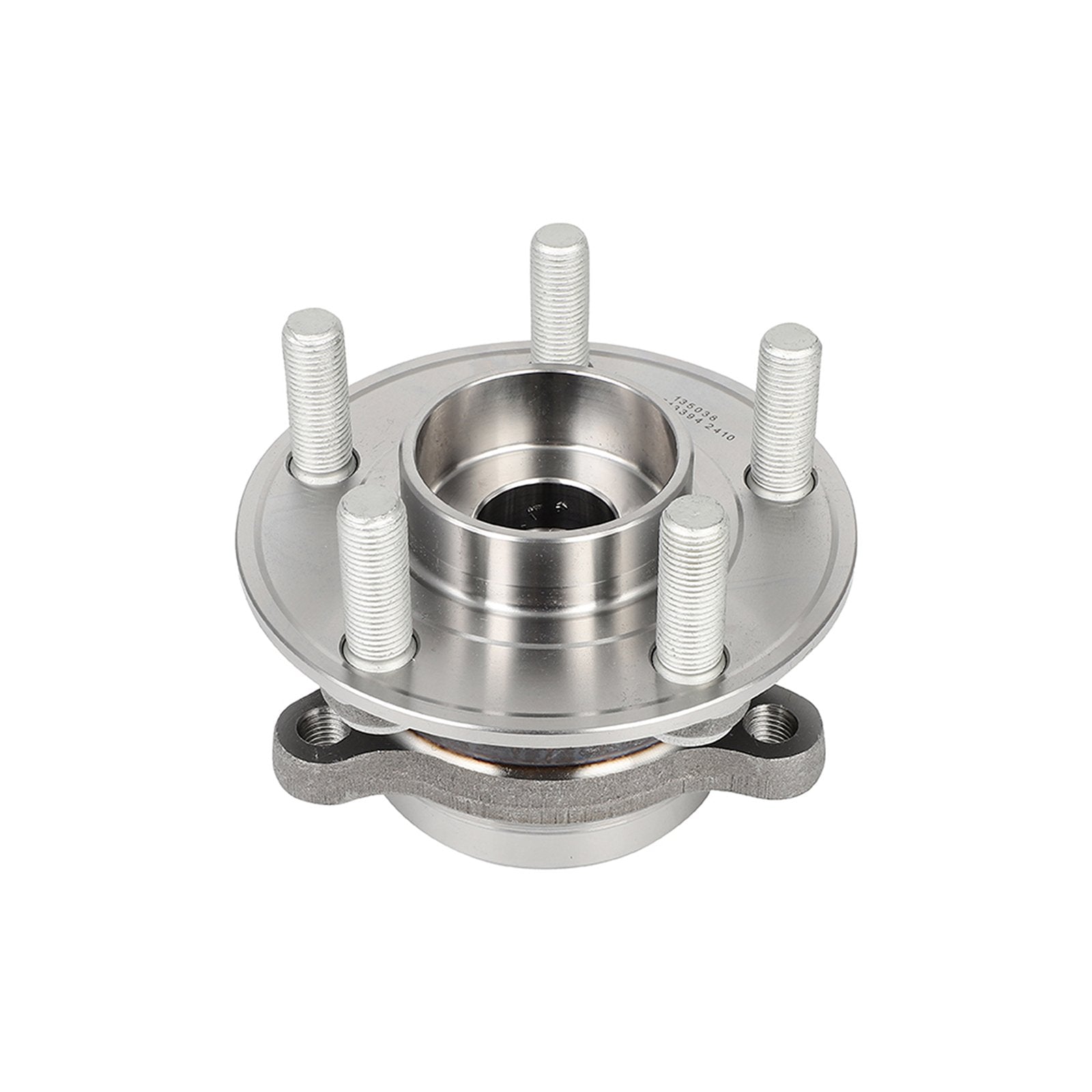

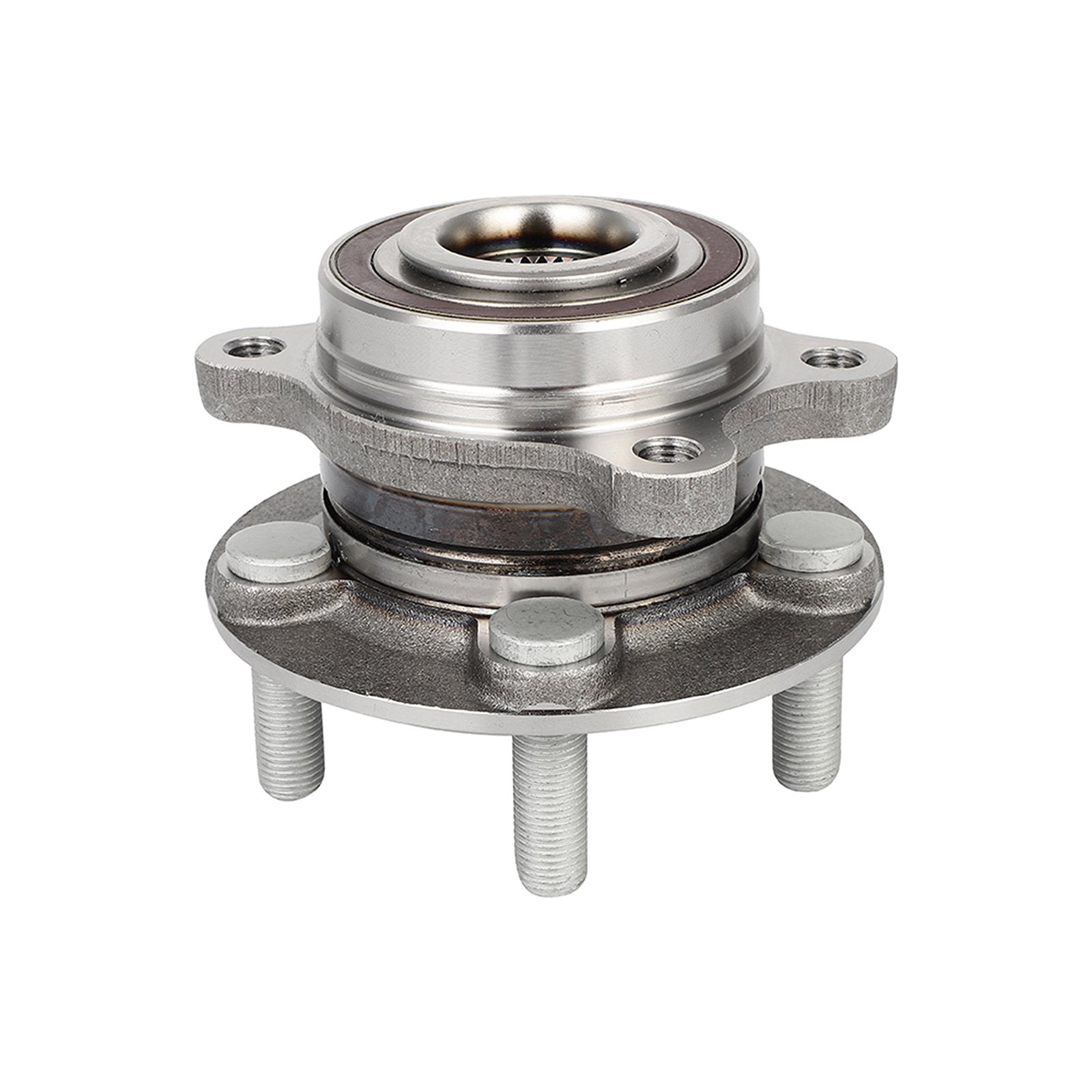

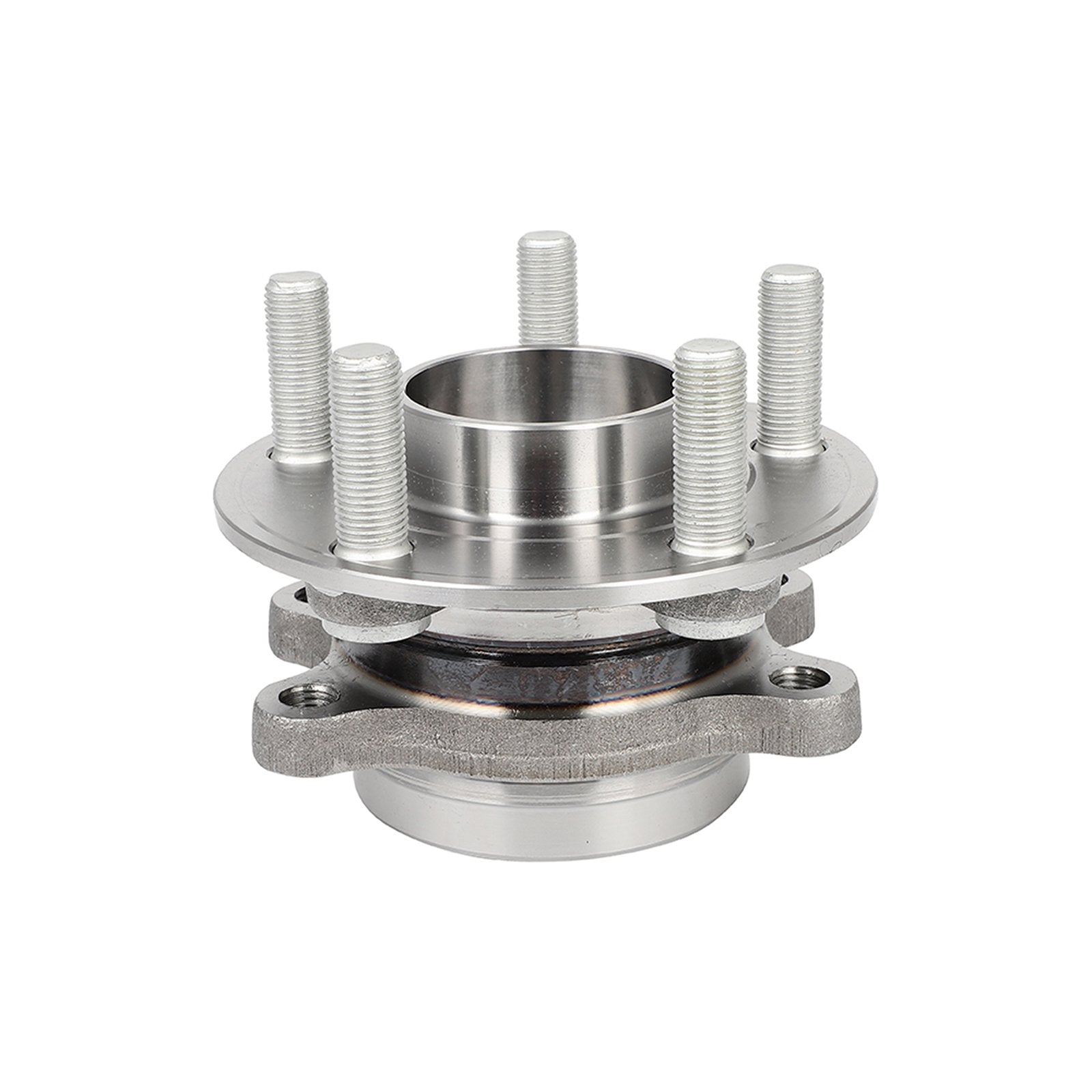

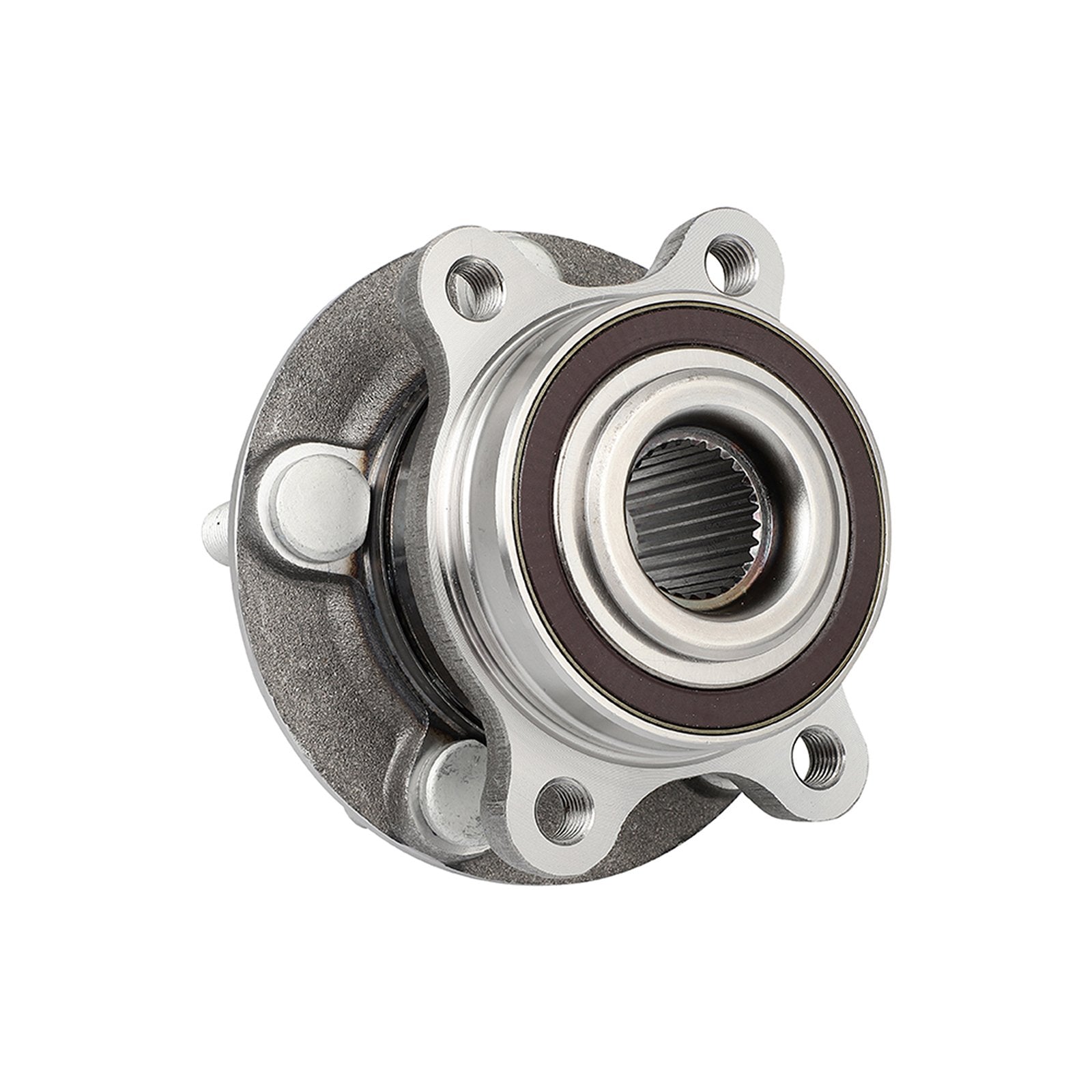

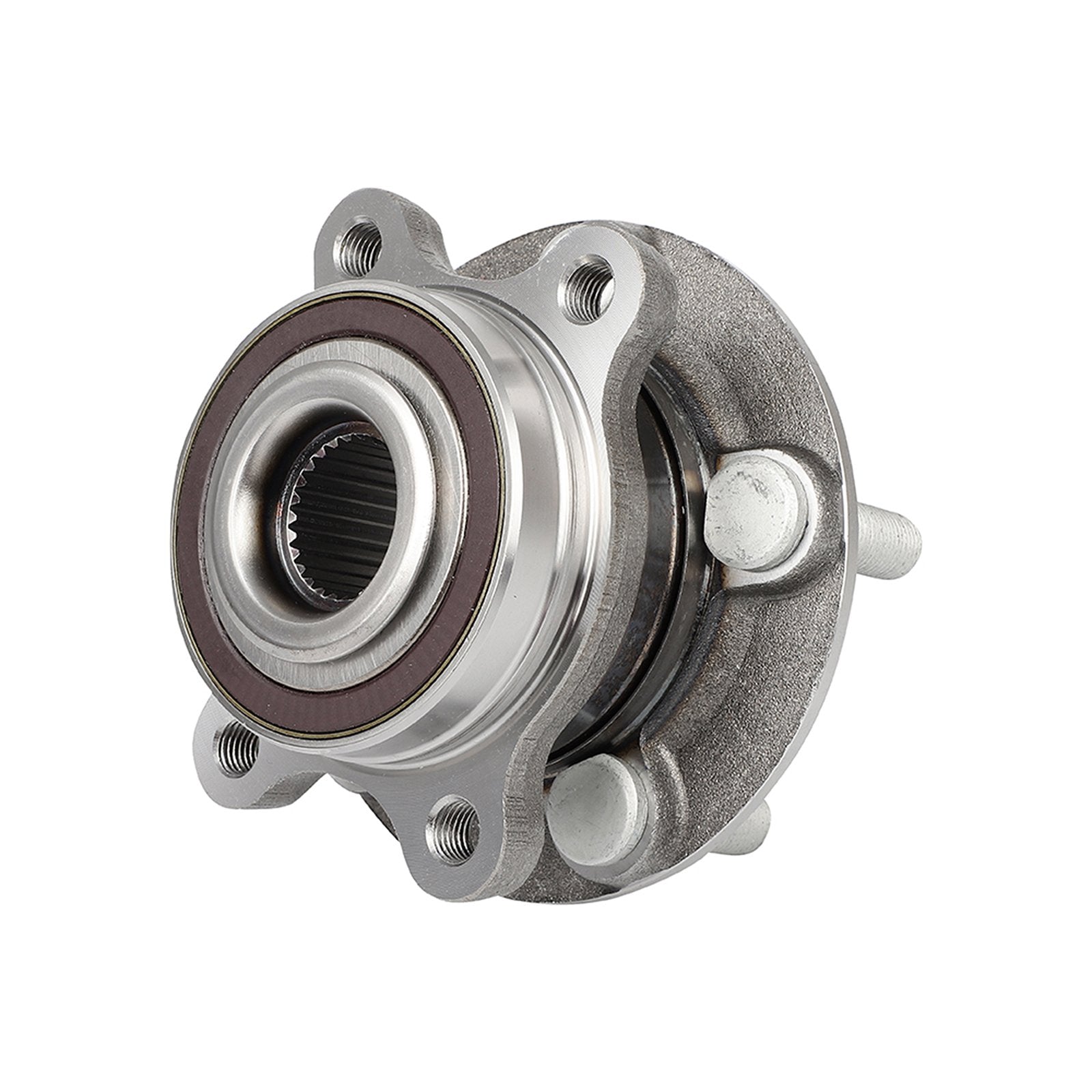

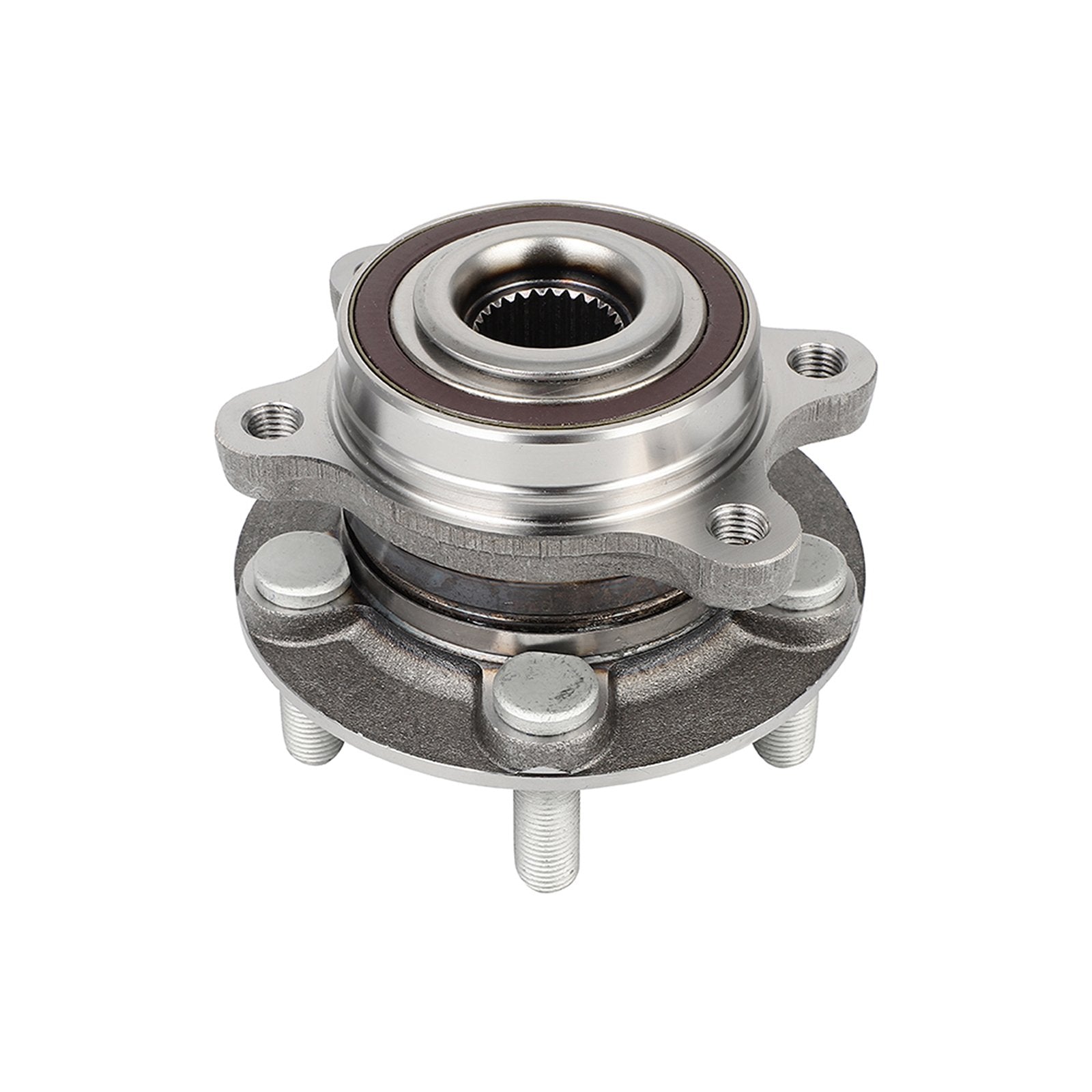

Front Wheel Hub & Bearing Assembly For Ford Edge Fusion Lincoln Continental MKX

Product Specifics

• Type: Wheel Hub & Bearing Assembly
• Placement on Vehicle: Front or Rear
• ABS Sensor: Encoder
• OE/OEM Part Number: 513394
• Material: Steel
• Finish: Polished, Rust Protected
• Quantity: 1
• Bolt Pattern: 5 x 4.25 in (5 x 108 mm)
• Spline Quantity: 27
• Bolt Circle Diameter: 4.25 in. / 108 mm
• Brake Pilot Diameter: 2.5 in. / 63.5 mm
• Flange Bolt Hole Quantity: 4
• Flange Bolts Included: No
• Flange Diameter: 5.35 in. / 135.8 mm
• Flange Offset: 1.89 in. /48 mm
• Flange Shape: Modified
• Hub Pilot Diameter: 3.42 in. / 86.9 mm
• Wheel Pilot Diameter: 2.49 in. / 63.3 mm
• Wheel Stud Quantity: 5
• Wheel Stud Size: M14x1.5
• Wheel Studs Included: Yes
• Interchange Part Number: 1411-605370, E1GZ1104E, E1GZ1104H, HUB290, K2GZ1104A, HUB421
• Anti-lock Braking System: Yes
