Marine Grade 304 Dual Trumpets Electric Train Ship Boat Air Horn Chrome Plated

Fitment:

• Chevrolet | Avalanche 2500 | 2002~2006 | 8.1L
• Chevrolet | Silverado 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• Chevrolet | Silverado 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 HD | 2001~2003/2005~2006 | 6.0L
• Chevrolet | Silverado 1500 HD Classic | 2007 | 6.0L
• Chevrolet | Silverado 2500 | 2000~2004 | 5.3L/5.7L/6.0L
• Chevrolet | Silverado 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• Chevrolet | Suburban 2500 | 2000~2013 | 6.0L/8.1L
• GMC | Sierra 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• GMC | Sierra 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 HD | 2001~2003/2005~2006 | 6.0L
• GMC | Sierra 1500 HD Classic | 2007 | 6.0L
• GMC | Sierra 2500 | 2000~2004 | 5.3L/6.0L
• GMC | Sierra 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• GMC | Yukon XL 2500 | 2000~2013 | 6.0L/8.1034L

Horn Installation

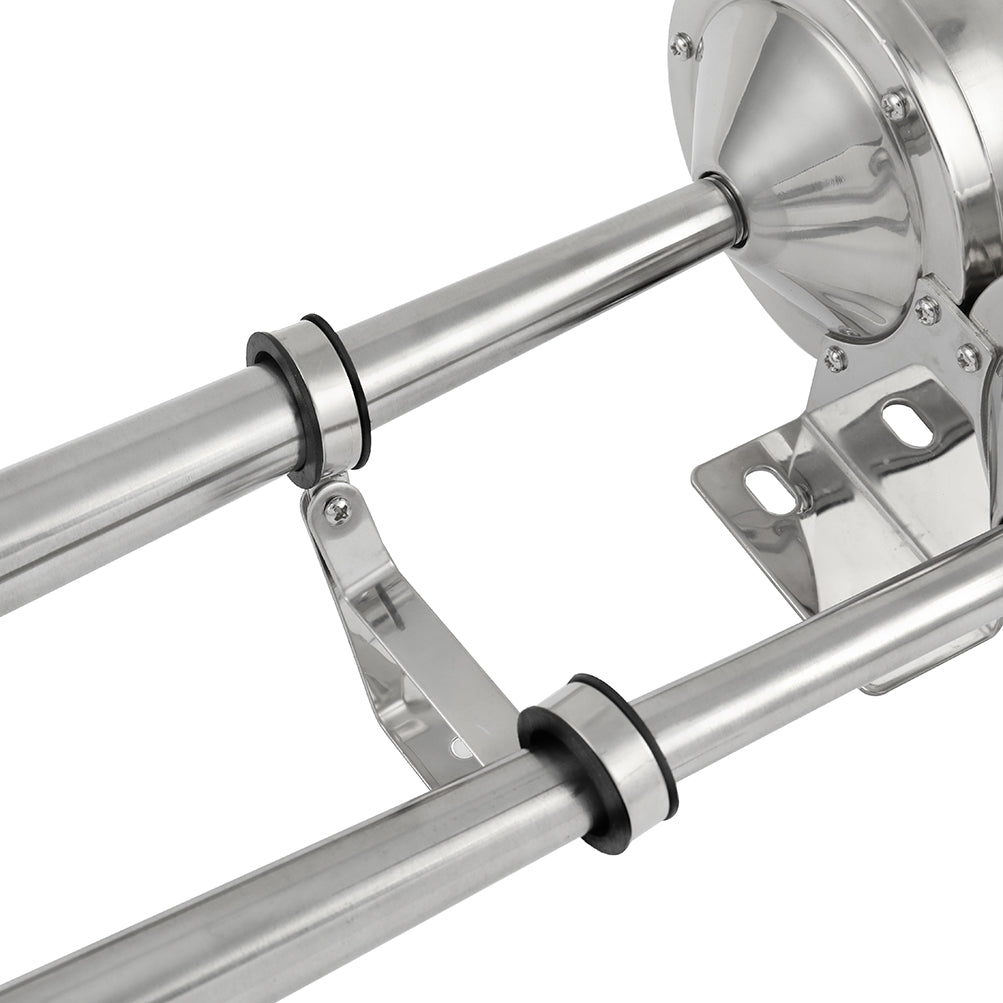

HORN MOUNTING

Once you have found a clear space to attach the horn, mark the holes using the provided horn mount and bracket. Ensure the bracket is moved forward so it is tight, then drill the holes.

If the horn wire is to be run through the mounting area, mark and drill the wire holes.

Note

Be careful to avoid sharp ends which could damage the horn inch wire. Using silicon or waterproof sealant on the wire (by its passage point) is suggested if you are attaching to the roof.

Attach the horn with the included hardware. Screws should be uniformly tightened.

To prevent exposure to water, always use the rubber gaskets which are included.

ELECTRICAL CONNECTIONS (OPTIONAL HORN BUTTON)

Using a 10A inline fuse (not provided), connect the positive wire (RED) to the (+) 12-volt positive power source of your vehicle.

Connect the negative wire (BLACK) to one of the terminals of the horn button.

The remaining horn button's terminal should be attach to ground (clean metal surface)

ELECTRICAL CONNECTIONS (FACTORY HORN BUTTON)

TWO WIRE CONNECTION

Remove the wires from your factory horn and attach each wire to one of the horn.

ONE WIRE CONNECTION

Detach the wire from your factory horn and attach it to one wire of the horn.

The second wire should be attached to the ground (clean metal surface).

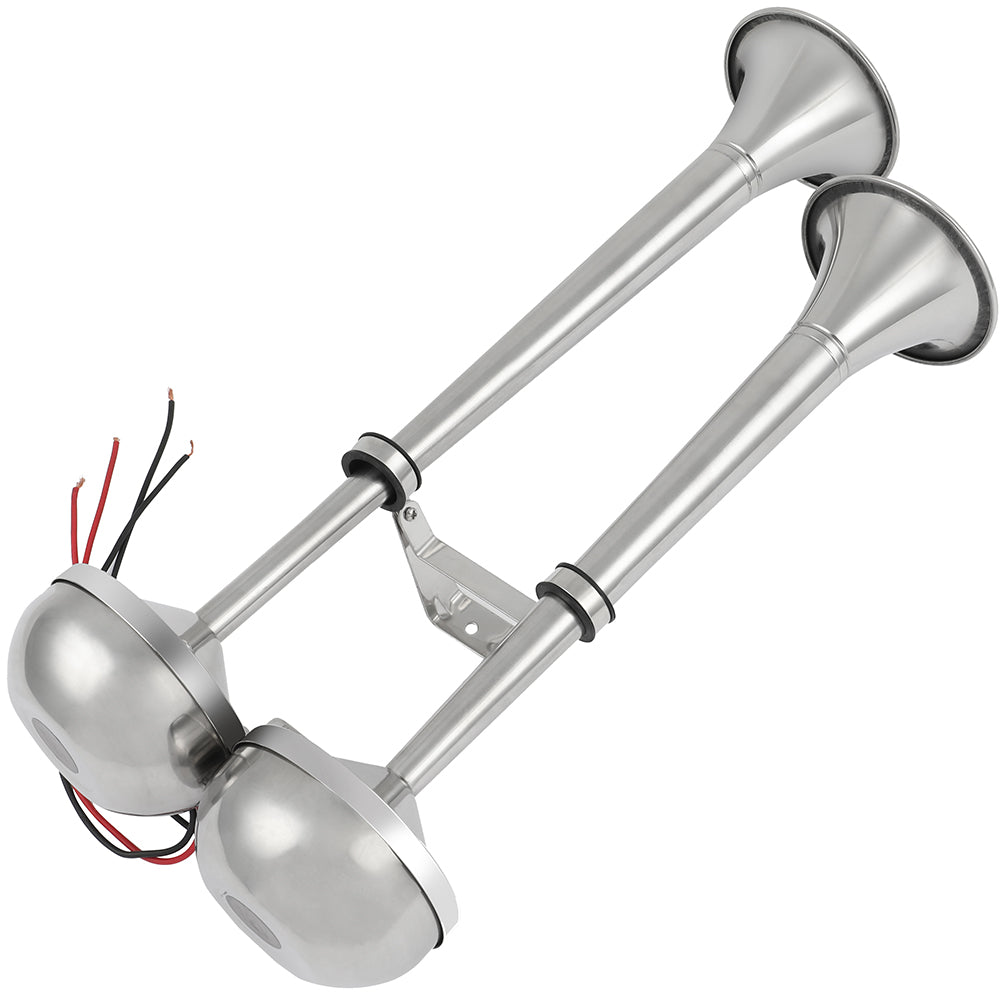

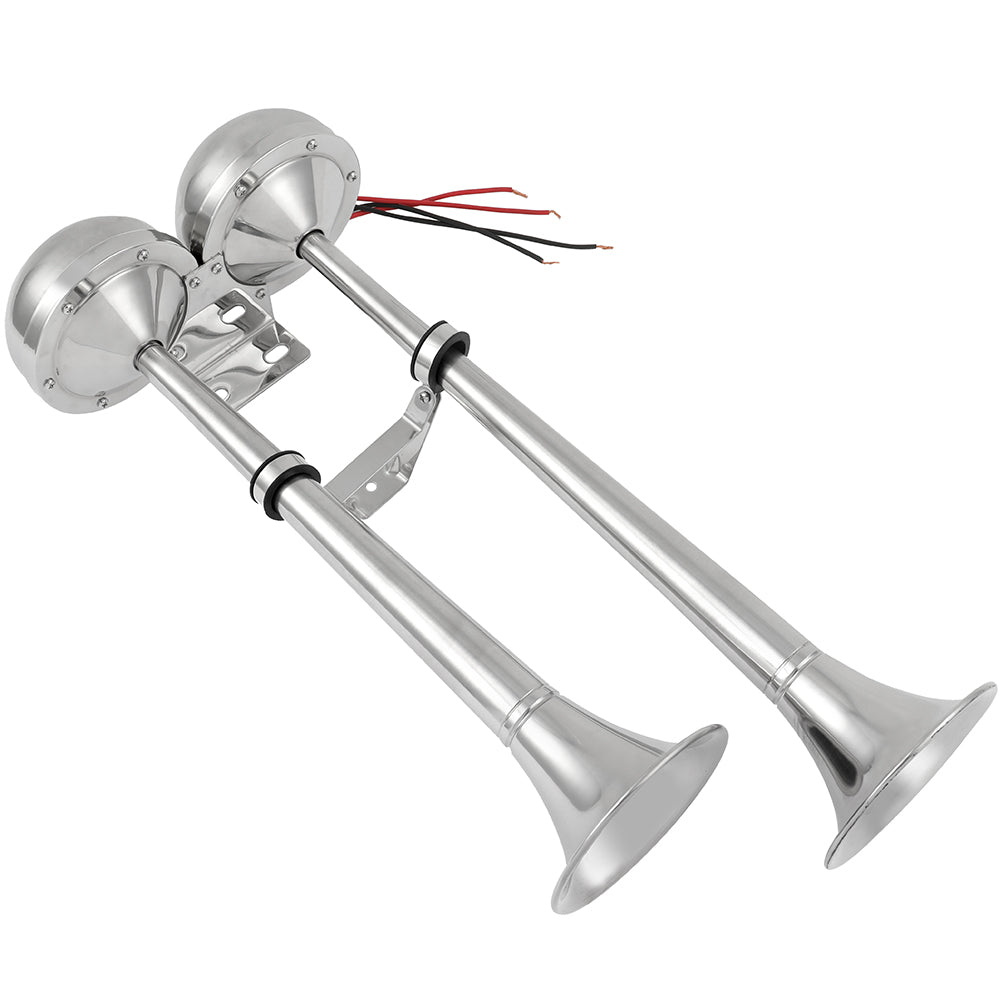

This powerful, maintenance free, Dual trumpet electric horn is made of a 100% non-magnetic stainless steel material with a bright polished finish that will not rust. Specially designed for exterior use, it is ideal for marine applications in a salt water environment but can also be used on other vehicles with a 12V system. Connection is simple with only four wires, and does not require an on-board air system. This means that a compressor and air tank are not required to crash the seas.

SAFETY INSTRUCTIONS

Avoid dismantling this horn inch electrical elements.

Avoid setting up any parts of the horn where there is a risk of falling off or risk of coming in contact with water.

Avoid reaching out to touch or pick up any fallen or water submerged parts.

Set the horn up for use only in areas with adequate ventilation.

Avoid sounding the air horn when in close range to your ear(s) or the ear(s) of others.

Make sure your battery ground is detached before getting your installation started.

Employ equipment for eye protection during drilling operations.

The Horn is the perfect addition to 12V vehicles

No Onboard Air System is Required , It only needs wiring

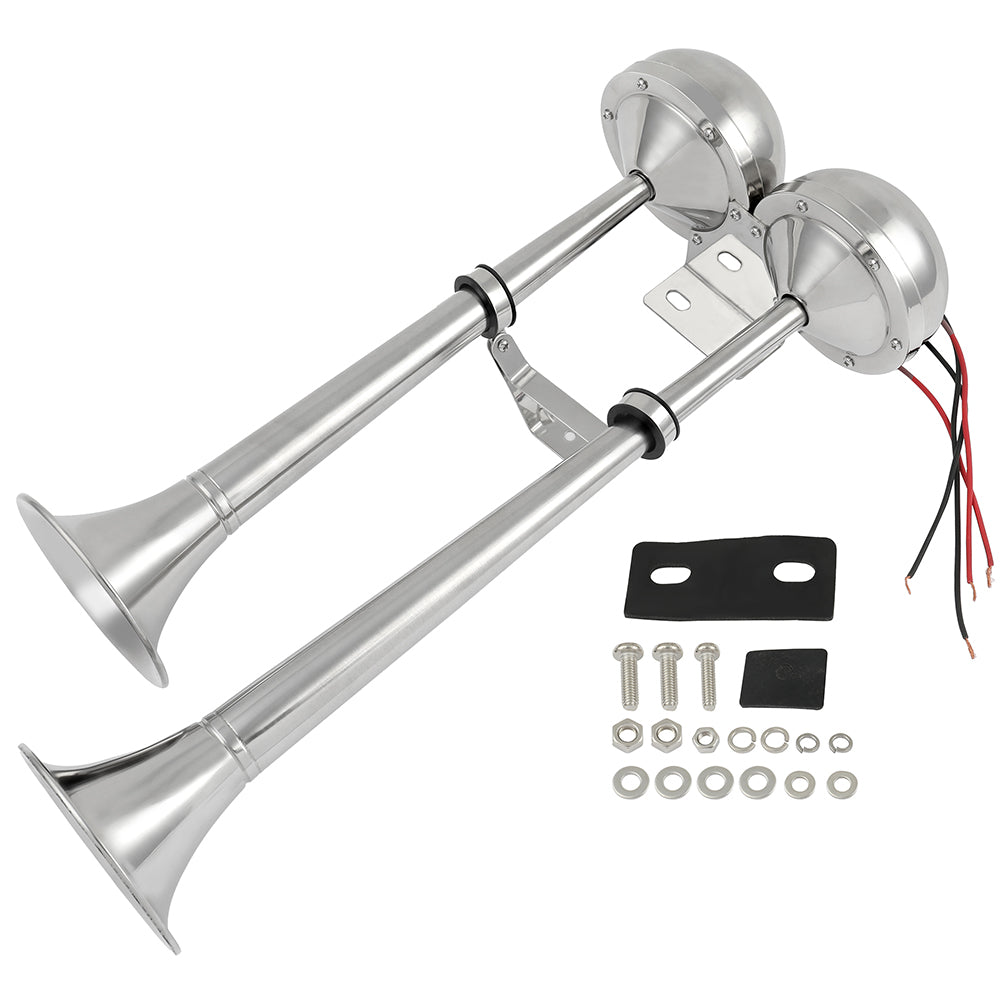

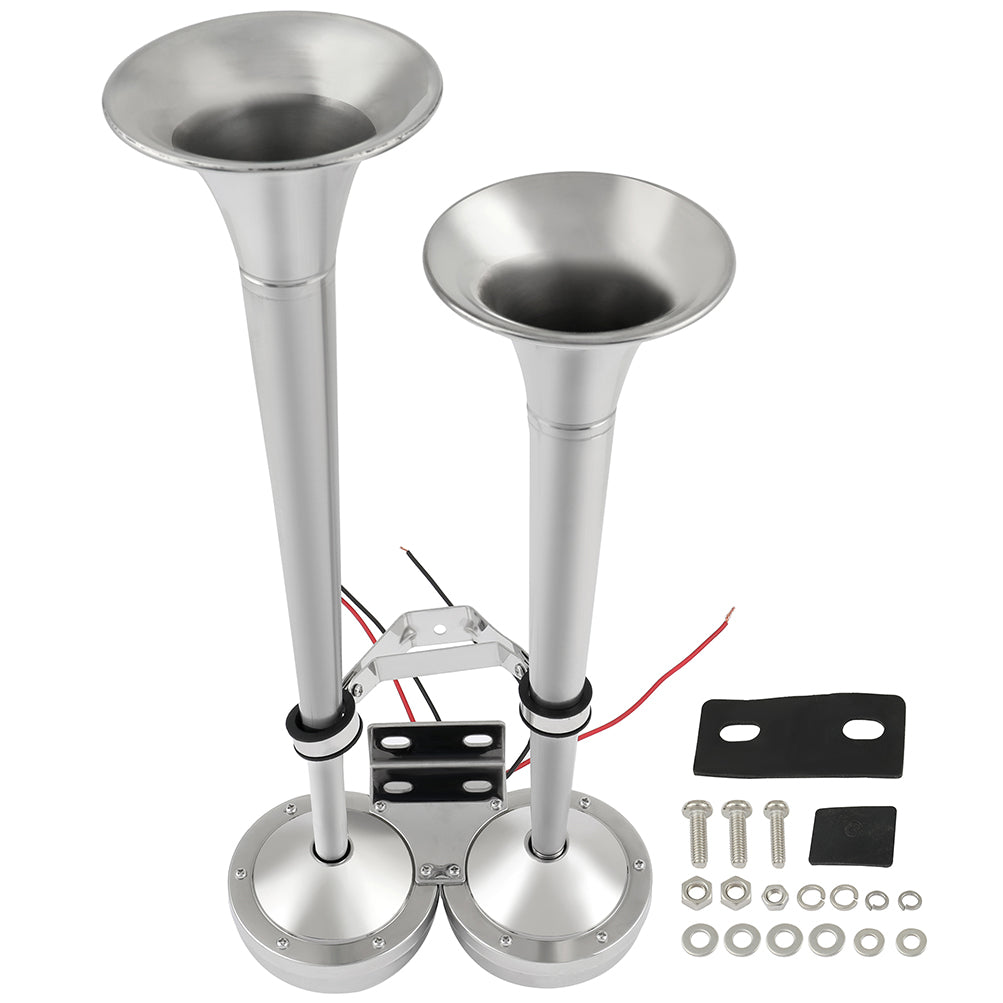

Includes

1x Dual Marine Grade Electric Train Horn
