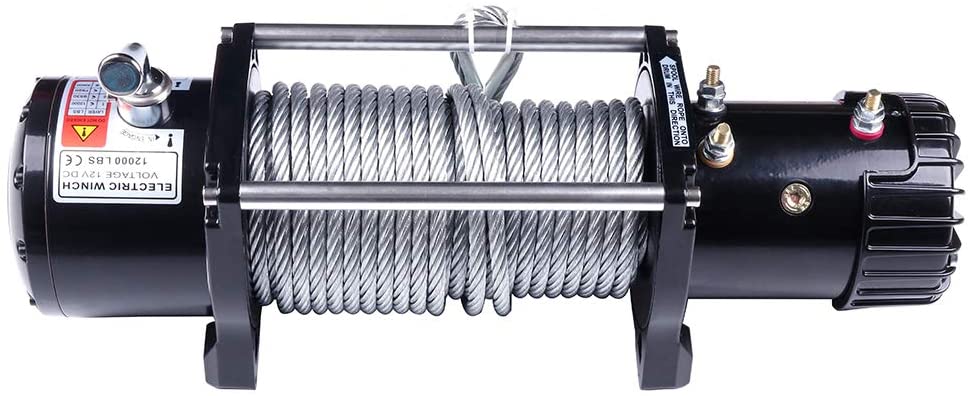

OFA 12V 12000LBS Electric Winch Steel Cable Truck Trailer Towing Off Road 4WD 116565

Fitment:

• Jeep | 475 | 1956 | 2.2L
• Jeep | 6-226 | 1957~1964 | --/3.7L
• Jeep | 6-230 | 1962~1965 | 3.8L
• Jeep | CJ3 | 1959~1960/1962~1964/1966 | --/2.2L/3.7L
• Jeep | CJ5 | 1959~1961/1963~1983 | --/2.2L/2.5L/3.1L/3.2L/3.7L/3.8L/4.2L/5.0L
• Jeep | CJ5A | 1966 | 2.2L
• Jeep | CJ6 | 1959~1964/1966~1975 | --/2.2L/3.1L/3.2L/3.7L/3.8L/4.2L/5.0L
• Jeep | CJ6A | 1968 | 2.2L
• Jeep | CJ7 | 1976~1986 | 2.5L/3.8L/4.2L/4.6L/5.0L
• Jeep | Cherokee | 1974~2001/2014~2018 | 2.1L/2.4L/2.5L/2.8L/3.2L/4.0L/4.2L/5.9L
• Jeep | Comanche | 1986~1992 | 2.1L/2.5L/2.8L/4.0L
• Jeep | Commander | 2006~2010 | 3.7L/5.7L
• Jeep | Commando | 1966~1973 | 2.2L/3.7L/3.8L/4.2L/5.0L
• Jeep | Compass | 2007~2018 | 2.0L/2.4L
• Jeep | DJ3 | 1960/1963~1966 | 2.2L/3.2L
• Jeep | DJ5 | 1965~1968/1971~1975/1977/1980~1983 | 2.2L/2.5L/3.2L/3.7L/3.8L/4.2L
• Jeep | DJ6 | 1965~1968 | 2.2L/3.2L/3.7L
• Jeep | Dispatcher | 1961/1963/1965~1969 | 2.2L/3.2L/3.7L
• Jeep | F-134 | 1957~1964/1966 | --/2.2L
• Jeep | F4 | 1957/1959~1960 | 2.2L
• Jeep | F4-134 | 1957~1958/1961 | 2.2L
• Jeep | FA-134 | 1958~1959 | 2.2L
• Jeep | FC150 | 1957~1960/1962~1966 | --/2.2L/3.7L
• Jeep | FC170 | 1958~1966 | --/2.2L/3.7L
• Jeep | FC170HD | 1964/1966 | 3.7L
• Jeep | FJ3A | 1963~1964 | 2.2L
• Jeep | Gladiator | 1964~1969 | 3.8L/5.3L
• Jeep | Grand Cherokee | 1993~2001/2003~2018 | --/3.0L/3.6L/3.7L/4.0L/4.7L/5.2L/5.7L/5.9L/6.1L/6.2L/6.4L
• Jeep | Grand Wagoneer | 1984~1985/1988~1989/1991/1993 | 4.2L/4.6L/5.2L/5.9L
• Jeep | J-100 | 1963~1973 | --/3.8L/4.2L/5.0L/5.3L/5.7L
• Jeep | J-200 | 1963~1965 | 3.8L/5.3L
• Jeep | J-210 | 1963~1965 | 3.8L
• Jeep | J-220 | 1964~1965 | 3.8L/5.3L
• Jeep | J-230 | 1964~1965 | 3.8L
• Jeep | J-2500 | 1965~1973 | --/3.8L/4.2L/5.0L/5.3L/5.7L/5.9L
• Jeep | J-2600 | 1965~1973 | 3.8L/4.2L/5.0L/5.3L/5.7L/5.9L
• Jeep | J-2700 | 1965~1970 | 3.8L/5.3L/5.7L
• Jeep | J-2800 | 1965~1968 | 3.8L/5.3L/5.4L
• Jeep | J-300 | 1963~1964 | 3.8L
• Jeep | J-310 | 1963~1965 | 3.8L/5.3L
• Jeep | J-320 | 1963 | 3.8L
• Jeep | J-330 | 1963~1965 | 3.8L/5.3L
• Jeep | J-3500 | 1965~1970 | 3.8L/5.3L/5.4L
• Jeep | J-3600 | 1965~1970 | 3.8L/5.3L/5.4L/5.7L
• Jeep | J-3700 | 1965~1966/1968~1969 | 3.8L/5.3L/5.4L/5.7L
• Jeep | J-3800 | 1965~1971 | --/3.8L/4.2L/5.3L/5.7L
• Jeep | J-4500 | 1970~1972 | 3.8L/4.2L/5.0L
• Jeep | J-4600 | 1970~1973 | 3.8L/4.2L/5.0L/5.3L/5.7L
• Jeep | J-4700 | 1970~1973 | 4.2L/5.0L/5.7L
• Jeep | J-4800 | 1971~1973 | 4.2L/5.0L
• Jeep | J10 | 1974~1982/1984~1985/1987 | 4.2L/4.6L/5.9L
• Jeep | J20 | 1974~1976/1978/1980/1984/1986/1988 | 4.2L/5.9L
• Jeep | Jeepster | 1966~1971 | 2.2L/3.7L
• Jeep | Liberty | 2002~2003/2005~2006/2008~2012 | 2.4L/2.8L/3.7L
• Jeep | M151 | 1960~1961/1965~1966/1969/1972 | --
• Jeep | Patriot | 2007~2017 | --/2.0L/2.4L
• Jeep | Renegade | 2015~2018 | 1.4L/1.8L/2.4L
• Jeep | Scrambler | 1982~1985 | 2.5L/4.2L
• Jeep | TJ | 1997~2006 | 2.4L/2.5L/4.0L
• Jeep | Tornado | 1963/1965 | 3.8L
• Jeep | Truck | 1956~1966 | 2.2L/3.7L/3.8L
• Jeep | Universal | 1962~1967 | 2.2L
• Jeep | Universal Truck | 1961~1969 | 2.2L/3.2L/3.7L
• Jeep | Utility | 1961~1962 | 2.2L
• Jeep | Utility Wagon | 1956~1959/1961~1964 | 2.2L/3.7L/3.8L
• Jeep | Wagoneer | 1963~1977/1979~1988 | 2.1L/2.5L/2.8L/3.8L/4.0L/4.2L/4.6L/5.3L/5.7L/5.9L/6.6L
• Jeep | Willys | 1943~1958 | --/2.2L/2.4L/2.6L/3.7L
• Jeep | Wrangler | 1987~1995/1997~2018 | --/2.4L/2.5L/3.6L/3.8L/4.0L/4.2L
• Jeep | Wrangler JK | 2018 | 3.6L

Item Specifications

Performance Voltage DC 12V

Rated line pull(single line) 12000LB(5443KG)

Motor 6HP(4.5KW)Series Wound

Gear train 3 Stage Planetary

Gear reduction ratio 265:1

Free Spooling Clutch Sliding ring gear

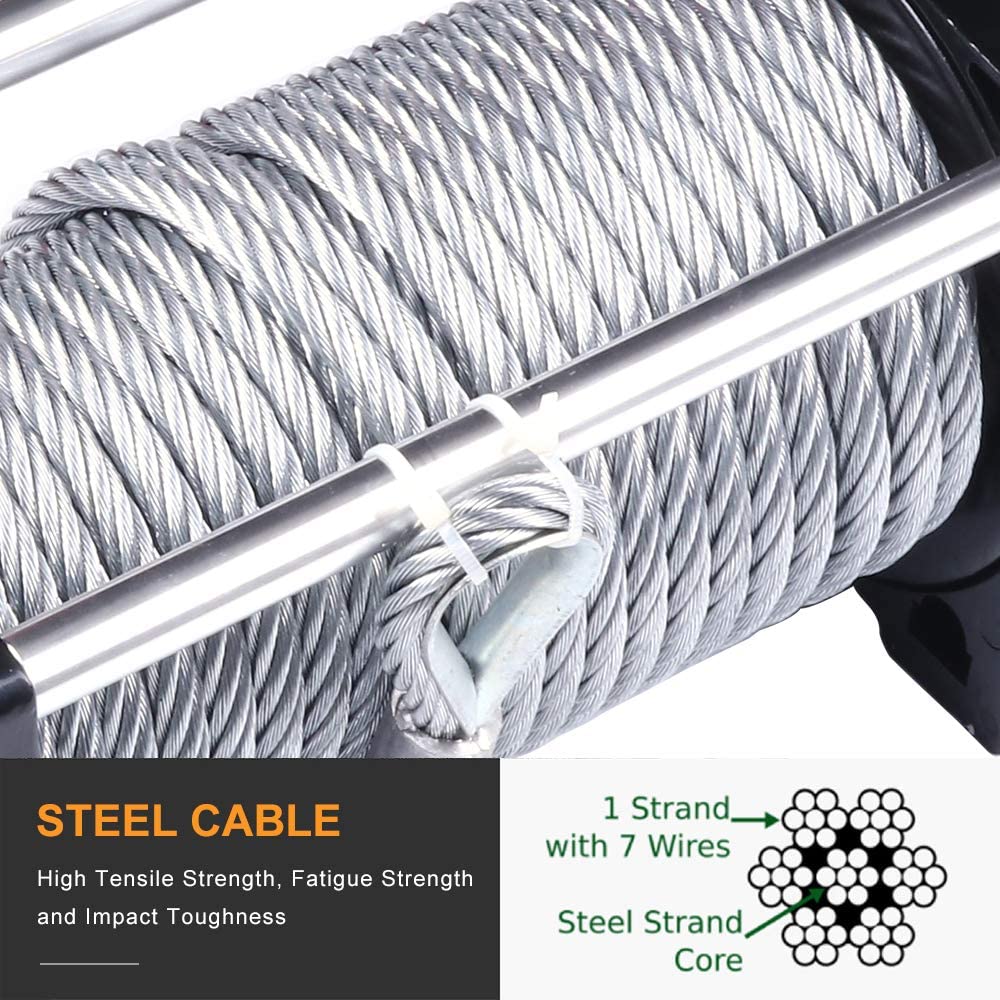

Wire Rope ?9.5mm ¡Á24m

Drum Diameter/Length ?64mm x224mm

Braking action Automatic in the drum

Fairlead 4-way Roller

Duty Cycle Intermittent

Mounting bolt pattern 114mm*254mm

Remote Control Cable 3m

Wireless Remote Control Optional

Dimensions 530mmX160mmX216mm

G.W/N.W 40/38kg(1PCS)

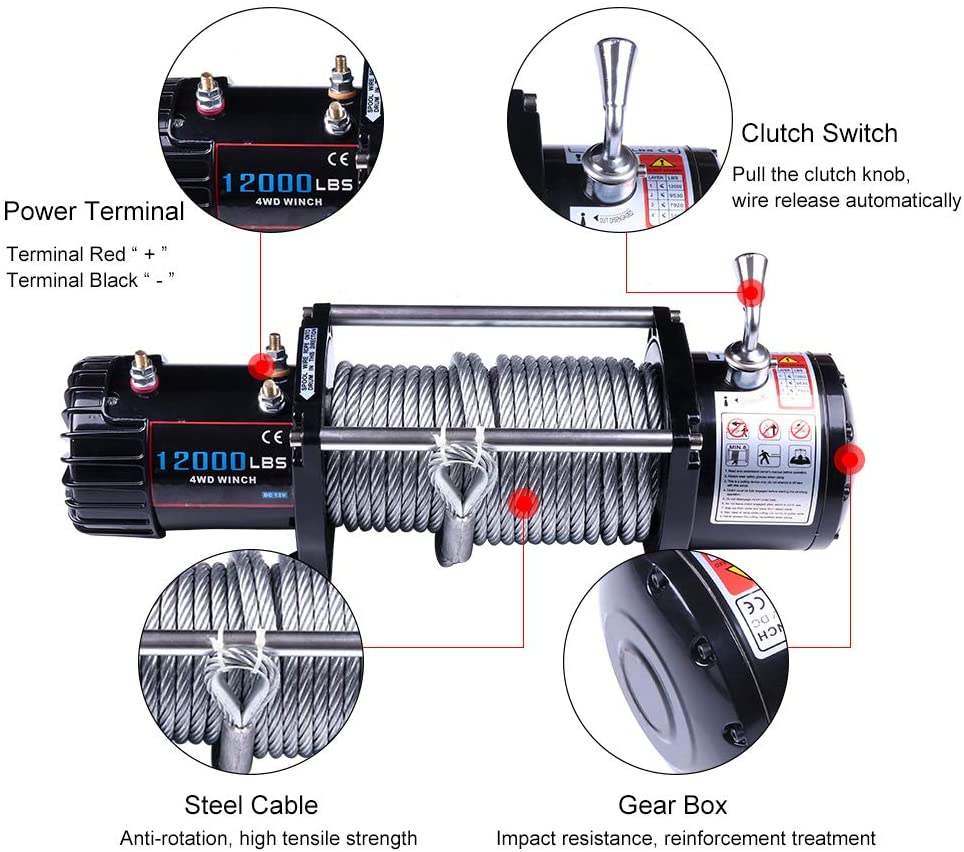

Feature

12,000LB( single line rated pull )Electric Winch

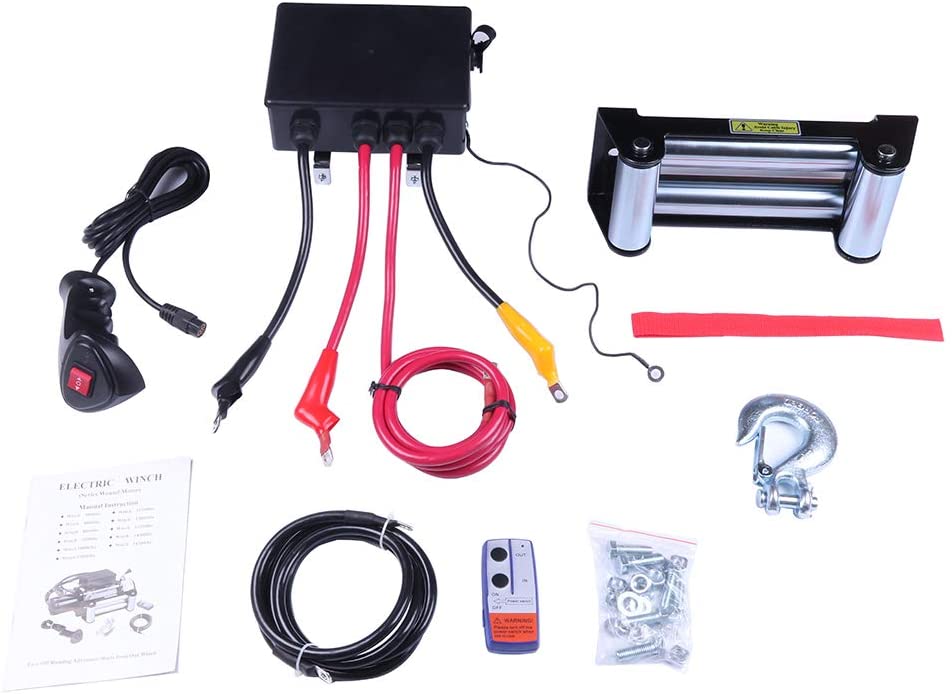

Includes

1 x 12,000lb Winch

1 x Wireless Remote Controler

1 x Hand Remote Controler

1 x Solenoid Control Box

1 x 4 Way Roller Fairlead

1 x Negative Wire

1 x Hook

1 x Users Manual

Mounting Screws are Included

Include accessories

12000lb Winch

Wireless Remote Controller

Hand Remote Controller

Control Box Assembly

4 Way Roller Fairlead

Negative Wire

Hook

users Manual
