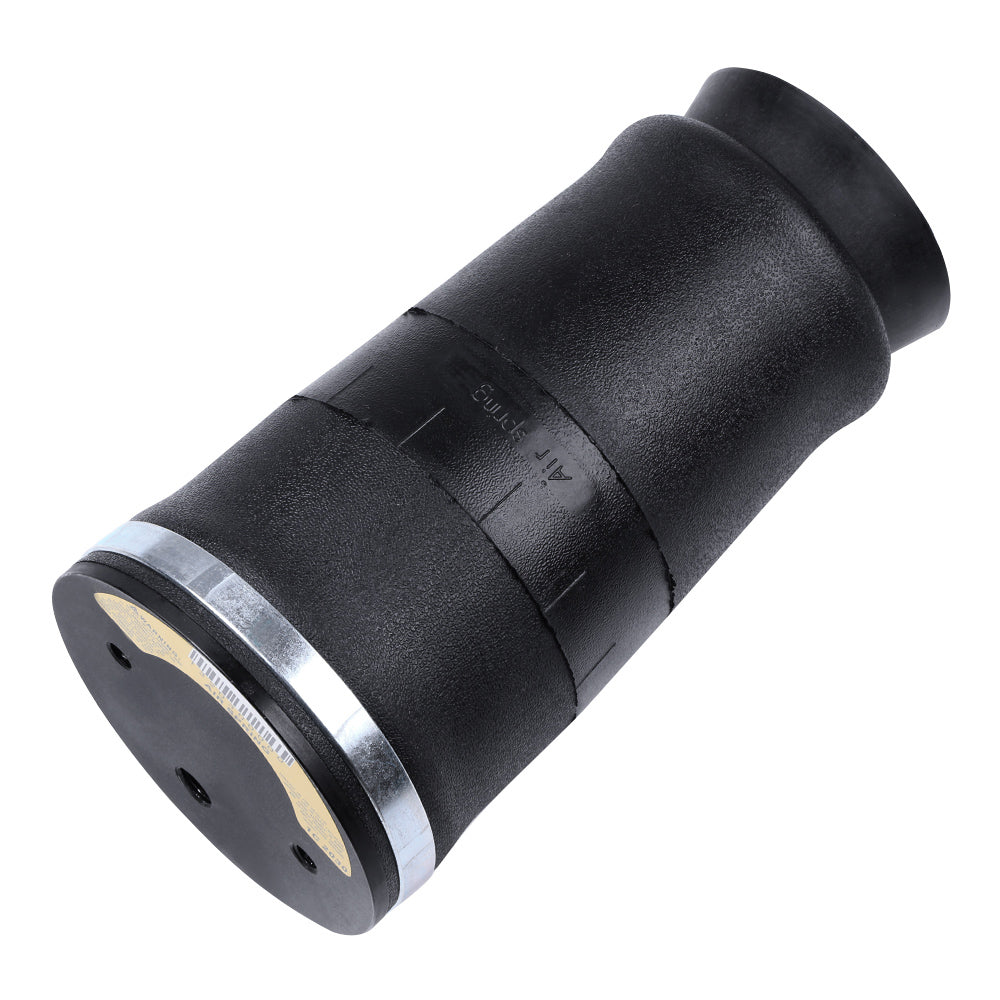

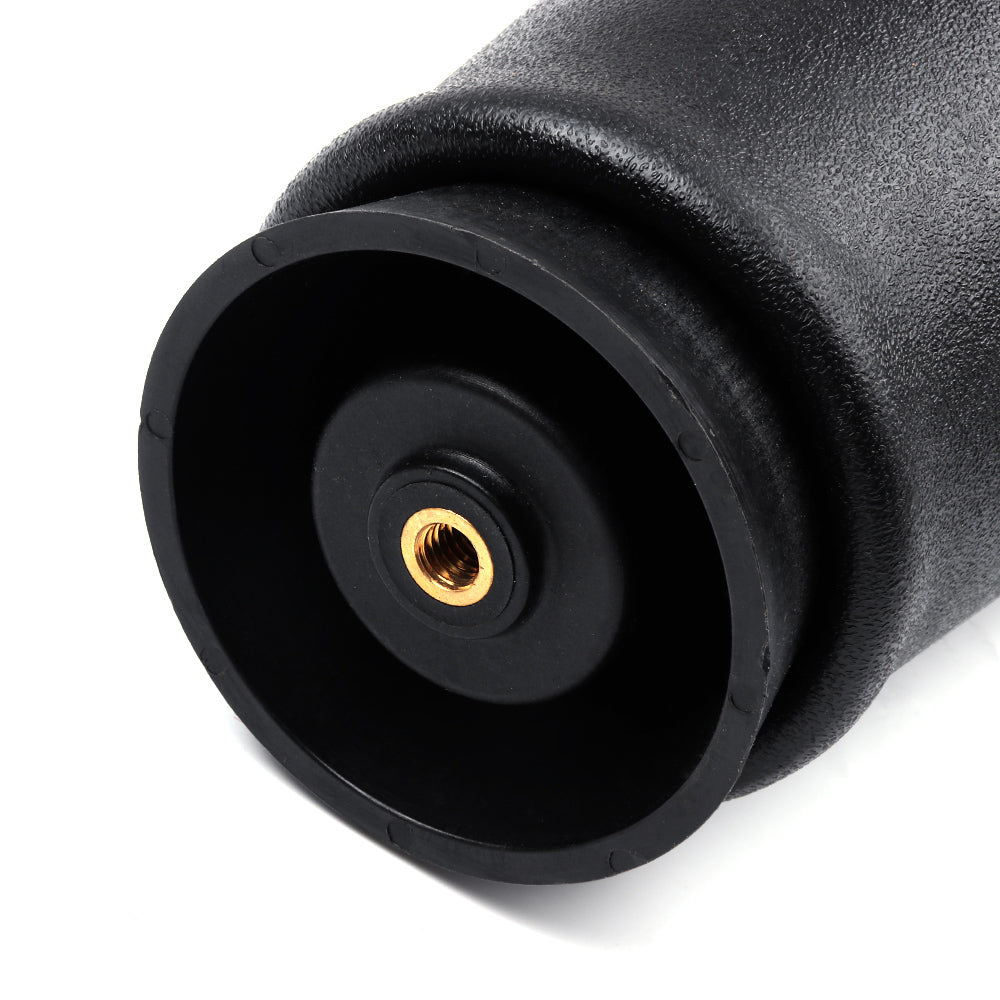

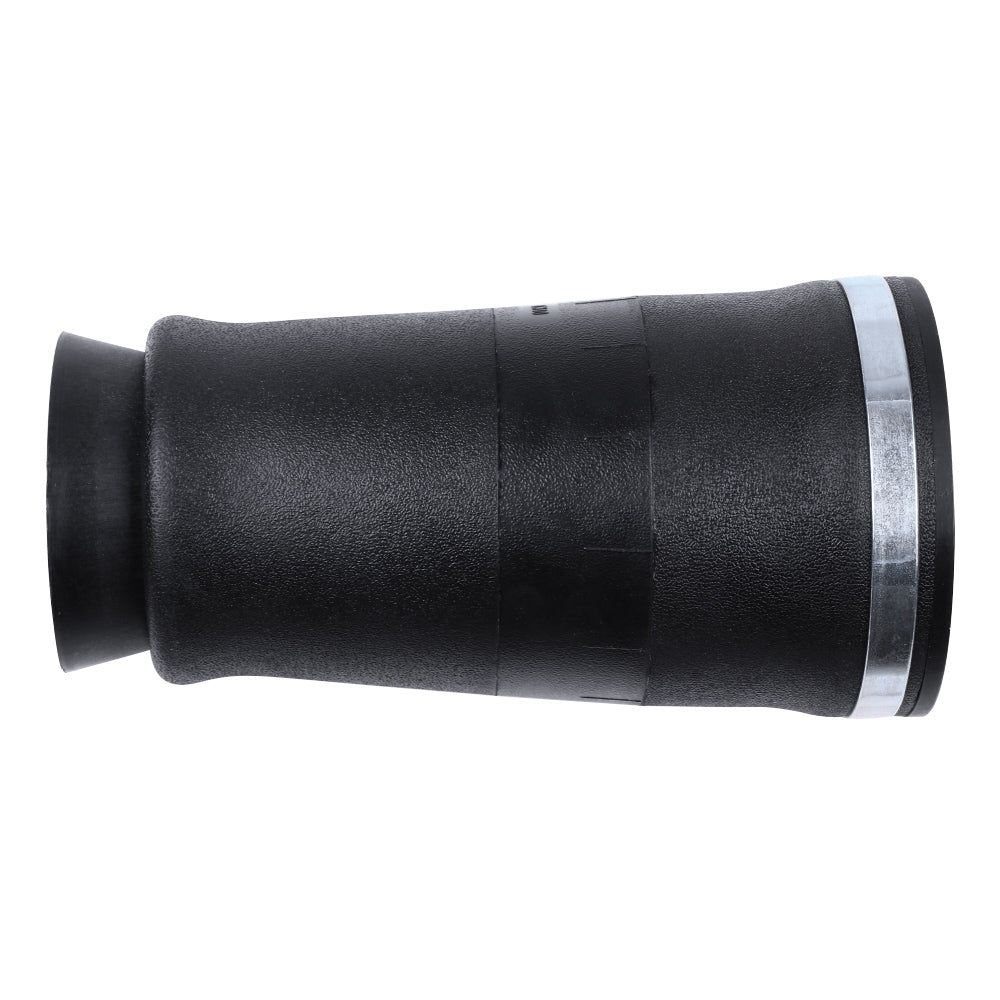

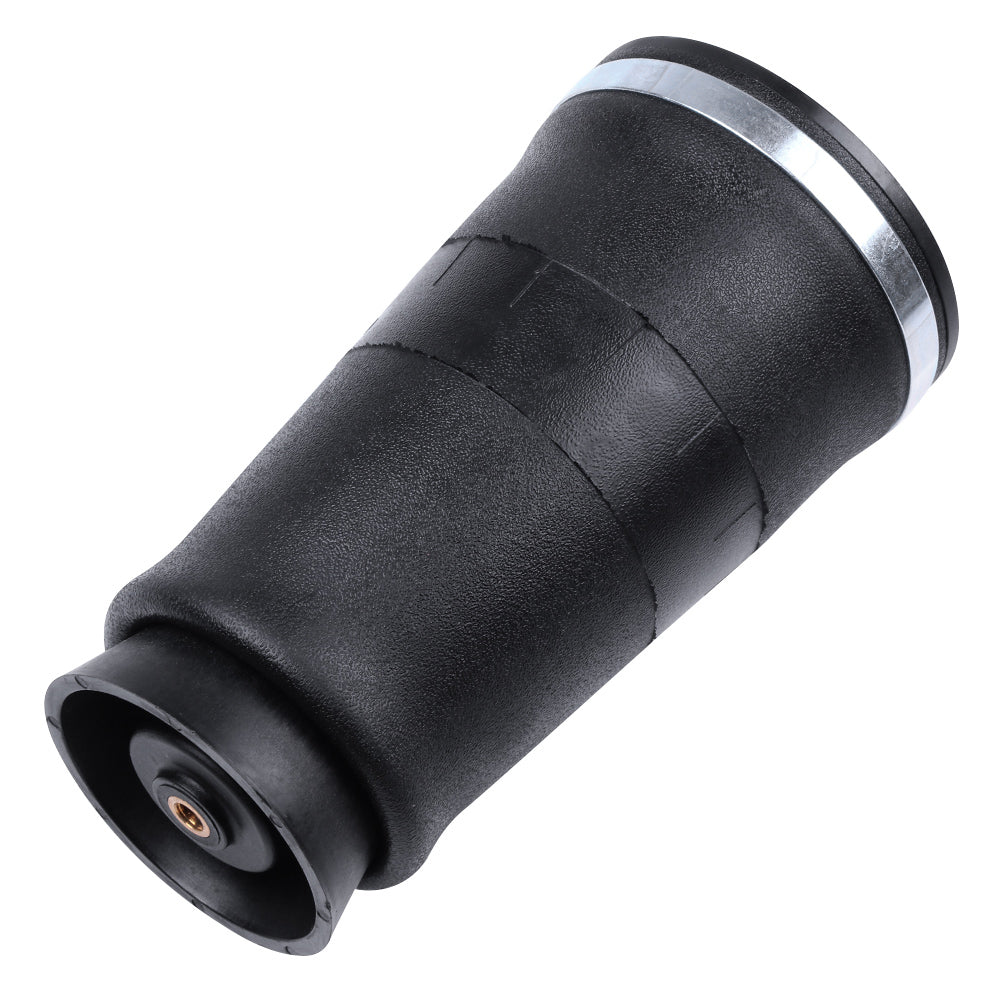

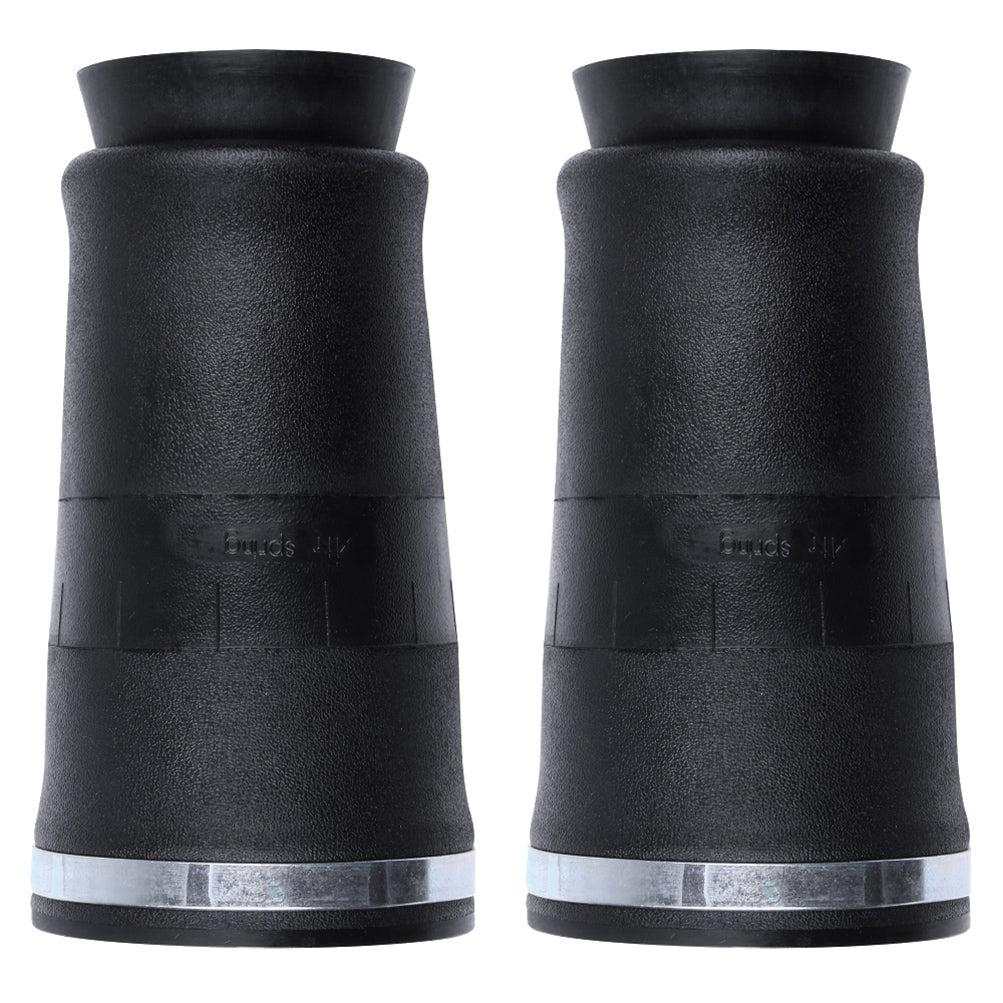

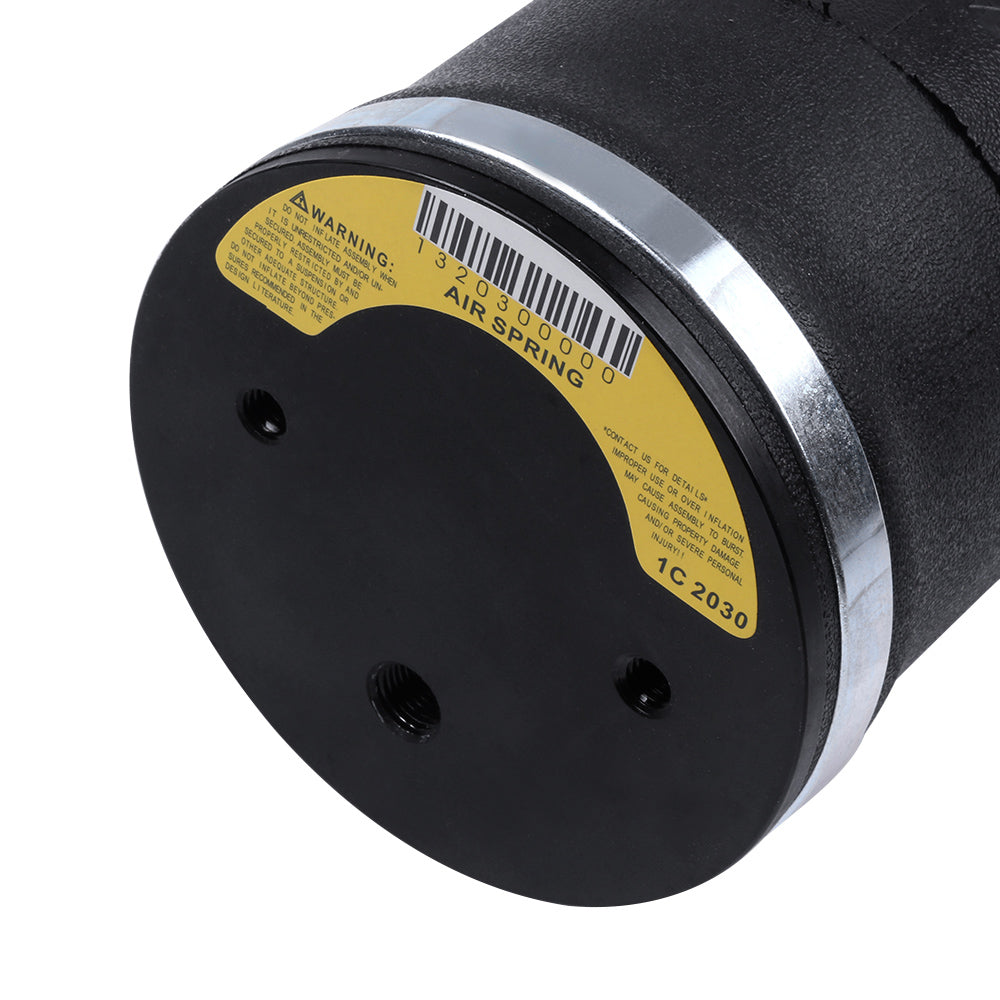

Pair Air Suspension Air Bags W21-760-9000 For ContiTech SK6815P01
Regular price
$75.56
Regular price
$188.72
Sale
Sale price
$75.56
Product Specifics
- Part Type: Air Suspension Spring
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 26.00(Length)*14.00(Width)*14.00(Height)
- Single Weight(KG): 1.600
- Upper Mounting Isolator Included: No Isolator Required
- Lower Mounting Isolator Included: No Isolator Required
- Upper Mount Type: Stud
- Lower Mount Type: Base Cup
- Included Hardware: None
- Drive Layout: Universal
- Platform: Universal
- Custom Bundle: Yes
- Material: Iron,Aluminium Alloy,Rubber
- Quantity: Pair
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- Brand: Only For Auto
- UPC: Does not apply
- Manufacturer Part Number: E819355CP01
- Interchange Part Number: W21-760-9000
- Other Part Number: SK6815P01
- *Firestone Part Number: W21-760-9000
*Removal Warning & Notice
Note
The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.
With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.
2.Using the scan tool, vent the air springs.
3.Remove the air spring retainer.
4.Detach the air spring from the rear axle.
5.Remove the air spring in the following sequence.
1.Disconnect the air spring solenoid electrical connector.
2.Compress the quick connect locking ring and pull out the air tube.
3.Remove the air spring.
