Pair Rear air suspension shock struts For Jaguar XJ Series X351 XJ 2010-2019
Fitment:
- Jaguar | XJ | 2010~2019 | 3.0L/5.0L
- Jaguar | XJR | 2014~2017 | 5.0L
- Jaguar | XJR575 | 2018~2019 | 5.0L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 70(Length)*18(Width)*17(Height)
- Single Weight(KG): 14.3
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Gas Charged Shock: Yes
- Drive Layout: Front Engine RWD/2WD
- Platform: X351
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: C2D18898 C2D11404,C2D11405,C2D19726
- Superseded Part Number: C2D33845,C2D33846,C2D33847,C2D33848
- Handling time: 1 Day
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
C2D18898,C2D11404,C2D11405
C2D19726,C2D23524,C2D27387
C2D31982,C2D33845,C2D33846
C2D33847,C2D33848,C2D35984
C2D36648
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Raise vehicle.
2.Remove applicable rear wheel.
3.Inthetrunk, remove the spare wheel cover and applicable side trim.
4.Disconnect the struts electrical connection.
5.Using a wrench, disconnect the air line from the check valve.
6.Remove the air line fitting from the air hose and discard.
7.Removethe four (4) air strut mounting nuts.
8.Loosen and removethe lower sway bar end link nut then disconnect end link.
9.Detach the rear tie rod.
10.Removethe lower air strut mounting bolt.
11.Remove strut from vehicle.
12.Removal complete.
Installation Guideline
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Do not remove the air fitting from the air strut. Doing so may cause damage and/or void warranty. Remove the white shipping pin from the new air fitting and insert the air line until fully seated.
1.Prepare the air strut by removing the black threaded plastic plug from the valve on the air strut as demonstrated below.
2.Install strut into vehicle.
3.Install lower strut mounting bolt and tighten to manufacturer¡¯s specifications.
4.Installtie rod bolt/nut andtightento manufacturer's specifications.
5.Install sway bar end link/nut andtightento manufacturer's specifications.
6.Lowerthe vehicleto appropriate height and reinstallthe four (4)top mount nuts. tightento manufacturer's specifications.
7.Install the air fitting provided in the kit to existing air hose using the figure below as an example.
8.Reconnect the struts electrical connection.
9.Reinstall all applicabletrunk lining and sparetire cover.
10.Reinstall applicable rear wheel.
11.Lowerthe vehicle.
12.Installation complete.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes

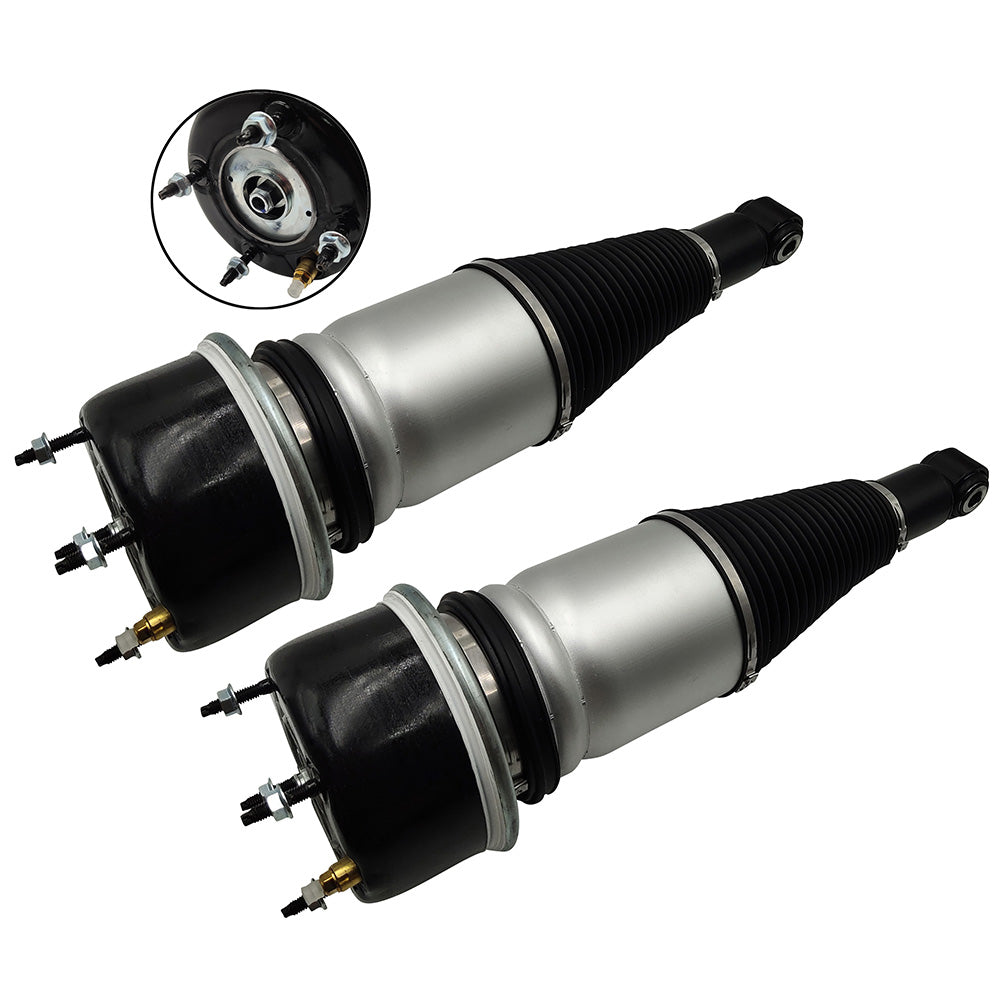

Pair for Rear Left and Right Air Suspension Shock Struts
