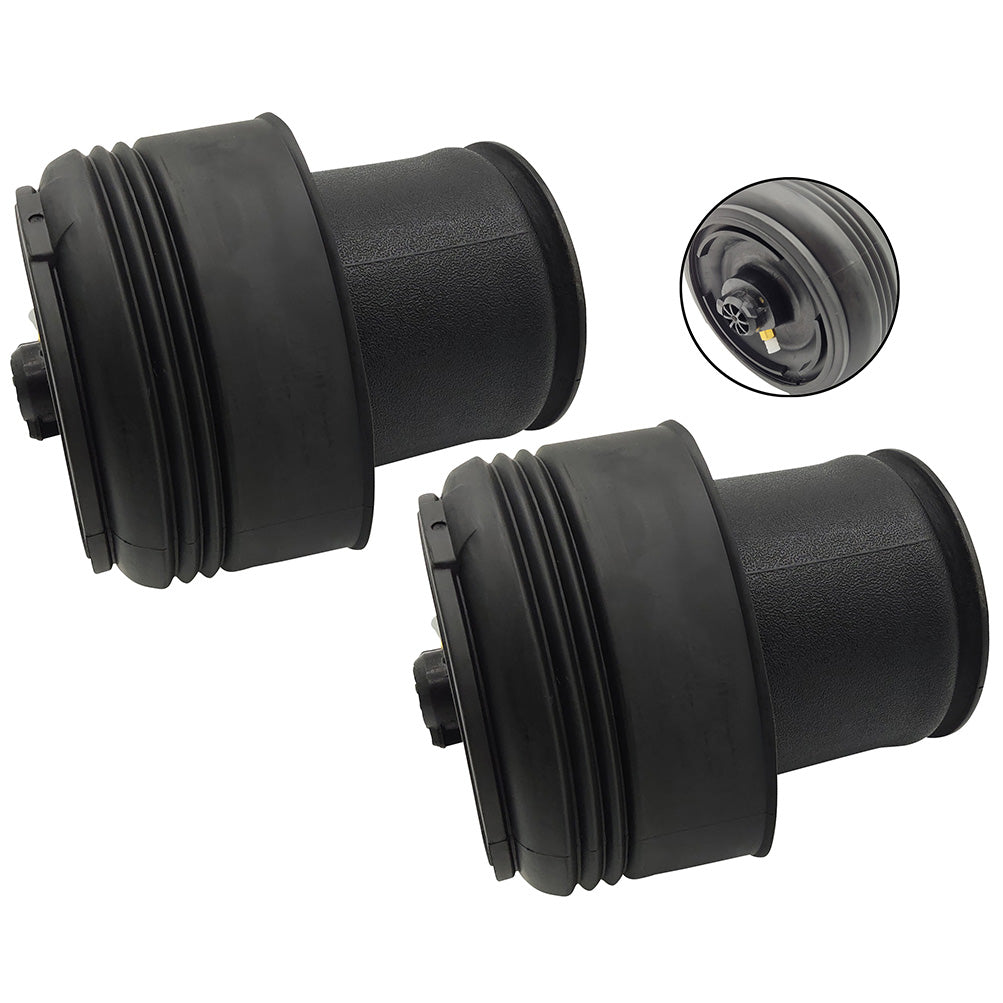

Pair Rear Air Suspension Spring Bags For BMW X5 F15 2014-2018 X6 F16 2015-2019
Fitment:
- BMW | X5 | 2014~2018 | 3.0L/4.4L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 22.5(Length)*18(Width)*17(Height)
- Single Weight(KG): 3
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Gas Charged Shock: Yes
- Drive Layout: Front Engine RWD & 4WD
- Platform: X5/X6
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 37126795013,37126795014,37126795013A
- Superseded Part Number: 37126795013
- Handling time: 1 Day
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
37126795013
37126795014
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove rear wheel.
4.Remove the fasteners and paneling under the right side of the vehicle to expose the vehicle¡¯s air suspension valve block.
5.Locate the valve block and slowly remove the air line to deflate the air spring. When looking at the valve block, the air hose on the right will deflate the right air spring and the air hose on the left will deflate the left air spring.
6.Remove the bottom piston from the lower air spring seat by pressing in the two locking tabs and pushing upward on the bottom piston.
7.Remove the top of the air spring by turning counterclockwise approximately 90 deg. And pull the air spring out.
8.Remove the air line from the air spring. Remove the air line fitting from the air hose and discard.
Installation Guideline
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Do not remove the air fitting from the air spring. Doing so may cause damage and/or void warranty. Remove the white
Shipping pin from the new air fitting and insert the air line until fully seated.
1.Installation is in reverse order of air spring removal.
2.Remove the white shipping pin from the new air fitting and insert air line. Verify air line is fully secure by gently pulling back on the air line.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes
Pair for Rear Left and Right Air Suspension Spring Bags
