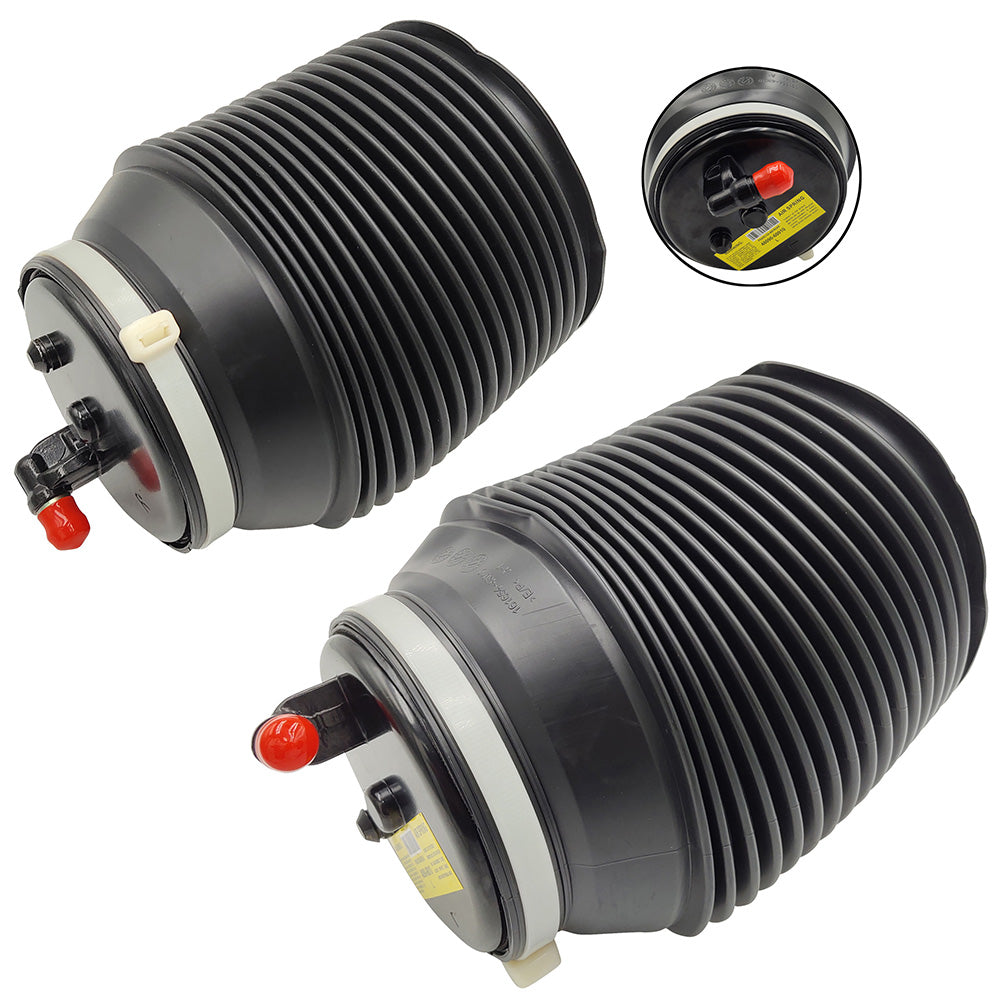

Pair Rear Air Suspension Spring Bags For Lexus GX460 4Runner Land Cruiser Prado
Fitment:
- Lexus | GX460 | 2010~2018 | 4.6L
- Toyota | 4Runner | 2010~2018 | 2.7L/4.0L
- Toyota | Land Cruiser | 2010~2011/2013~2018 | 5.7L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 27.5(Length)*18(Width)*17(Height)
- Single Weight(KG): 5.6
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Gas Charged Shock: Yes
- Drive Layout: Front Engine RWD & 4WD
- Platform: J150 N280
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 4809060010 48090-60010
- Superseded Part Number: 4809060010,48080-60010
- Handling time: 1 Day
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number: 4809060010 48090-60010
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Lift vehicle and remove rear wheel.
3.Deflate rear air spring by disconnecting the air lines leading from the valve block assembly to the rear air spring.
4.Remove the locking clip from the top side of the air spring.
5.Disconnect the air line from the air spring. Remove the locking clip from the air line.
6.Carefully compress and remove the air spring from the vehicle.
Installation Guideline
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Do not remove the air fitting from the air strut. Doing so may cause damage and/or void warranty. Remove the white shipping pin from the new air fitting and insert the air line until fully seated.
1.Install the air spring into the vehicle and connect the air line to the new air fitting.
2.Align the bottom piston tabs with the notches on the lower spring perch.
3.Seat the spring and rotate 90°to secure
4.Seat the upper portion of the air spring and install the upper retaining clip.
5.Air spring installation complete.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes
Pair for Rear Left and Right Air Suspension Spring Bags
