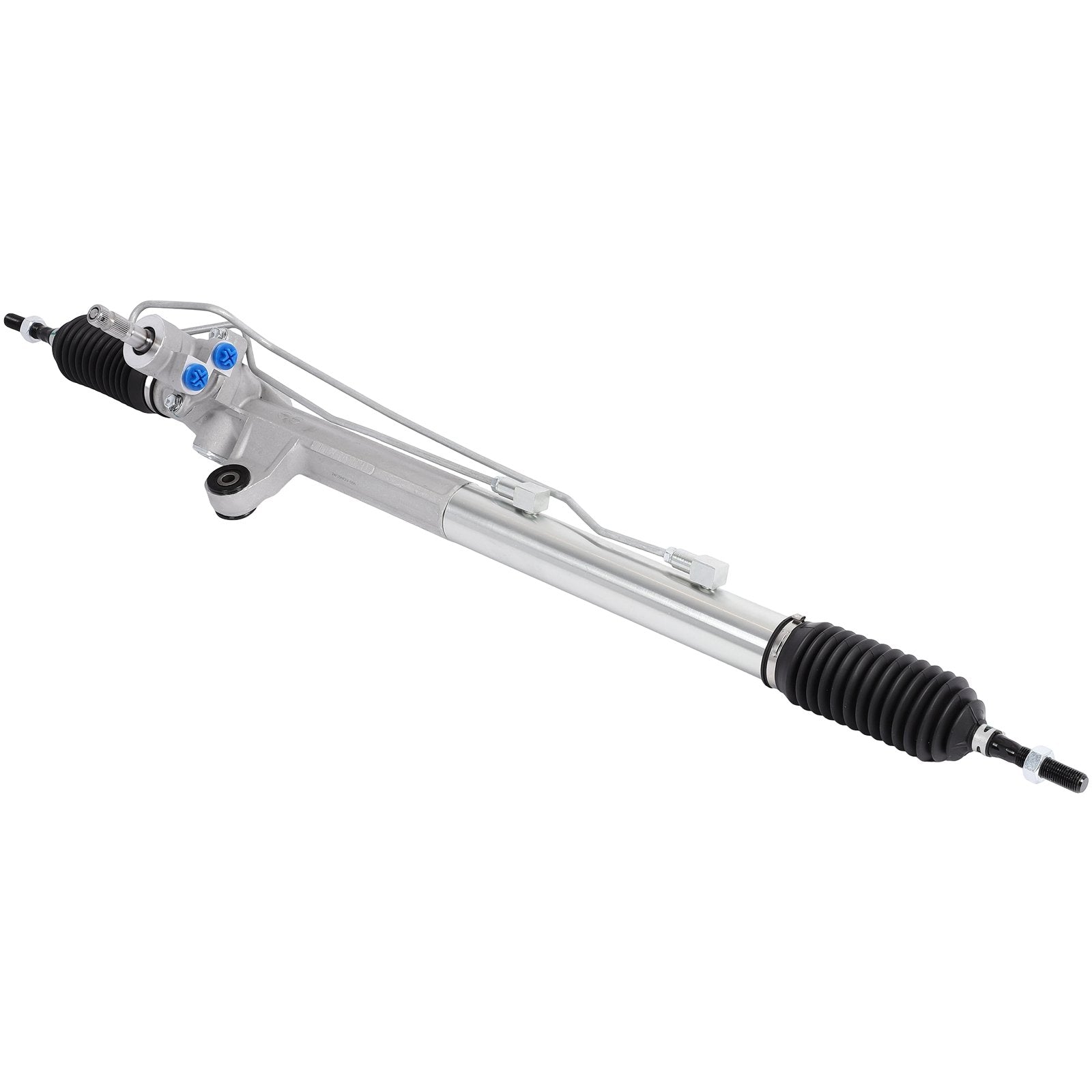

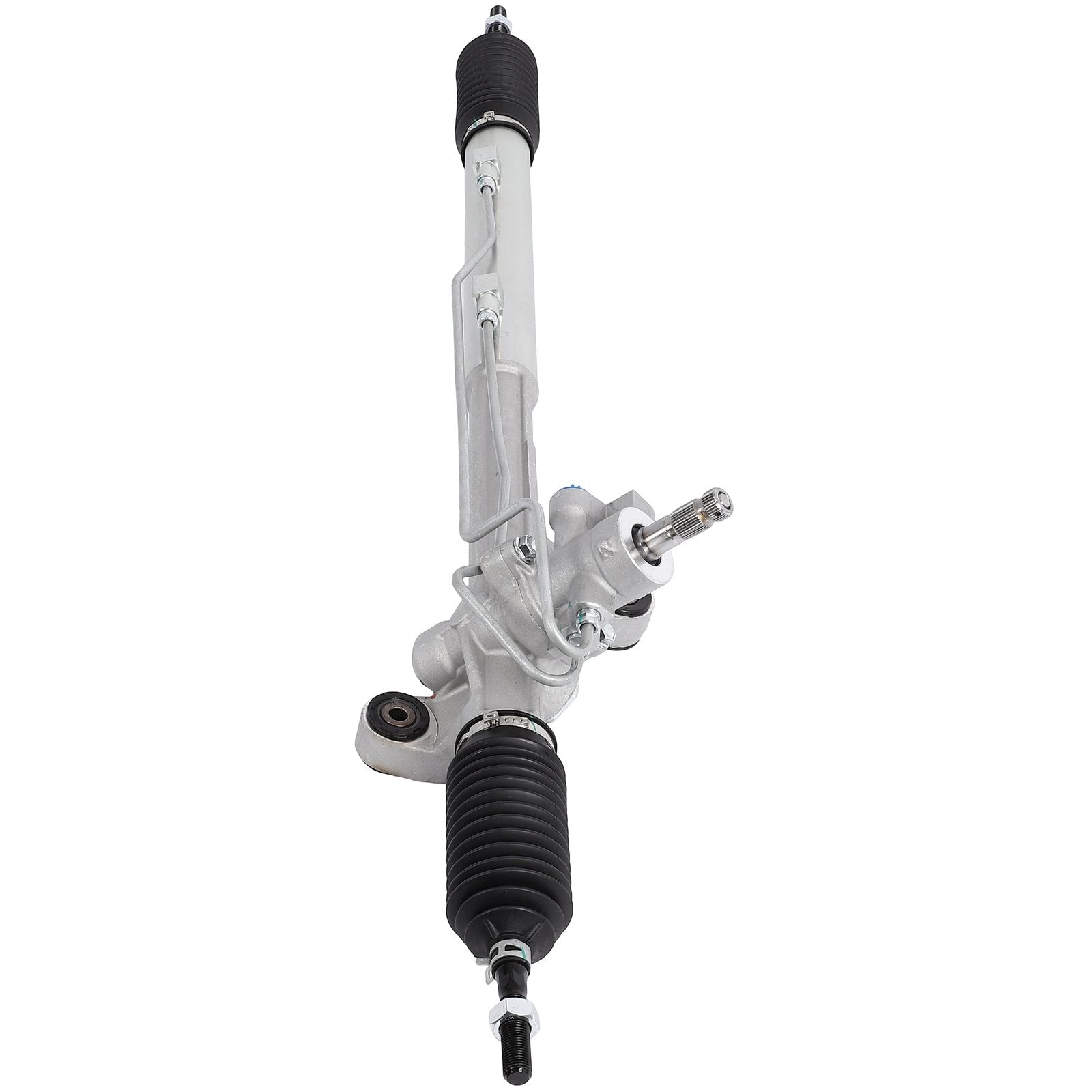

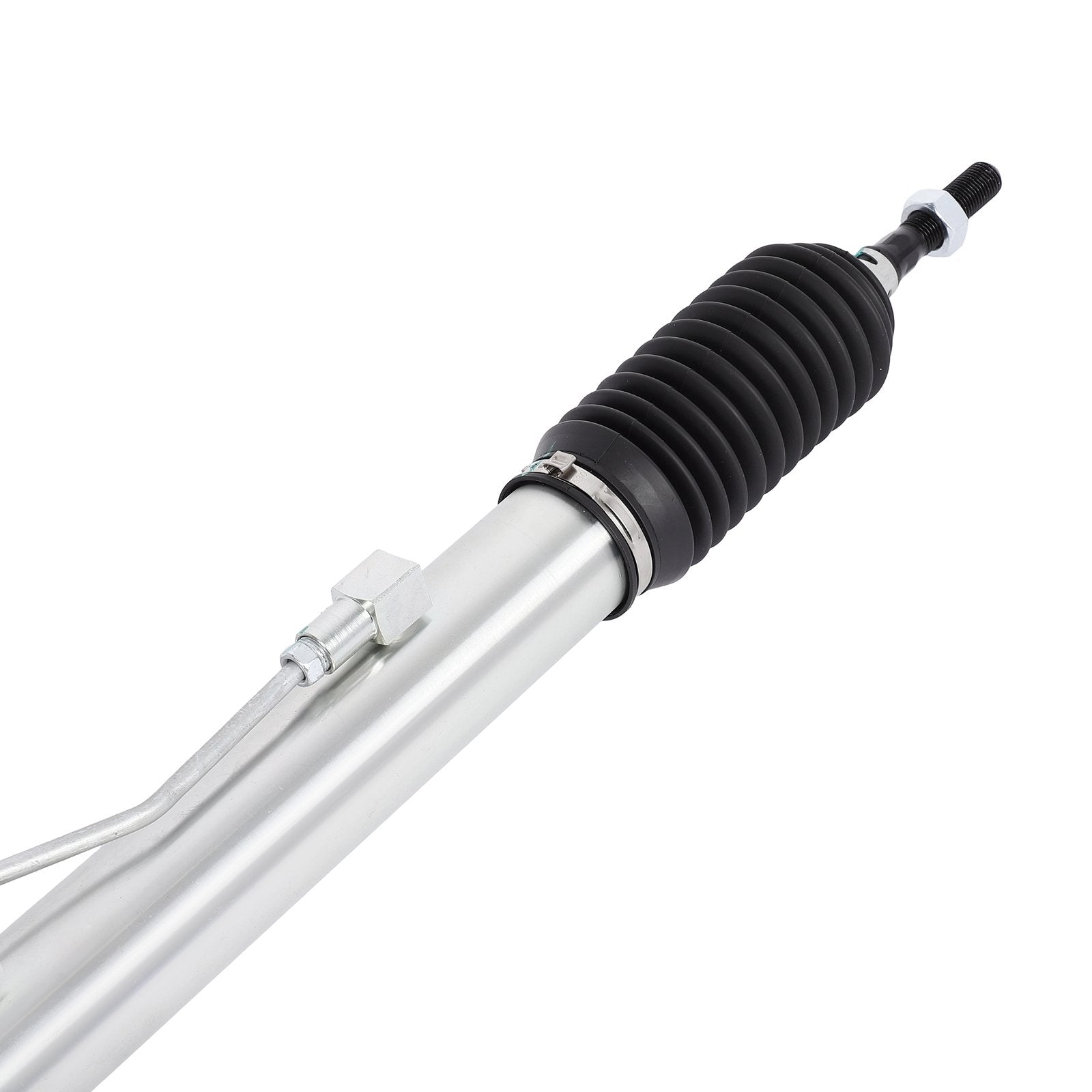

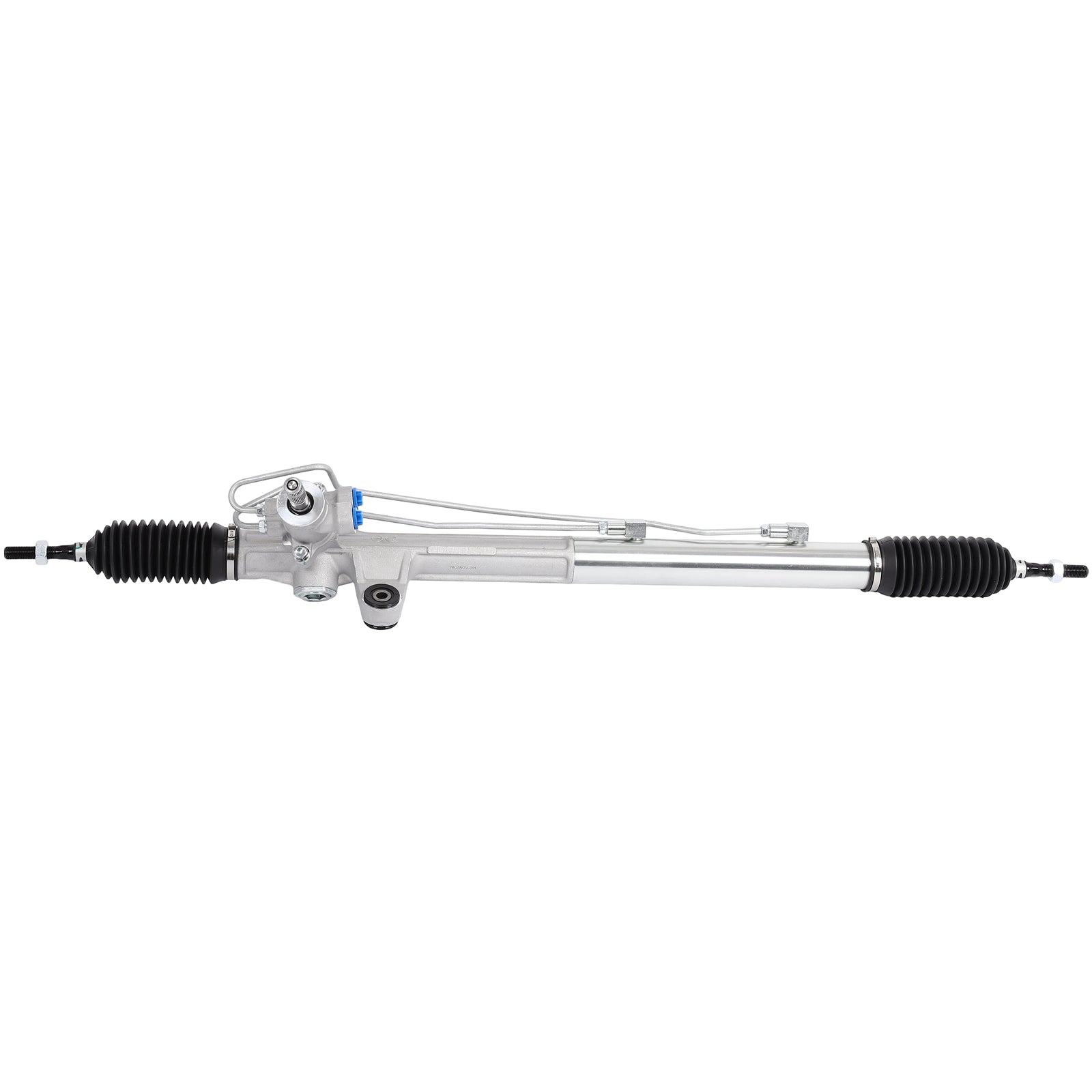

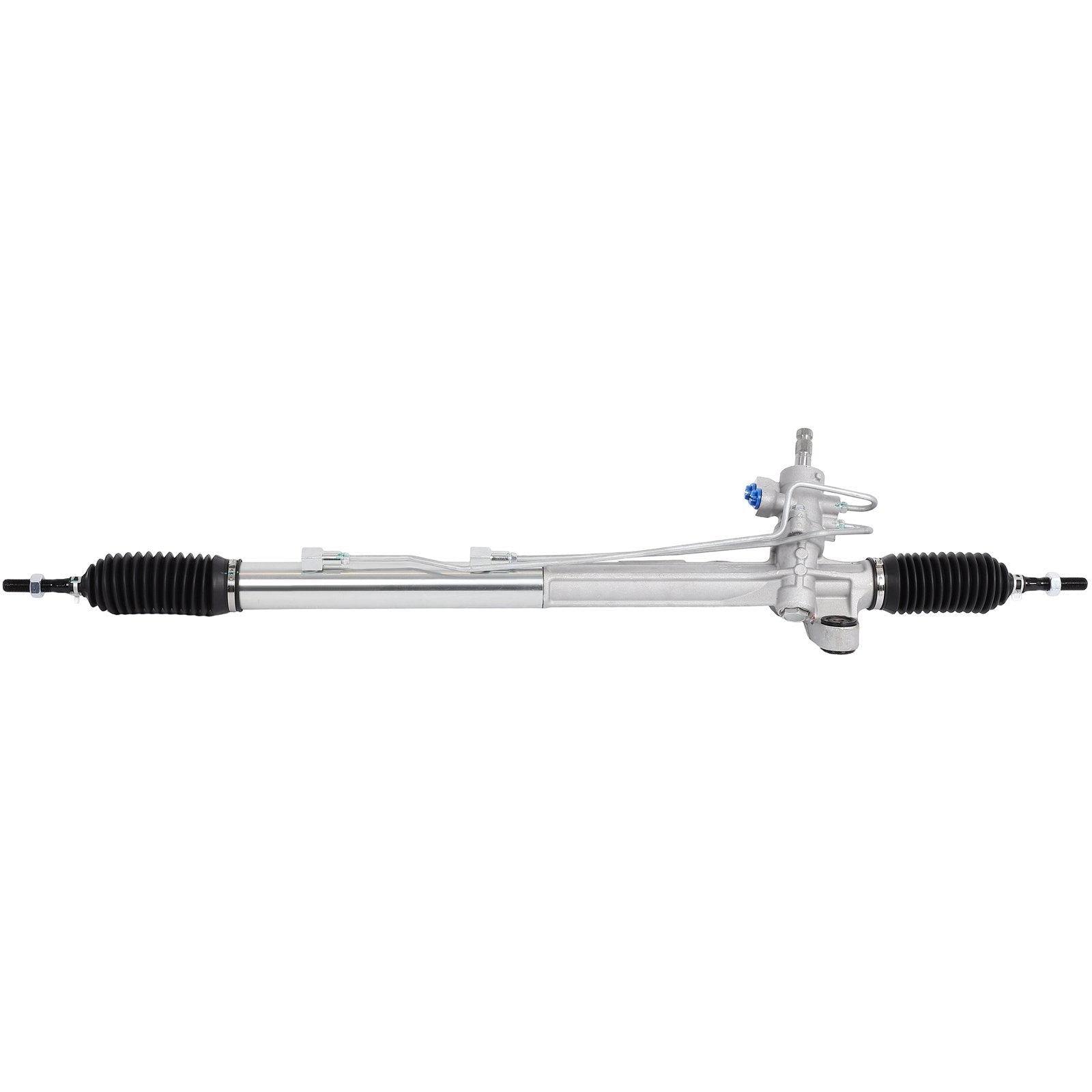

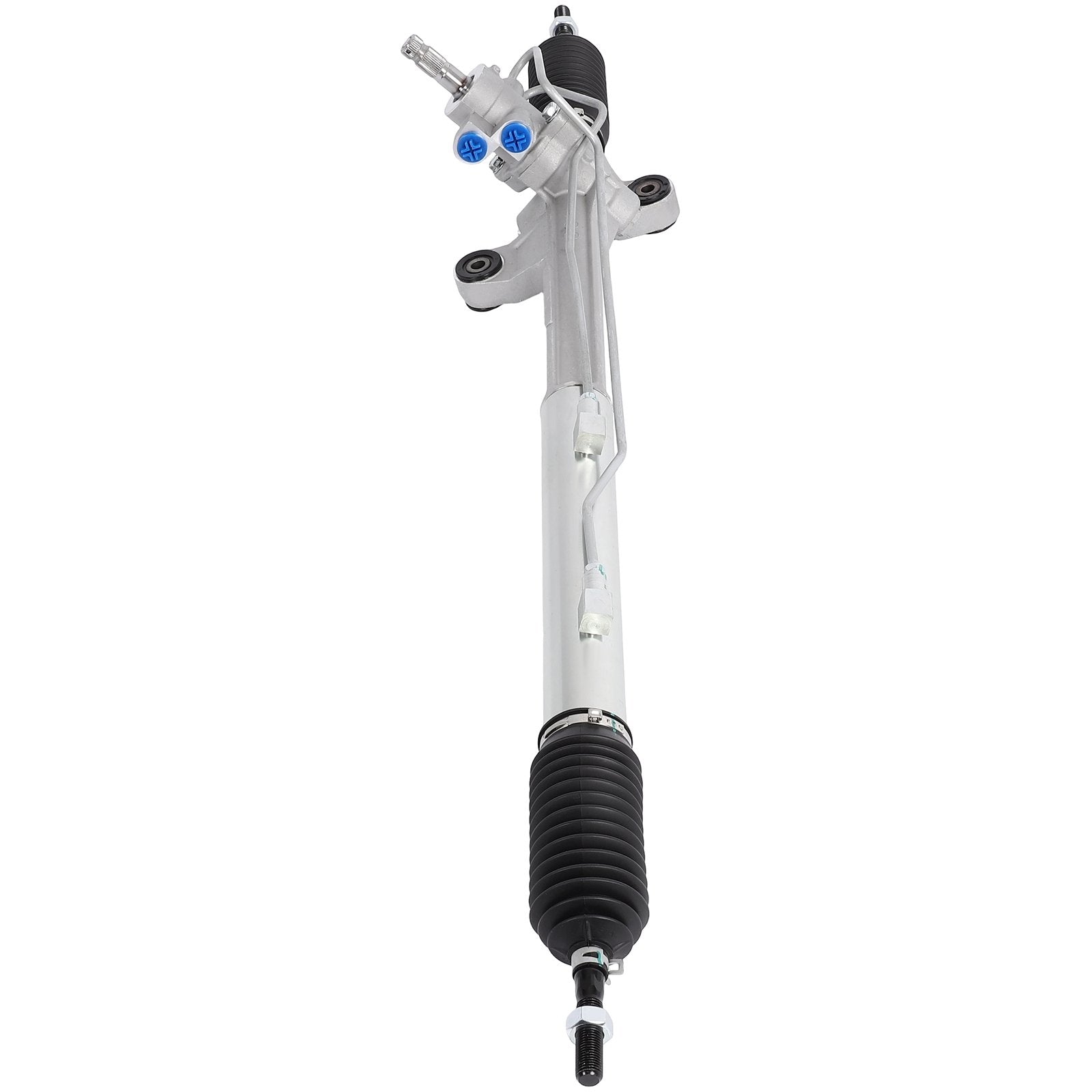

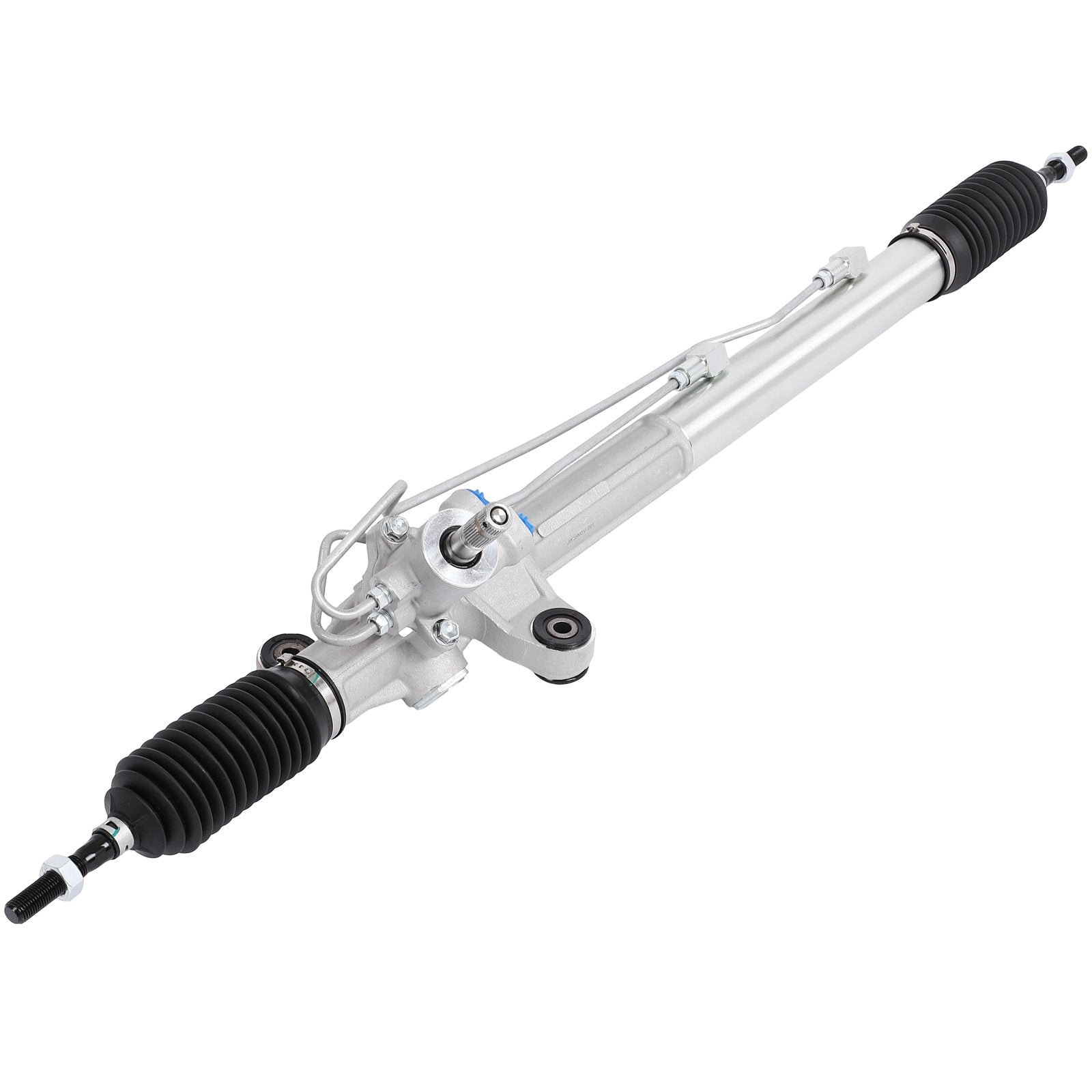

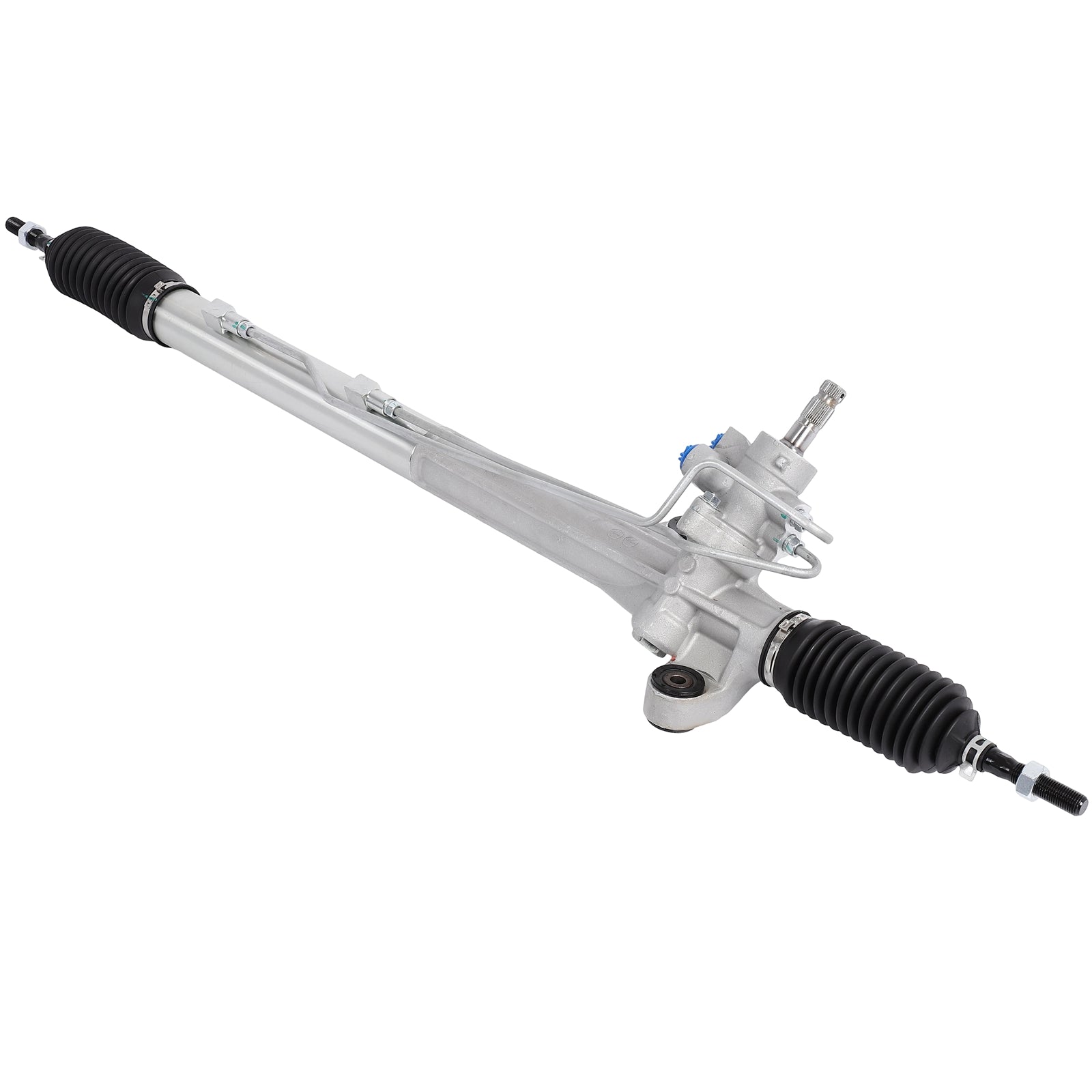

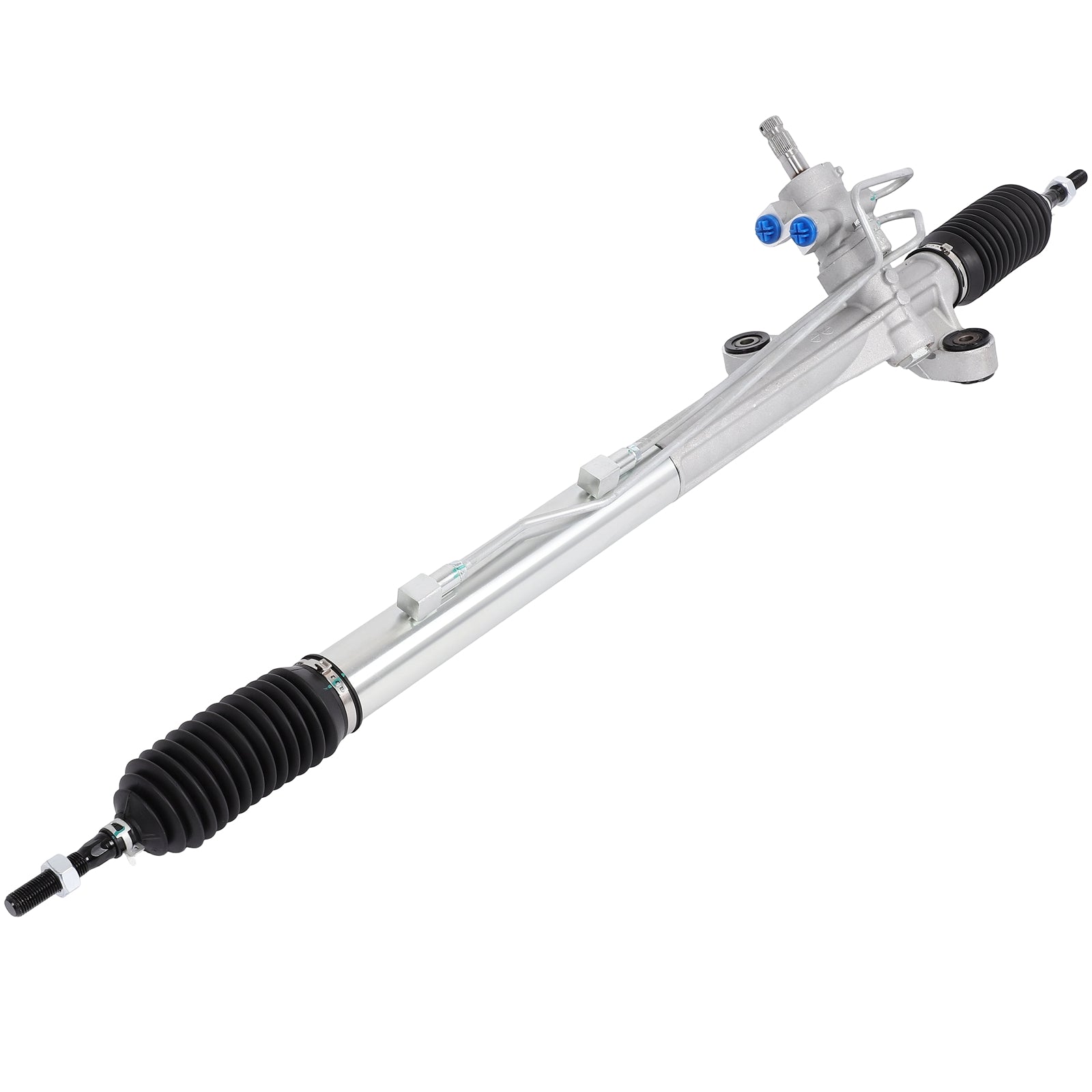

Product Specifics
- Type:Hydraulic
- OE/OEM Part Number:26-2705
- Input Shaft Length:2.25 Inch
- Inlet Line Fitting Diameter:0.546 IN/13.87 MM
- End To End Length:42.75 IN/1085.85 MM
- Performance Part:No
- Vintage Car Part:No
- Universal Fitment:No
- Interchange Part Number:53010SDBA01, 53601SDBA01, 53601SDBA02, 53601SDPA11
- California Prop 65 Warning:Yes
- Placement on Vehicle:Front
- Material:Steel/Aluminum
- Thread Length (IN):1.82
- Distance Between Mounting Holes (IN):6.38
- Gasket Or Seal Included:Yes
- Grade Type:Regular
- Inlet Line Fitting Gender:Male
- Inner Tie Rods Included:Yes
- Input Shaft Type:Grooved
- Mounting Brackets Included:No
- Mounting Hardware Included:No
- Mounting Hole Quantity:2
- Outer Tie Rods Included:No
- Outlet Line Fitting Gender:Male
- Outlet Line Fitting Diameter:0.459 IN/ 11.66 MM
- Steering Input Shaft Diameter:0.669 IN/16.99 MM
- Steering Input Shaft Spline Quantity:36
- Total Turns Lock To Lock:2.9375
- Cross Reference Number:53010SDBA01, 53601SDBA01, 53601SDBA02, 53601SDPA11
- Pressure Port Thread Size: M14 x 1.5
- Return Port Thread Size:M16 x 1.5
- Drive Type:2WD&4WD
Note
Please check the description and compatibility chart before your purchase.
