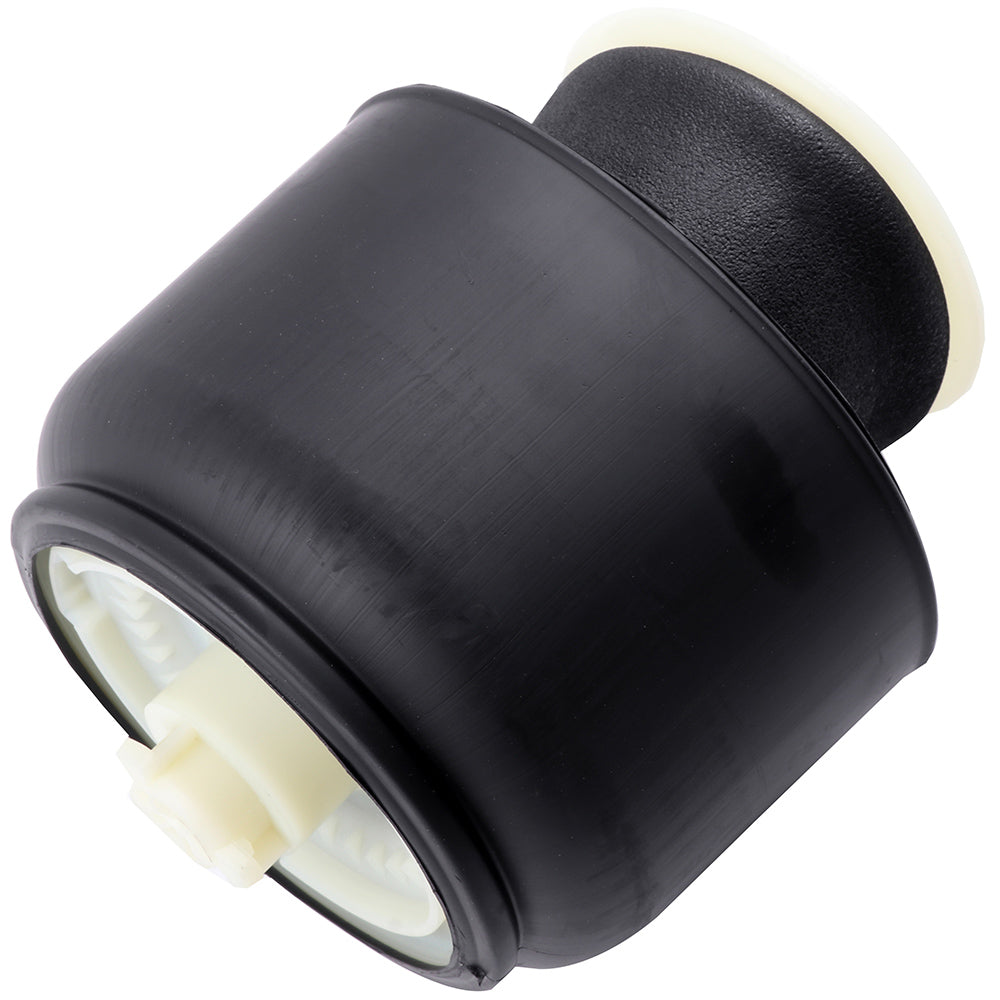

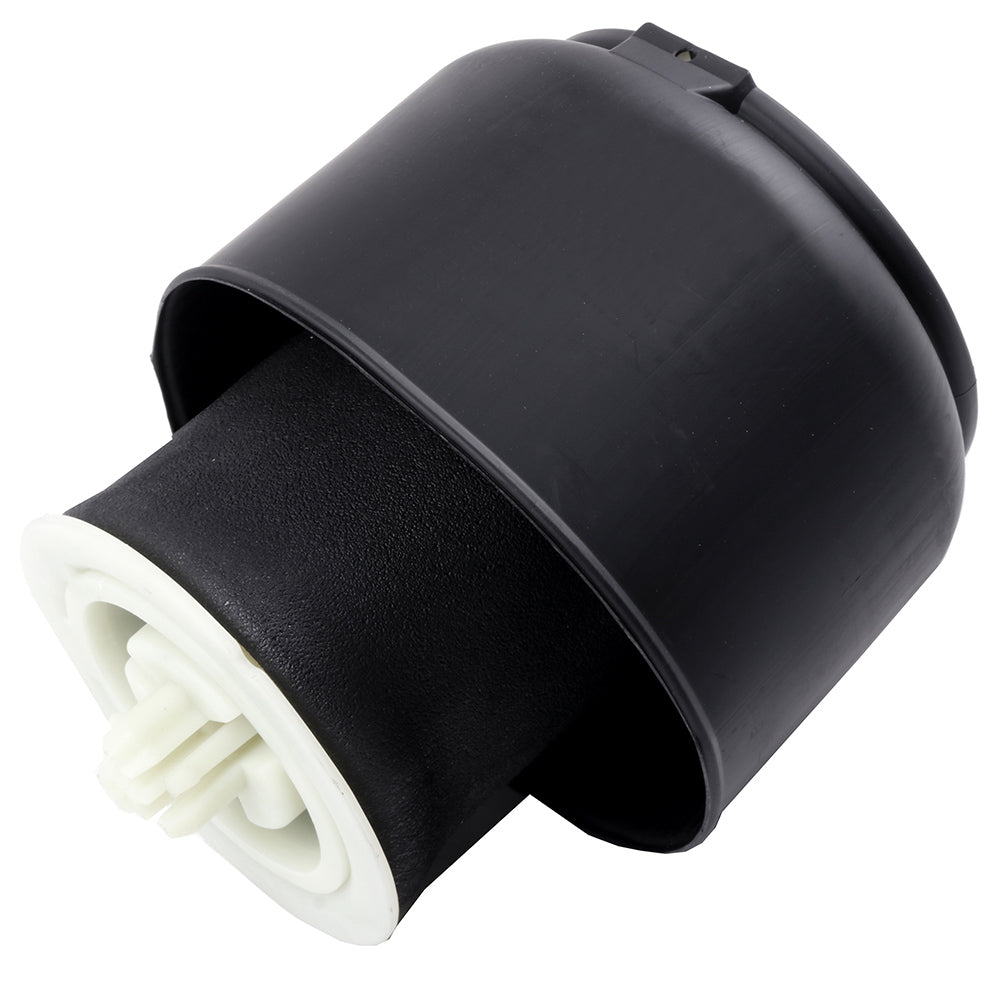

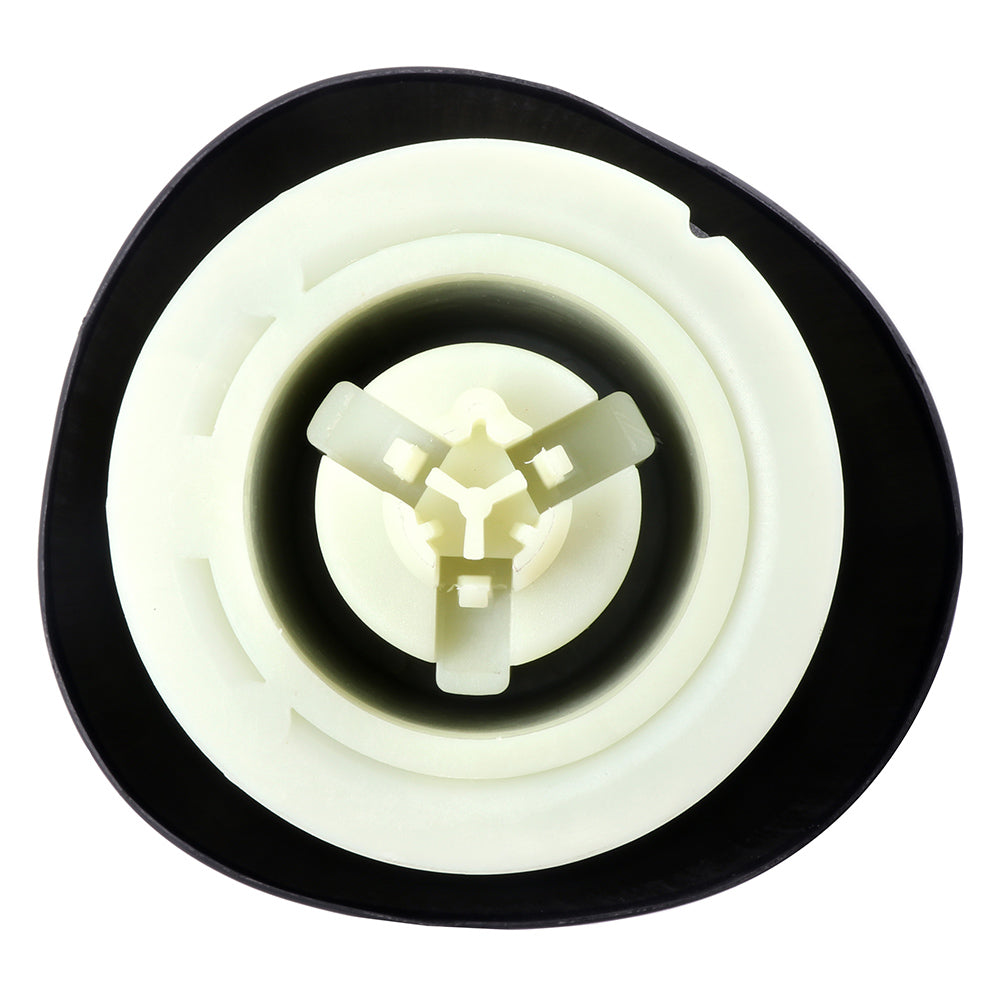

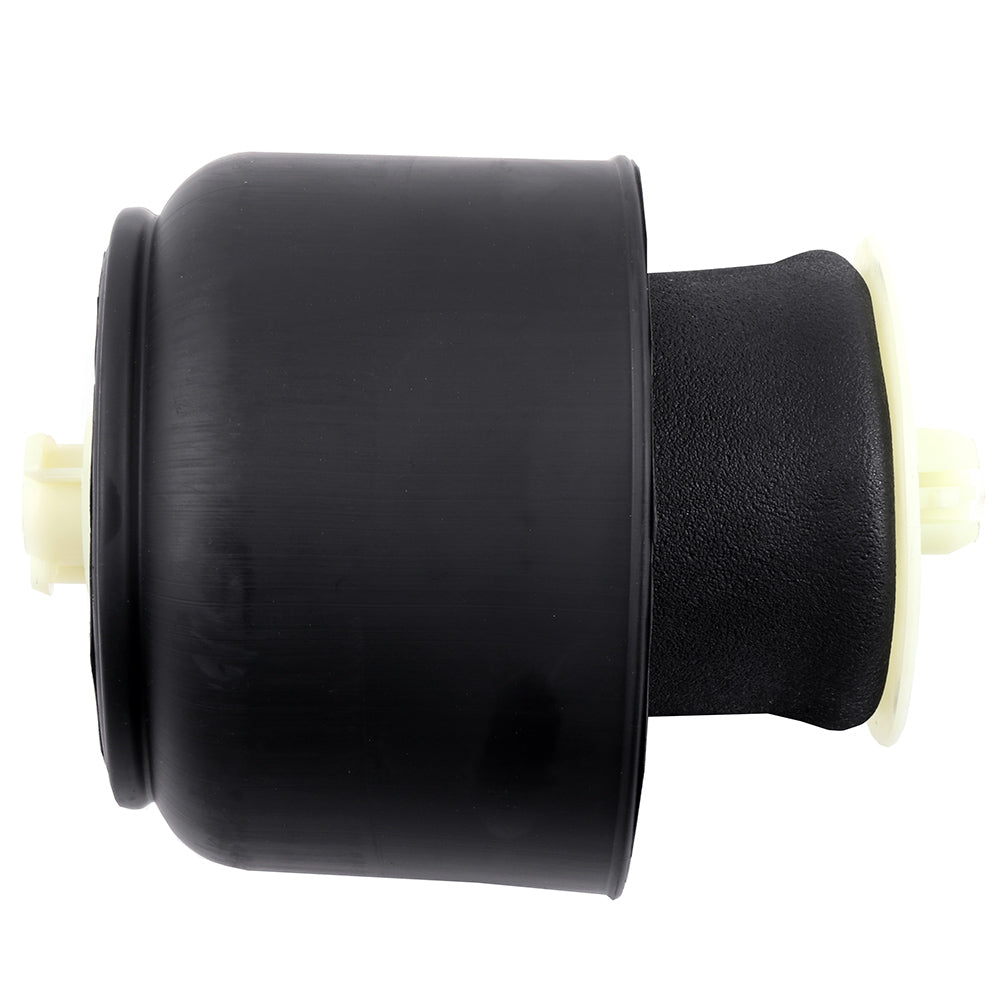

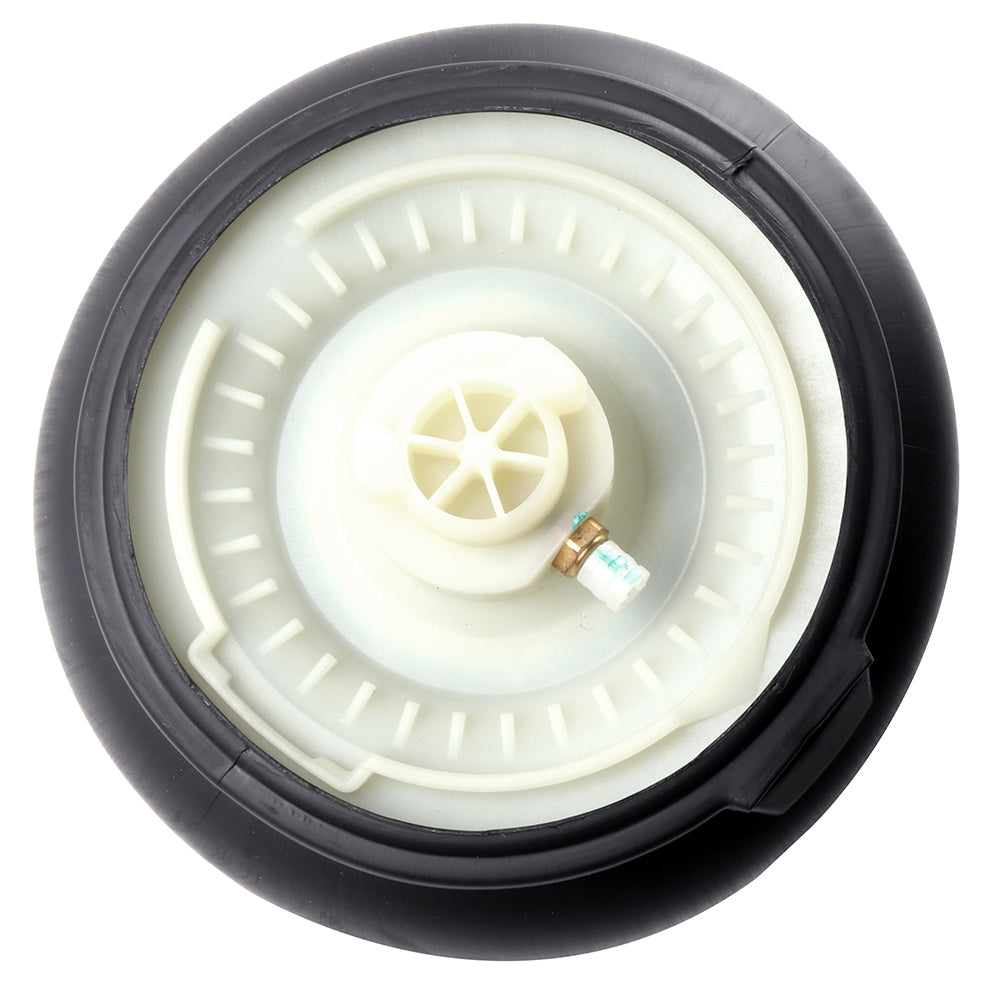

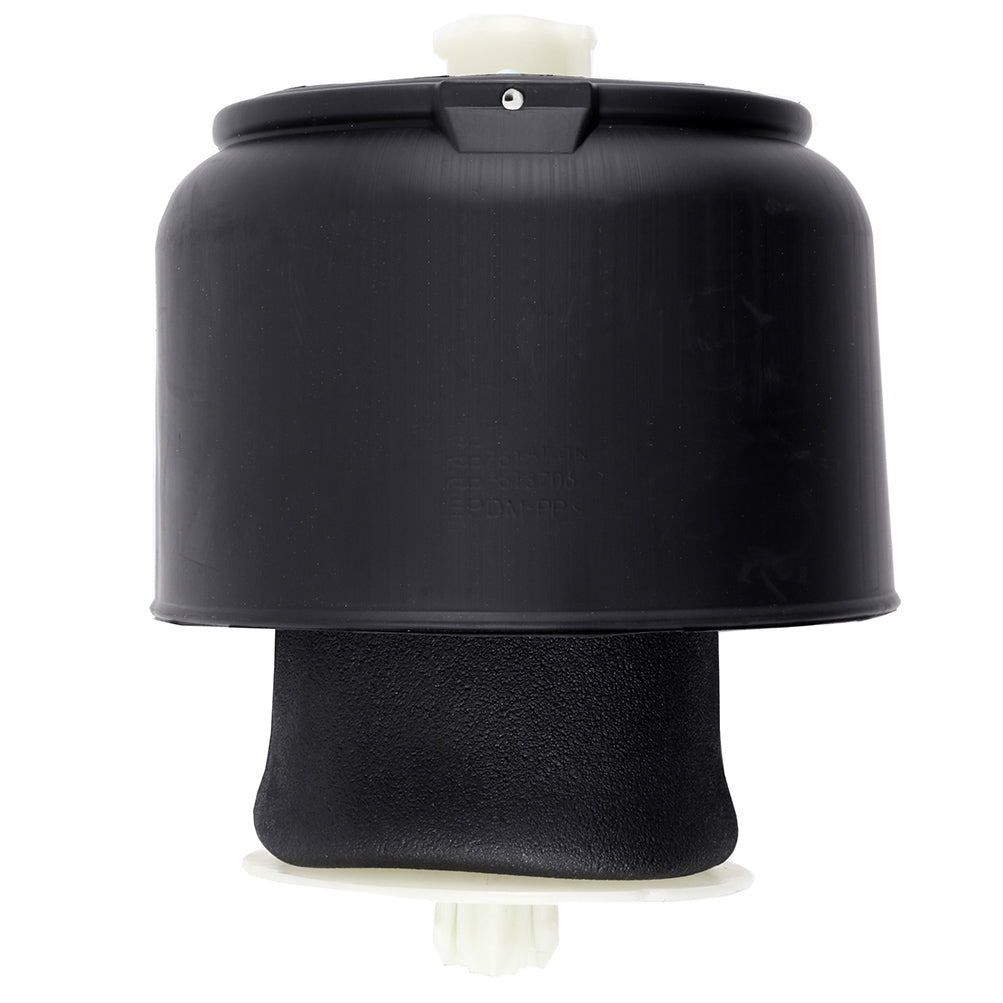

Rear Air Suspension Bag For BMW F11 F10 F07 535i 550i 2010-2016
Fitment:
- BMW | 535i GT | 2010~2016 | 3.0L
- BMW | 535i GT xDrive | 2011~2016 | 3.0L
- BMW | 550i GT | 2010~2015 | 4.4L
- BMW | 550i GT xDrive | 2010~2016 | 4.4L
Item Specifications
Key Words: Rear Air Suspension Spring Bag For 2010-2016 BMW 5 Series F10 F11 F07 535i 550i
Product Specifics
- Part Type: Air Suspension Spring
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 27.00(Length)*18.00(Width)*18.00(Height)
- Single Weight(KG): 1.130
- Upper Mounting Isolator Included: No Isolator Required
- Lower Mounting Isolator Included: No Isolator Required
- Upper Mount Type: Base Cup
- Lower Mount Type: Base Cup
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: F07 F11
- Custom Bundle: No
- Material: Iron,Aluminium Alloy,Rubber
- Quantity: Single
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- Brand: Only For Auto
- UPC: Does not apply
- Manufacturer Part Number: E110585CP01
- Interchange Part Number: Air Suspension Spring Bag, Air Ride Spring Bag
- Other Part Number: 37106781827, 37106781828, 37106781843
- Superseded Part Number: 37106781844, 37106784378, 37106784379
- *OEM Part Number: 37106781827,37106781828,37106781843
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove rear wheel.(picture 1)
4.loosen and remove the fasteners holding the rear lower plastic shield to expose the vehicle's air suspension compressor.(picture 2,3)
5.Locate the valve block near the compressor on the rear side of the vehicle. Remove the applicable air line to deflate the rear air spring.(picture 4,5)
6.After the air spring has deflated, unclip the lower piston by squeezing the locking tabs together and pulling up to free it from the lower air spring perch.(picture 6,7)
7.Rotate the top mount clockwise to unlock the air spring from the vehicle, and pull downward to release.(picture 8)
8.Remove the air line from the air spring by unscrewing the fitting. Remove the air fitting from the air line and discard.(picture 9,10)
9.To remove the air line fitting, remove the collet and the remaining fitting will slide off of the air hose.(picture 11)
10.Removal complete.
*Installation Guideline
1.Installation is in reverse order of air spring removal.(picture 12)
*Removal Warning & Notice
Note
The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.
With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.
2.Using the scan tool, vent the air springs.
3.Remove the air spring retainer.
4.Detach the air spring from the rear axle.
5.Remove the air spring in the following sequence.
1.Disconnect the air spring solenoid electrical connector.
2.Compress the quick connect locking ring and pull out the air tube.
3.Remove the air spring.
Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes
Single for Rear Left or Right Air Suspension Spring Bag
