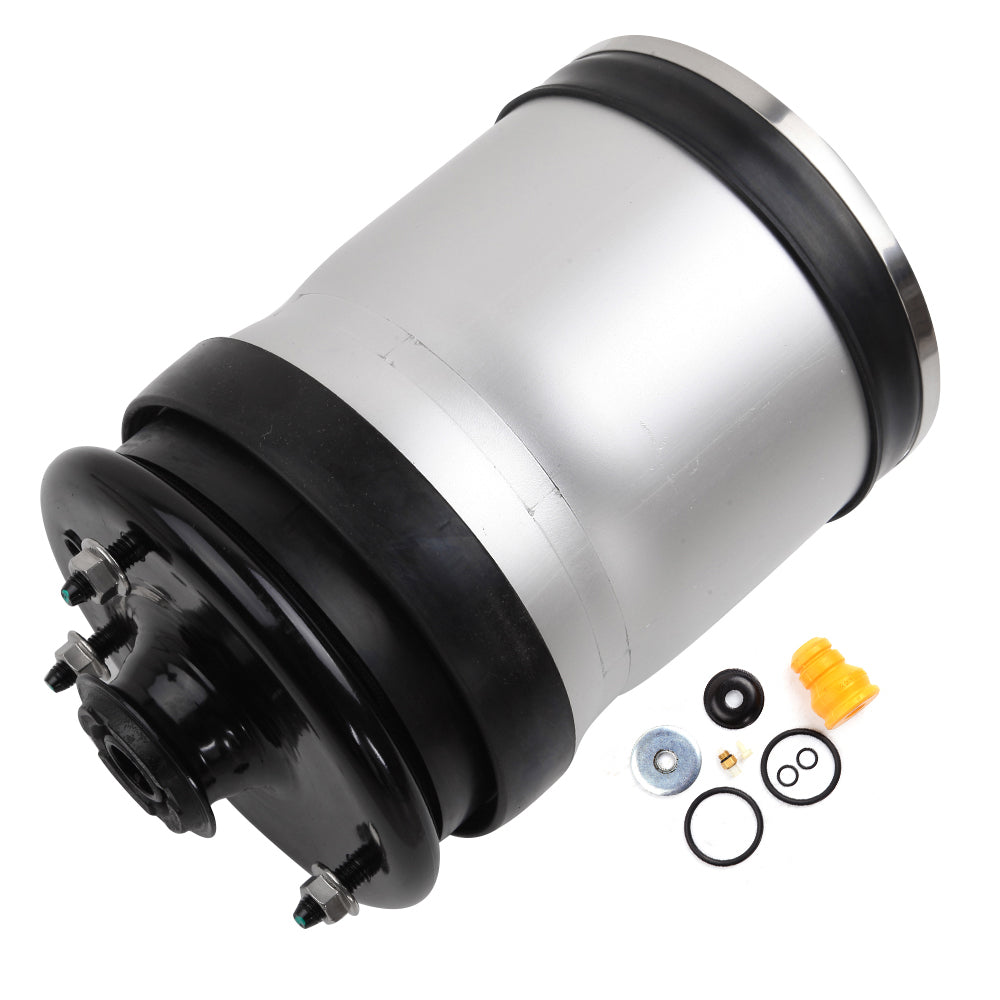

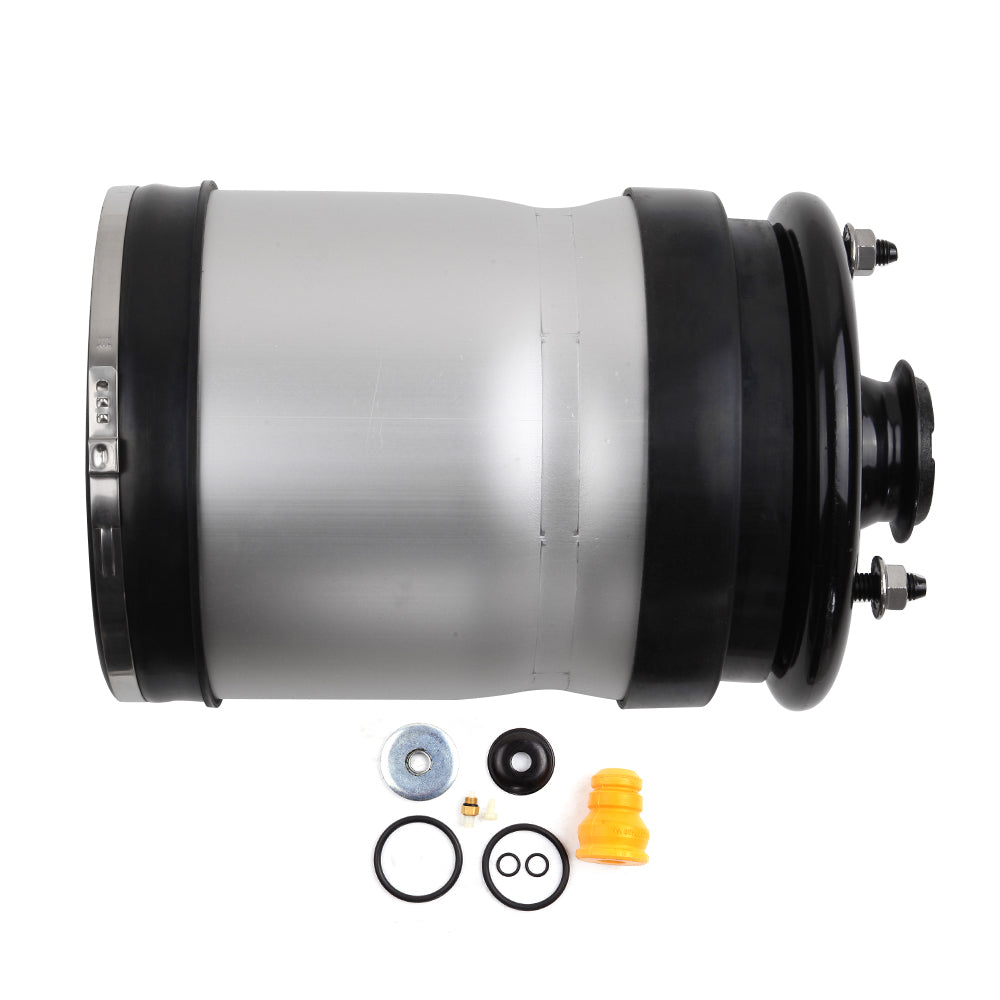

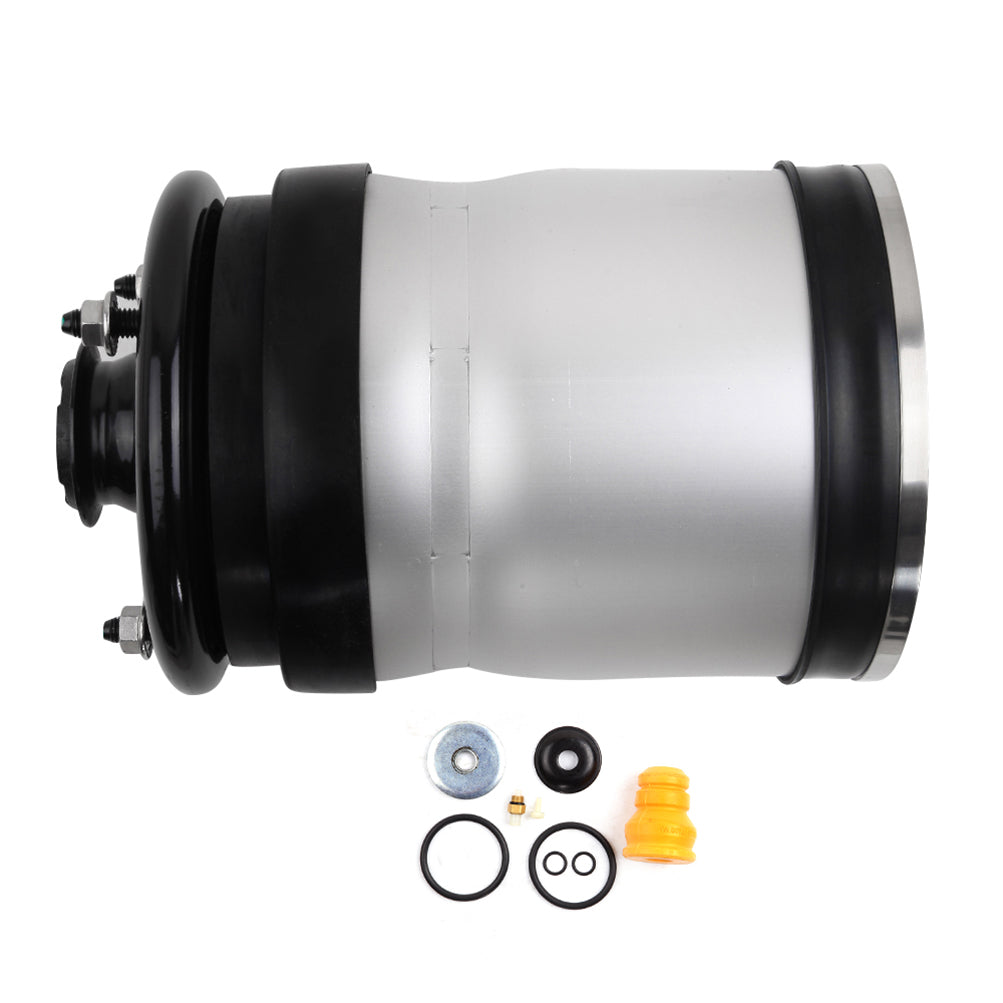

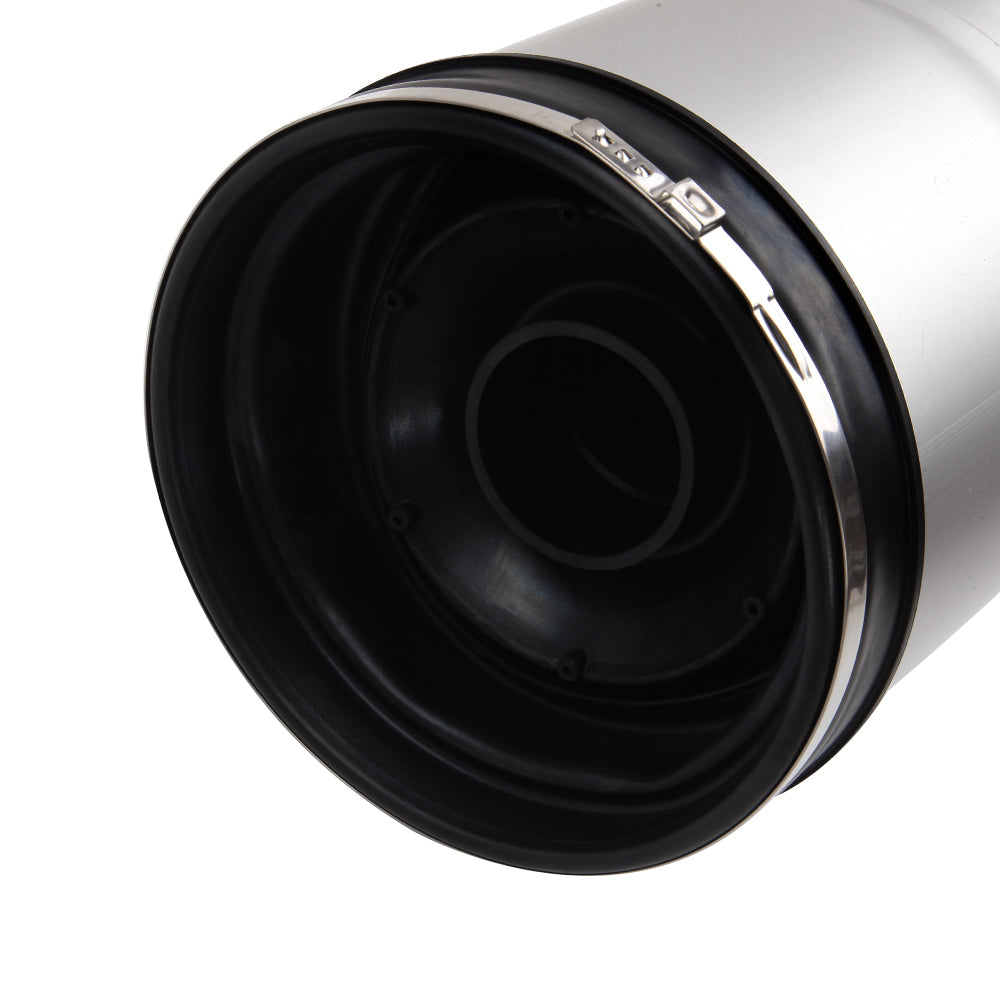

Rear Air Suspension Bag For Range Rover Sport, Land Rover LR4 LR3 HSE

Fitment:

• Land Rover | LR3 | 2005~2009 | 4.0L/4.4L
• Land Rover | LR4 | 2010~2016 | 3.0L/5.0L
• Land Rover | Range Rover Sport | 2006~2014 | 3.0L/4.2L/4.4L/5.0L

Item Specifications

Key Words: Rear Air Suspension Spring For Land Rover LR3 LR4 Discovery 2005-2016 Range Rover Sport 2006-2013

*Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Remove rear wheel to expose the rear air strut.(picture 1)

2.Loosen and remove the lower mount nut. Support the air strut and remove the lower mount bolt.(pictures 2,3)

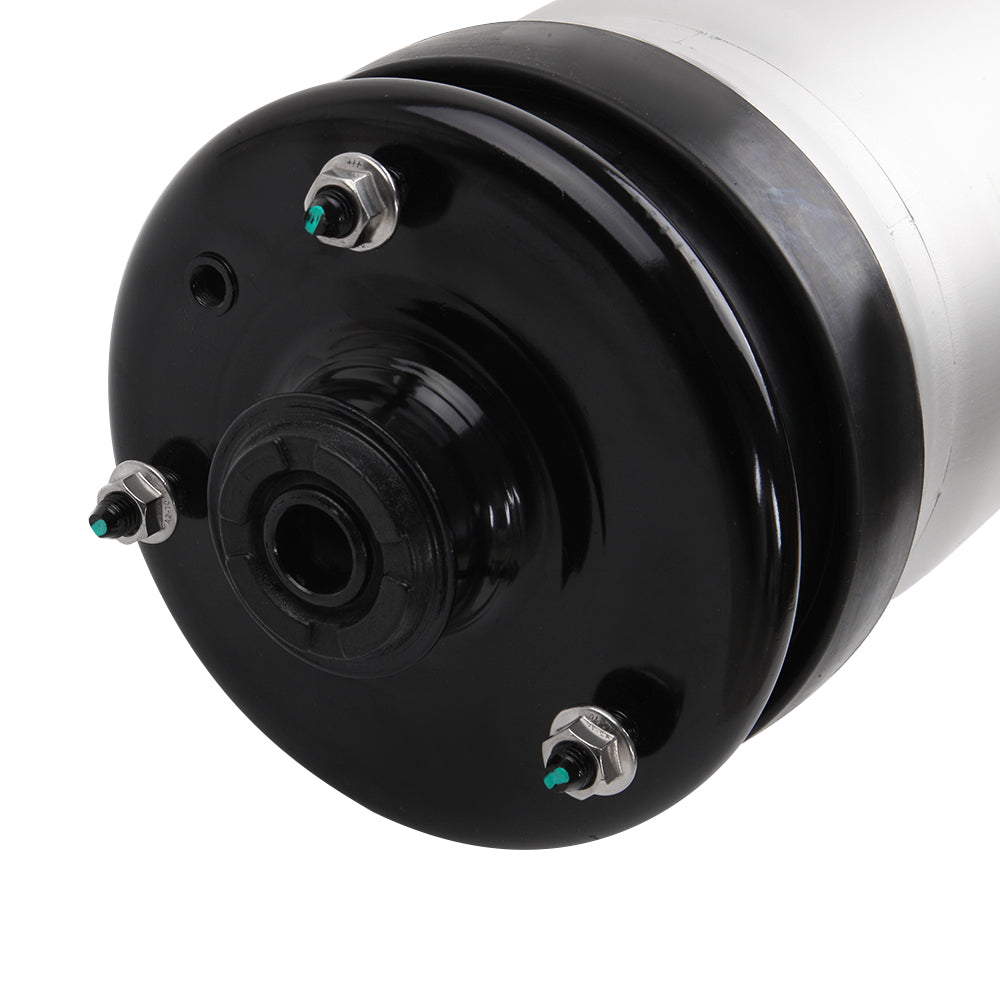

3.Loosen and remove the three(3)top mounting nuts.(picture 4)

4.Carefully lower the air strut to gain access to the air line. Unthread the air fitting.(picture 5)

5.Remove the air strut from the vehicle.(picture 6)

6.Remove the air line fitting from the air hose and discard. To remove the air line fitting,remove the collet and the remaining fitting will slide off of air hose.(picture 7)

7.Removal complete.

*Installation Guideline

1.Place new air strut onto vehicle, oriented in the same position as strut previously removed.

2.Insert the air line into the voss fitting, making sure it is firmly seated and will not pull back out.(picture 8)

3.Install and tighten the three(3)top mounting nuts to manufacturer's specification.(picture 9)

4.Support the air strut and install the lower mount bolt. Re-install and tighten the lower mount nut to manufacturer's specification.(pictures 10,11)

5.Re-install the rear wheel and tighten lug nuts to manufacturer's specification.Installation complete.

*Warning & Notice

Vent all air pressure from the air suspension system prior to disconnecting or removing any air suspension components. It is dangerous to remove air suspension components while under pressure. Failure to follow this instruction may result in serious personal injury.

Any air spring which is unfolded must be refolded prior to being installed in a vehicle. Refer to the procedure. An incorrectly folded air spring could rupture, altering the handling characteristics of the vehicle. If a vehicle has been driven with an incorrectly folded air spring, a new air spring must be installed. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

Failure to observe the following instructions may result in a sudden failure of the air spring or suspension system.

Any rear spring which is unfolded must be refolded prior to being installed in a vehicle.

The air spring refolding procedure should only be used for an air spring which has never supported the vehicle's weight while in the incorrectly folded position.

Incorrectly folded air springs found on vehicles during pre-delivery inspection or after use must be installed new.

Do not attempt to inflate any air spring which has been collapsed while uninflated from the rebound hanging position to the jounce stop.

When installing a new air spring, care must be taken not to apply a load to the suspension until springs have been inflated using the air spring fill procedure.

After inflating an air spring in the hanging position, it must be inspected for correct shape.

Note

The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.

With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.

2.Using the scan tool, vent the air springs.

3.Remove the air spring retainer.

4.Detach the air spring from the rear axle.

5.Remove the air spring in the following sequence.

1.Disconnect the air spring solenoid electrical connector.

2.Compress the quick connect locking ring and pull out the air tube.

3.Remove the air spring.

Please double confirm the compatibility chart as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.

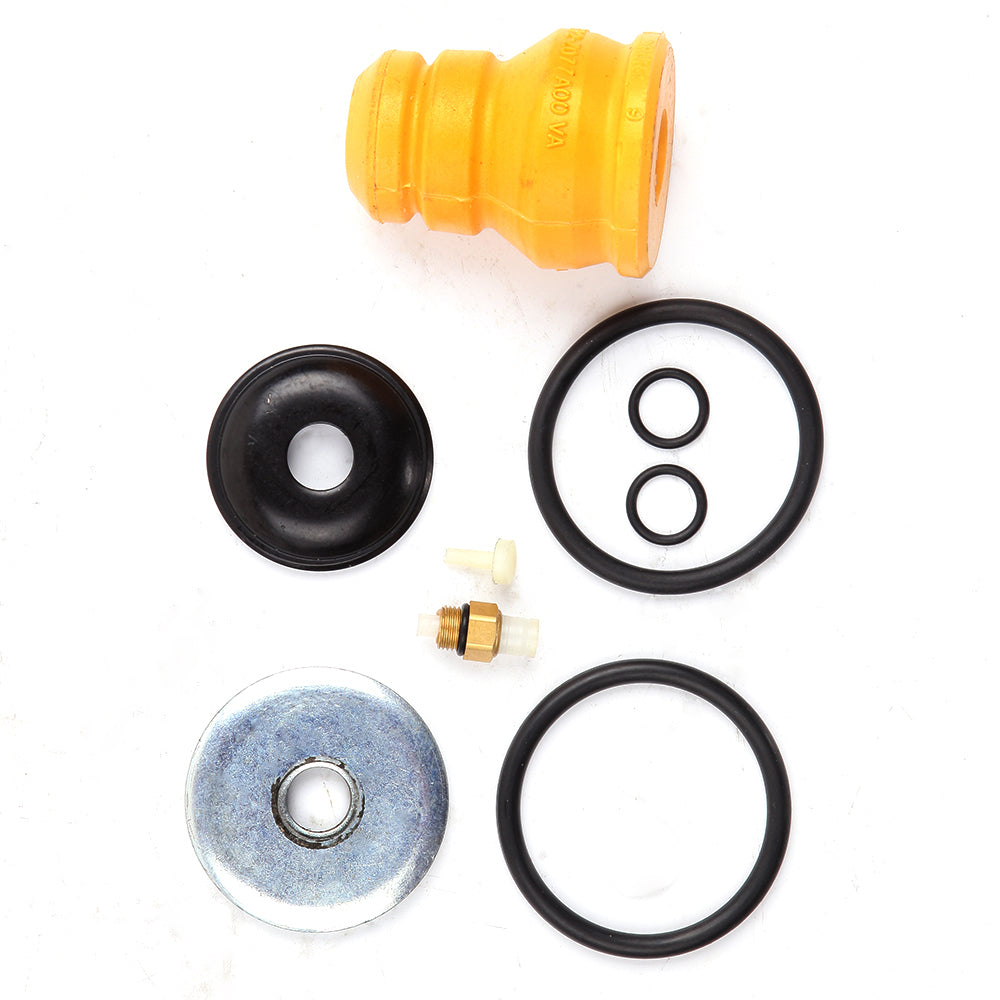

Includes

Single for Rear Left or Right Air Suspension Spring Bag
