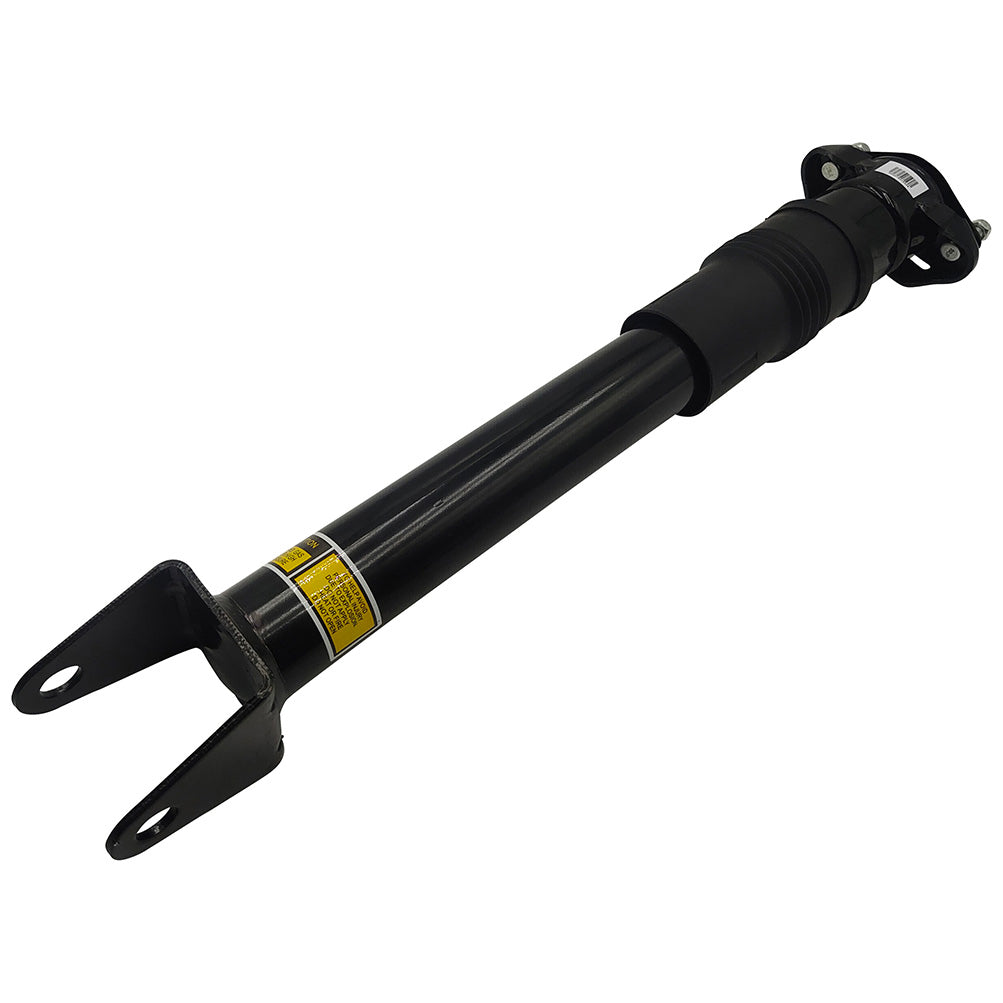

Rear Air Suspension Shocks For Mercedes W251 R350 R500 R320 R63 w/o ADS 06-2013

Fitment:

• Mercedes-Benz | R320 | 2007~2009 | 3.0L
• Mercedes-Benz | R350 | 2006~2010 | 3.0L/3.5L
• Mercedes-Benz | R500 | 2006~2008 | 5.0L
• Mercedes-Benz | R63 AMG | 2007 | 6.3L

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight.

2.Raise vehicle.

3.Remove rear wheel from the applicable side being replaced.

4.Locate and disconnect the air spring's air line connection to relieve stress from the suspension.

5.In the rear cargo area, remove all applicable trim panels to gain access to the upper shock mounting fasteners. Reference manufacture's instructions for removal of interior panelling

6.With the trim panels removed, lift the insulation to gain access to the top mount nuts. Loosen and remove.

7.Disconnect the shocks damping solenoid electrical connector, located just behind the shock, on the control arm.

8.Loosen and remove the lower shock mounting bolt, followed by the old shock.

9.Removal complete.

Installation Guideline

1.Install the replacement shock, solenoid side out(if applicable)and reinstall the lower mounting bolt. Tightening to manufacture's specification.

2.Reconnect and reattach the ads electrical connection back to the original mounting location on the control arm.

3.Complete remaining installation in reverse order of removal. Reference manufacture's specifications and installation instructions for interior panels and torque specifications.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

These air suspension solenoid valves are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

Includes

Single for Rear Left or Right Air Suspension Shock Strut
