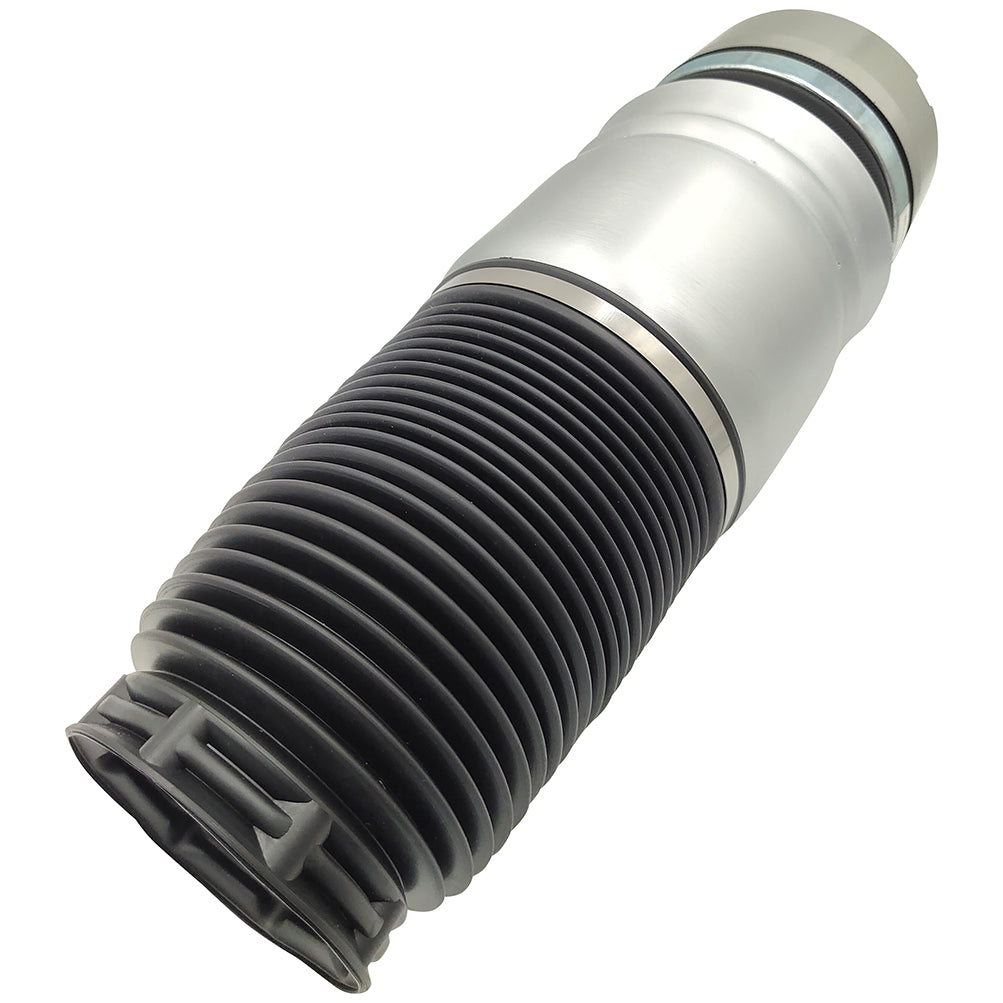

Rear Air Suspension Spring Bag For Audi Q7 Volkswagen Touareg Porsche Cayenne

Fitment:

• Audi | Q7 | 2007~2010 | 3.0L/3.6L/4.2L
• Porsche | Cayenne | 2003~2006/2008~2010 | 3.2L/3.6L/4.5L/4.8L
• Volkswagen | Touareg | 2004~2010 | 3.0L/3.2L/3.6L/4.2L/4.9L/5.0L

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise vehicle.

3.Remove rear wheel.

4.Disconnect the shock damper sensor wire.

5.Remove the four(4)top mounting bolts.

6.Remove the nut and bolt from the sway bar end link and lower shock mount.

7.Rest shock on upper control arms and remove the air line fitting from the air valve. Remove air line fitting from air hose and discard.

8.Remove air strut from the vehicle.

9.Slowly remove the air valve to deflate the air strut.

10.Remove the four(4)top mount bolts and the air strut assembly from the upper mount.

Installation Guideline

1.Install new lower o-ring and apply lubrication.

2.Install air spring onto the shock.

3.Install top rubber mount.

4.Reinstall shock nut.

5.Install o-ring into the o-ring groove on the top mount.

6.Install the four(4)new bolts securing the air spring to the upper mount.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Notes :This is only a repair kit and cannot be used in its entirety.

Please double confirm the compatibility as well as the OEM number before purchasing.

These air suspension solenoid valves are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

Includes

Single for Front Left Air Suspension Shock Strut
