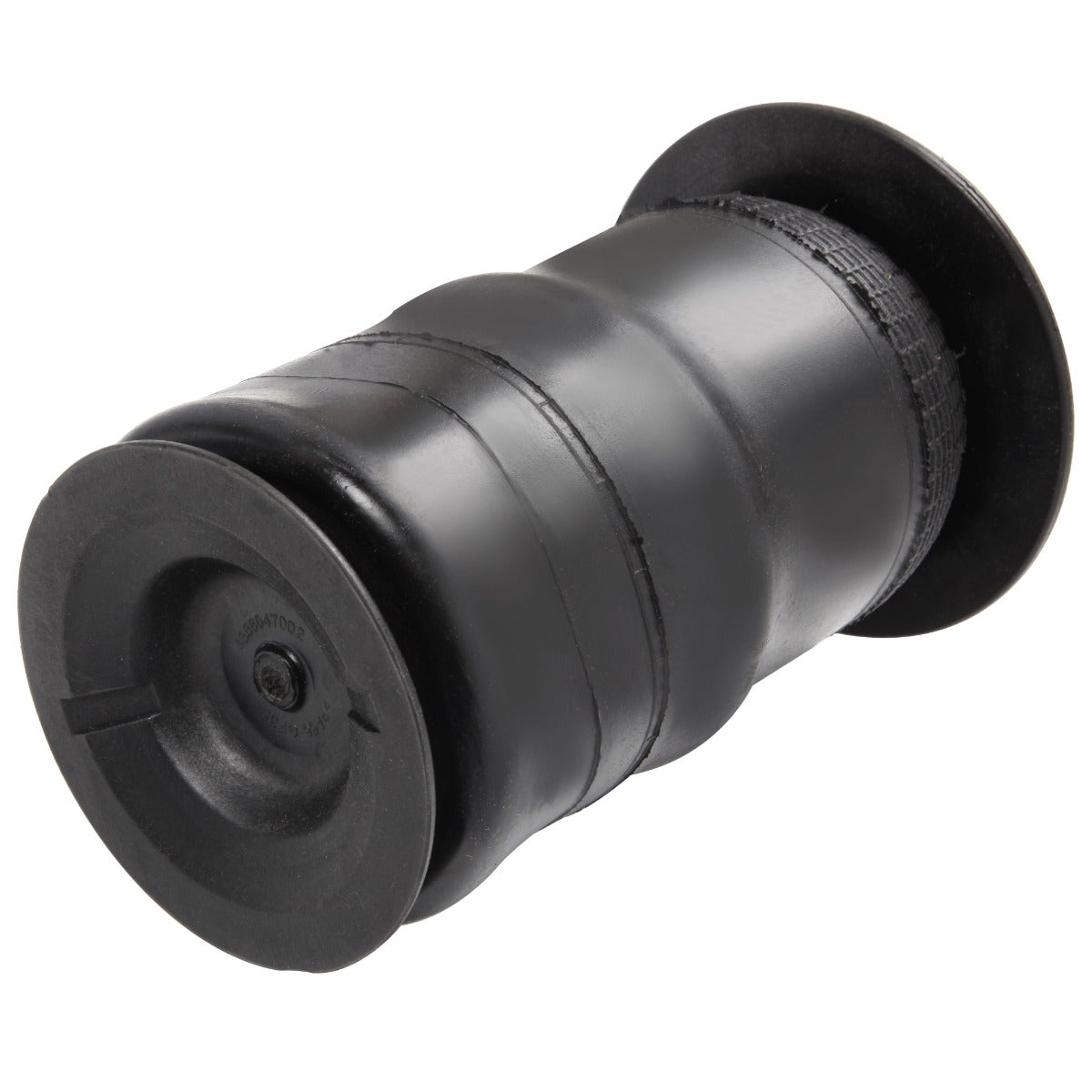

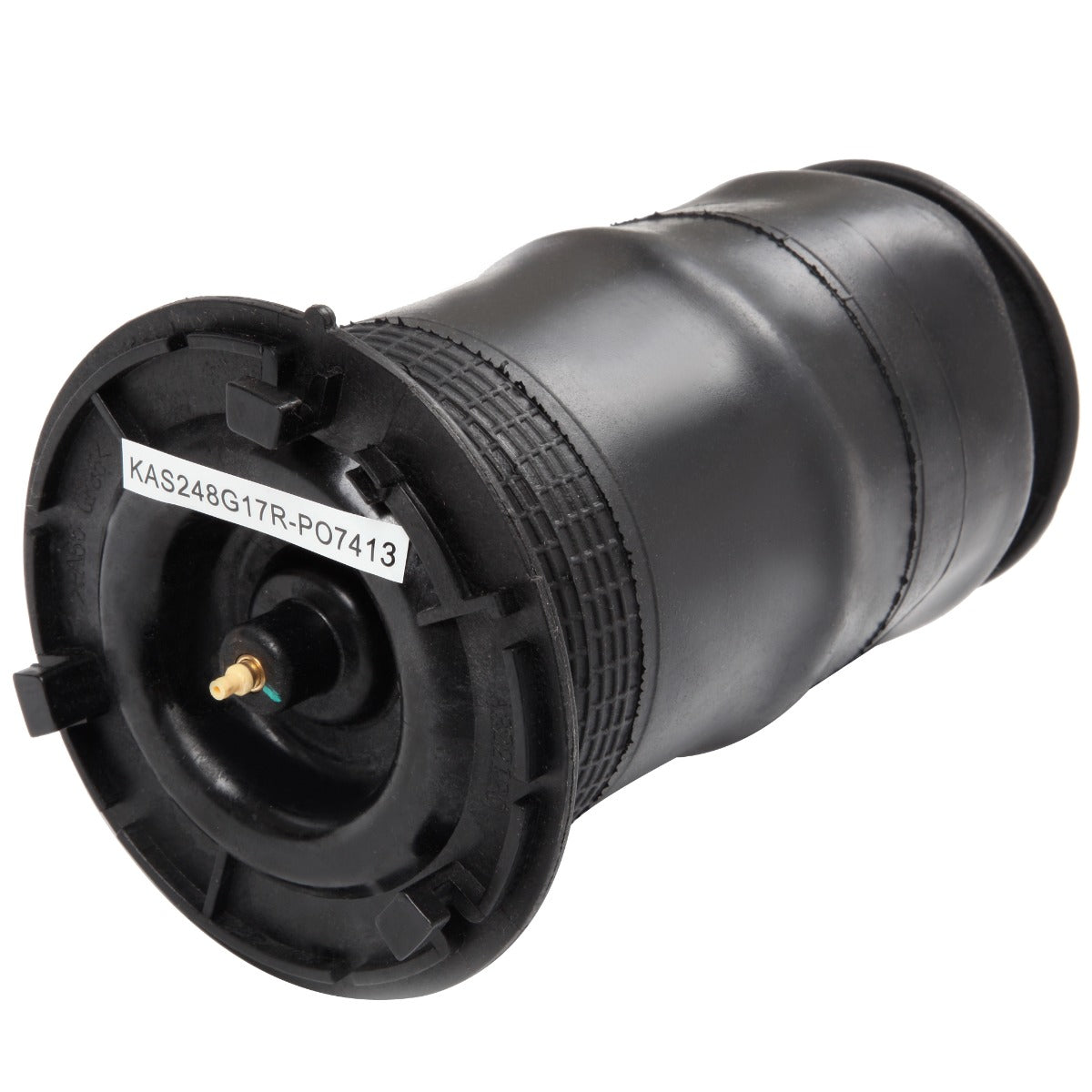

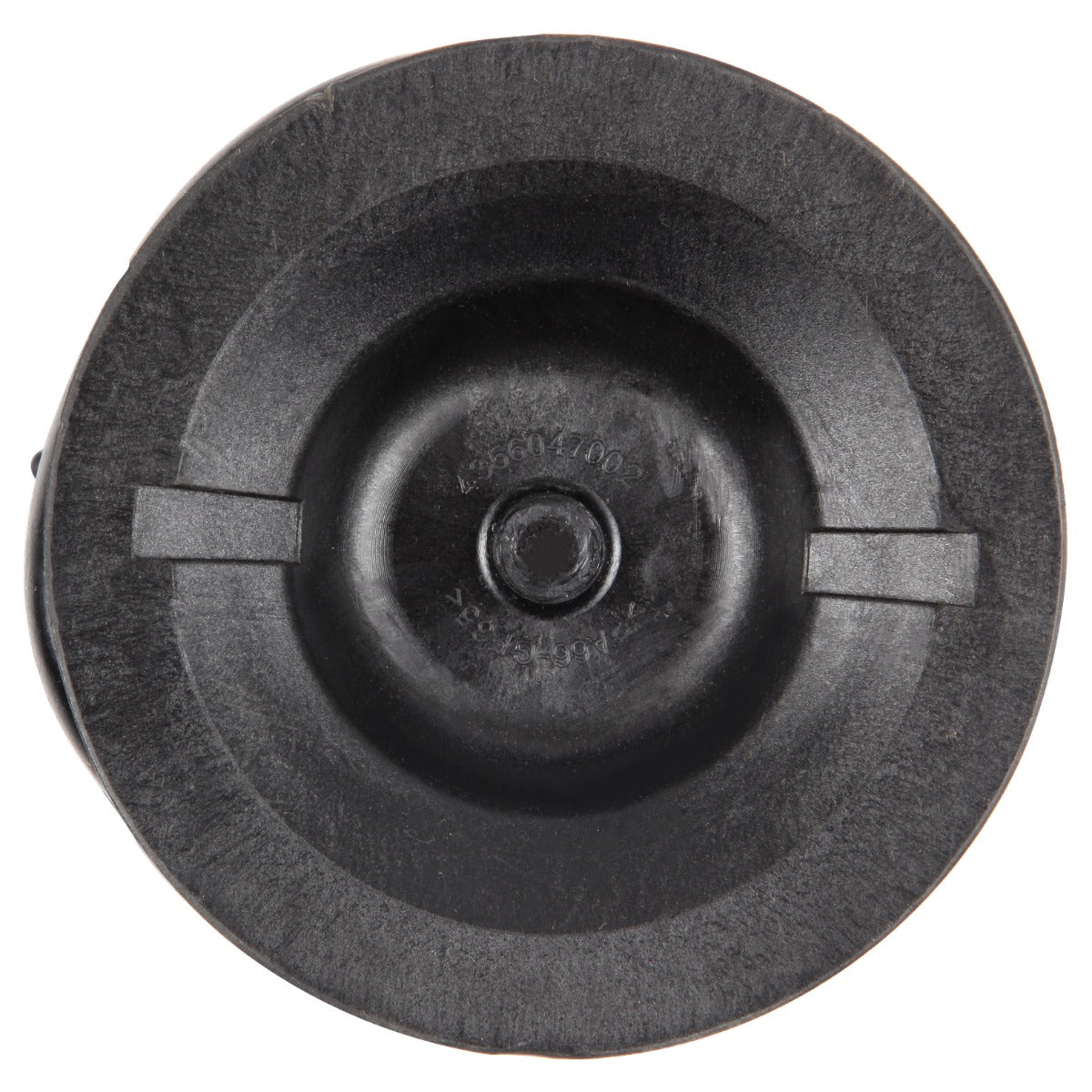

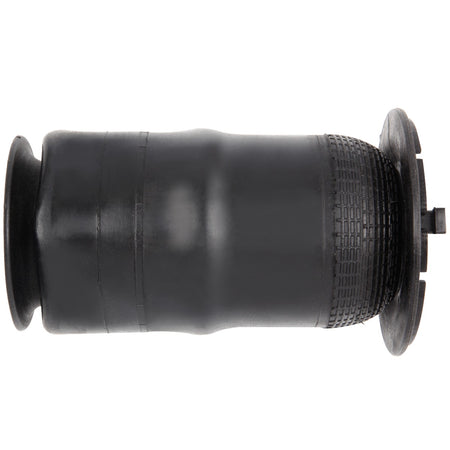

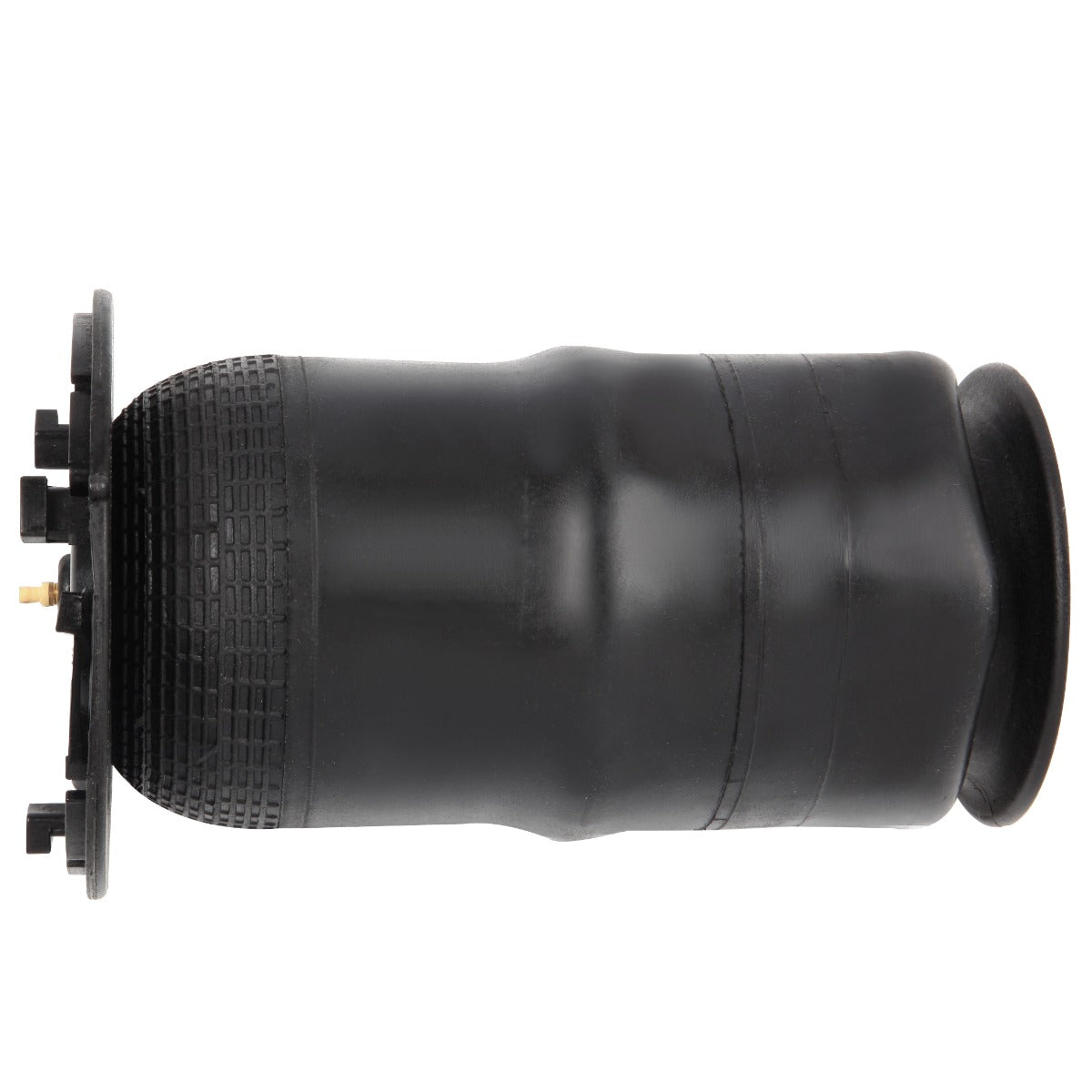

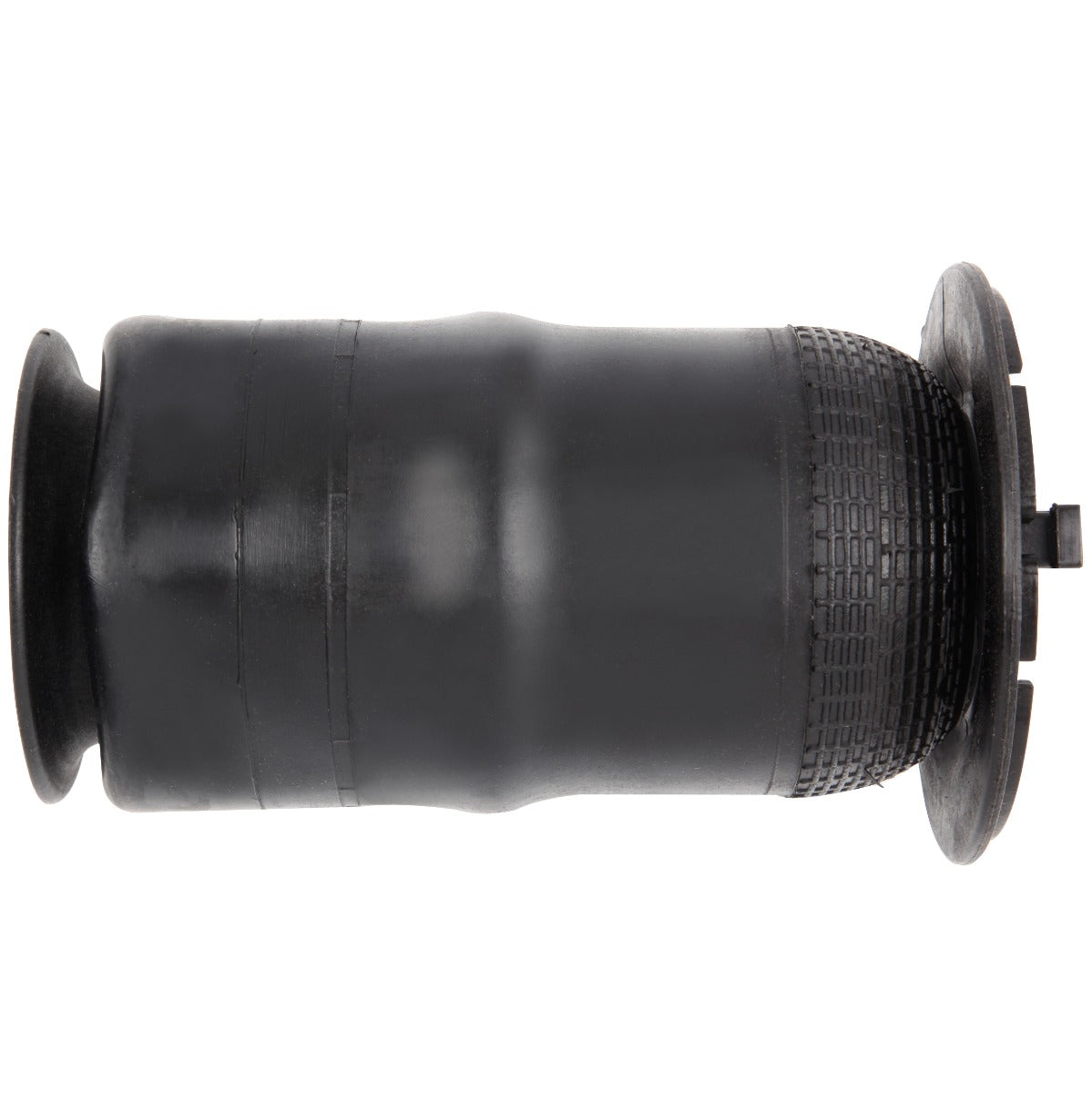

Rear Air Suspension Spring For Buick Rainier GMC Envoy Isuzu Ascender Saab 9-7x

Fitment:

• Buick | Rainier | 2004~2007 | 4.2L/5.3L
• Chevrolet | Trailblazer | 2002~2009 | 4.2L/5.3L/6.0L
• Chevrolet | Trailblazer EXT | 2002~2006 | 4.2L/5.3L
• GMC | Envoy | 2002~2009 | 4.2L/5.3L
• GMC | Envoy XL | 2002~2006 | 4.2L/5.3L
• GMC | Envoy XUV | 2004~2005 | 4.2L/5.3L
• GMC | Jimmy | 2002~2005 | 4.3L
• Isuzu | Ascender | 2003~2008 | 4.2L/5.3L
• Oldsmobile | Bravada | 2002~2004 | 4.2L
• Saab | 9-7x | 2005~2009 | 4.2L/5.3L/6.0L

Item Specifications

Key Words: Rear Pair Suspension Spring Bags For Chevrolet Trailblazer Buick Rainier GMC Envoy Jimmy Isuzu Ascender Oldsmobile Bravada Saab 9-7x 2002-2009

*Removal Guideline

CAUTION: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual, service manual,or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions.Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise vehicle.

3.Remove rear wheel.

4.Locate the air compressor behind the right rear wheel.

5.Remove the two lower mounting bolts from the compressor mounting plate. Lift upward on the compressor assembly and unhook the unit from the frame rail.

6.Deflate rear air spring and pull downward to remove it from the axle. The air spring is held from turning with a plastic clip on the top of the air spring. You may have to hold the plastic clip down while rotating the air spring to free it from the upper spring seat.

7.Disconnect the air line from the air spring by pressing down on the steel fitting while pulling outward on the air line.

8.Carefully remove air spring from the vehicle.

9.Seal off air line to prevent any dirt or grease from entering system.

*Installation Guideline

1.Installation is in reverse order of air spring removal.

*Warning & Notice

Vent all air pressure from the air suspension system prior to disconnecting or removing any air suspension components. It is dangerous to remove air suspension components while under pressure. Failure to follow this instruction may result in serious personal injury.

Any air spring which is unfolded must be refolded prior to being installed in a vehicle. Refer to the procedure. An incorrectly folded air spring could rupture, altering the handling characteristics of the vehicle. If a vehicle has been driven with an incorrectly folded air spring, a new air spring must be installed. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

Failure to observe the following instructions may result in a sudden failure of the air spring or suspension system.

Any rear spring which is unfolded must be refolded prior to being installed in a vehicle.

The air spring refolding procedure should only be used for an air spring which has never supported the vehicle's weight while in the incorrectly folded position.

Incorrectly folded air springs found on vehicles during pre-delivery inspection or after use must be installed new.

Do not attempt to inflate any air spring which has been collapsed while uninflated from the rebound hanging position to the jounce stop.

When installing a new air spring, care must be taken not to apply a load to the suspension until springs have been inflated using the air spring fill procedure.

After inflating an air spring in the hanging position, it must be inspected for correct shape.

Note

The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.

With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.

2.Using the scan tool, vent the air springs.

3.Remove the air spring retainer.

4.Detach the air spring from the rear axle.

5.Remove the air spring in the following sequence.

1.Disconnect the air spring solenoid electrical connector.

2.Compress the quick connect locking ring and pull out the air tube.

3.Remove the air spring.

Please double confirm the compatibility as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.

Includes

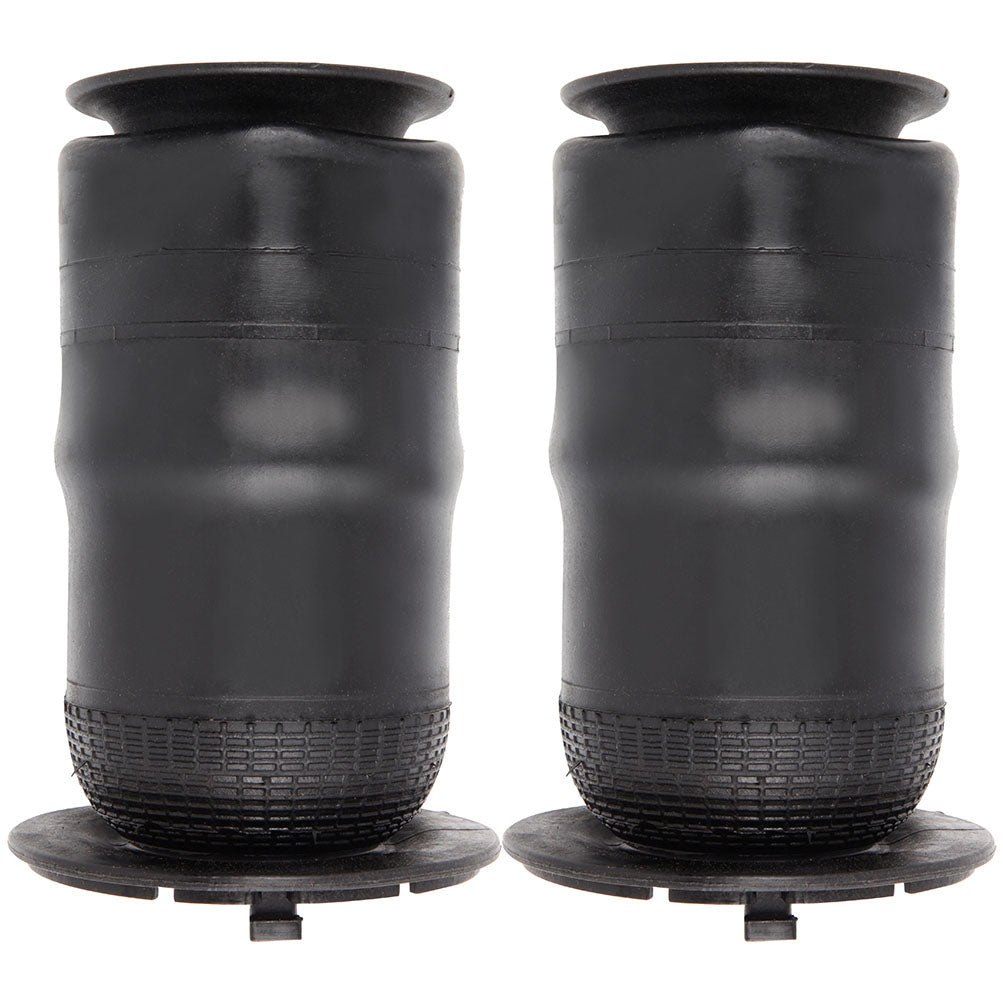

Pair for Rear Left & Right Air Suspension Spring Bags
