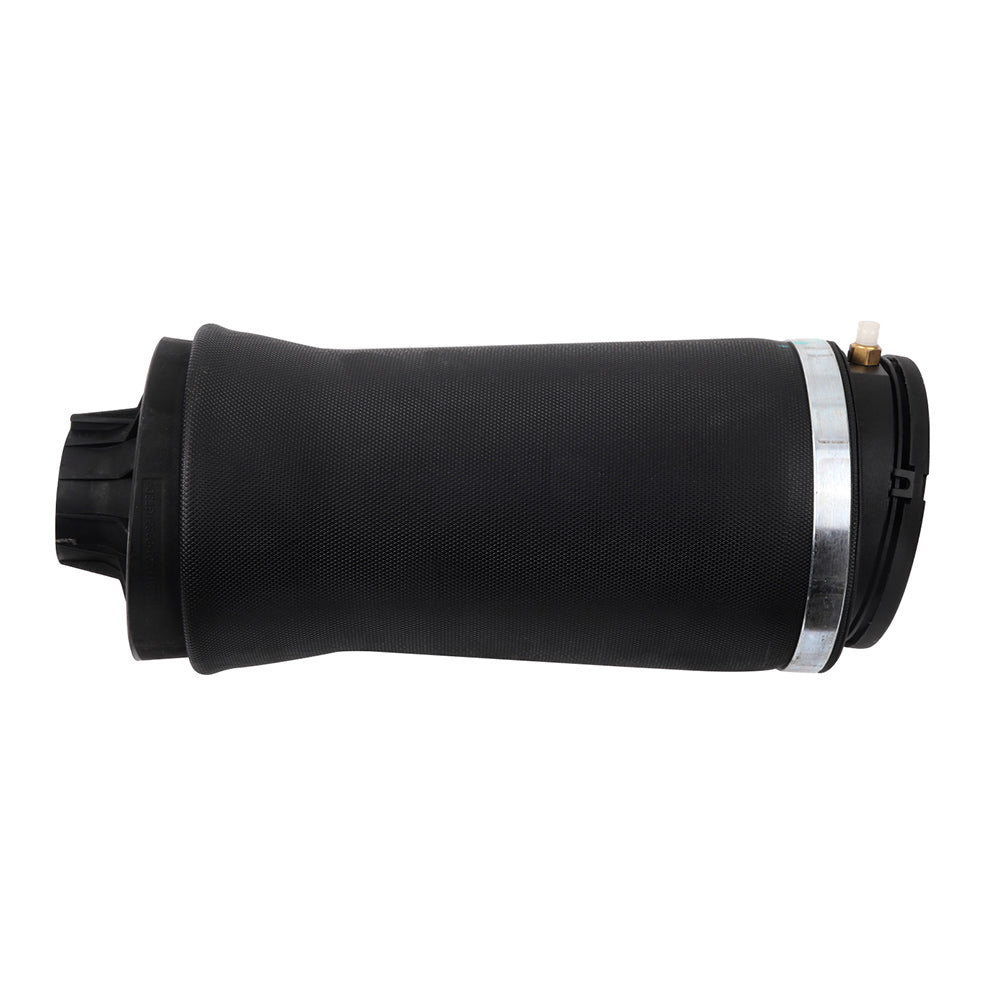

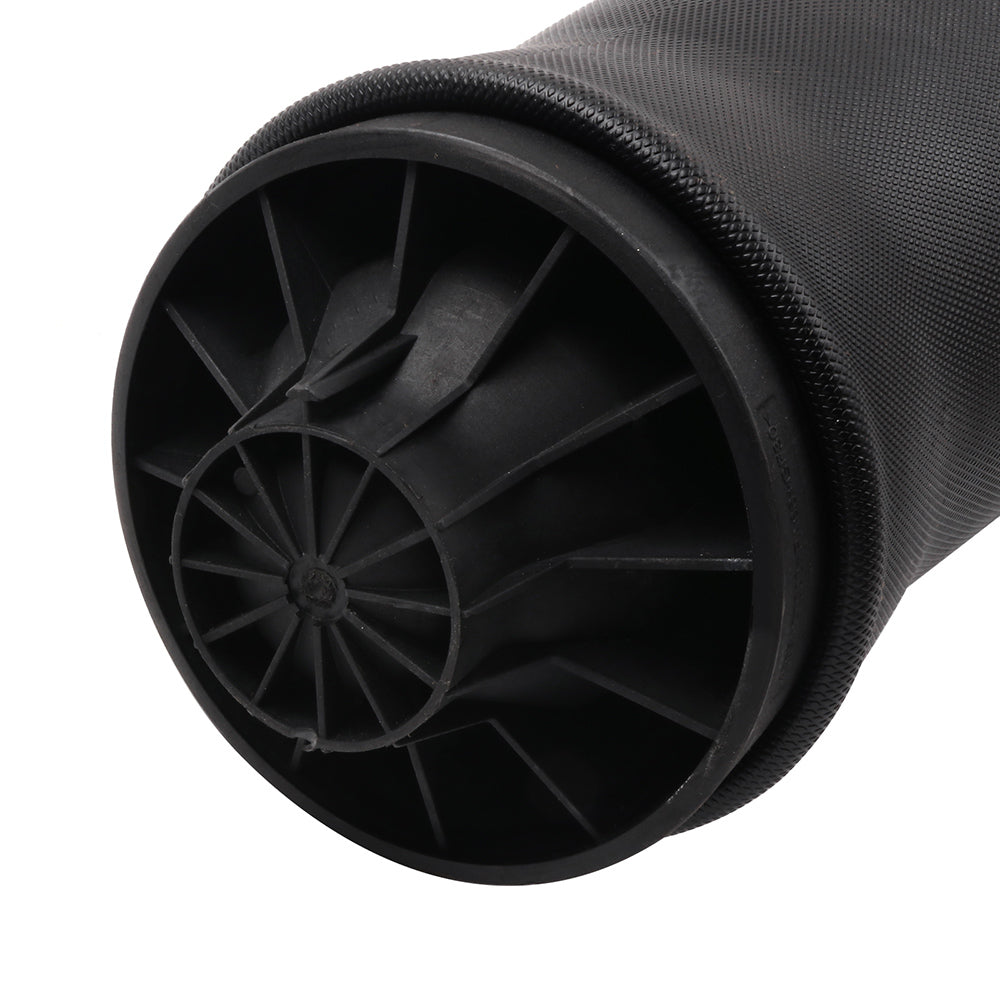

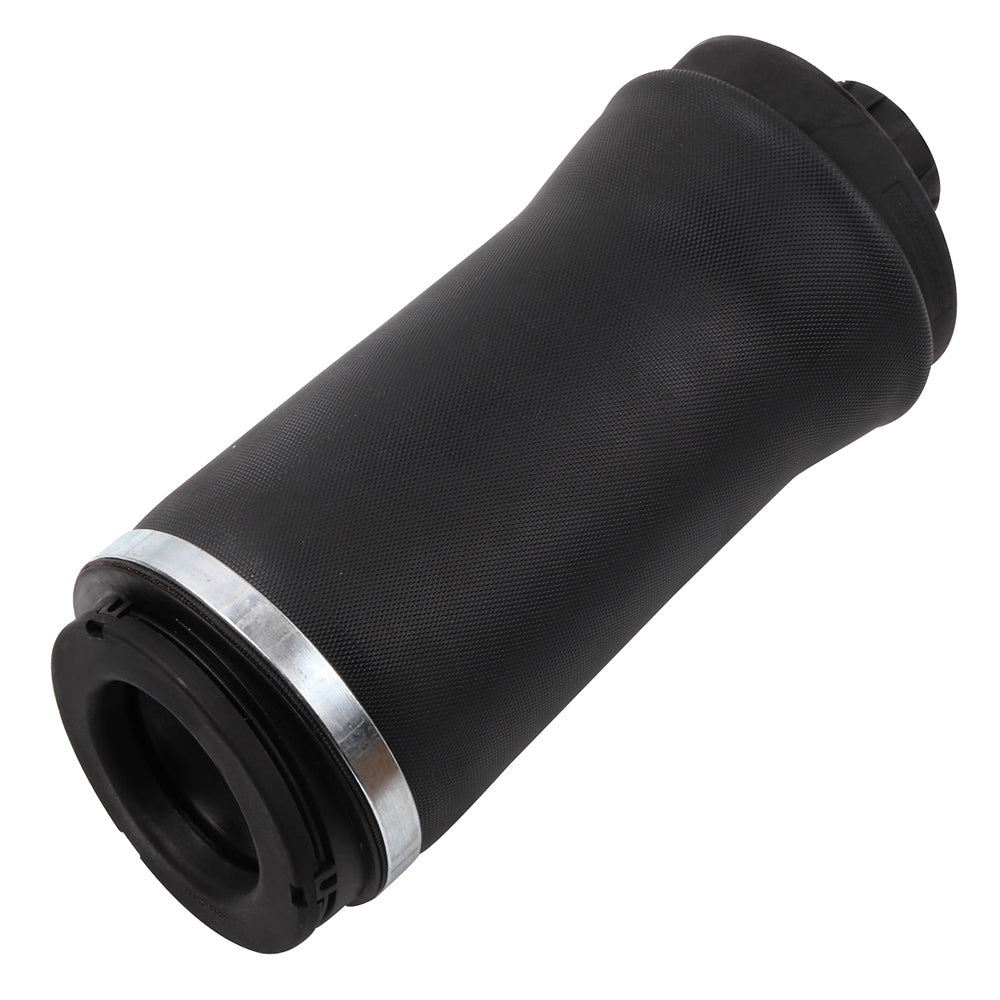

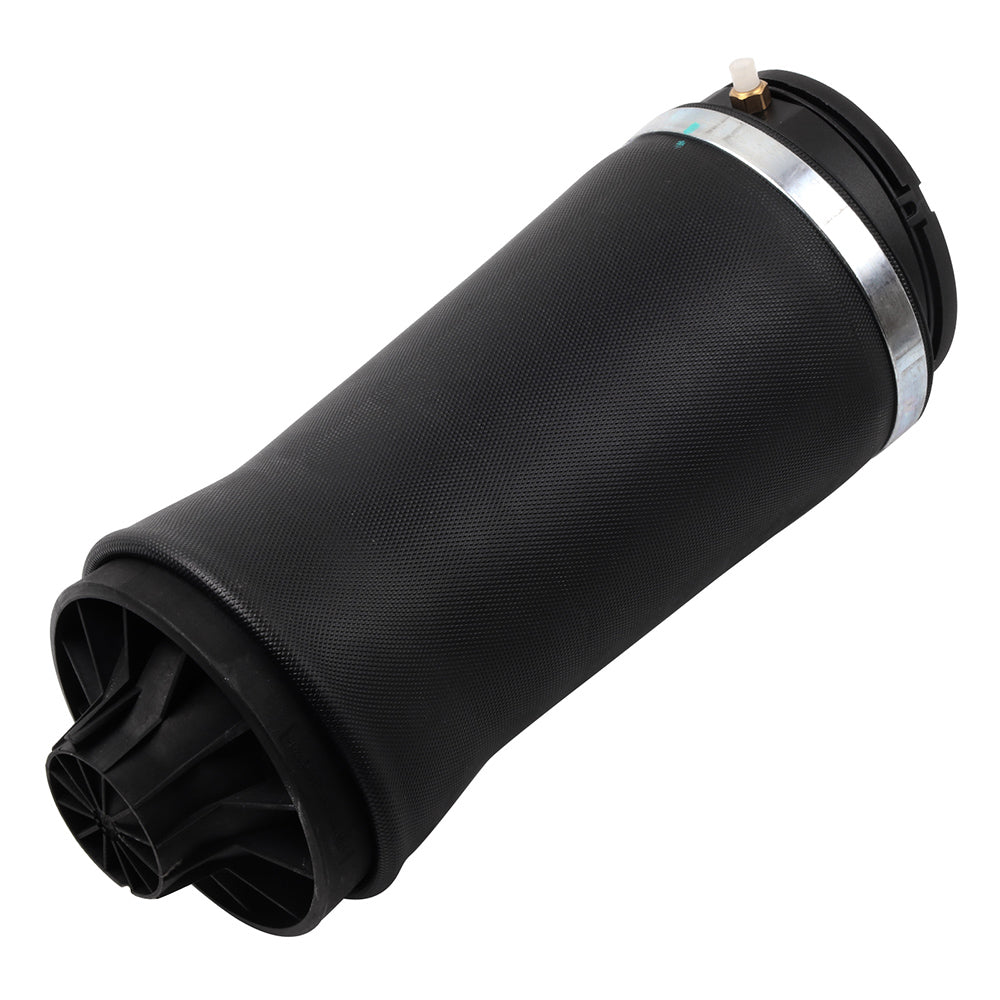

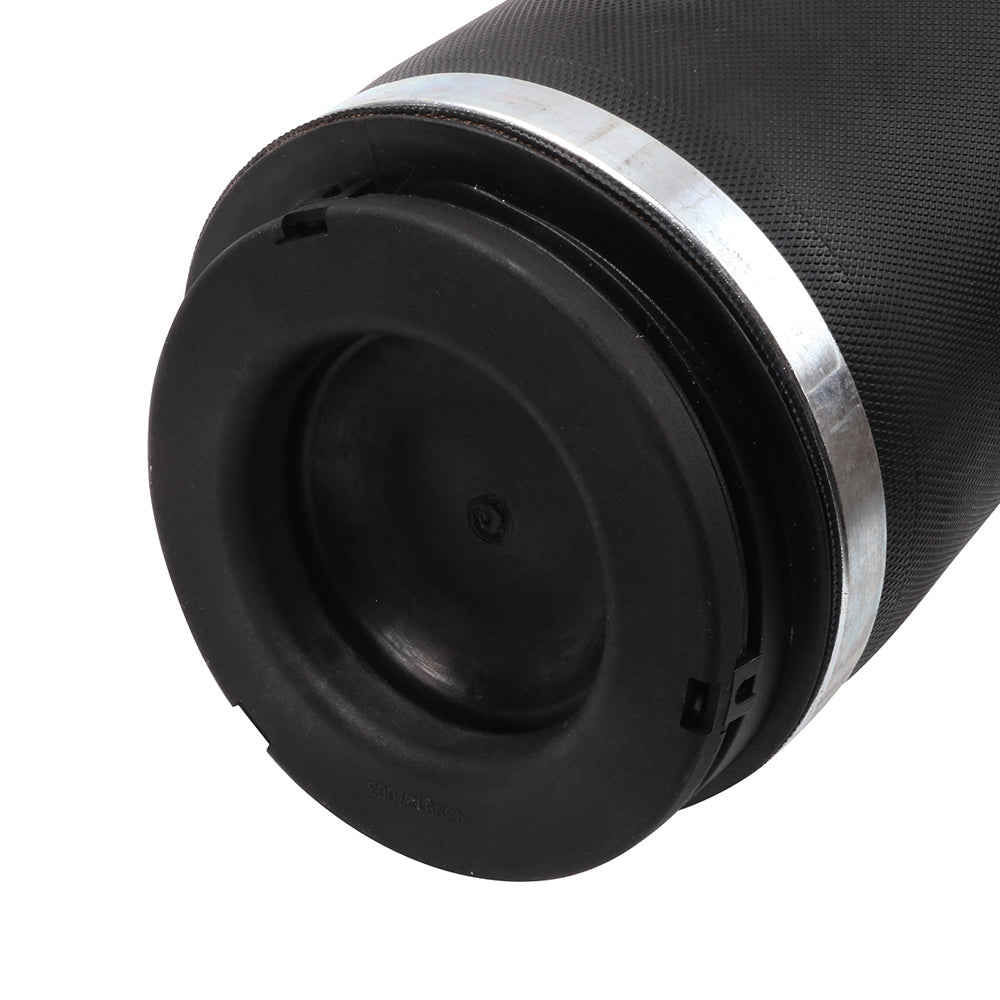

Rear Air Suspension Spring For Jeep Grand Cherokee WK2 Overland SRT8 2011-2016
Fitment:
- Jeep | Grand Cherokee | 2011~2016 | 3.0L/3.6L/5.7L/6.4L
Item Specifications
Key Words: Rear Air Suspension Spring Bag for Jeep Grand Cherokee WK2 2011-2016 Quadra-Trac
Product Specifics
- Part Type: Air Suspension Spring
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 36.83(Length)*17.78(Width)*17.78(Height)
- Single Weight(KG): 2.050
- Upper Mounting Isolator Included: No Isolator Required
- Lower Mounting Isolator Included: No Isolator Required
- Upper Mount Type: Base Cup
- Lower Mount Type: Base Cup
- Included Hardware: None
- Drive Layout: Front Engine 4WD
- Platform: WK2
- Custom Bundle: No
- Material: Iron,Aluminium Alloy,Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Spring Bag, Air Ride Spring Bag
- Superseded Part Number: 68029912AE, 68258355AA
- *Platform Drive Layout: Front Engine-Four Wheel Drive Layout
- *OEM Part Number:
68029911AB
68029912AC
68029912AD
68029912AE
68258355AA
68258355AB
68258355AC
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove applicable rear wheel.(picture 1)
4.Disconnect the air line from the fitting at the top of the air spring.(picture 2,3)
5.With the air line disconnected, press down to collapse the air spring and then remove from the vehicle.(picture 4,5)
*Installation Guideline
1.Press down to collapse the air spring to install onto vehicle, while making sure the spring is properly oriented.(picture 6,7)
2.Connect the air line to the air fitting at the top of the air spring.(picture 8,9)
3.Re-install applicable rear wheel.
4.Lower vehicle.
5.Installation complete.
Includes
Single for Rear Left or Right Air Suspension Spring Bag
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
