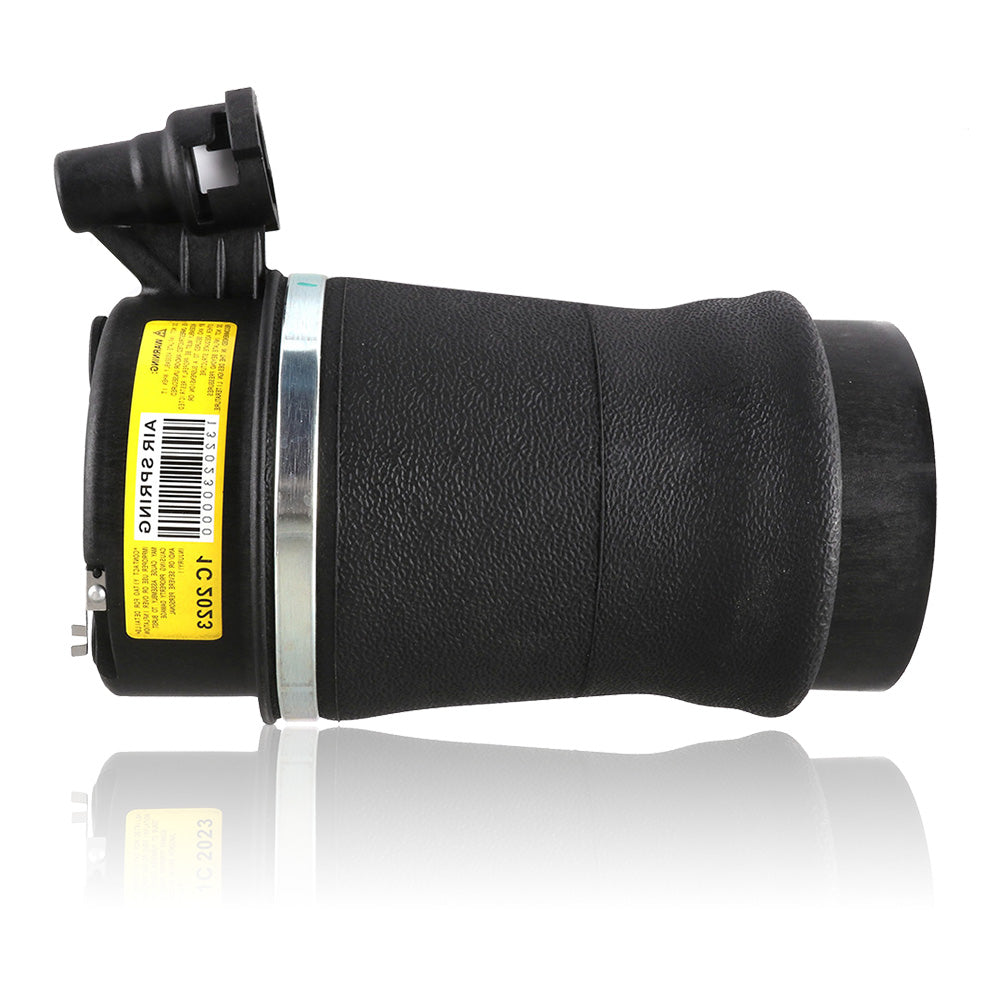

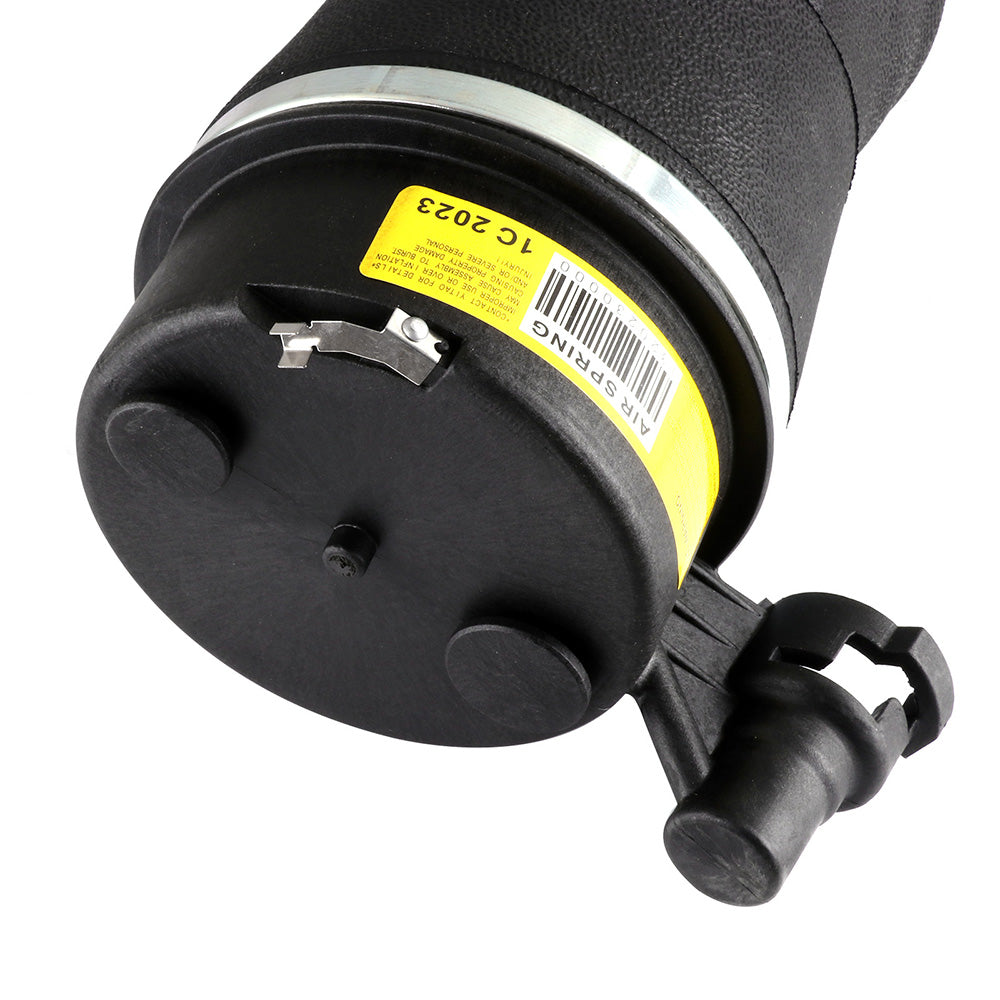

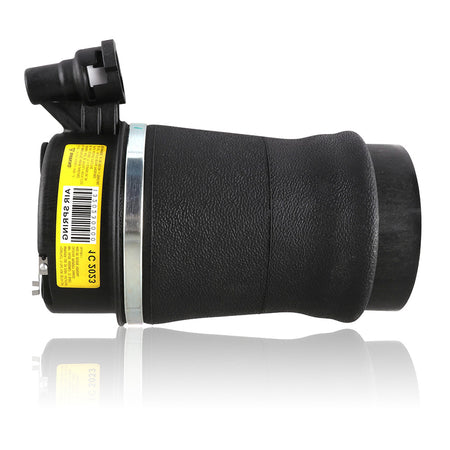

Rear L/R Air Suspension Spring For Lincoln Mark VIII LSC 1993-1998 3U2Z5580FA

Fitment:

• Lincoln | Mark VIII | 1993~1998 | 4.6L

Item Specifications

Key Words: Rear Air Suspension Spring Bag For Lincoln Mark VIII 1993-1998

*Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Turn the air suspension switch to the off position.(switch is located on the driver side of the luggage compartment.)

2.Raise the vehicle.

3.Remove the rear wheel and arch liner.

4.Remove air spring solenoid retaining clip.

5.Rotate solenoid counter-clockwise to the first stop, and then carefully pull down to vent the air pressure from the air spring. After air spring is deflated, turn again and remove solenoid from air spring.

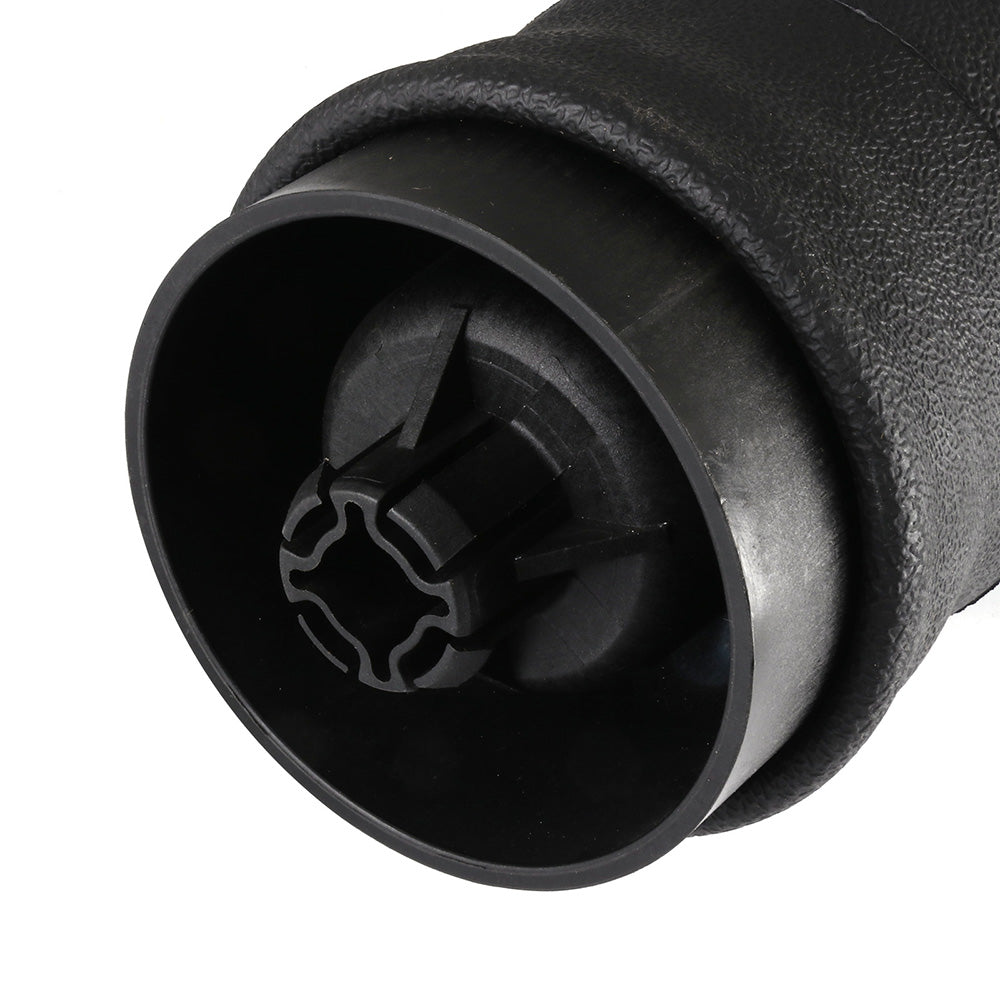

6.Depress the four plastic locking finger clips in bottom of air spring's piston to unclip air spring from the lower suspension arm.

*Installation Guideline

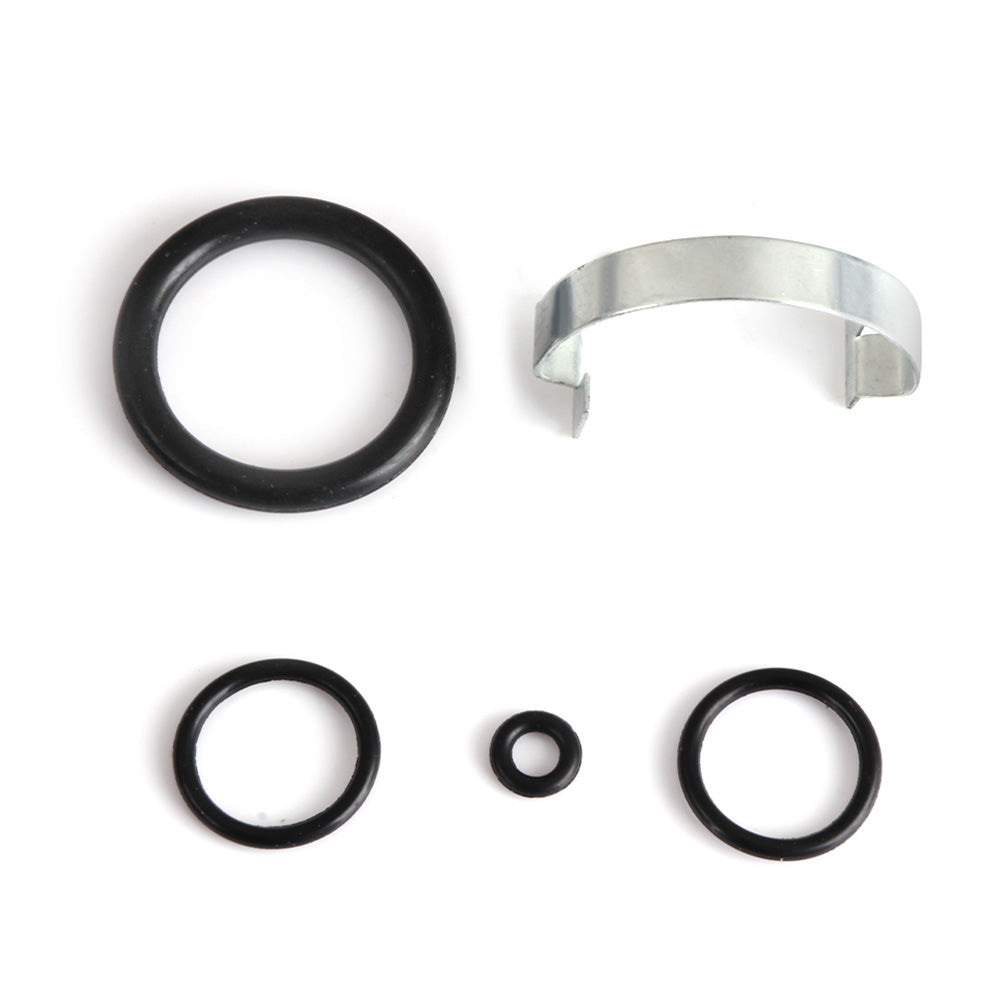

1.Replace the O-rings on the air spring solenoid and lubricate.

2.Install solenoid, and replace solenoid retaining clip.

3.Replace the top air spring retaining clip.

4.Insert the air spring's upper cap into the two holes in chassis and twist to lock back into place. The rear air spring will fit in either RH or LH.

5.Insert the plastic locking fingers of lower piston into lower suspension arm. Make sure they are locked in place. You need to visually verify that all of the four plastic fingers are correctly retained.

6.Replace the tire and wheel assembly. Tighten wheel hub bolt nuts to manufacture's specifications. Remove all safety stands and lower vehicle.

7.Partially lower the rear suspension. Do not lower to the bump stops.

8.Turn the air suspension switch to the on position.

9.Start the engine and let the air suspension rise to normal trim height.

*Removal Warning & Notice

Note

The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.

With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.

2.Using the scan tool, vent the air springs.

3.Remove the air spring retainer.

4.Detach the air spring from the rear axle.

5.Remove the air spring in the following sequence.

1.Disconnect the air spring solenoid electrical connector.

2.Compress the quick connect locking ring and pull out the air tube.

3.Remove the air spring.

Please double confim the compatibility as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.

Includes

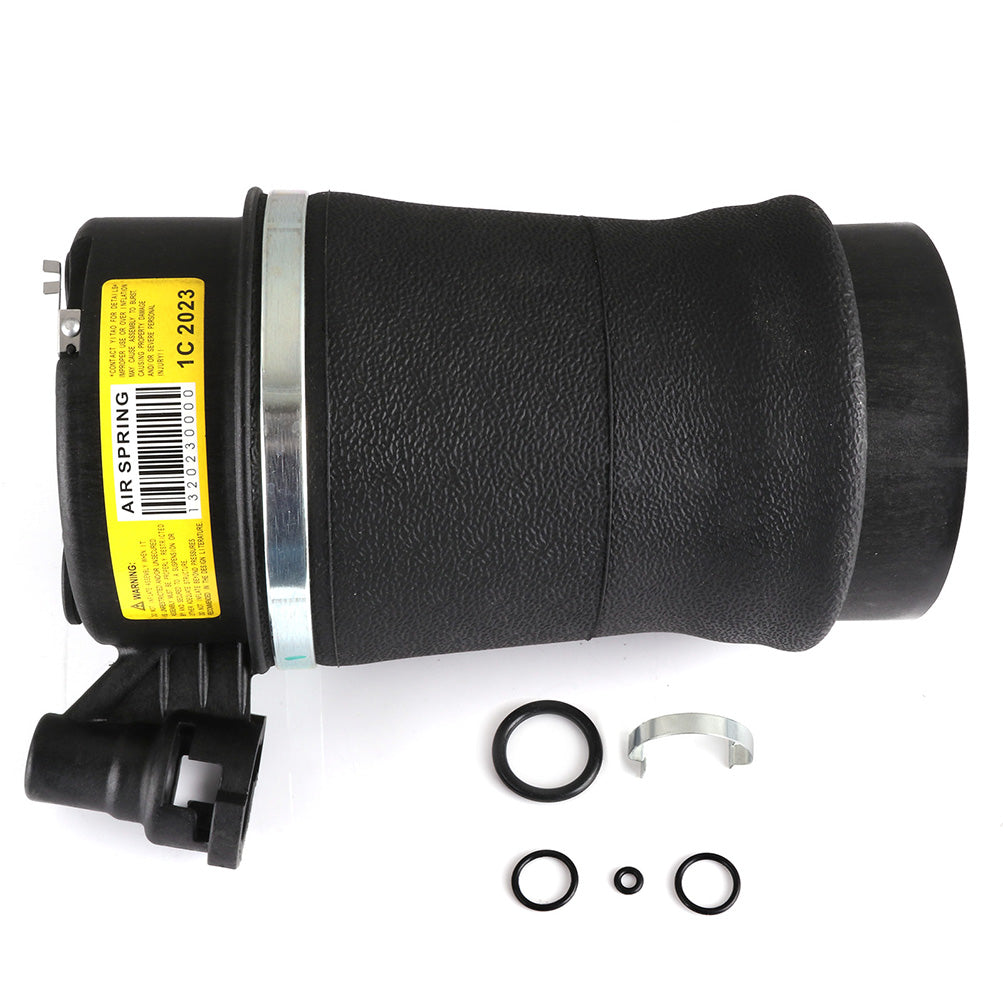

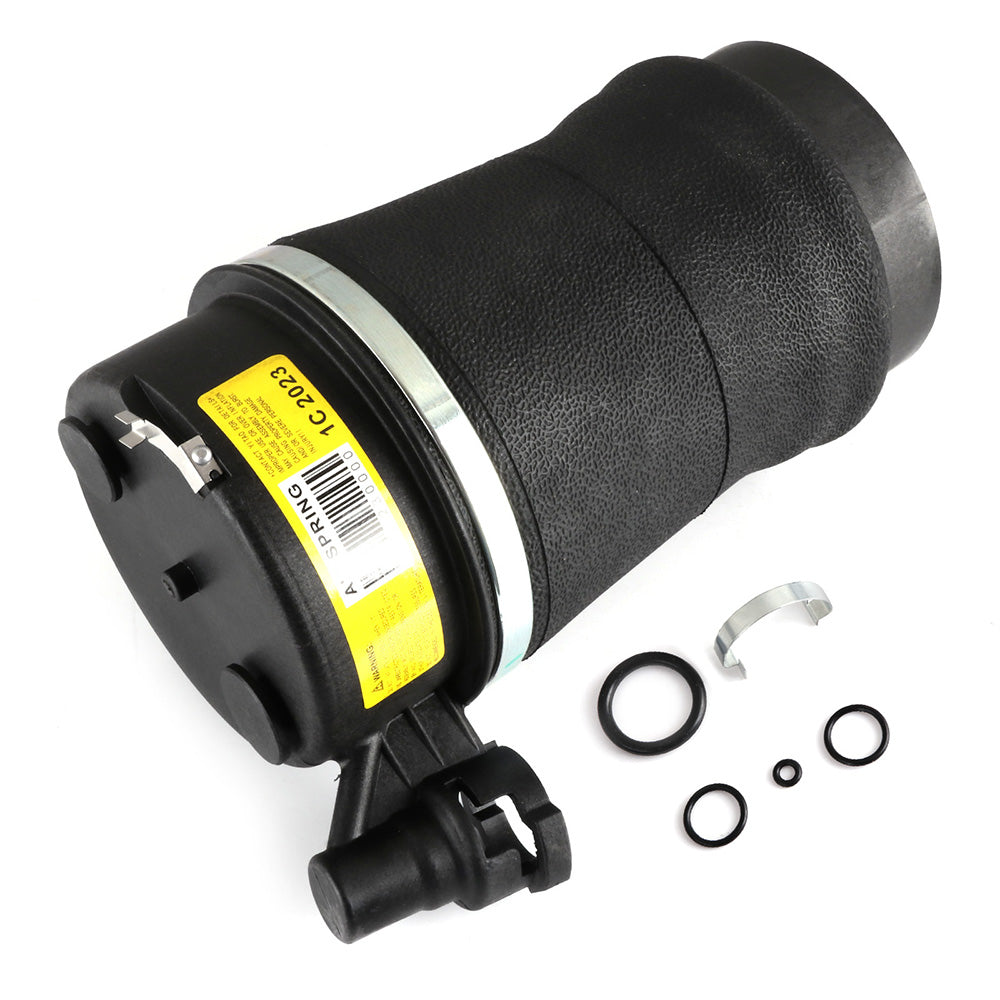

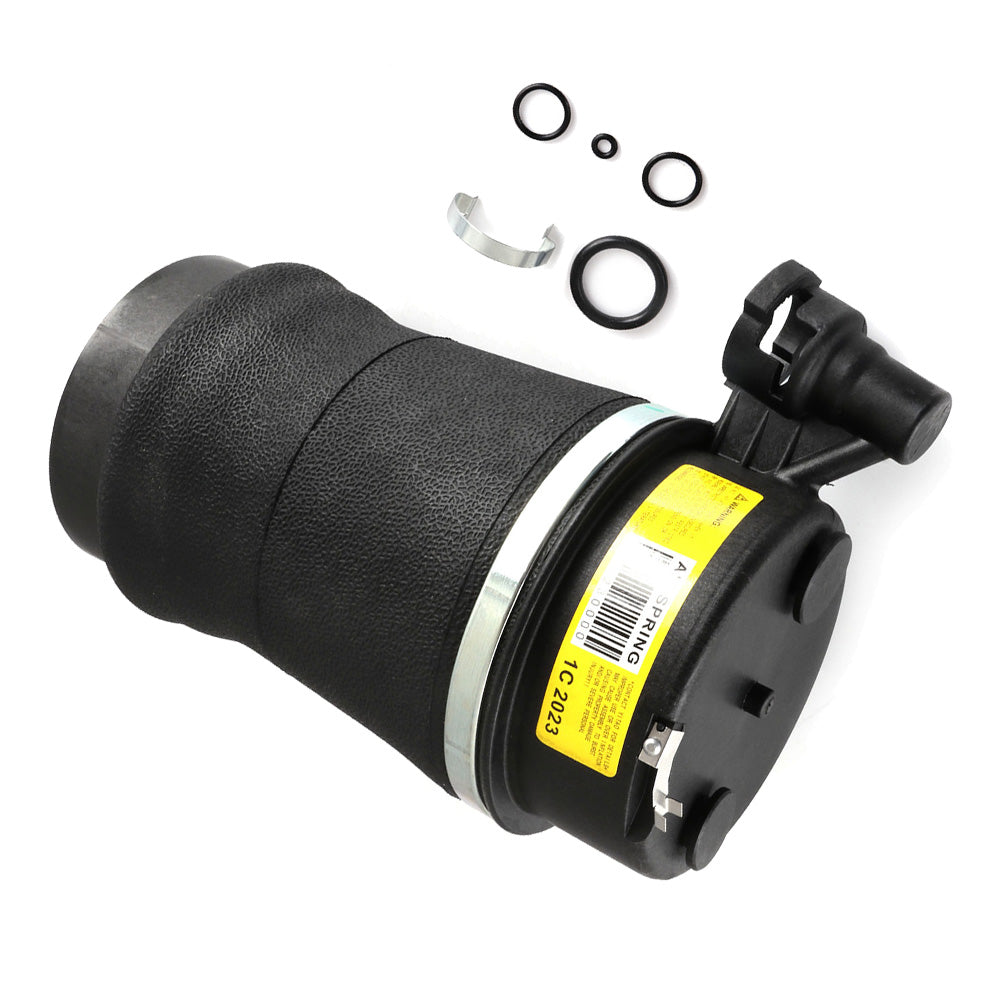

Single for Rear Left or Right Air Suspension Spring Bag
