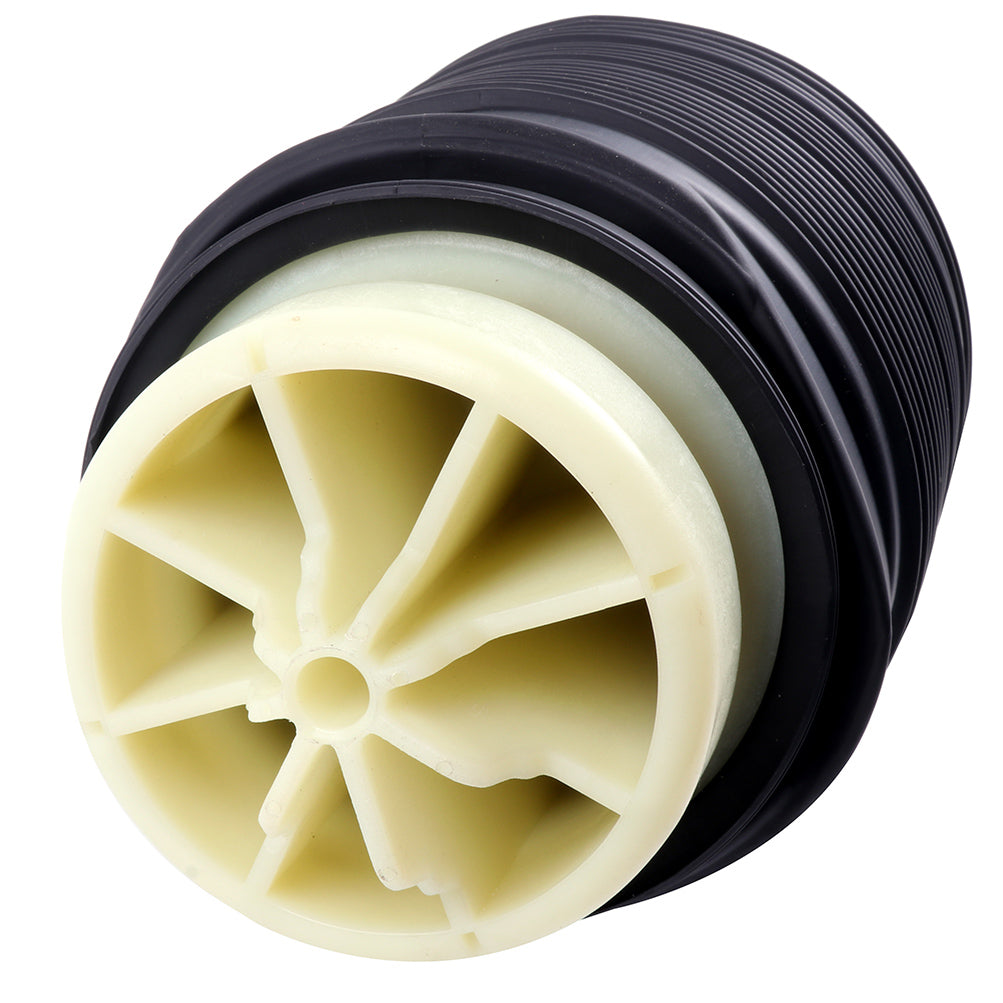

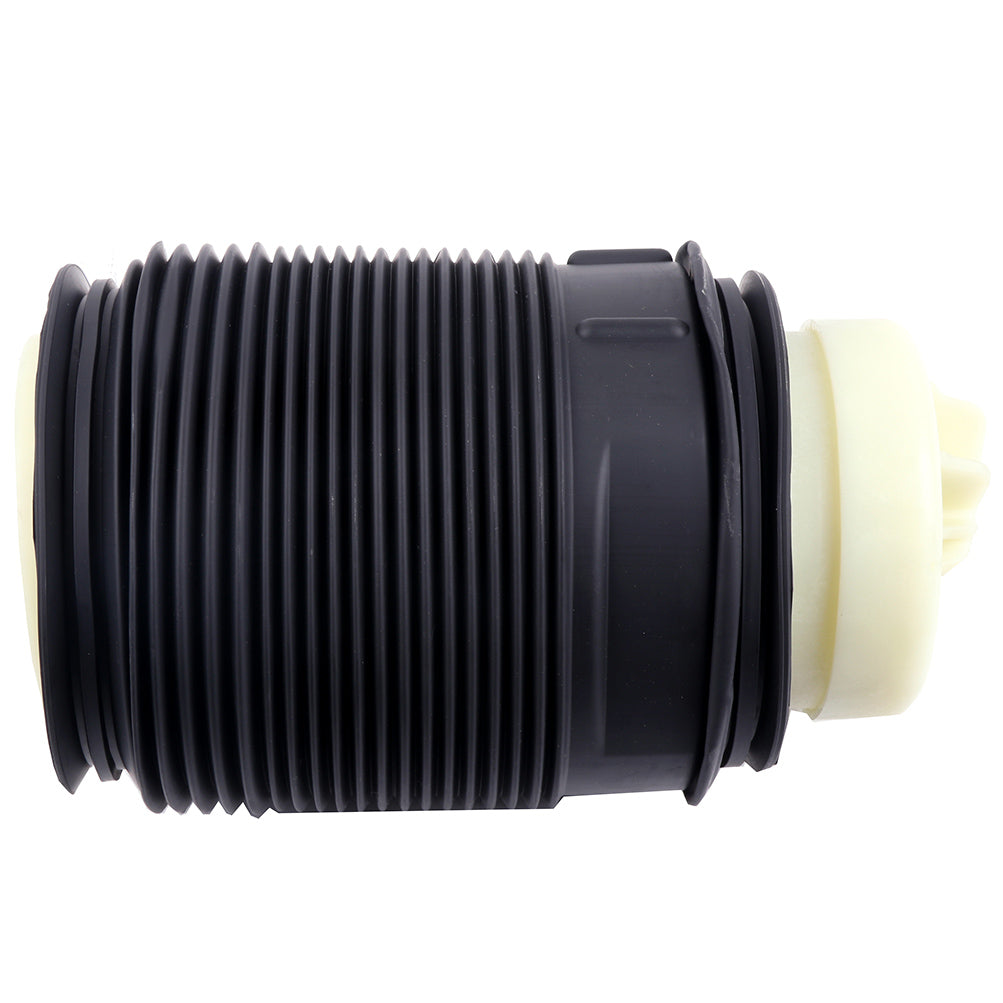

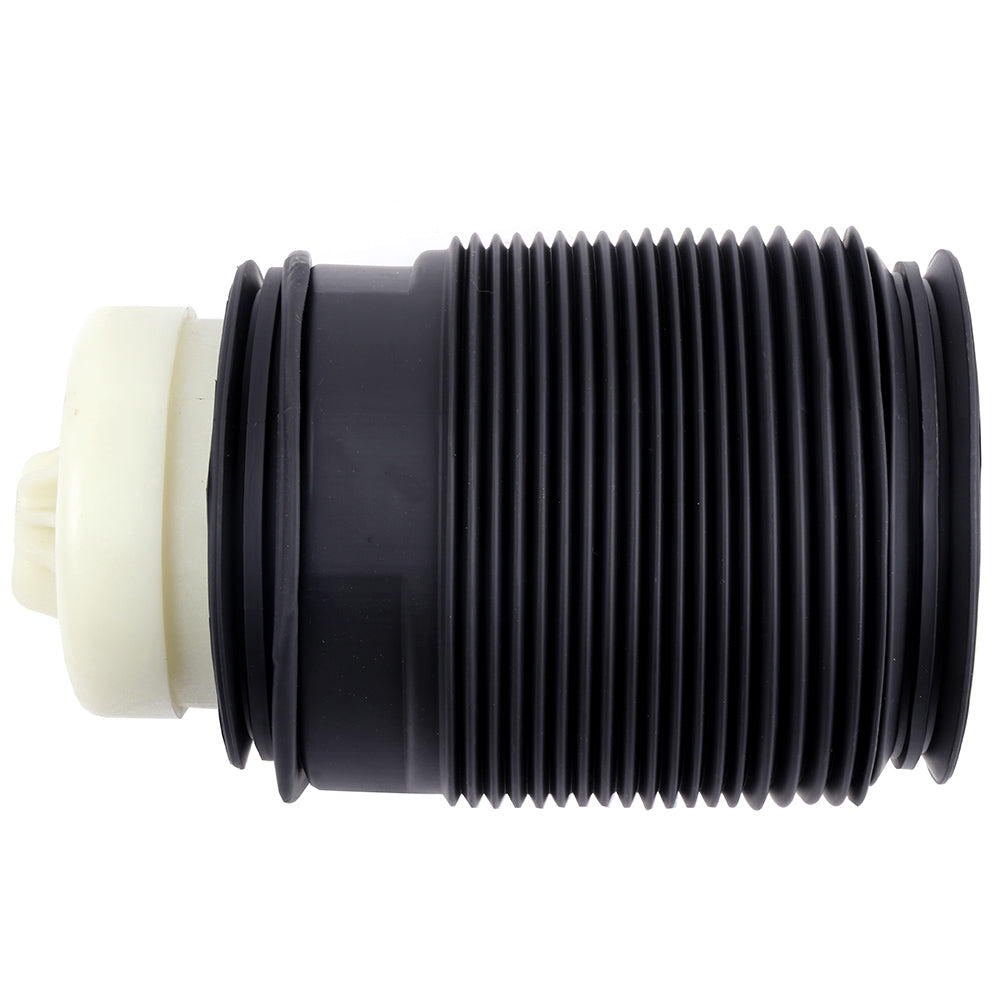

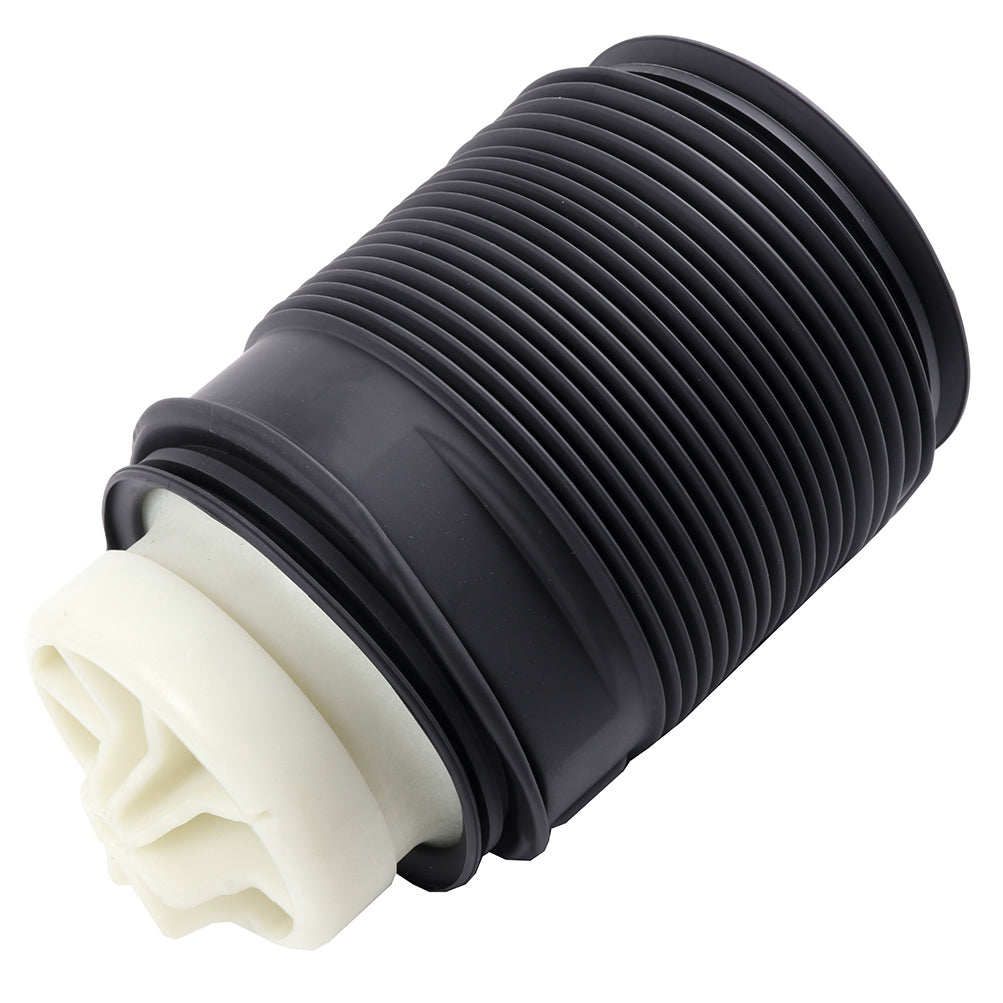

Rear Left Air Suspension Bag For Mercedes W218 CLS550 CLS63 E350 E550 E63
Fitment:
- Mercedes-Benz | E200 | 2012~2013/2015~2016 | 1.8L/2.0L
- Mercedes-Benz | E250 | 2011~2016 | --/1.8L/2.0L/2.1L/3.5L/4.7L/5.5L
- Mercedes-Benz | E300 | 2010~2016 | 3.0L/3.5L/5.5L
- Mercedes-Benz | E350 | 2010~2016 | --/3.0L/3.5L
- Mercedes-Benz | E400 | 2014~2016 | --/3.0L
- Mercedes-Benz | E500 | 2010~2016 | 4.7L/5.5L
- Mercedes-Benz | E550 | 2010~2011/2016 | --/5.5L
- Mercedes-Benz | E63 AMG | 2010~2016 | 5.5L/6.3L
- Mercedes-Benz | E63 AMG S | 2014~2016 | 5.5L
Item Specifications
Key Words: Rear Left Air Suspension Spring Bag For Mercedes E-Class W212 E250 E350 E400 E550 E63 AMG 2009-2016 CLS-Class W218 CLS400 CLS550 CLS63 AMG 2011-2018
Product Specifics
- Part Type: Air Suspension Spring
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 32.00(Length)*20.00(Width)*20.00(Height)
- Single Weight(KG): 1.800
- Upper Mounting Isolator Included: No Isolator Required
- Lower Mounting Isolator Included: No Isolator Required
- Upper Mount Type: Base Cup
- Lower Mount Type: Base Cup
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: W212
- Custom Bundle: No
- Material: Iron,Aluminium Alloy,Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Spring Bag, Air Ride Spring Bag
- Superseded Part Number: 2123203925
- *Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout - *OEM Part Number:
2123200725,2123203725,
2123203925,2123204325
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Raise vehicle and remove rear wheel to expose the rear air spring.(picture 1)
2.Locate and remove the air line fitting to deflate the rear air spring.(pictures 2,3)
3.Remove the air line fitting from the air hose and discard.(pictures 10-4,10-5)
4.Carefully pull down the top of the air spring to detach it from its upper mount retaining clip.(picture 6)
5.Pull up on the bottom of the air spring to separate it from the lower spring seat.(picture 7)
6.Remove the rear air spring from the vehicle.(picture 8)
7.Removal complete.
*Removal Guideline
1.Installation is in reverse order of air spring removal.
Includes
Single for Rear Left Air Suspension Bag
Notes : Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
