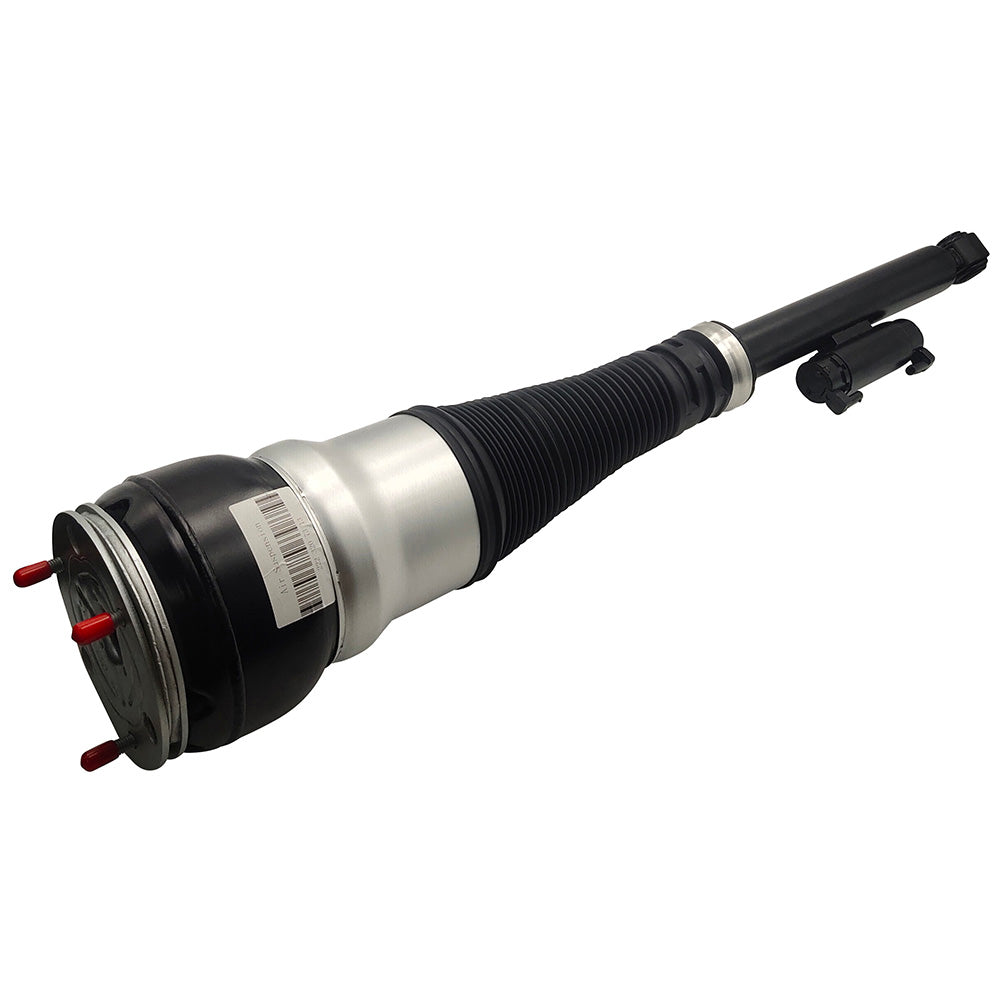

Rear Left Air Suspension Shock For Mercedes W222 13-20 S550 S500 S600 S400 S450
Fitment:
- Mercedes-Benz | Maybach S550 | 2017 | 4.7L
- Mercedes-Benz | Maybach S560 | 2018~2020 | 4.0L
- Mercedes-Benz | Maybach S600 | 2016~2017 | 6.0L
- Mercedes-Benz | Maybach S650 | 2018~2020 | 6.0L
- Mercedes-Benz | S400 | 2014~2015 | 3.0L
- Mercedes-Benz | S400L | 2016~2018 | 3.5L
- Mercedes-Benz | S450 | 2018~2020 | 3.0L
- Mercedes-Benz | S450L | 2019~2020 | 3.0L
- Mercedes-Benz | S500 | 2014/2016 | 4.7L
- Mercedes-Benz | S500L | 2015/2017~2018 | 4.7L
- Mercedes-Benz | S550 | 2014~2017 | 4.7L
- Mercedes-Benz | S560 | 2018~2020 | 4.0L
- Mercedes-Benz | S560L | 2019~2020 | 4.0L/6.0L
- Mercedes-Benz | S600 | 2015~2017 | 6.0L
- Mercedes-Benz | S600L | 2016~2020 | 6.0L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 99(Length)*19(Width)*19(Height)
- Single Weight(KG): 11.75
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: W222
- Custom Bundle: No
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 2223207313,2223205313,2223202900
- Superseded Part Number: 2223205901,222320731389,2223202513,
- Return Policy: 30 Days Free Return Or Exchange
- Surface Finish: High Quality
- Replacement Part Number:
2223207313,2223205313
2223202900,2223205901
222320731389 2223202513,
222320290089,2223204500
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Raise vehicle.
2.Remove left rear wheel.
3.Remove cover from control arm.
4.Disconnect ride height sensor arm
5.Gain access to top nuts and airline by removing rear speaker and foam inserts underneath. remove the air line.
6.Remove oe air line fitting from the air line and discard. use the figure below as an example.
7.Disconnect both electrical connectors.
8.Remove sway bar linkage.
9.Remove lower strut bolt.
10.Disconnect torsion bar from wheel carrier.
11.Loosen control arm at rear axle carrier. disconnect control arm at wheel carrier.
swing control arm down.
12. With assistance, remove the three (3) top nuts from the strut and remove from vehicle.
13.Removal complete.
Installation Guideline
1.Removethe shipping plug fromthe check valve and install the voss fitting
from the provided accessory kit on to the arnott air strut. remove the
shipping pin from the voss fitting. use the figures below as an example.
2. Install the arnott strut onto the vehicle in the same orientation as removed.
3.Install the provided top nuts loosely to retain strut in place.
4.Support control arm by loosely inserting wheel carrier bolt. install lower shock bolt. tighten shock bolt to manufacturer¡¯s specifications.
5.Tighten control arm to wheel carrier bolt. tighten to manufacturer¡¯s specifications.
6.Connect torsion bar to wheel carrier.
7.Install sway bar linkage.
8.Tighten control arm at axle carrier.
9.Connect the two (2) electrical connections to the strut.
10.Reinstall the ride height sensor in the exact orientation as removed.
11.Install the control arm cover.
12.Tighten the three (3) top nuts. tighten to manufacturer¡¯s specifications.
13. Connect the air line. press the line in until it seats in the fitting firmly. use the figure
below as an example.
14.Replace foam inserts and rear speaker above the air strut.
15.Install the wheel
16.Lower vehicle.
17.Installation complete.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes
Single for Rear Left Air Suspension Shock Strut
