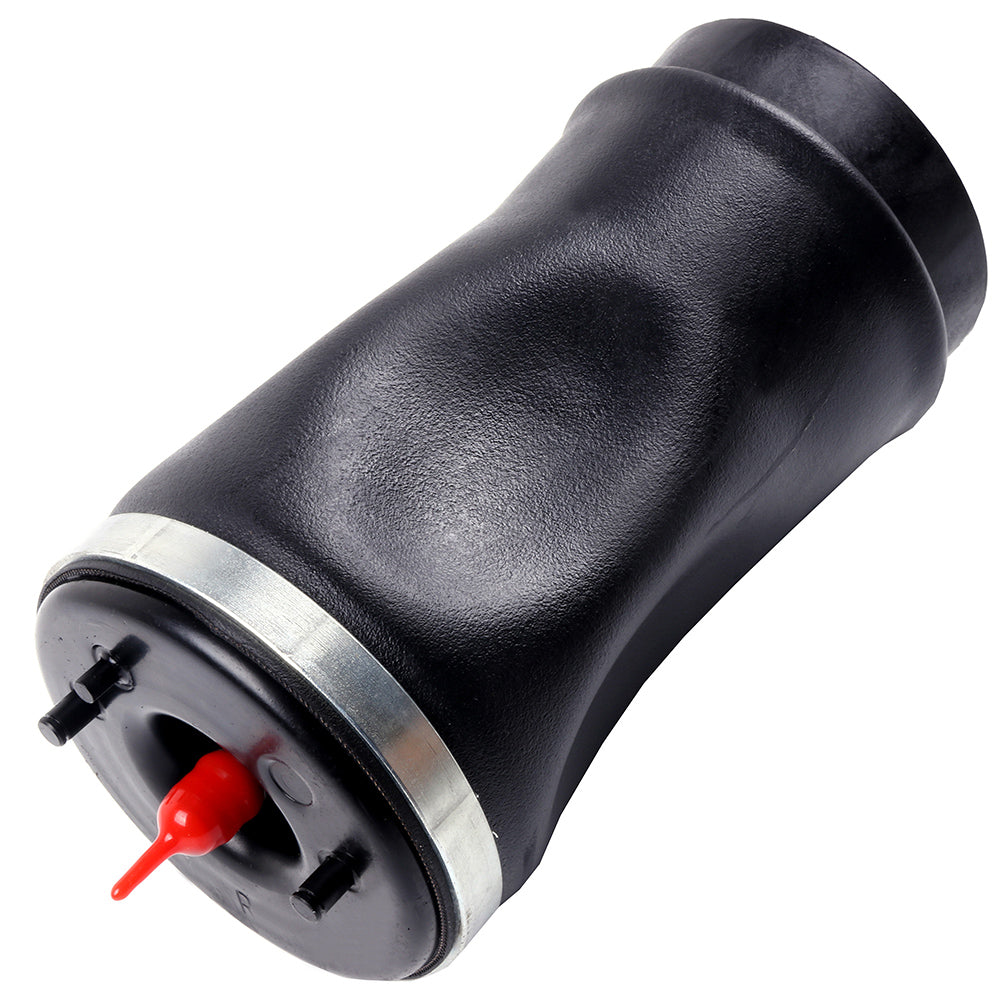

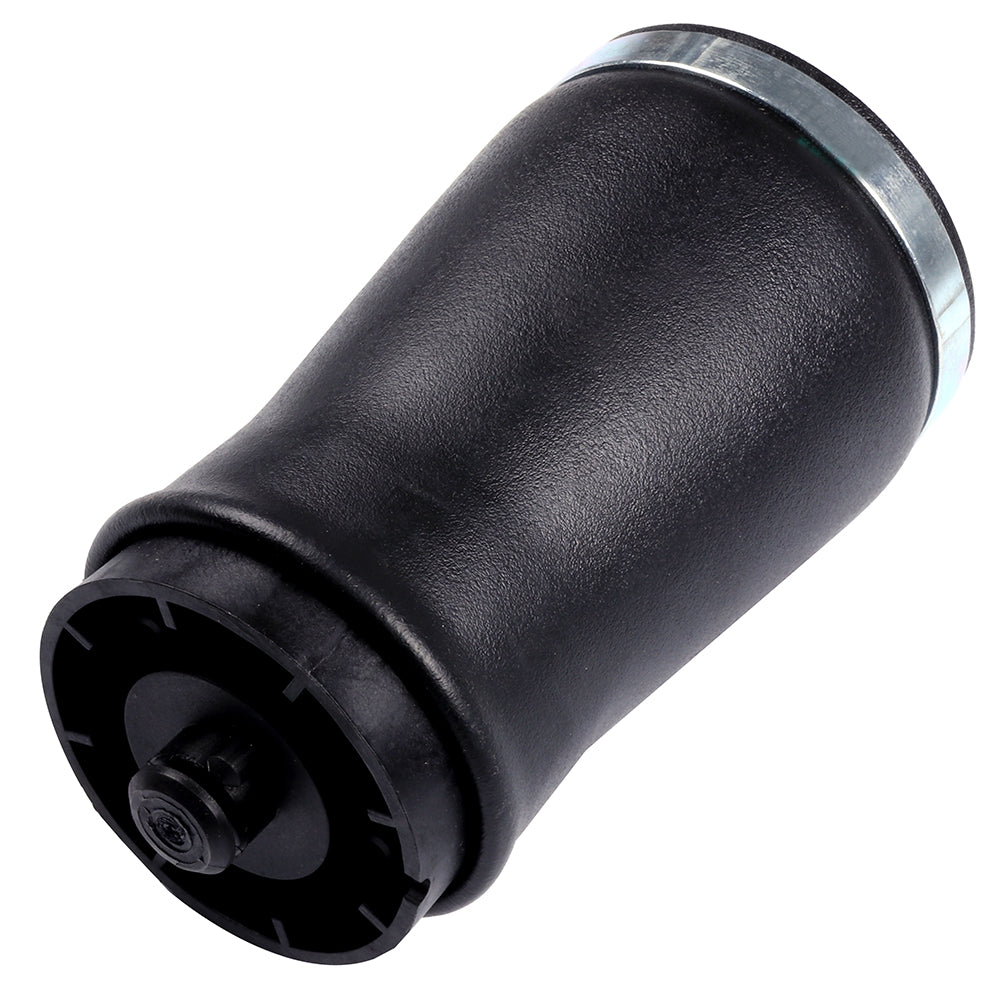

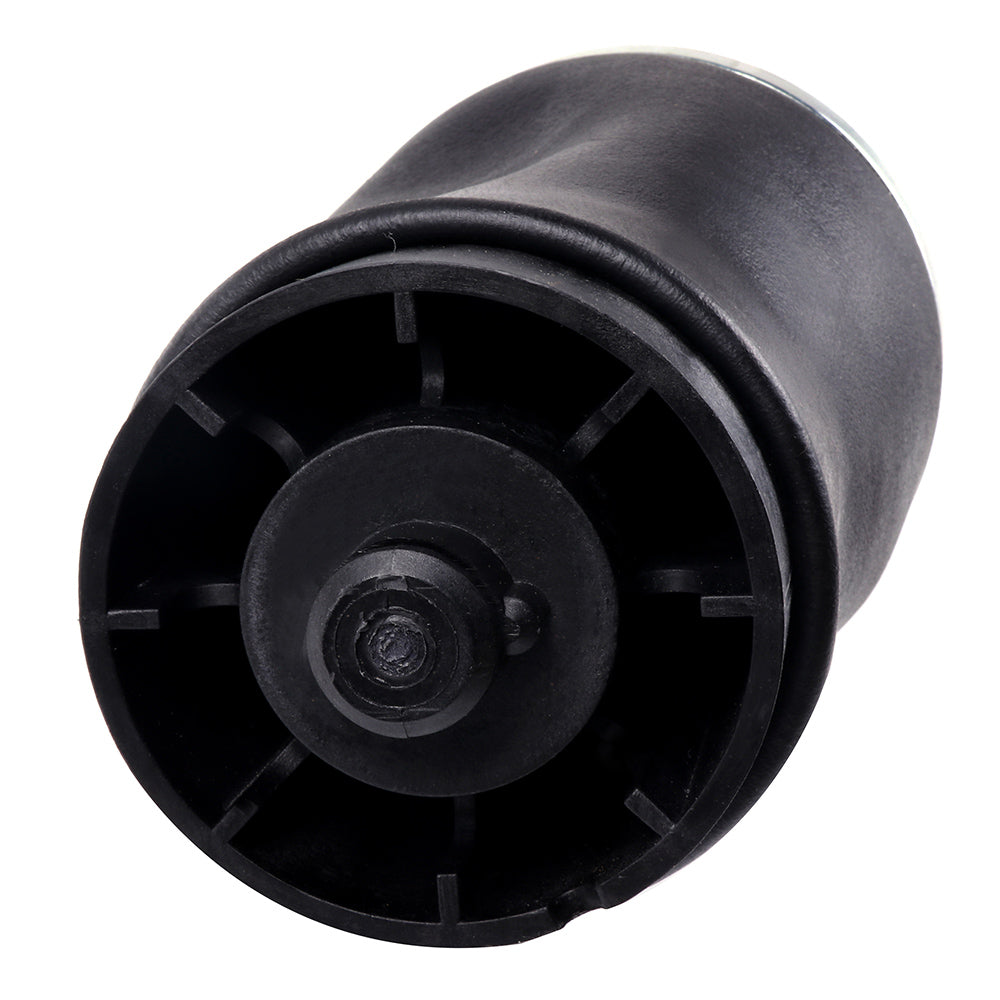

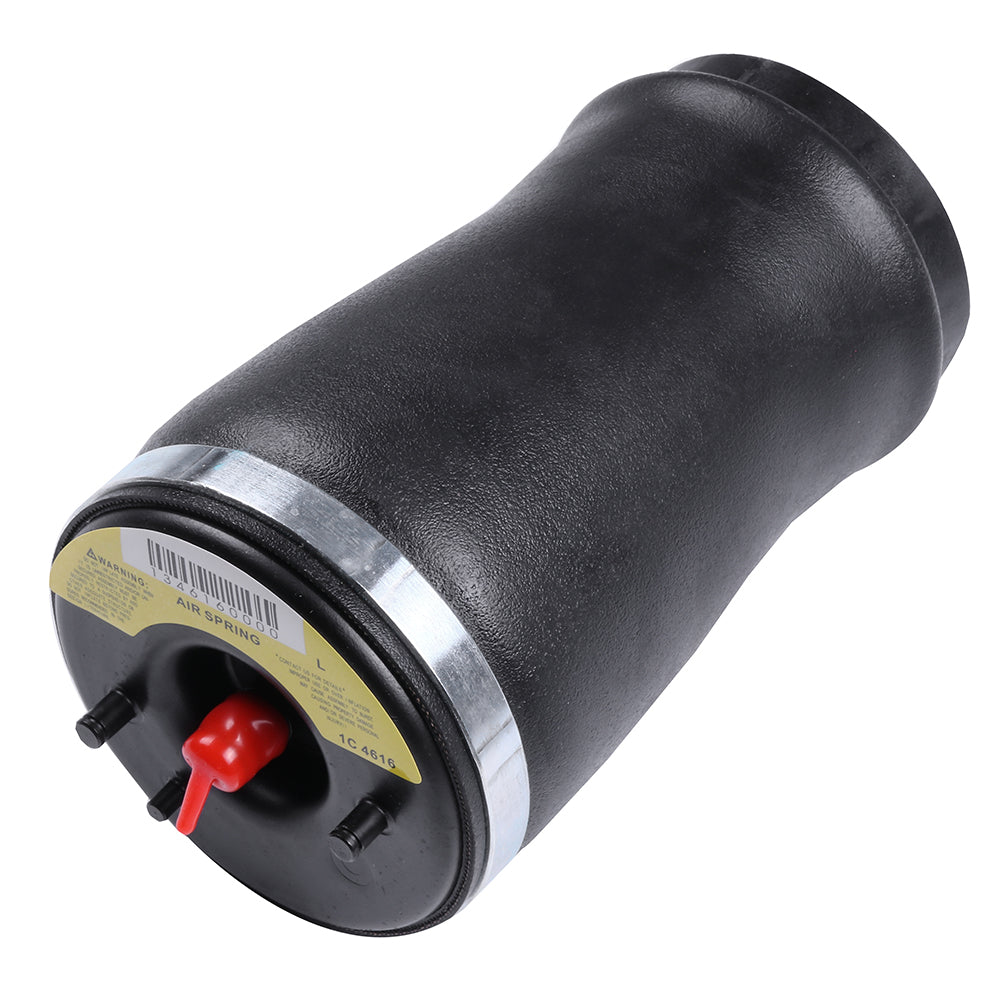

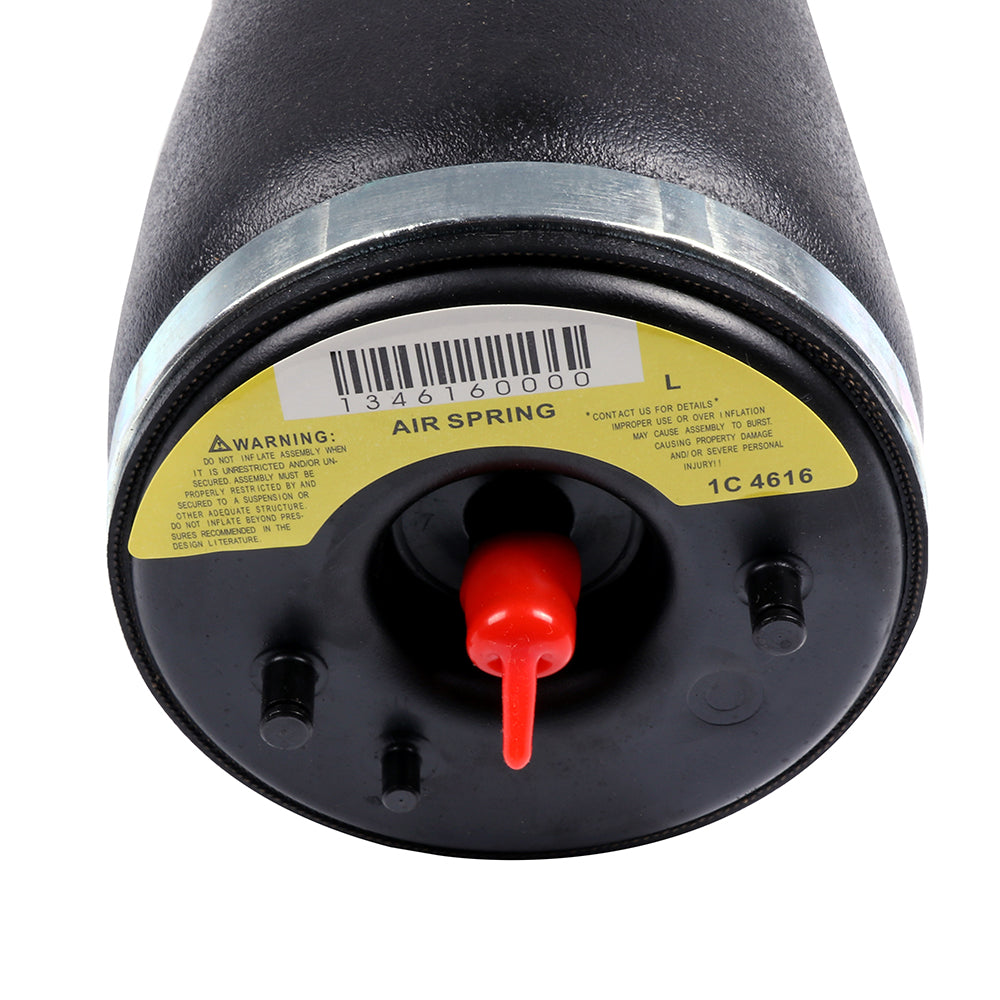

Rear Pair Air Suspension Bags For BMW X5 Series E53 3.0i 4.4i 4.6is 4.8is

Fitment:

• BMW | X5 | 2000~2006 | 3.0L/4.4L/4.6L/4.8L

*Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Open trunk lid, unlock luggage compartment floor trim panel(1)at handle(2)and remove.(picture a)

2.Raise the vehicle.

3.Remove the rear wheel.

4.Remove support for side members(1)and(2)to gain access to air reservoir.(picture b)

5.Carefully loosen the air fitting to deflate the air spring.(picture c)

6.Disconnect the top of the air spring by pressing quick coupling(1)downwards, press retaining ring(2)together and detach the air line. Remove the retaining clips(3).(picture d)

7.Detach locking clip(1)from the bottom of the air spring mount and remove air spring.(picture e)

8.Remove air spring from the vehicle.

9.Removal complete.

*Installation Guideline

Tighten all nuts and bolts to manufacturer's specifications during the installation process.

1.Installation is in reverse order of air spring removal.

2.Check for proper orientation of the air line retention clip, making sure the tapered edge is facing downward, toward the spring, and is fully seated.(pictures f, g)

*Removal Warning & Notice

Note

The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.

With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.

2.Using the scan tool, vent the air springs.

3.Remove the air spring retainer.

4.Detach the air spring from the rear axle.

5.Remove the air spring in the following sequence.

1.Disconnect the air spring solenoid electrical connector.

2.Compress the quick connect locking ring and pull out the air tube.

3.Remove the air spring.

Please double confirm the compatibility as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.

Includes

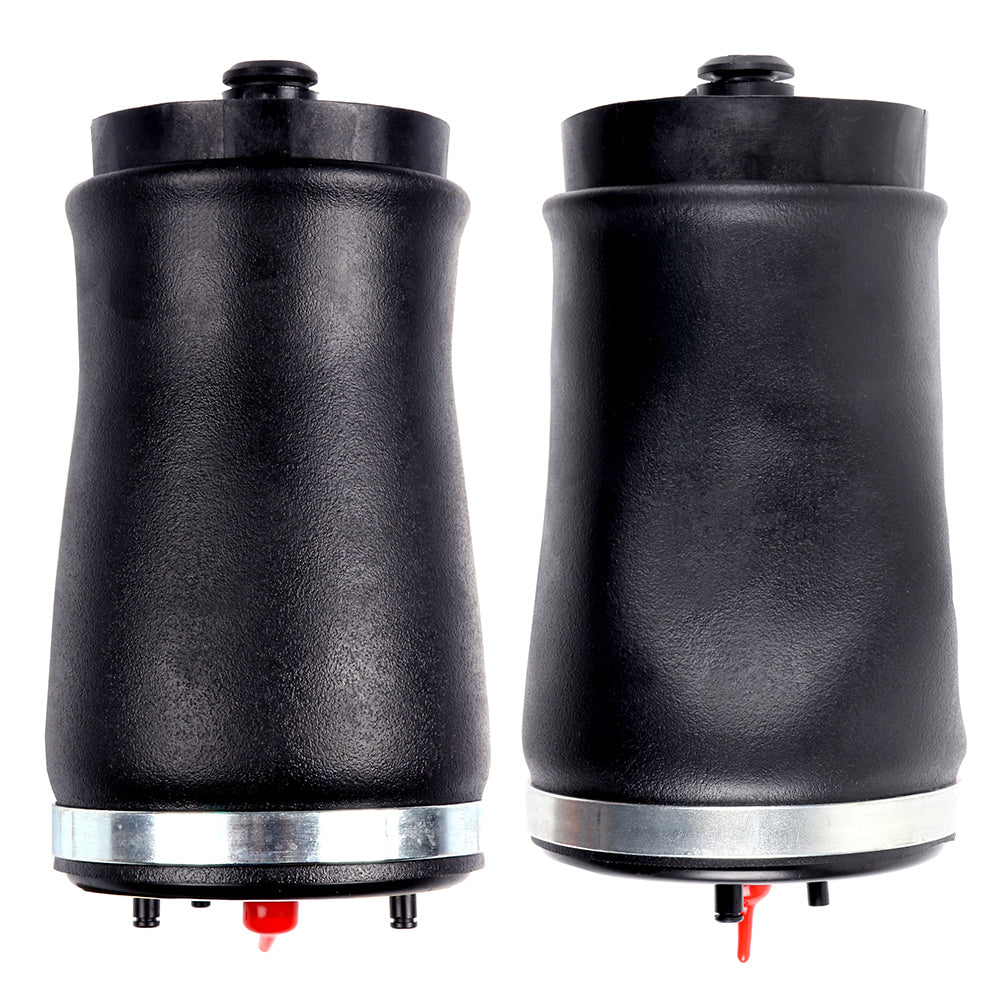

Pair for Rear Left & Right Air Suspension Spring Bags
