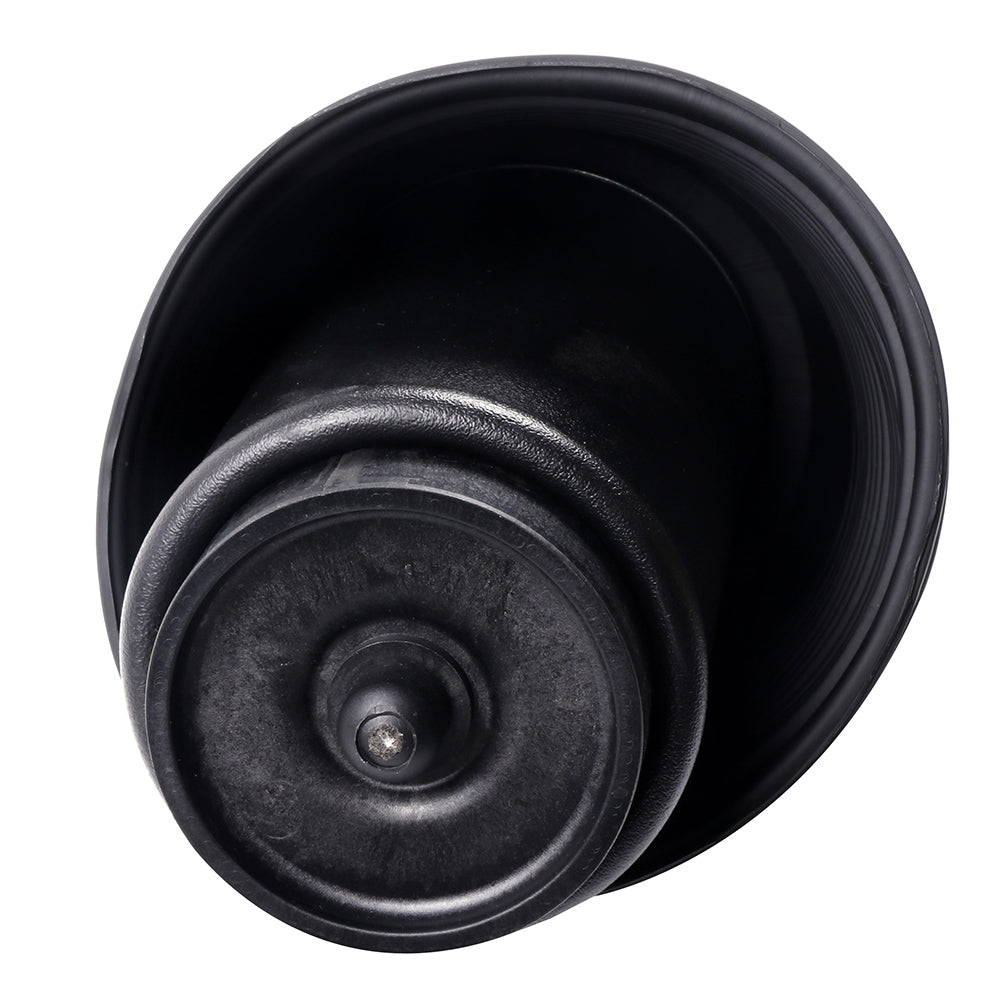

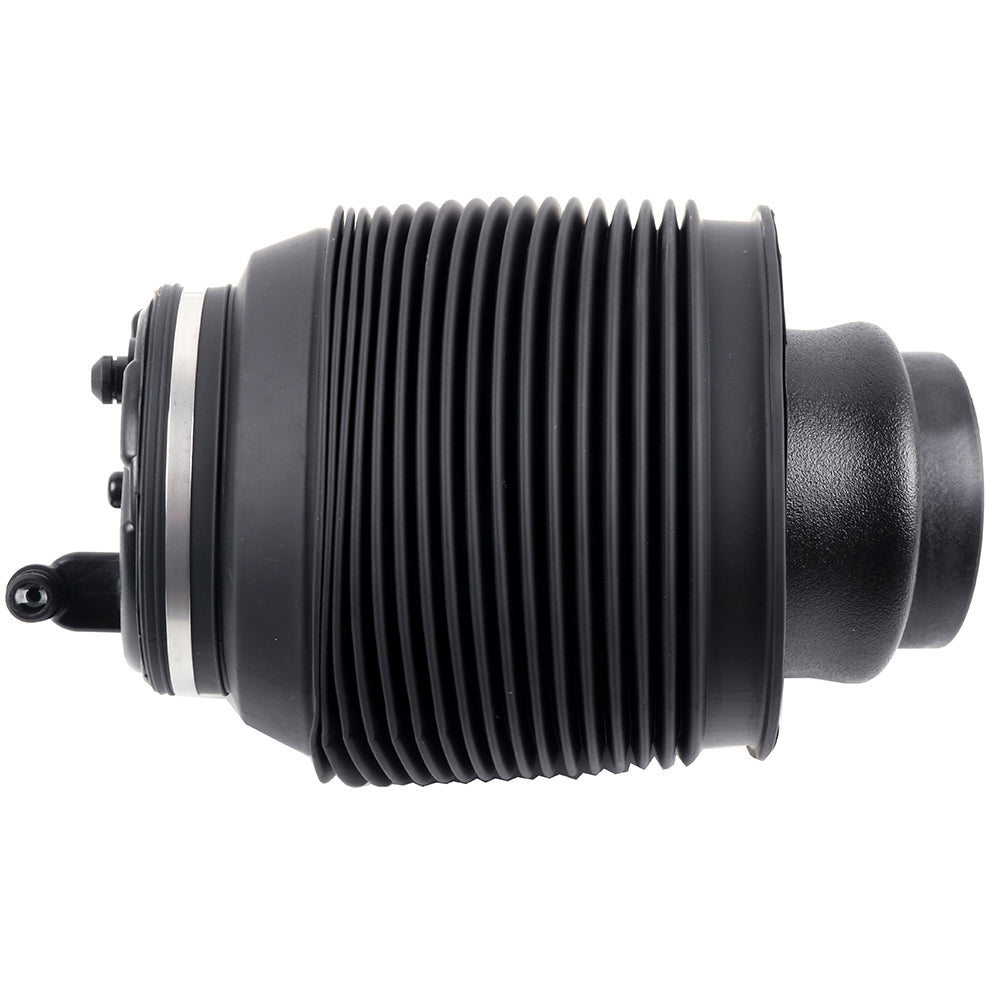

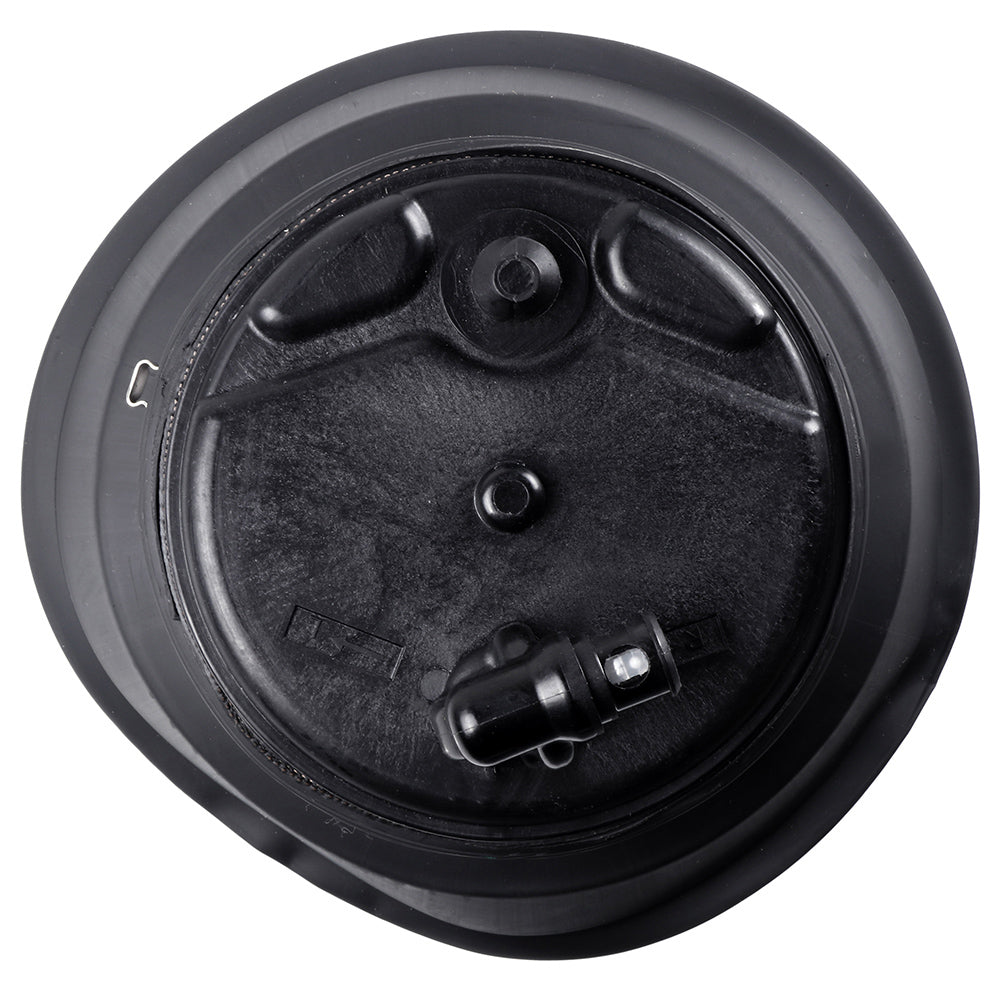

Rear Pair Air Suspension Bags For Toyota 4Runner Limited, Lexus GX470 GX460

Fitment:

• Lexus | GX470 | 2003~2009 | 4.7L
• Toyota | 4Runner | 2002~2009 | 3.4L/4.0L/4.7L

Item Specifications

Key Words: Rear Pair Air Suspension Spring Bags For Lexus J150 GX460 J120 GX470 2003-2012 TOYOTA 4Runner 2002-2012

*Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Lift vehicle and remove rear wheel.

3.Deflate rear air spring by disconnecting the air lines leading from the valve block assembly to the rear air spring.(picture 1)

4.Remove the locking clip from the top side of the air spring.(picture 2)

5.Disconnect the air line from the air spring. Remove the locking clip from the air line.(picture 3)

6.Carefully compress and remove the air spring from the vehicle.(picture 4)

*Installation Guideline

1.Install the air spring into the vehicle and connect the air line to the new air fitting.(pictures 5,6)

2.Align the bottom piston tabs with the notches on the lower spring perch.(pictures 7,8)

3.Seat the spring and rotate 90¡ãto secure.(pictures 9,10)

4.Seat the upper portion of the air spring and install the upper retaining clip.(pictures 11,12)

5.Air spring installation complete.

*Warning & Notice

Vent all air pressure from the air suspension system prior to disconnecting or removing any air suspension components. It is dangerous to remove air suspension components while under pressure. Failure to follow this instruction may result in serious personal injury.

Any air spring which is unfolded must be refolded prior to being installed in a vehicle. Refer to the procedure. An incorrectly folded air spring could rupture, altering the handling characteristics of the vehicle. If a vehicle has been driven with an incorrectly folded air spring, a new air spring must be installed. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

Failure to observe the following instructions may result in a sudden failure of the air spring or suspension system.

Any rear spring which is unfolded must be refolded prior to being installed in a vehicle.

The air spring refolding procedure should only be used for an air spring which has never supported the vehicle's weight while in the incorrectly folded position.

Incorrectly folded air springs found on vehicles during pre-delivery inspection or after use must be installed new.

Do not attempt to inflate any air spring which has been collapsed while uninflated from the rebound hanging position to the jounce stop.

When installing a new air spring, care must be taken not to apply a load to the suspension until springs have been inflated using the air spring fill procedure.

After inflating an air spring in the hanging position, it must be inspected for correct shape.

Note

The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.

With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.

2.Using the scan tool, vent the air springs.

3.Remove the air spring retainer.

4.Detach the air spring from the rear axle.

5.Remove the air spring in the following sequence.

1.Disconnect the air spring solenoid electrical connector.

2.Compress the quick connect locking ring and pull out the air tube.

3.Remove the air spring.

Please double confirm the compatibility chart as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.

Includes

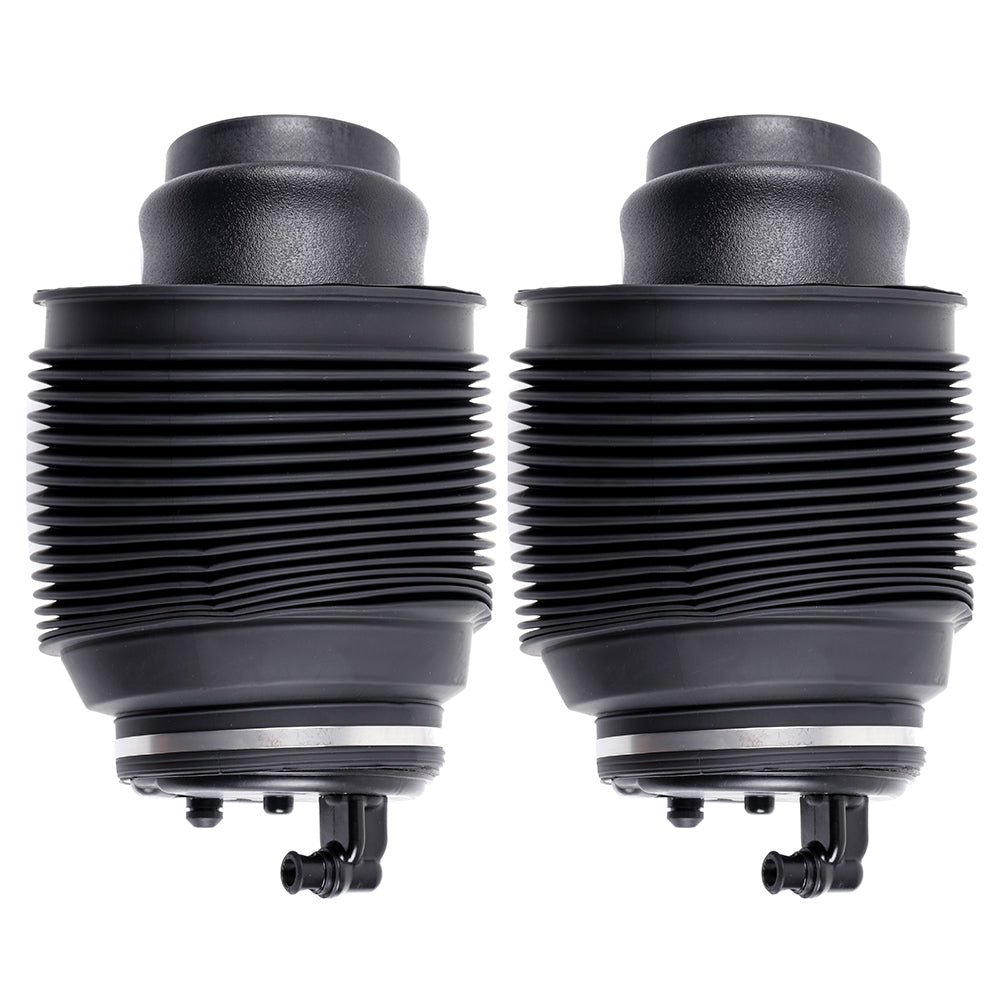

Pair for Rear Left & Right Air Suspension Spring Bags
