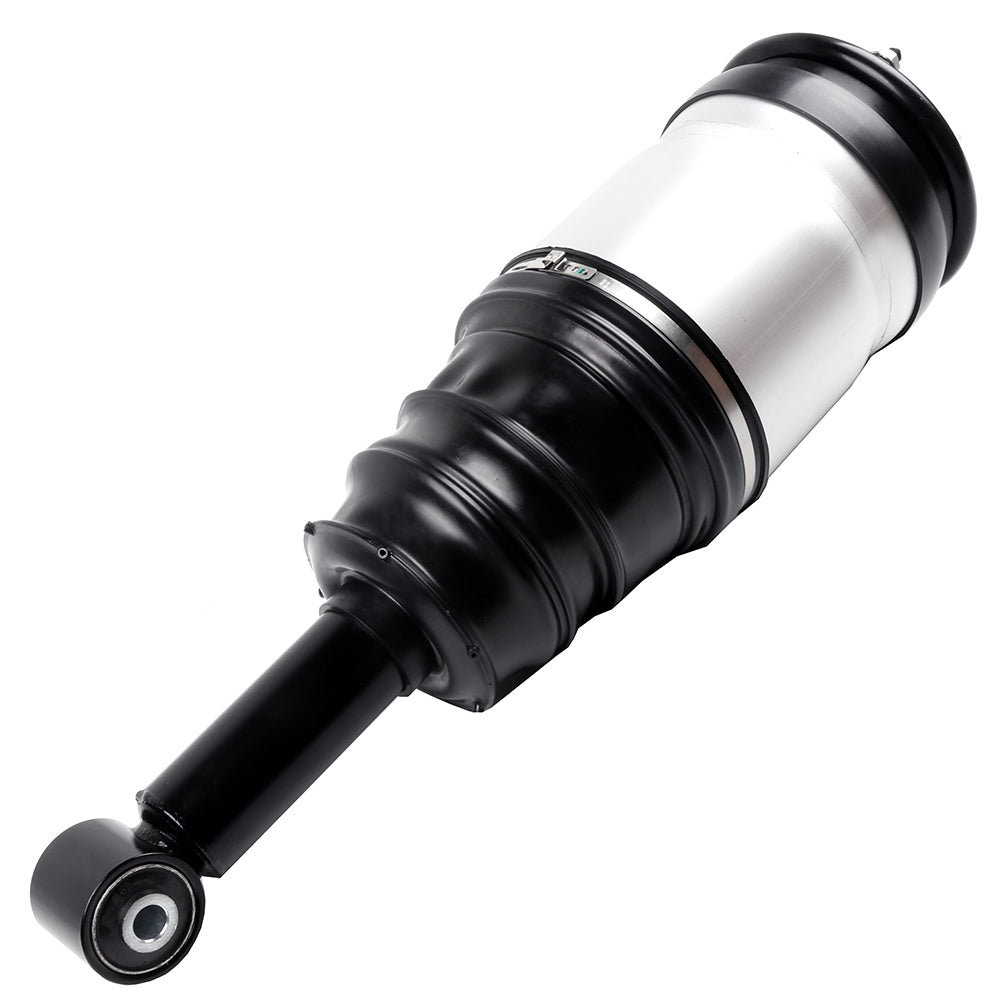

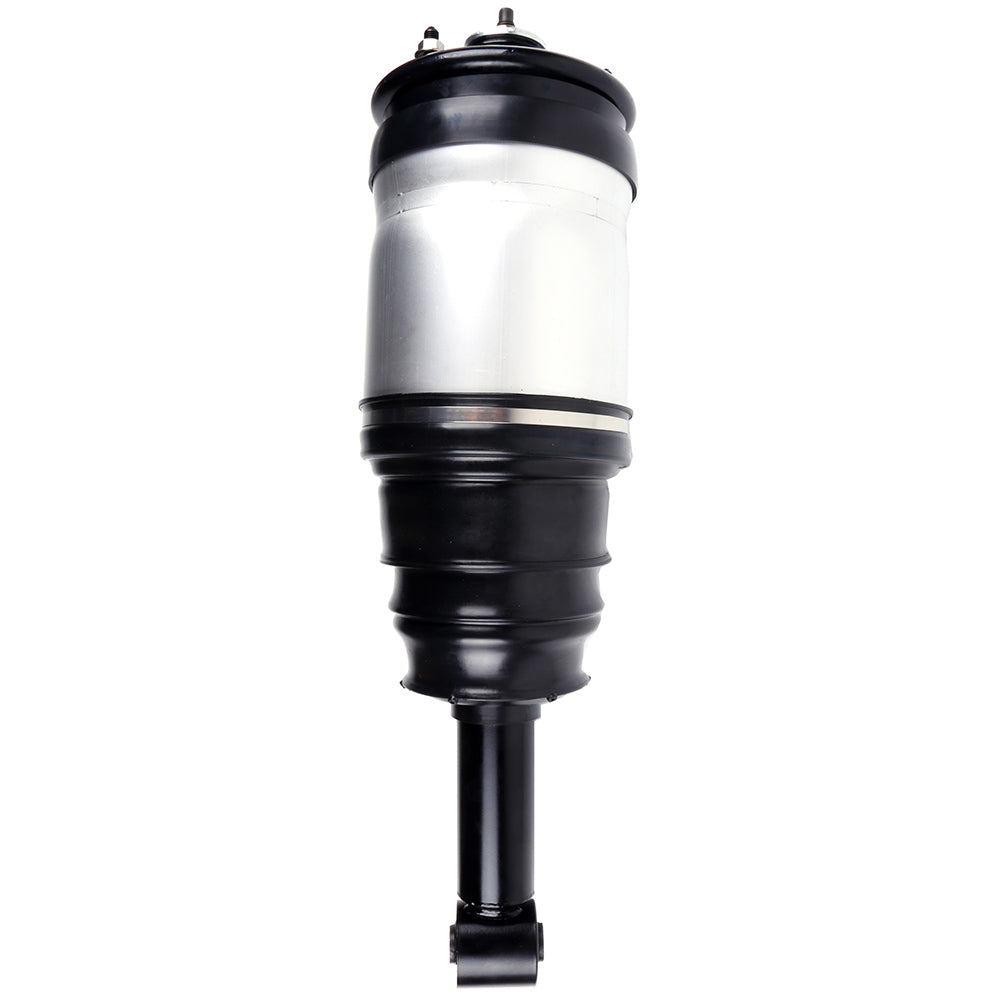

Rear Pair Air Suspension Shock For Range Rover Sport Discovery LR4 LR3 HSE 05-16
Fitment:
- Land Rover | LR3 | 2005~2009 | 4.0L/4.4L
- Land Rover | LR4 | 2010~2016 | 3.0L/5.0L
- Land Rover | Range Rover Sport | 2006~2014 | 3.0L/4.2L/4.4L/5.0L
Item Specifications
Key Words: Rear Pair Air Suspension Shock Struts For Land Rover LR3 LR4 Discovery 2005-2016 Range Rover Sport 2006-2013
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 74.00(Length)*20.00(Width)*19.50(Height)
- Single Weight(KG): 9.500
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: Eyelet
- Included Hardware: None
- Drive Layout: Front Engine 4WD
- Platform: LR3 LR4 LS
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: RPD501020, RPD501100
- *Platform Drive Layout: Front Engine-Four Wheel Drive Layout
- *OEM Part Number:
LR016418,LR032650,
LR038096,LR041110,
RPD501020,RPD501100
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Remove rear wheel to expose the rear air strut.(picture 1)

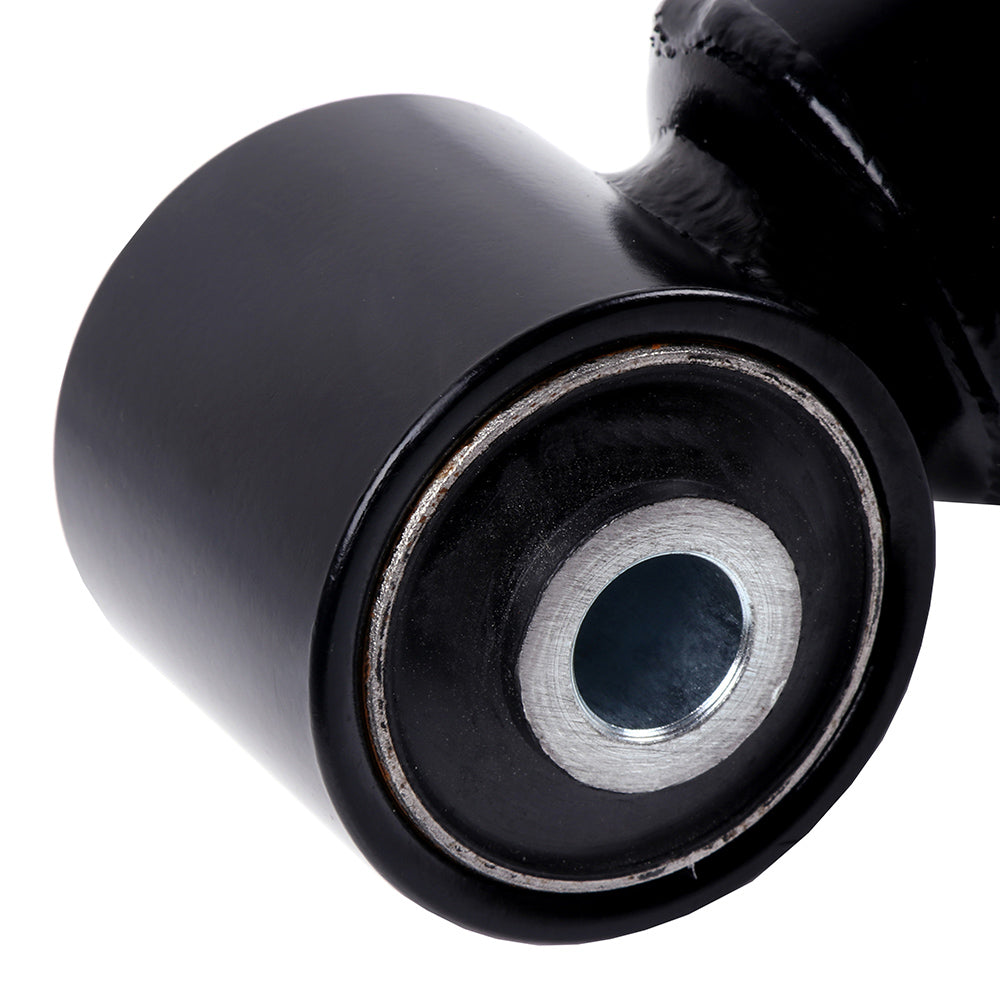

2.Loosen and remove the lower mount nut. Support the air strut and remove the lower mount bolt.(pictures 2,3)

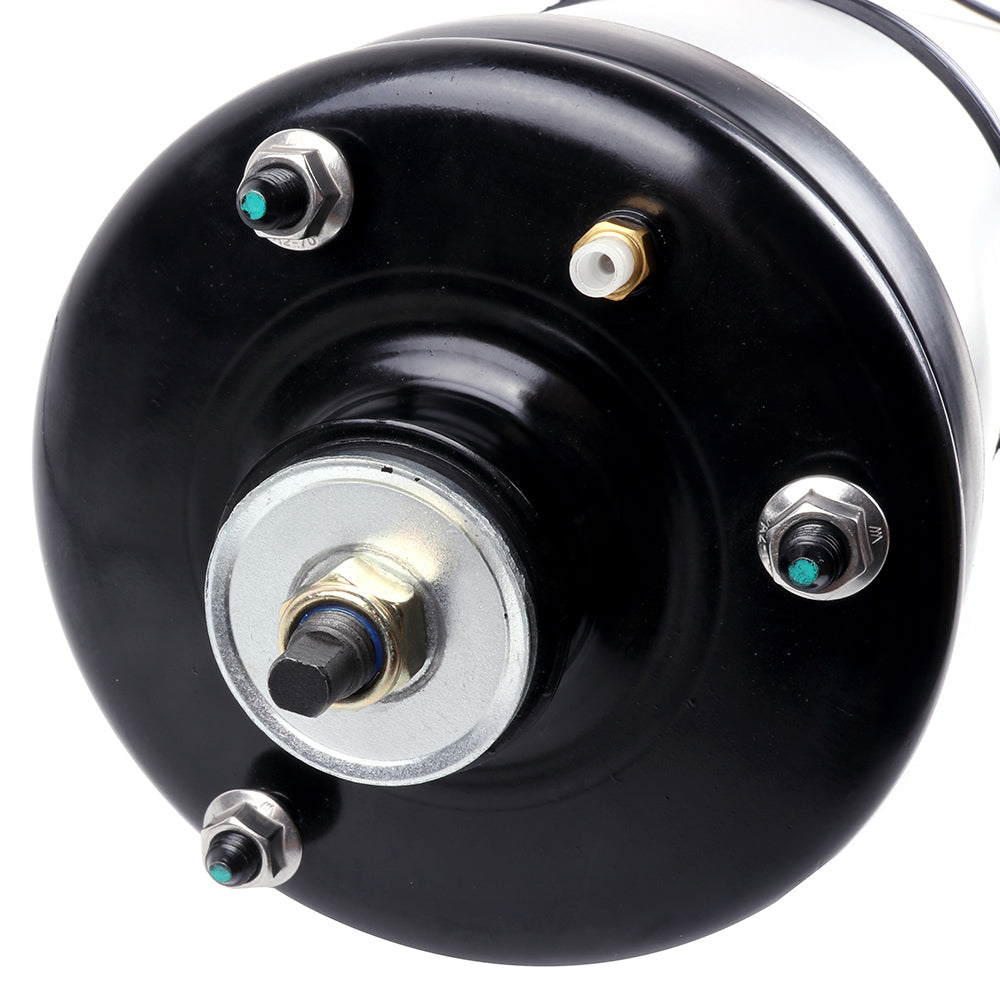

3.Loosen and remove the three(3)top mounting nuts.(picture 4)
4.Carefully lower the air strut to gain access to the air line. Unthread the air fitting.(picture 5)
5.Remove the air strut from the vehicle.(picture 6)
6.Remove the air line fitting from the air hose and discard. To remove the air line fitting,remove the collet and the remaining fitting will slide off of air hose.(picture 7)
7.Removal complete.
*Installation Guideline
1.Place new air strut onto vehicle, oriented in the same position as strut previously removed.
2.Insert the air line into the voss fitting, making sure it is firmly seated and will not pull back out.(picture 8)
3.Install and tighten the three(3)top mounting nuts to manufacturer's specification.(picture 9)
4.Support the air strut and install the lower mount bolt. Re-install and tighten the lower mount nut to manufacturer's specification.(pictures 10,11)
5.Re-install the rear wheel and tighten lug nuts to manufacturer's specification.Installation complete.
Note
Please double confirm the compatibility chart as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes
Pair for Rear Left & Right Air Suspension Shock Struts
