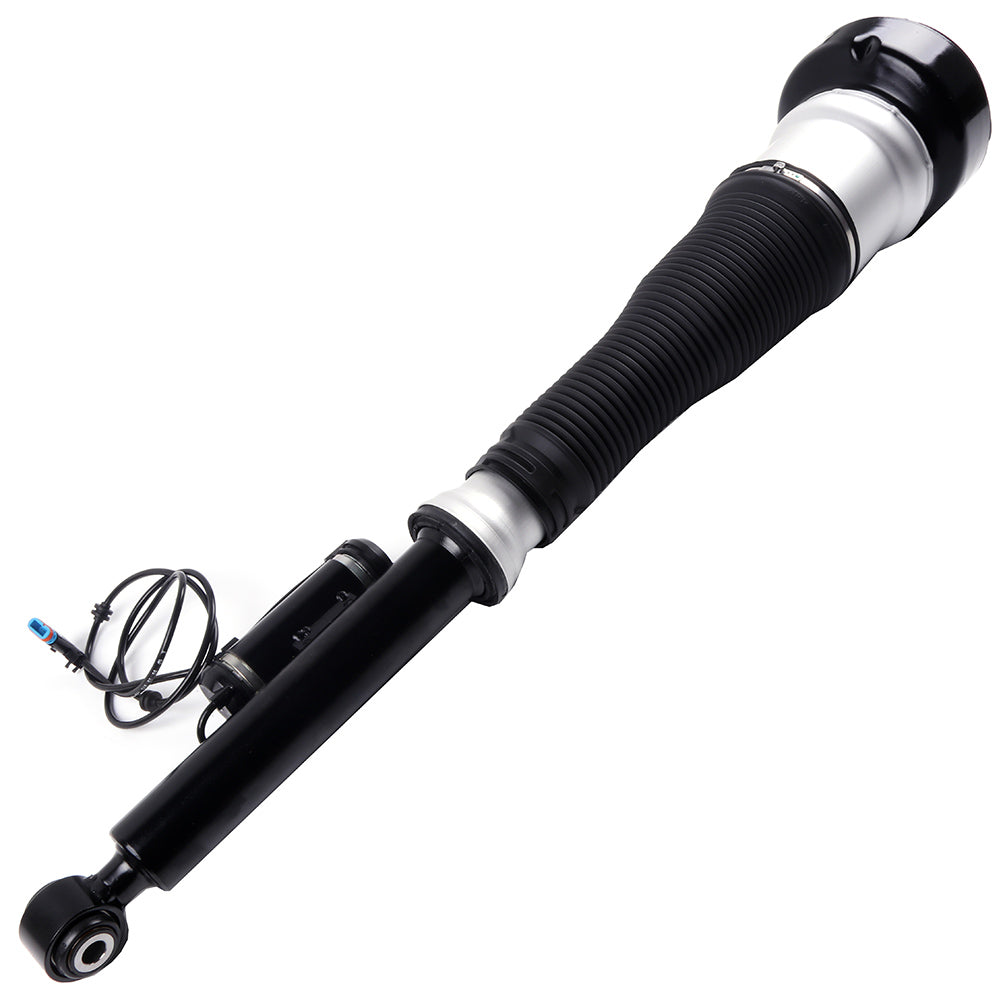

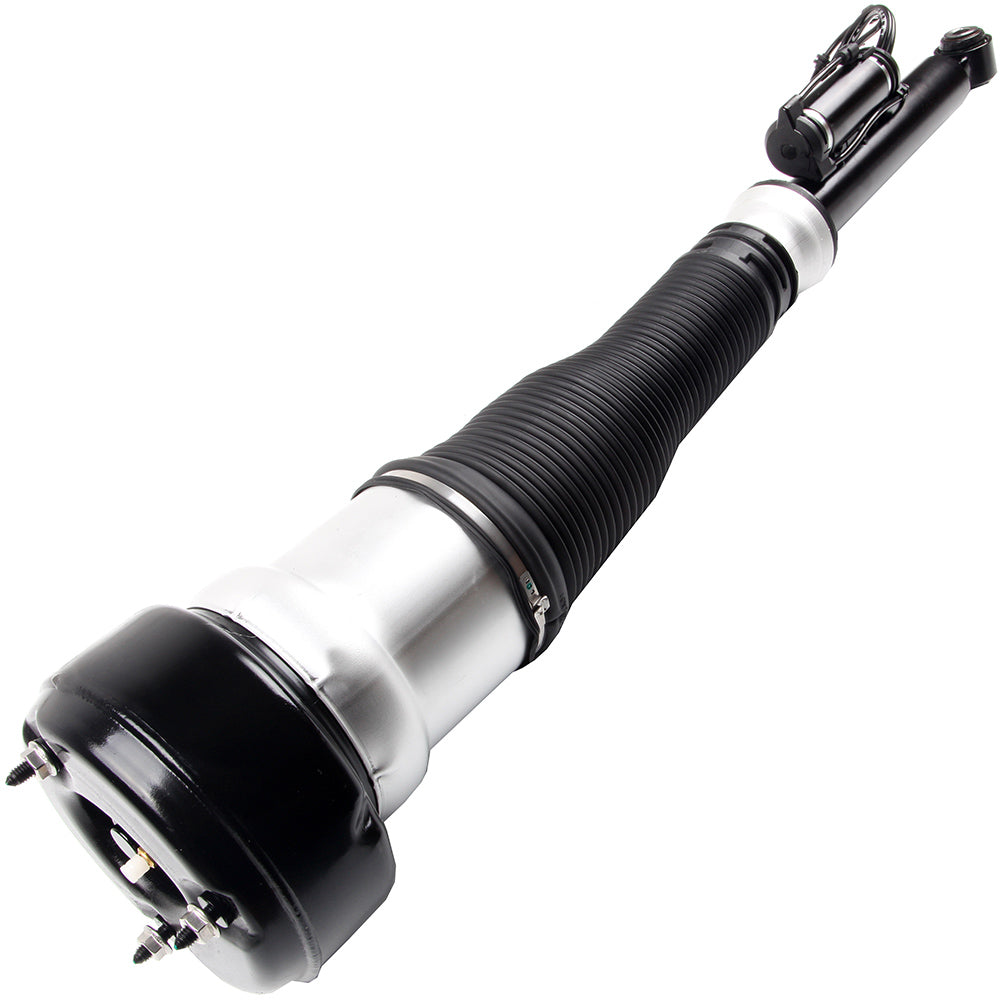

Rear Pair Air Suspension Shocks For Mercedes C216 CL500 CL550 S500 S550 S600
Fitment:
- Mercedes-Benz | CL500 | 2008~2013 | 4.7L/5.5L
- Mercedes-Benz | CL550 | 2008~2010 | 5.5L
- Mercedes-Benz | CL600 | 2008~2014 | 5.5L
- Mercedes-Benz | CL63 AMG | 2008~2014 | 5.5L/6.0L/6.3L
- Mercedes-Benz | CL65 AMG | 2008~2014 | 6.0L/6.2L
- Mercedes-Benz | S350 | 2012~2013 | 3.0L/3.5L
- Mercedes-Benz | S500 | 2008~2011 | 5.5L
- Mercedes-Benz | S550 | 2007~2011 | 5.5L
- Mercedes-Benz | S600 | 2007~2013 | 5.5L
- Mercedes-Benz | S63 AMG | 2008~2013 | 5.5L/6.0L/6.2L/6.3L
- Mercedes-Benz | S65 AMG | 2007~2013 | 6.0L
Item Specifications
Key Words: Rear Pair Air Suspension Shock Struts For Mercedes S-Class W221 S350 S400 S450 S500 S550 S600 S63 AMG S65 AMG 2007-2013 CL-Class C216 CL500 CL550 CL600 CL63 AMG CL65 AMG 2007-2014
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 97.00(Length)*20.50(Width)*20.00(Height)
- Single Weight(KG): 9.600
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90

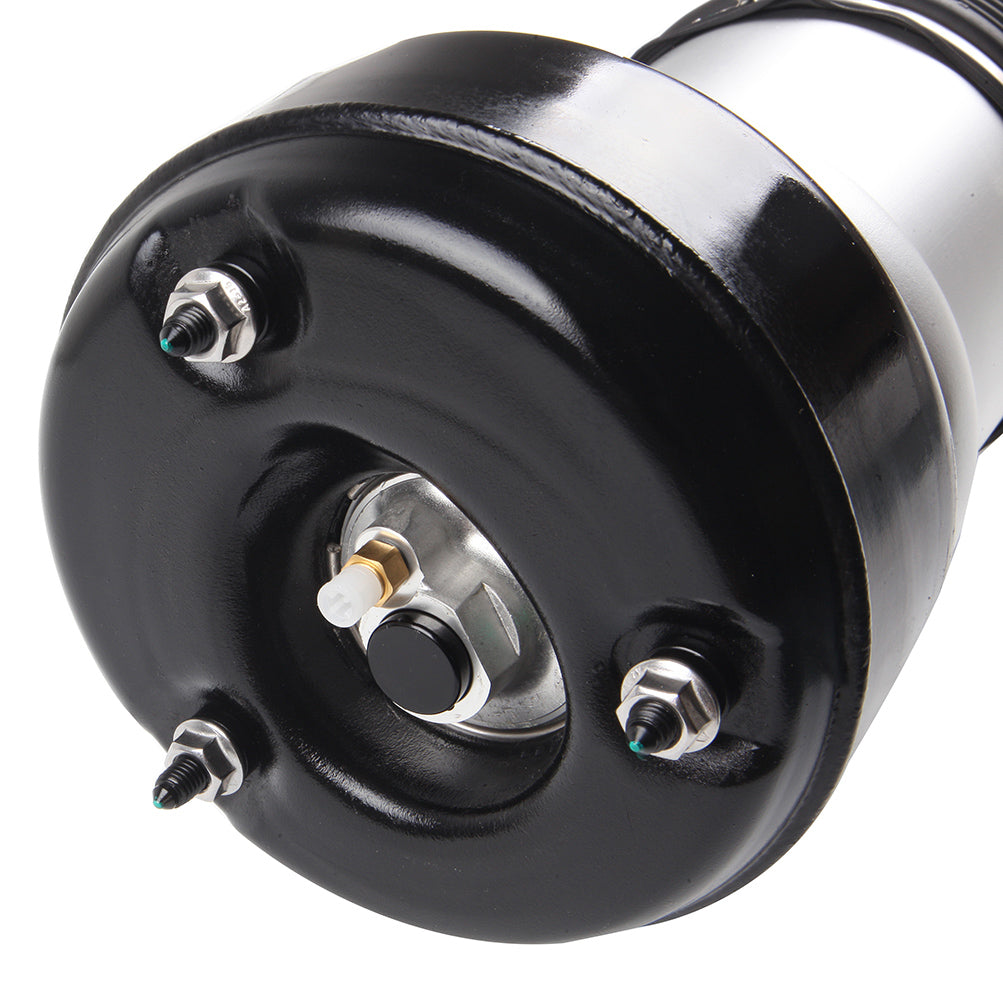

- Upper Mount Type: Stud

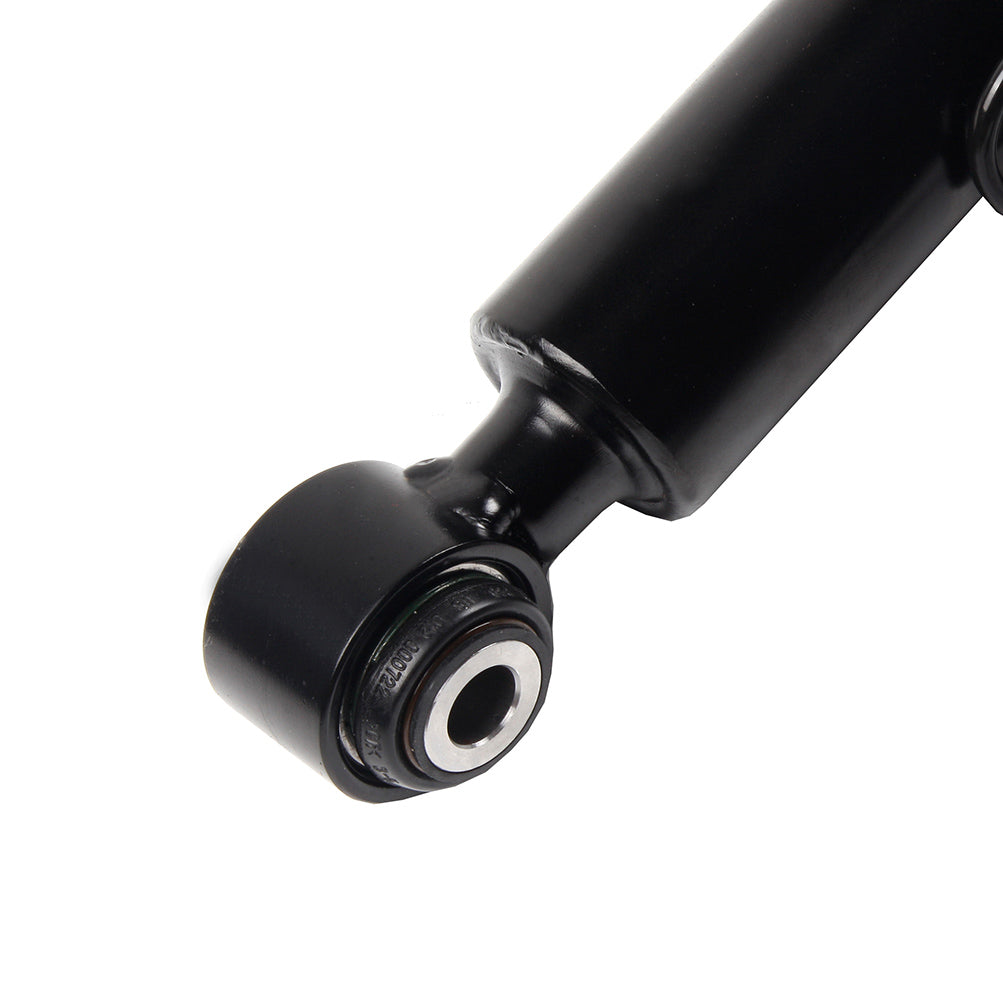

- Lower Mount Type: Eyelet
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: W221
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: 2213205813, 2213205713
- *Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout - *OEM Part Number:
2213205613,2213205813,
2213205513,2213205713
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Lift vehicle and remove rear right wheel.(picture 1)
3.Remove the brake caliper clip.(picture 2)
4.Remove the two(2)bolts holding the brake caliper.Remove the brake caliper and suspend to prevent damage to brake lines.(picture 3,4)
5.Remove the fasteners and inner wheel liner to expose the rear air strut's wiring block.(picture 5,6)
6.Remove the metal clip and plug for the rear air strut's dampening coil.(picture 7,8)
7.Remove the lower sway bar end link nut and separate.(picture 9)
8.Remove the lower air strut mounting nut.(picture 10)
9.Remove the lower control arm nut.(picture 11)
10.Remove the rear dash cover from inside of the vehicle.(picture 12)
11.Pull back the foam insulation to expose the air strut top mount.(picture 13)
12.Remove the air line.(picture 14,15)
13.Remove the three(3)top mounting nuts.(picture 16)
14.Remove the lower control arm bolt and the lower air strut mounting bolt.(picture 17)
15.Pull down on the lower control arm and remove the air strut from the vehicle.(picture 18)
16.Removal complete.
*Installation Guideline
Installation is in reverse order of air strut removal.
Includes

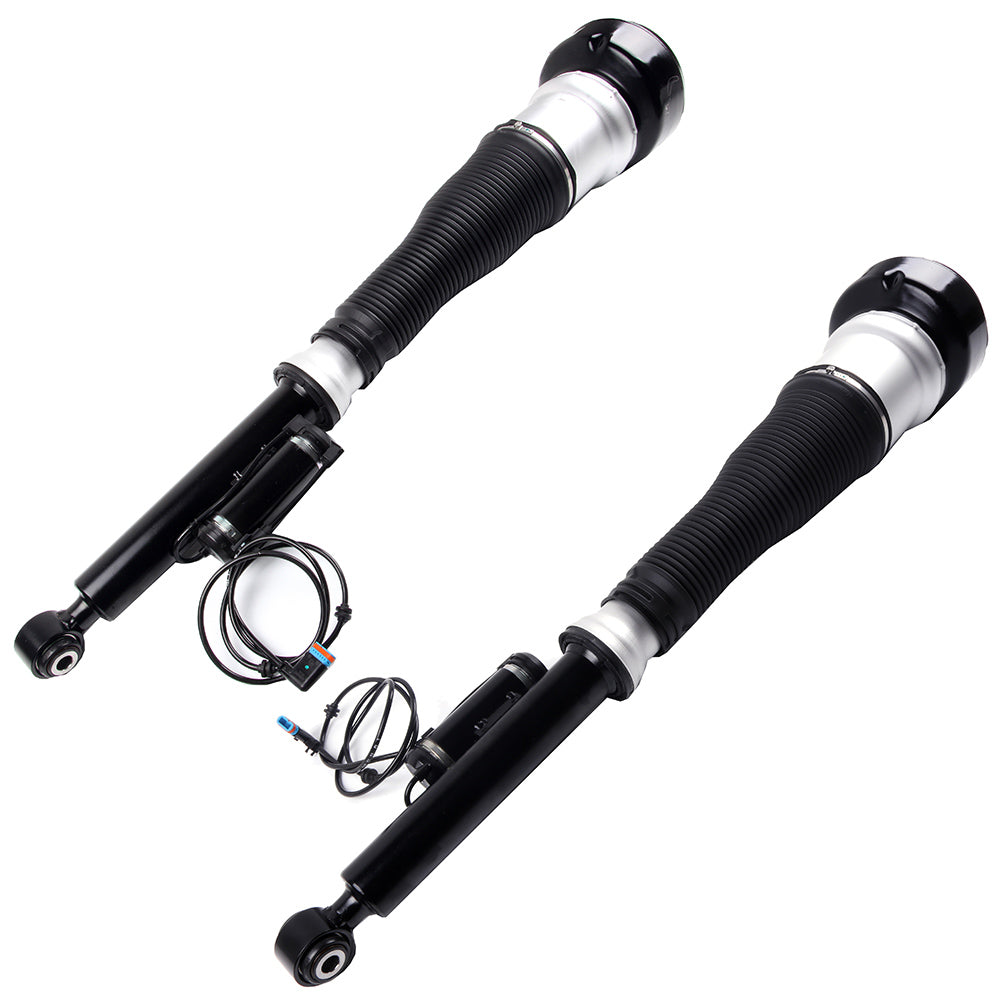

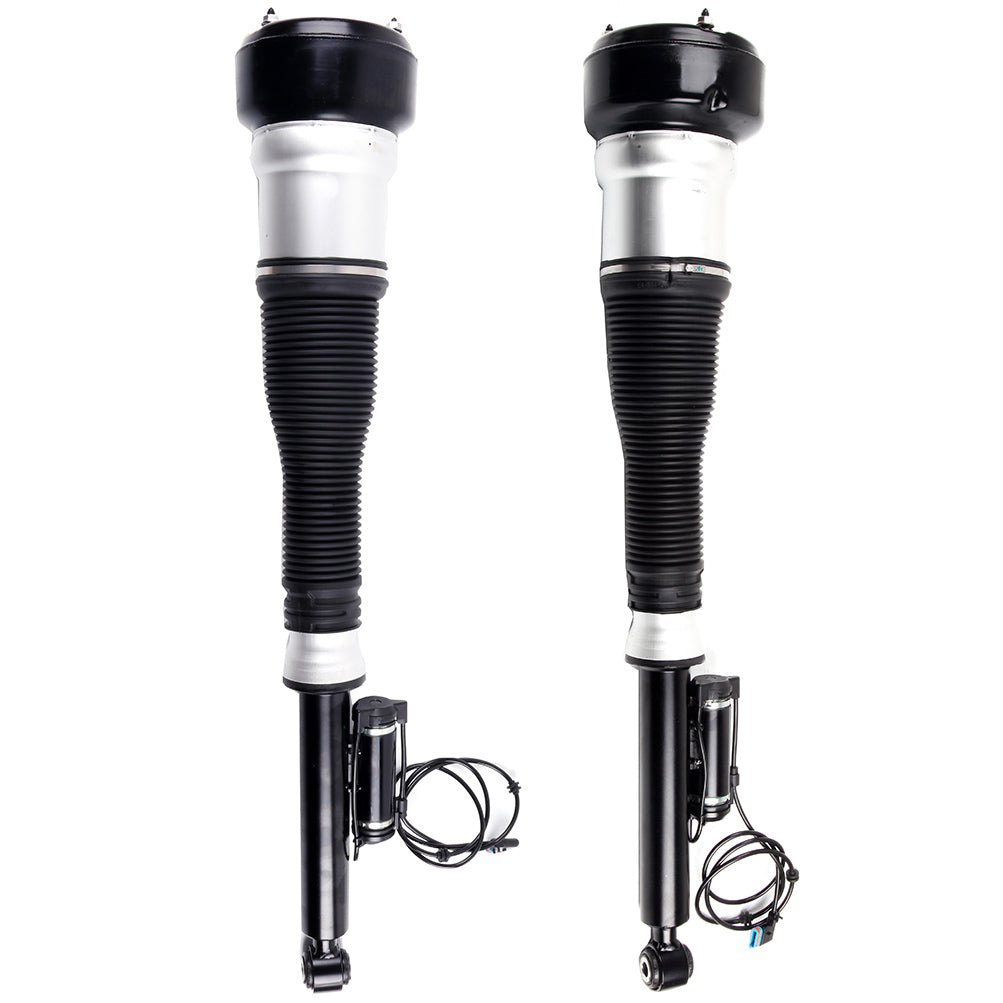

Pair for Rear Left & Right Air Suspension Shock Struts
Notes : Please double confim the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
