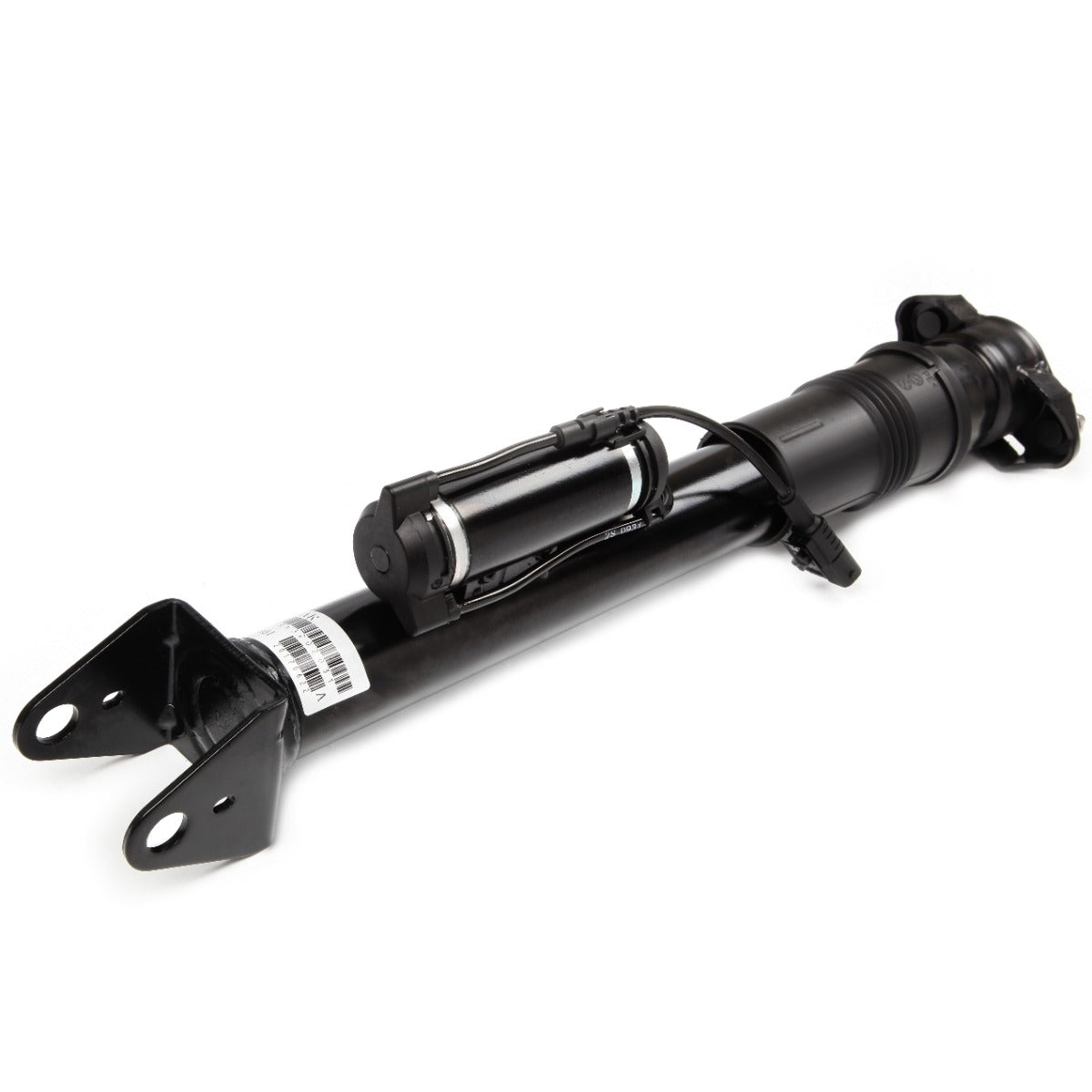

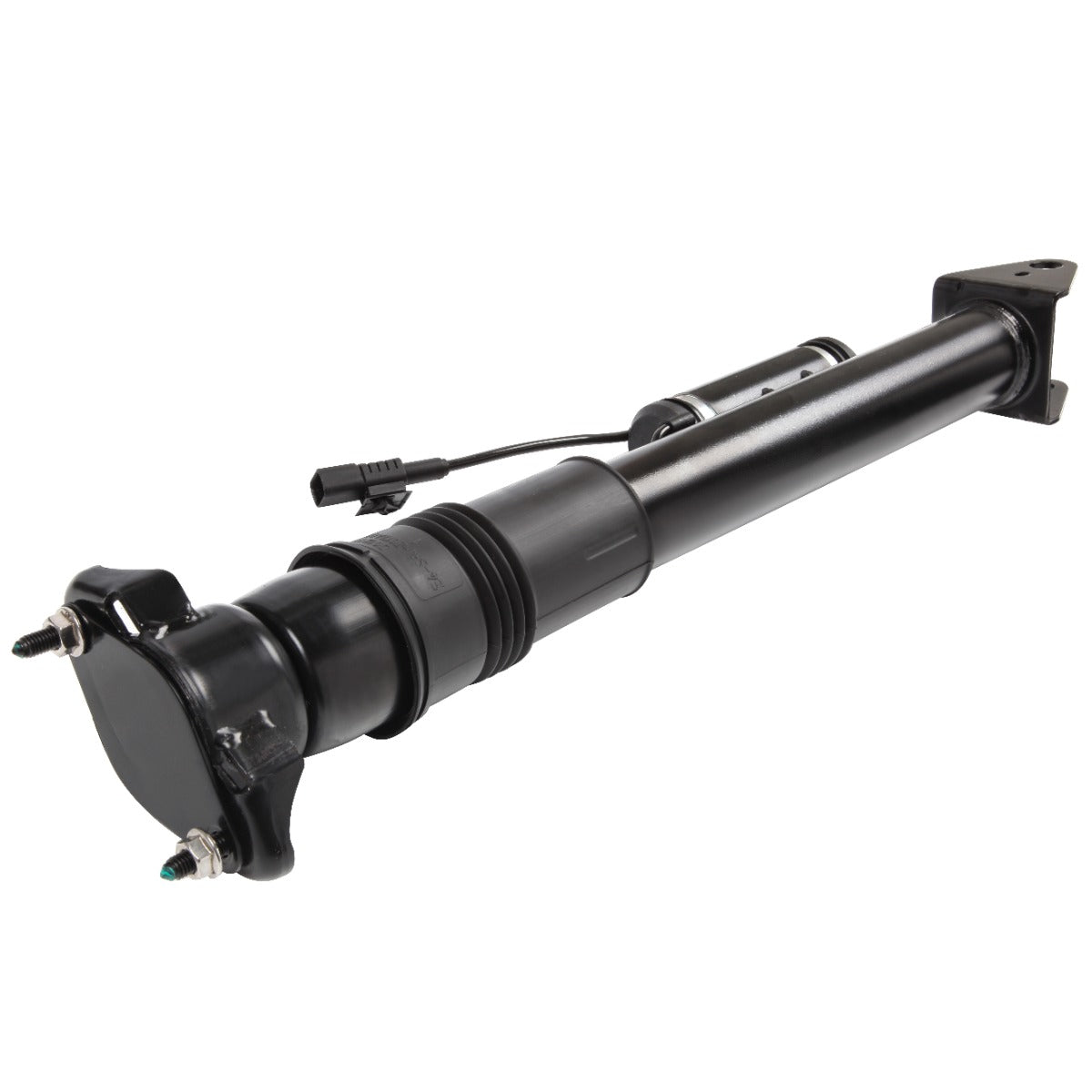

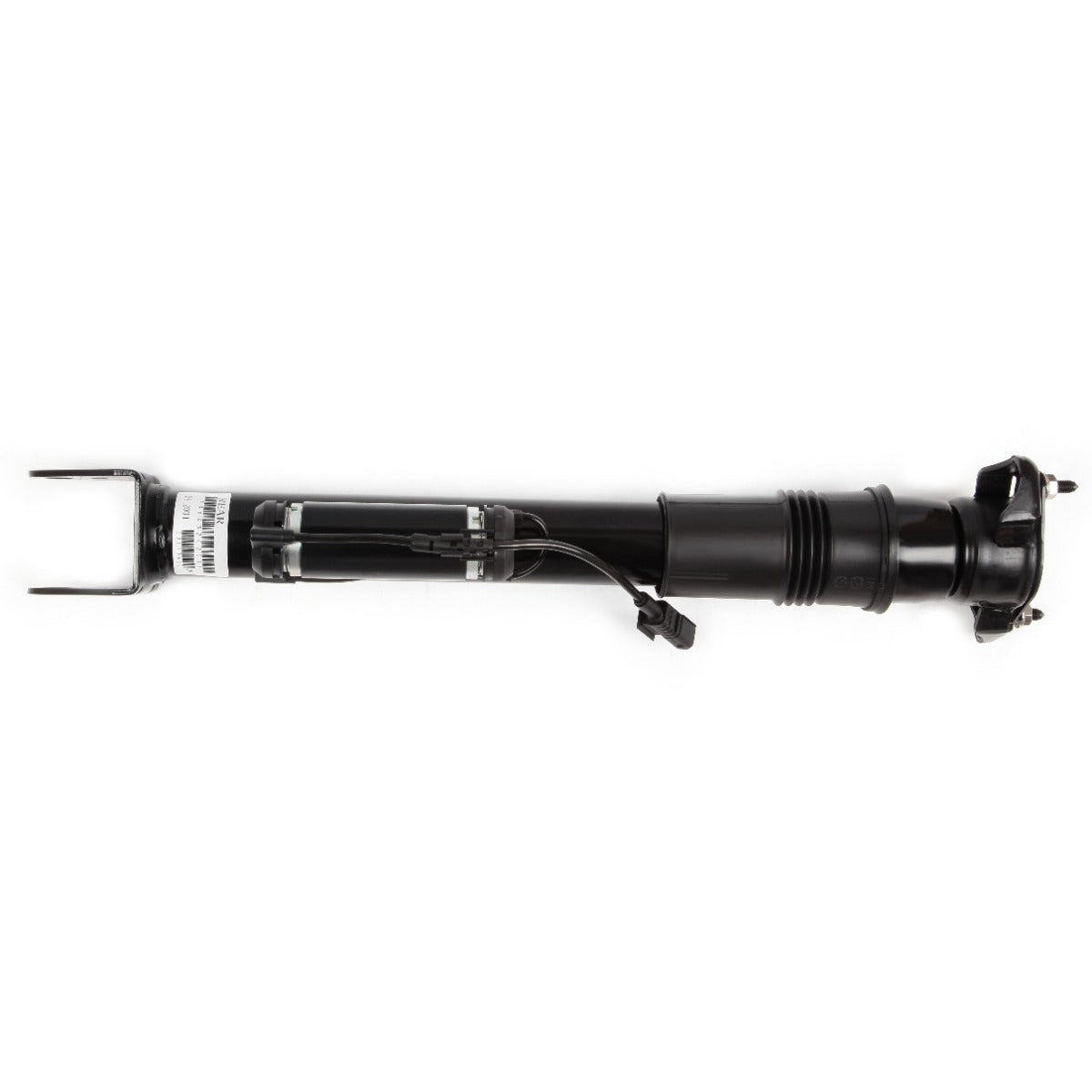

Rear Pair Air Suspension Shocks For Mercedes W164 ML320/350 X164 GL450 GL550 ADS
Fitment:
- Mercedes-Benz | GL320 | 2007~2009 | 3.0L
- Mercedes-Benz | GL350 | 2010~2012 | 3.0L
- Mercedes-Benz | GL450 | 2007~2009 | 4.7L
- Mercedes-Benz | GL500 | 2008~2012 | 5.5L
- Mercedes-Benz | GL550 | 2008~2012 | 5.5L
- Mercedes-Benz | ML320 | 2007~2009 | 3.0L
- Mercedes-Benz | ML350 | 2005~2011 | 3.0L/3.5L/3.7L/5.5L
- Mercedes-Benz | ML500 | 2005~2009 | 5.0L/5.5L
- Mercedes-Benz | ML550 | 2008~2011 | 5.5L
- Mercedes-Benz | ML63 AMG | 2007~2011 | 6.3L
Item Specifications
Key Words: Rear Pair Air Suspension Shock Struts For Mercedes M-Class W164 ML320 ML350 ML450 ML500 ML550 GL-Class X164 GL320 GL350 GL450 GL550 With Adaptive Damping System
Product Specifics
- Part Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 65.00(Length)*14.00(Width)*10.00(Height)
- Single Weight(KG): 5.130
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: X164 W164
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Struts, Air Ride Shock Struts
- Superseded Part Number: 1643202131, 1643202731, 1643202831
- *Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout - *OEM Part Number:
1643200731,1643201131,1643202031,1643202131,
1643202731,1643202831,1643203031,1643203131
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight.
2.Raise vehicle.
3.Remove rear wheel from the applicable side being replaced.(picture 1)
4.Locate and disconnect the air spring's air line connection to relieve stress from the suspension.(picture 2)
5.In the rear cargo area, remove all applicable trim panels to gain access to the upper shock mounting fasteners. Reference manufacture's instructions for removal of interior panelling(pictures 3,4)

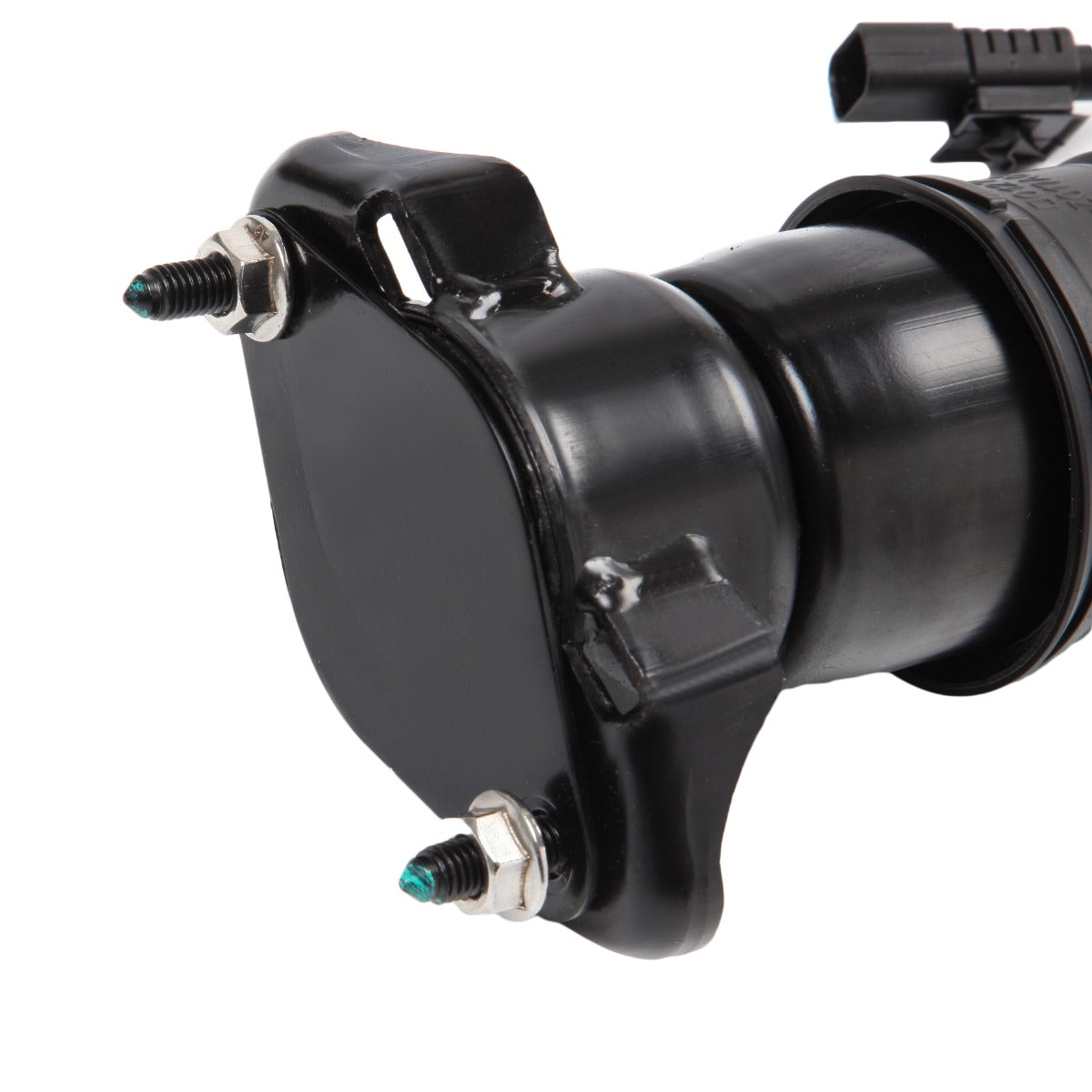

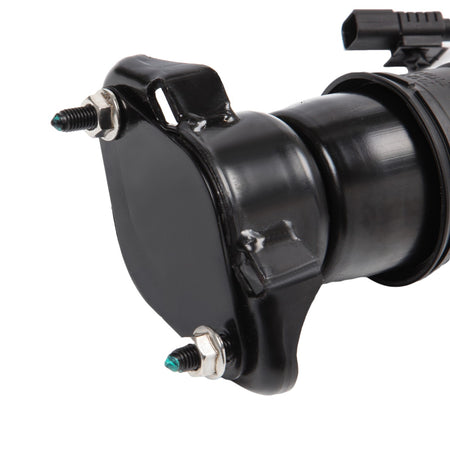

6.With the trim panels removed, lift the insulation to gain access to the top mount nuts. Loosen and remove.(pictures 5,6)

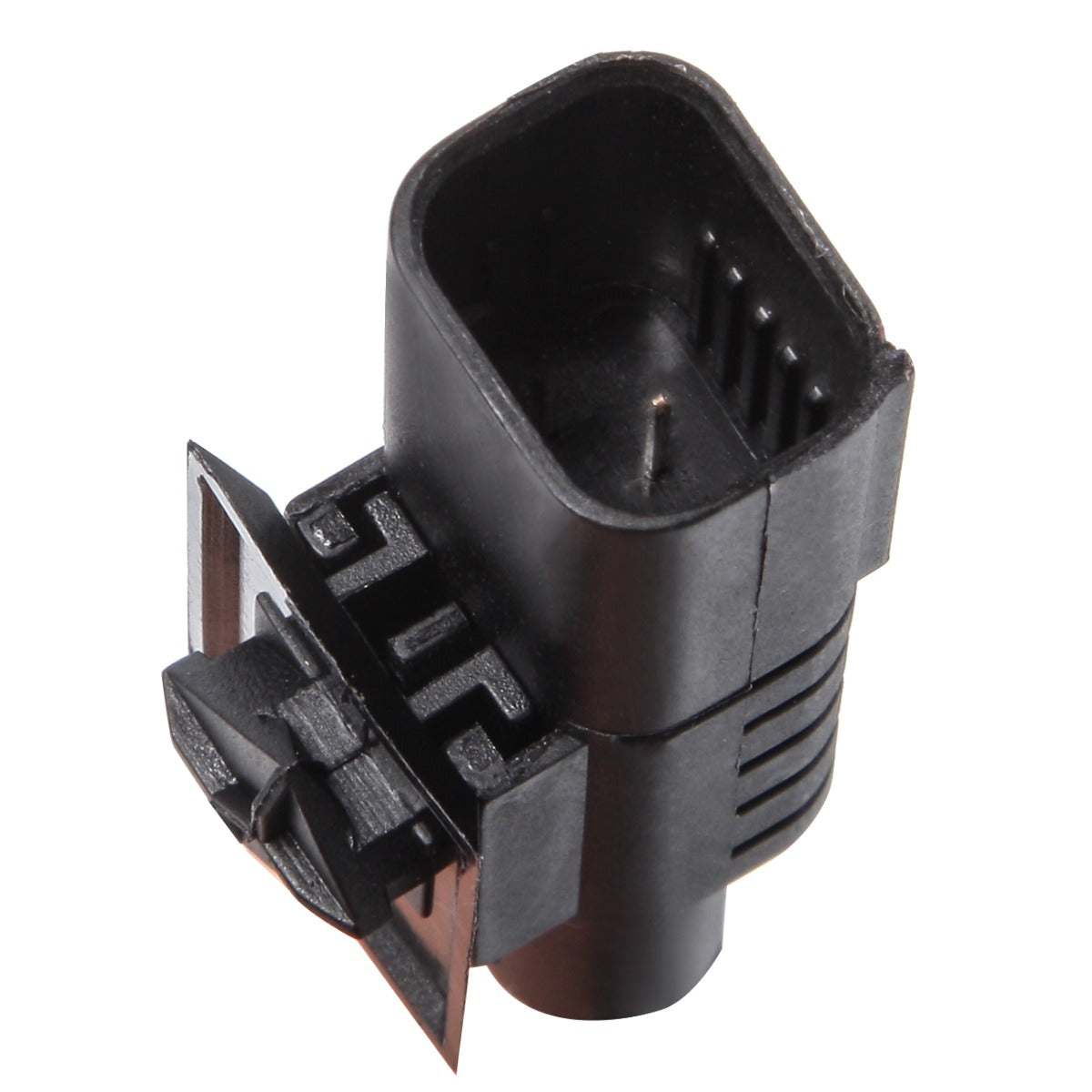

7.Disconnect the shocks damping solenoid electrical connector, located just behind the shock, on the control arm.(picture 7)
8.Loosen and remove the lower shock mounting bolt, followed by the old shock.(picture 8)
9.Removal complete.
*Installation Guideline
1.Install the replacement shock,solenoid side out.(picture 9)
2.Reinstall the lower mounting bolt.Tightening to manufacture¡¯s specification.(picture 10)
3.Reconnect and reattach the ads electrical connection back to the original mounting location on the control arm.(picture 11)
4.In the rear cargo area, lift the insulation to gain access to the top mount nuts. Install and tighten.(pictures 12,13)
5.Reference manufacture¡¯s specifications and installation instructions for interior panels and torque specifications.
6.Reinstall wheel.
7.Installation complete.
Note
Please double confim the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes
Pair for Rear Left & Right Air Suspension Shock Struts
