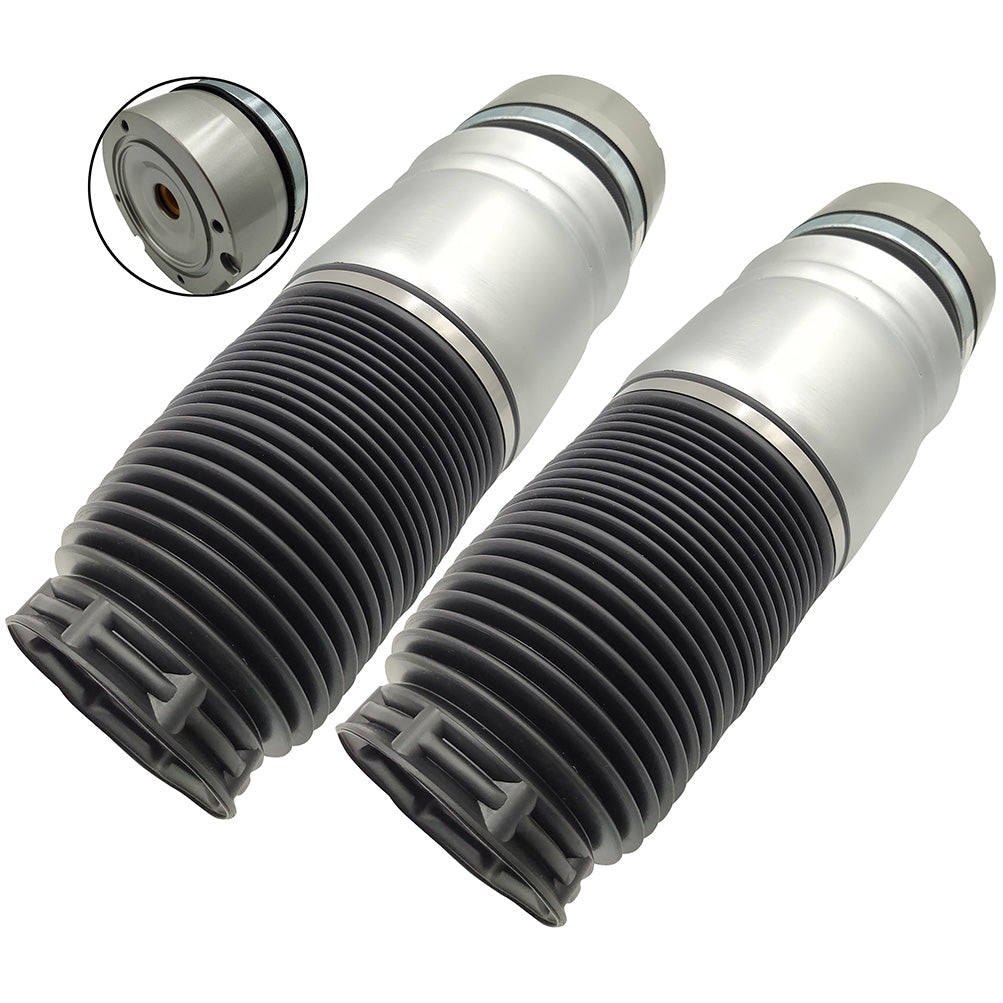

Rear Pair Air Suspension Spring Bags For Audi Q7 Porsche Cayenne Base Turbo S
Fitment:
- Audi | Q7 | 2007~2010 | 3.0L/3.6L/4.2L
- Porsche | Cayenne | 2003~2006/2008~2010 | 3.2L/3.6L/4.5L/4.8L
- Volkswagen | Touareg | 2004~2010 | 3.0L/3.2L/3.6L/4.2L/4.9L/5.0L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 45(Length)*20(Width)*20(Height)
- Single Weight(KG): 10.6
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Gas Charged Shock: Yes
- Drive Layout: Front Engine RWD & 4WD
- Platform: MLB
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 7L8616019A,7L8616020A,7L6616019A
- Superseded Part Number: 7L6616019E,7L6616020E,7L6616503B,95535850321
- Handling time: 1 Day
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
7L8616019A,7L8616020A,7L6616019A
7L6616020A,7L6616019D,7L6616020D
7L6616019E,7L6616020E,7L6616503B,95535850321
95535850331,7L8616019C,7L8616020C
4L0616019,4L0616020
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove rear wheel.
4.Disconnect the shock damper sensor wire.
5.Remove the four(4)top mounting bolts.
6.Remove the nut and bolt from the sway bar end link and lower shock mount.
7.Rest shock on upper control arms and remove the air line fitting from the air valve. Remove air line fitting from air hose and discard.
8.Remove air strut from the vehicle.
9.Slowly remove the air valve to deflate the air strut.
10.Remove the four(4)top mount bolts and the air strut assembly from the upper mount.
Installation Guideline
1.Remove the top shock nut.
2.Remove top rubber mount and o-ring and discard.
3.Remove the air spring and lower o-ring from the shock.
4.Remove and discard the bump stop.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
This is only a repair kit and cannot be used in its entirety.Please double confirm the compatibility as well as the OEM number before purchasing.
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes
Pair for Rear Left and Right Air Suspension Shock Struts
