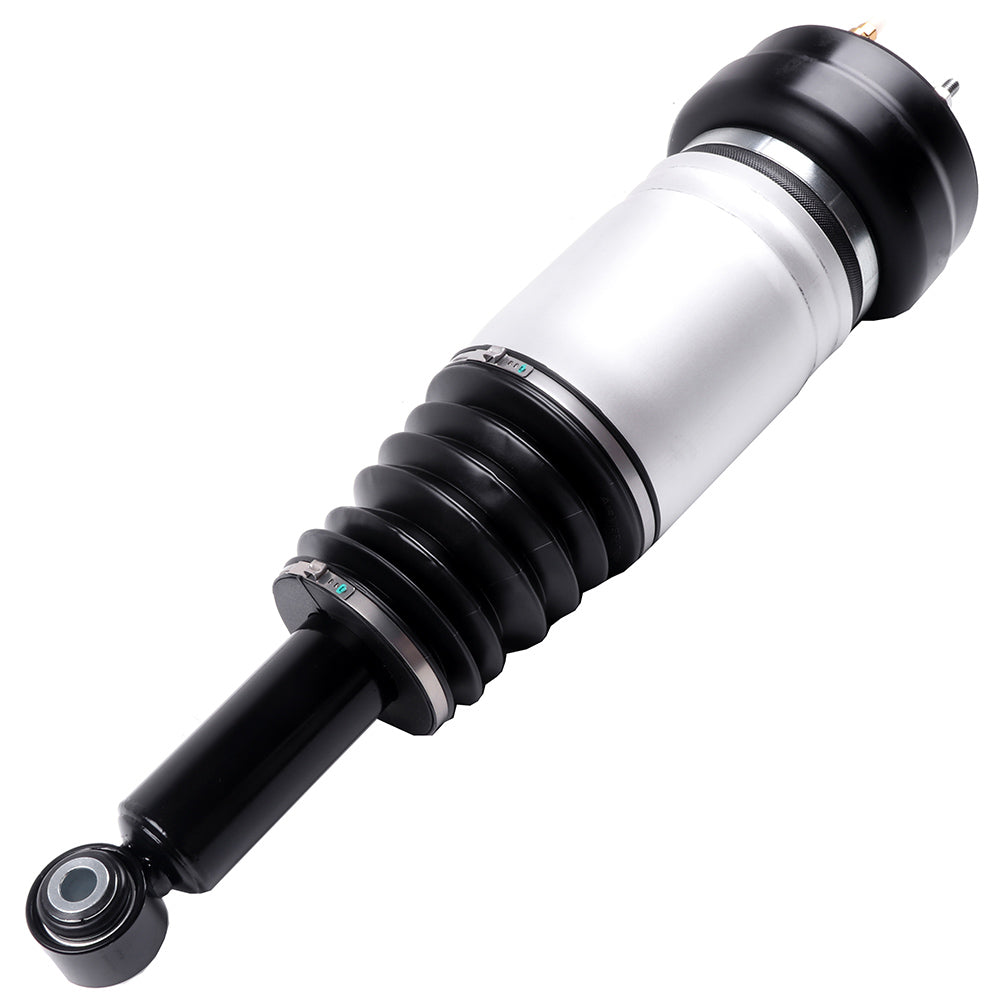

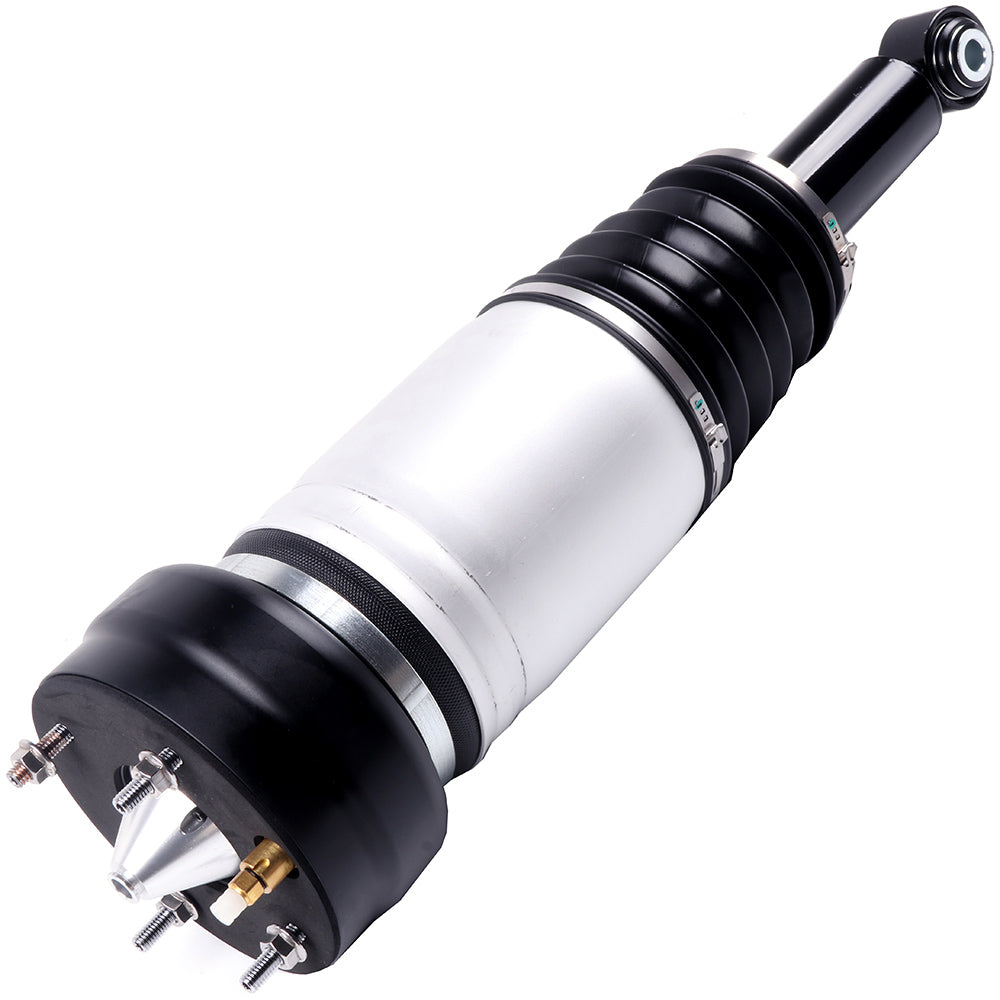

Rear Pair Suspension Air Shocks For Jaguar XJ XJ8 XJR, Super V8, Vanden Plas
Fitment:
- Jaguar | Super V8 | 2005~2009 | 4.2L
- Jaguar | Vanden Plas | 2004~2009 | 4.2L
- Jaguar | XJ | 2010 | 5.0L
- Jaguar | XJ8 | 2005~2009 | 4.2L
- Jaguar | XJR | 2004~2009 | 4.2L
Item Specifications
Key Words: Rear Pair Air Suspension Shock Struts For Jaguar XJ-Series XJ8 XJR 2004-2010 Super V8 2005-2009 Vanden Plas 2004-2009
Product Specifics
- Size: Single Dimension(CM) 72.00(length)*20.00(width)*20.00(height)
- Single Weight(KG): 7.500
- Included Installation Fittings: None
- Maximum Operating Pressure (psi): 195
- Minimum Operating Pressure (psi): 90
- Automobile Layout: Front Engine RWD/2WD
- Chassis: X350 X358
- Material: Iron+Aluminium Alloy+Rubber
- Color: Silver+Black
- Type: Air Suspension Strut
- Custom Bundle: No
- Manufacturer Warranty: 1 Year
- Fitment Type: Direct Replacement
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- *Platform Drive Layout: Front Engine-Rear Wheel Drive Layout
- *OEM Part Number: C2C31014,C2C39765,C2C41343
*Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.
1.Raise vehicle.
2.Remove rear wheel.
3.Remove the luggage compartment side trim to expose the top sides of the air strut.(picture a)
4.Disconnect the air line from the check valve.(picture b)
5.Disconnect the electrical connector from the top of the air strut, push on the sides of the connector to release.(picture c)
6.Remove the four(4)air strut mounting nuts.(picture d)
7.Detach the rear tie rod.(picture e)
8.Remove the lower air strut mounting bolt.(picture f)
9.Remove air strut.(picture g)
10.Removal complete.
*Installation Guideline
Tighten all nuts and bolts to manufacturer's specifications during the installation process.
Do not remove the air fitting from the air strut. Doing so may cause damage and/or void warranty. Remove the white shipping pin from the new air fitting and insert the air line until fully seated.
1.Installation is in reverse order of air strut removal. Reusing factory hardware where applicable.
Note
Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
Includes

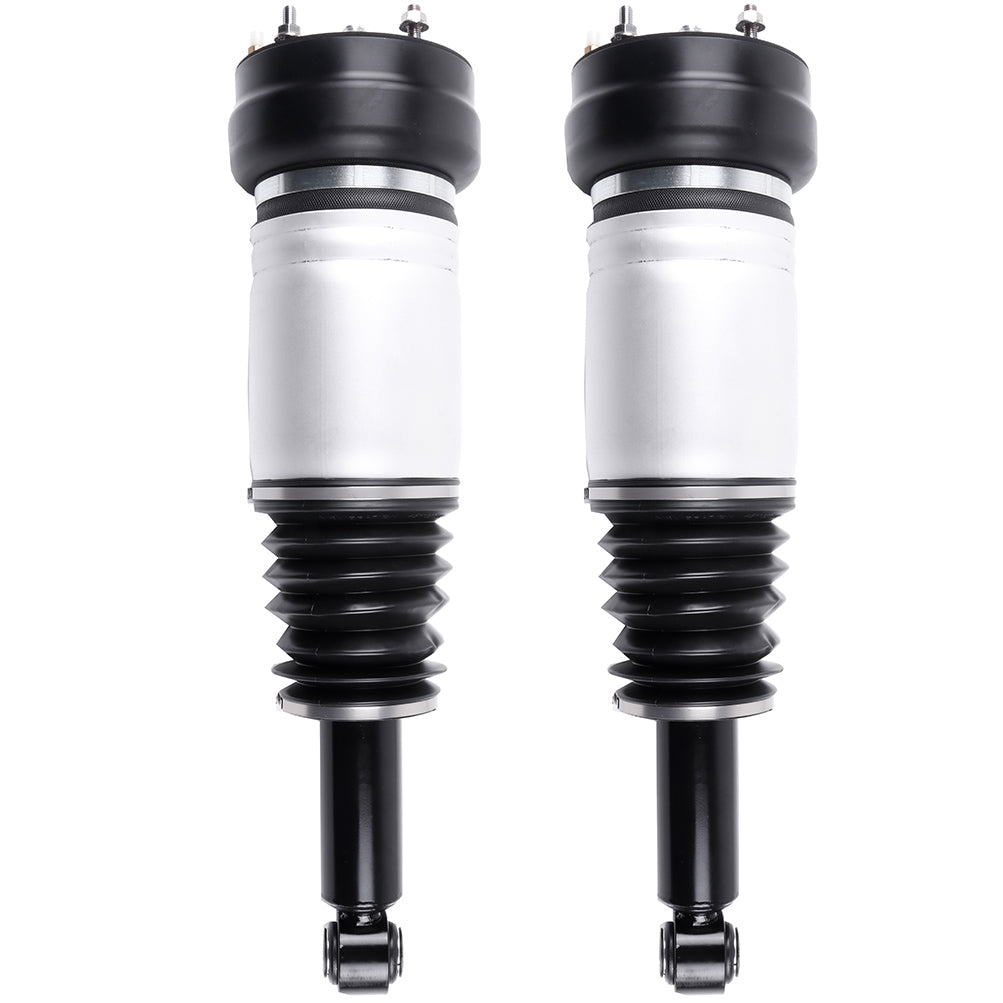

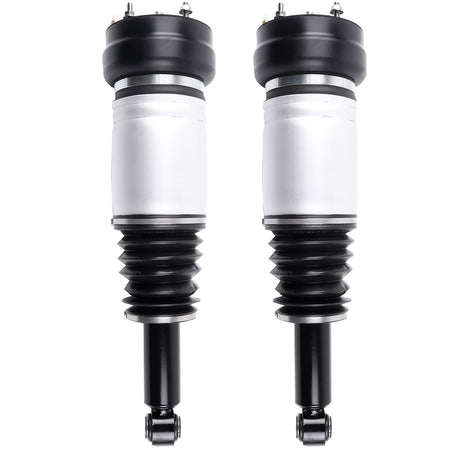

Pair for Rear Left & Right Air Suspension Shock Struts
