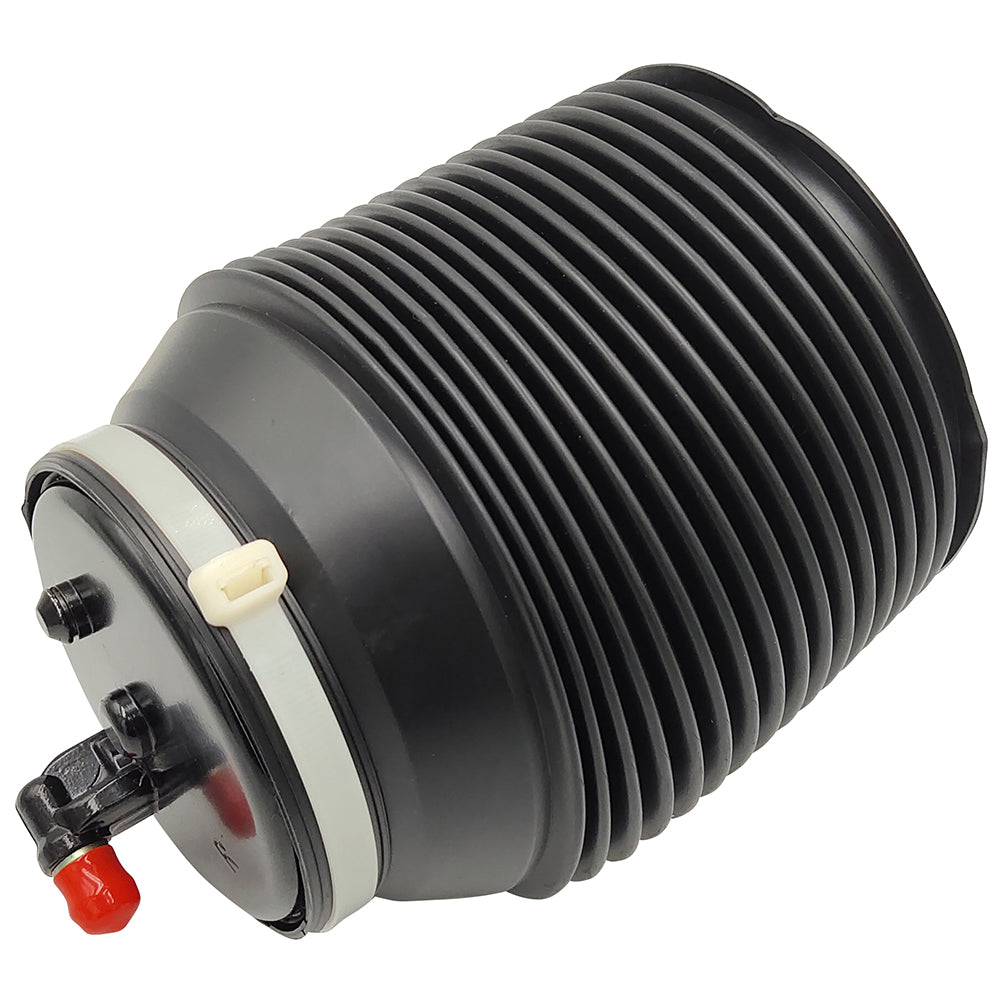

Rear Right Air Suspension Spring Bag For Lexus GX460 Toyota 4Runner Land Cruiser
Fitment:
- Lexus | GX460 | 2010~2018 | 4.6L
- Toyota | 4Runner | 2010~2018 | 2.7L/4.0L
- Toyota | Land Cruiser | 2010~2011/2013~2018 | 5.7L
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 27.5(Length)*18(Width)*17(Height)
- Single Weight(KG): 2.8
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Package: Box
- Modified Item: No
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: J150 N280
- Custom Bundle: No
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- UPC: Does not apply
- Interchange Part Number: 4808060010 48080-60010,4808060010A
- Superseded Part Number: 4808060010
- Return Policy: 30 Days Free Return Or Exchange
- Surface Finish: High Quality
- Replacement Part Number: 4808060010 48080-60010
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual,service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
Once the vehicle has been raised from the ground, put vehicle in neutral, and then back into park to release the tension on the drivetrain.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Lift vehicle and remove rear wheel.
3.Deflate rear air spring by disconnecting the air lines leading from the valve block assembly to the rear air spring.
4.Remove the locking clip from the top side of the air spring.
5.Disconnect the air line from the air spring. Remove the locking clip from the air line.
6.Carefully compress and remove the air spring from the vehicle.
Installation Guideline
1.Install the air spring into the vehicle and connect the air line to the new air fitting.
2.Align the bottom piston tabs with the notches on the lower spring perch.
3.Seat the spring and rotate 90°to secure
4.Seat the upper portion of the air spring and install the upper retaining clip.
5.Air spring installation complete.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
Please double confirm the compatibility as well as the OEM number before purchasing.
These air suspension solenoid valves are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Includes
Single for Rear Right Air Suspension Spring
