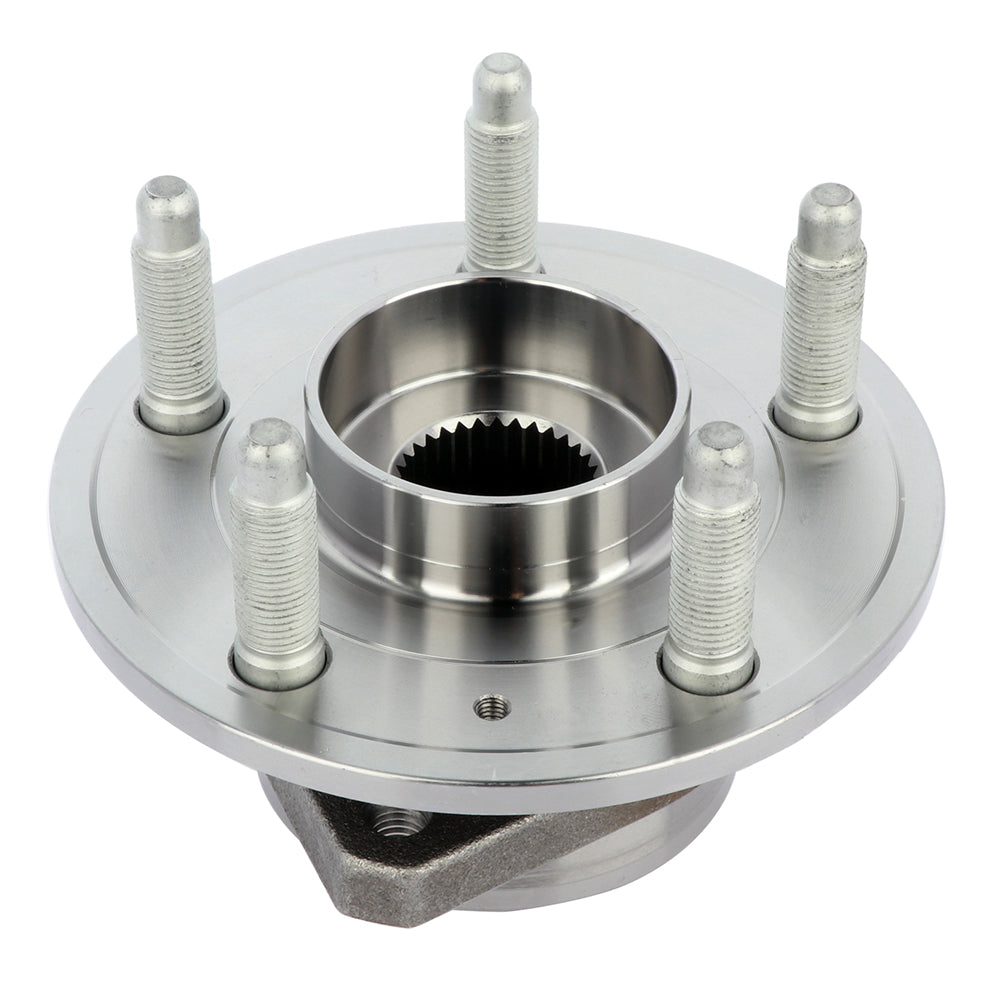

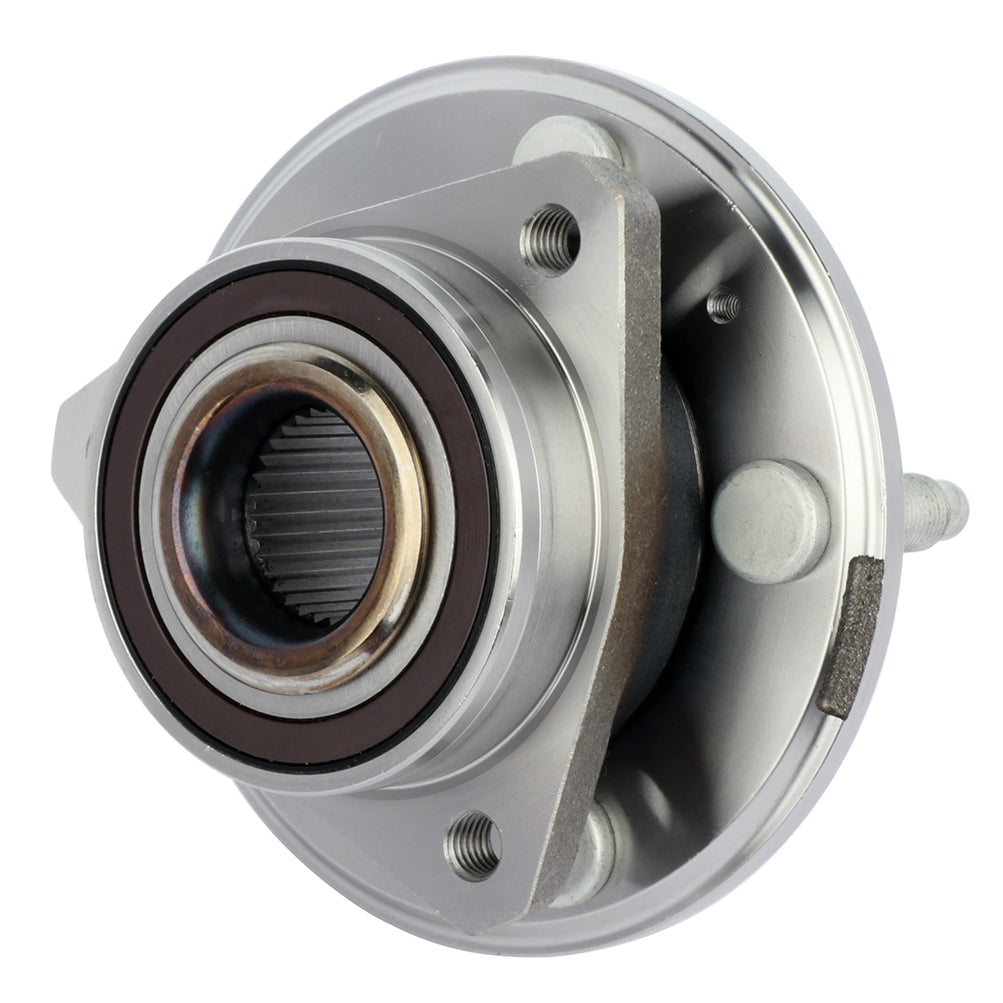

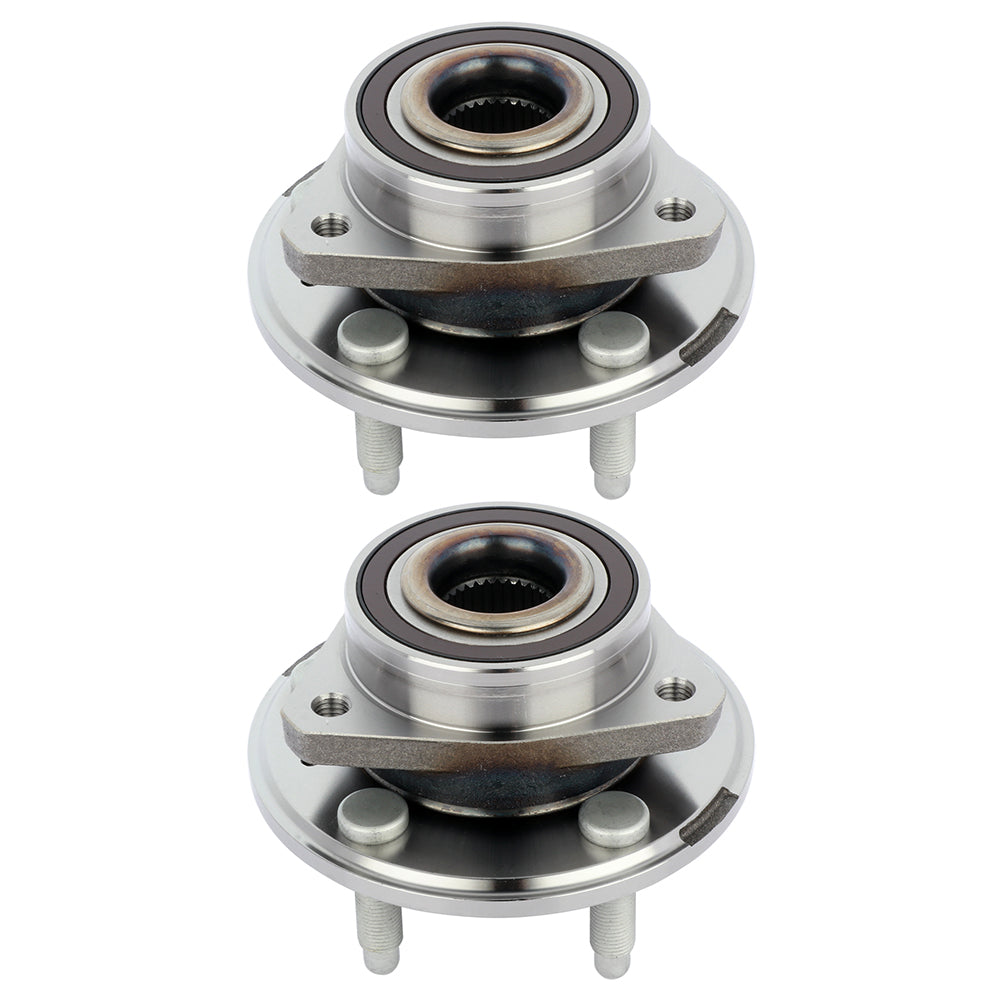

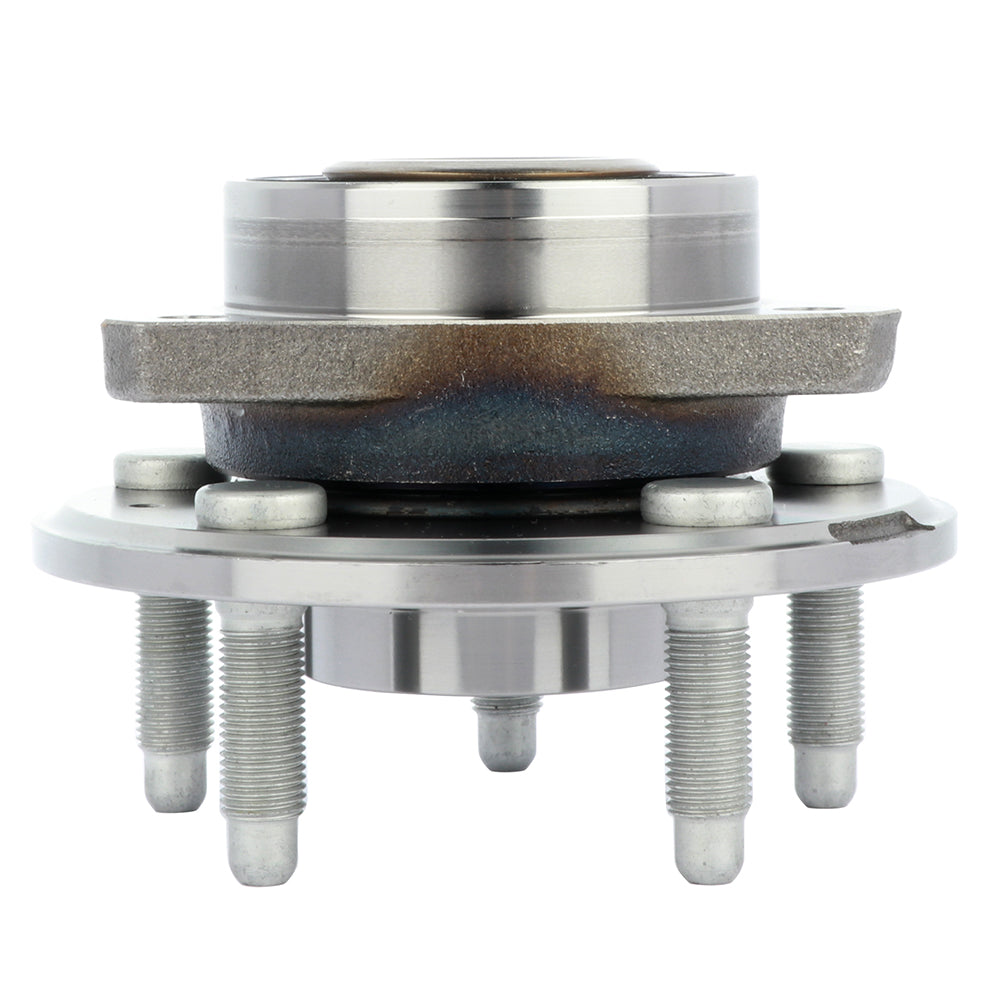

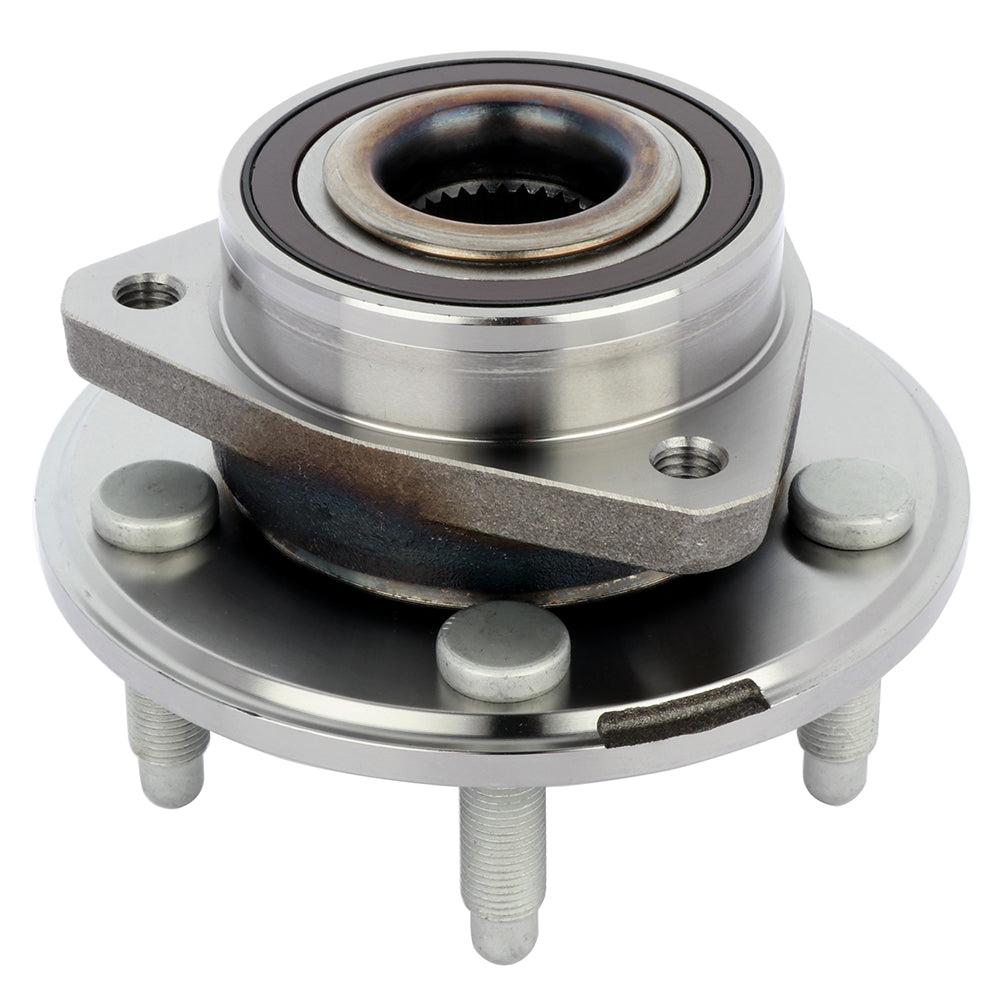

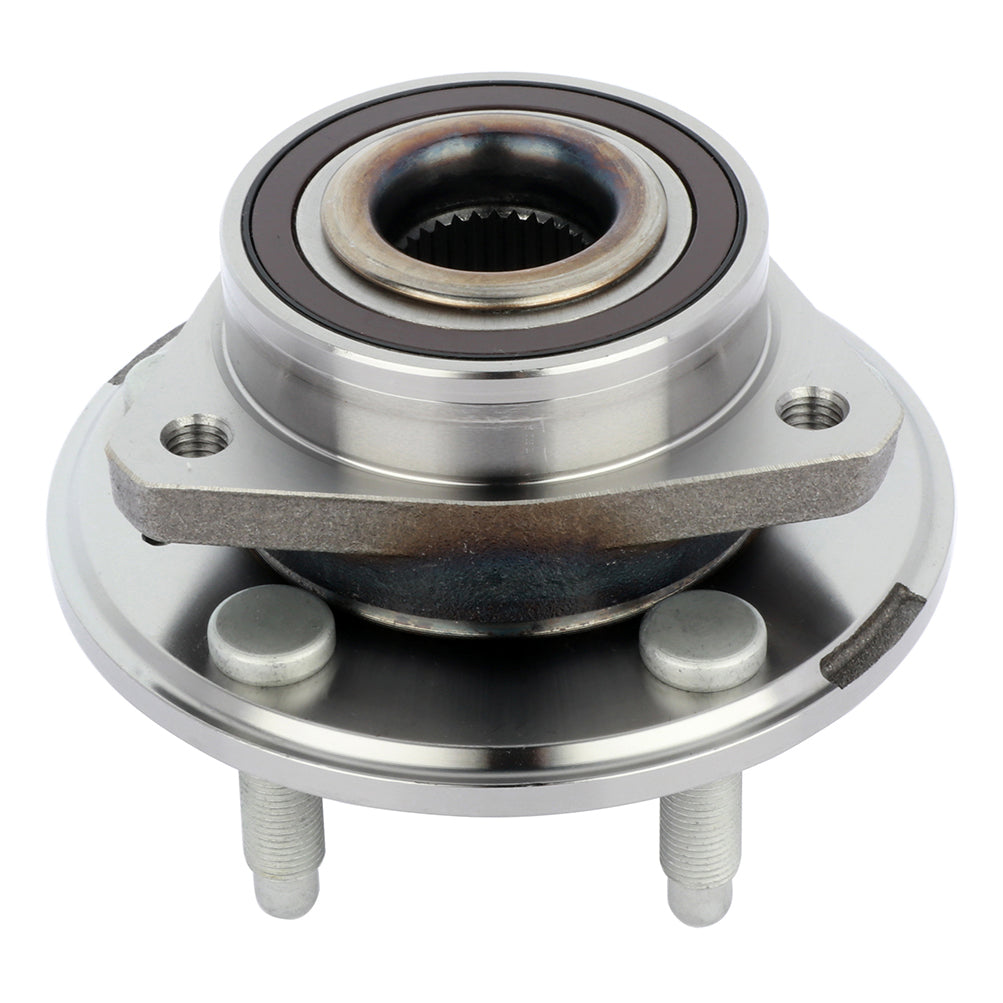

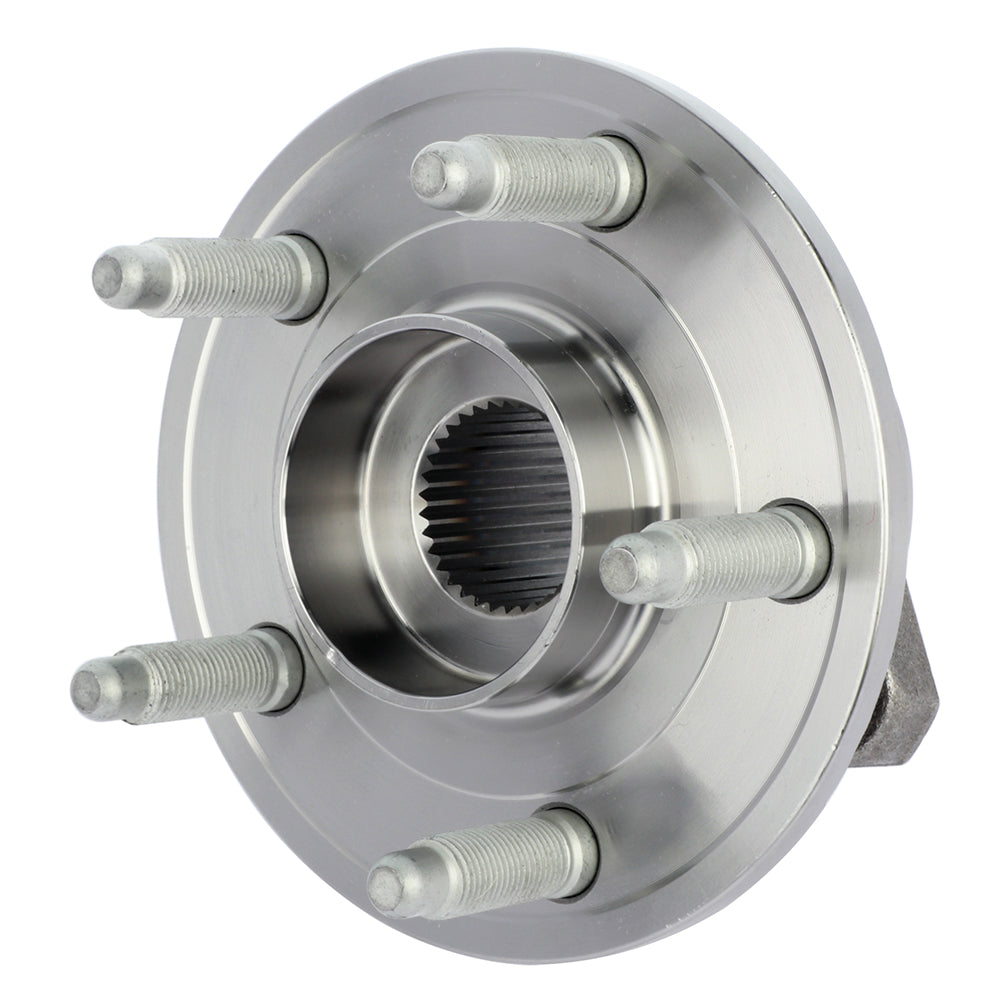

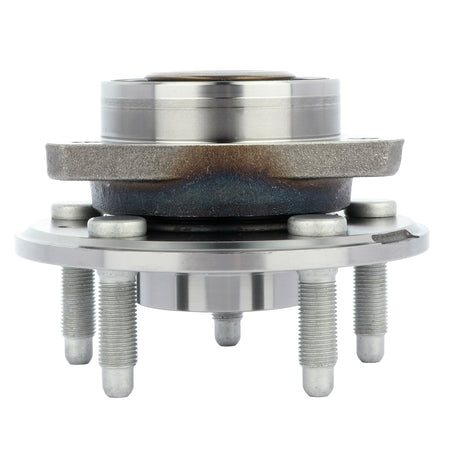

Rear Wheel Bearing Hub 2010-2016 Chevrolet Camaro Pair

Fitment

• Chevrolet | Camaro | 2010~2016 | 2.0L/3.6L/6.2L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Manufacturer Warranty: 1 Year
• Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 33
• Bolt Circle Diameter: 4.68 In
• Wheel Pilot Diameter: 2.61 In
• Brake Pilot Diameter: 2.6247 In
• Flange Diameter: 6.12 In
• Flange Offset: 1.64 In
• Hub Pilot Diameter: 3.56 In
• Other Part Numbers: 13500401, 13504969, 13580684, 13595965, 7467850
• Material: steel
• Weight: 19LB
• include: 2 X wheel bearing
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512399, WA512399, WB512399, 712399, 29512399

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
