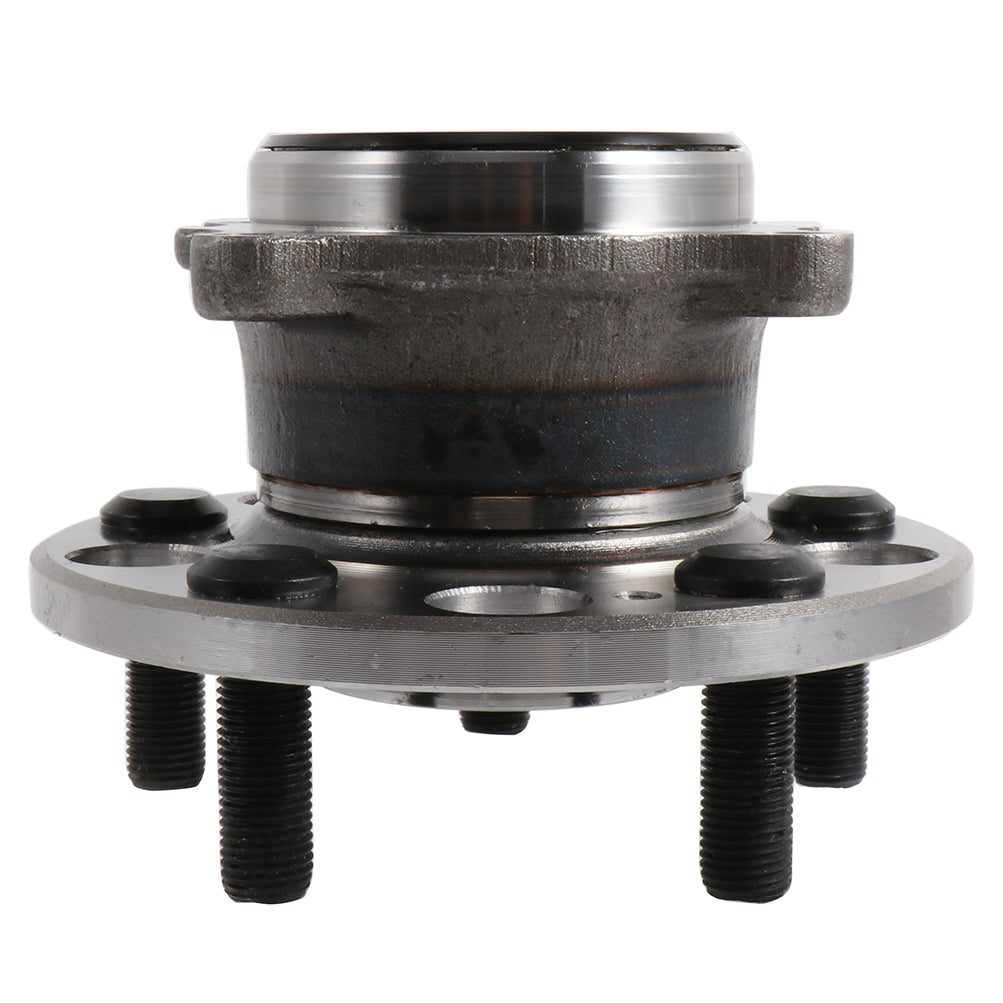

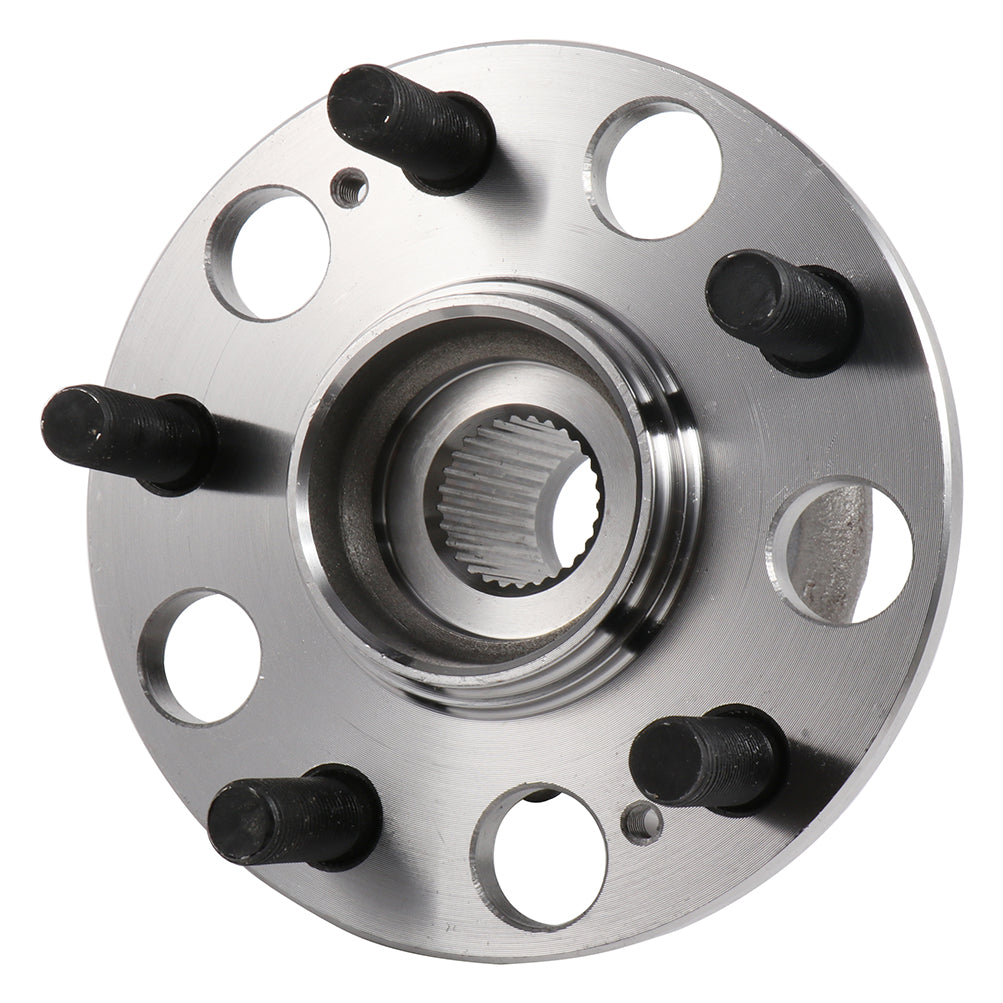

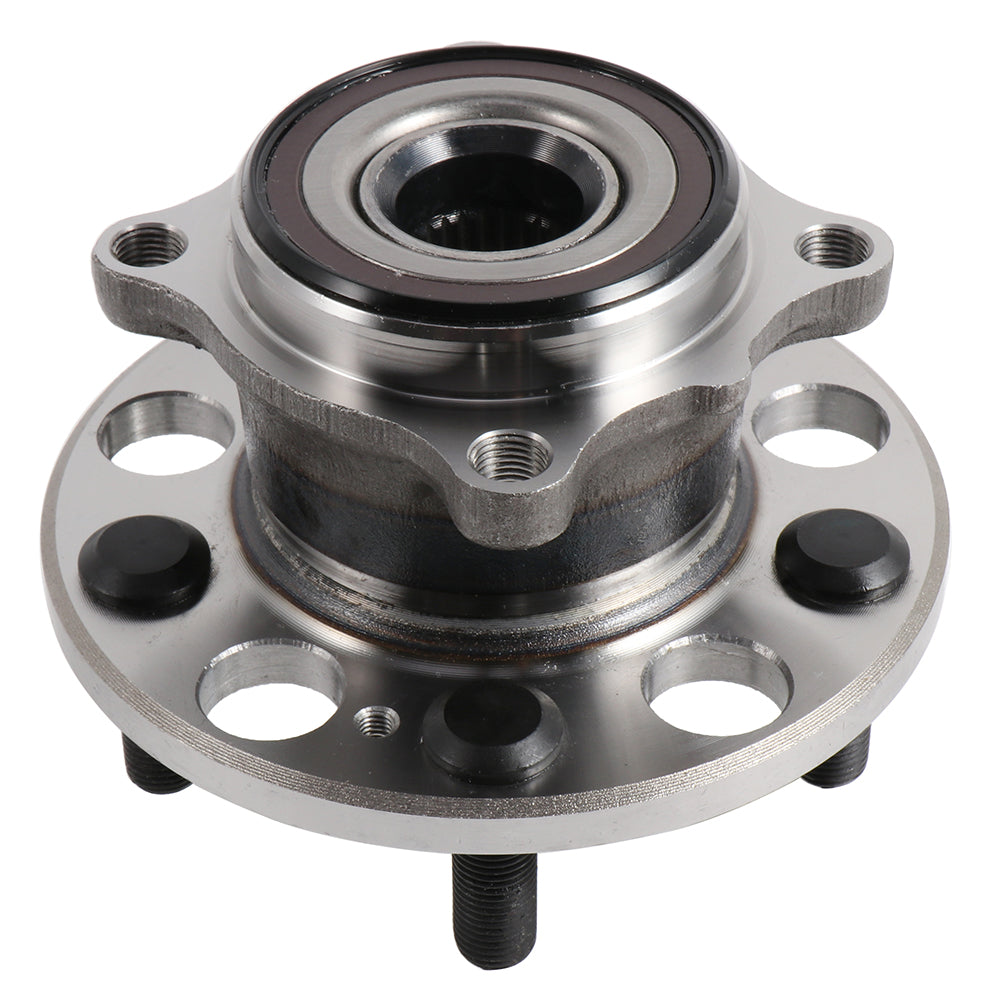

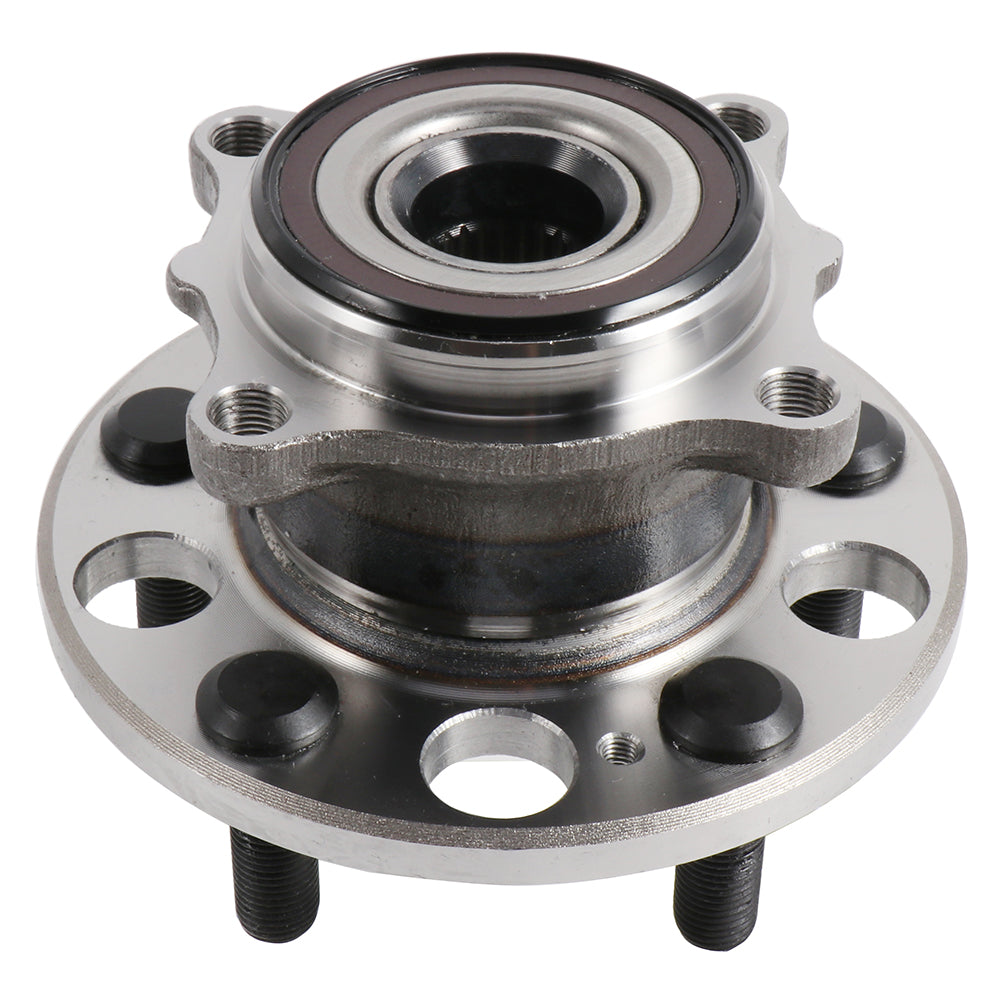

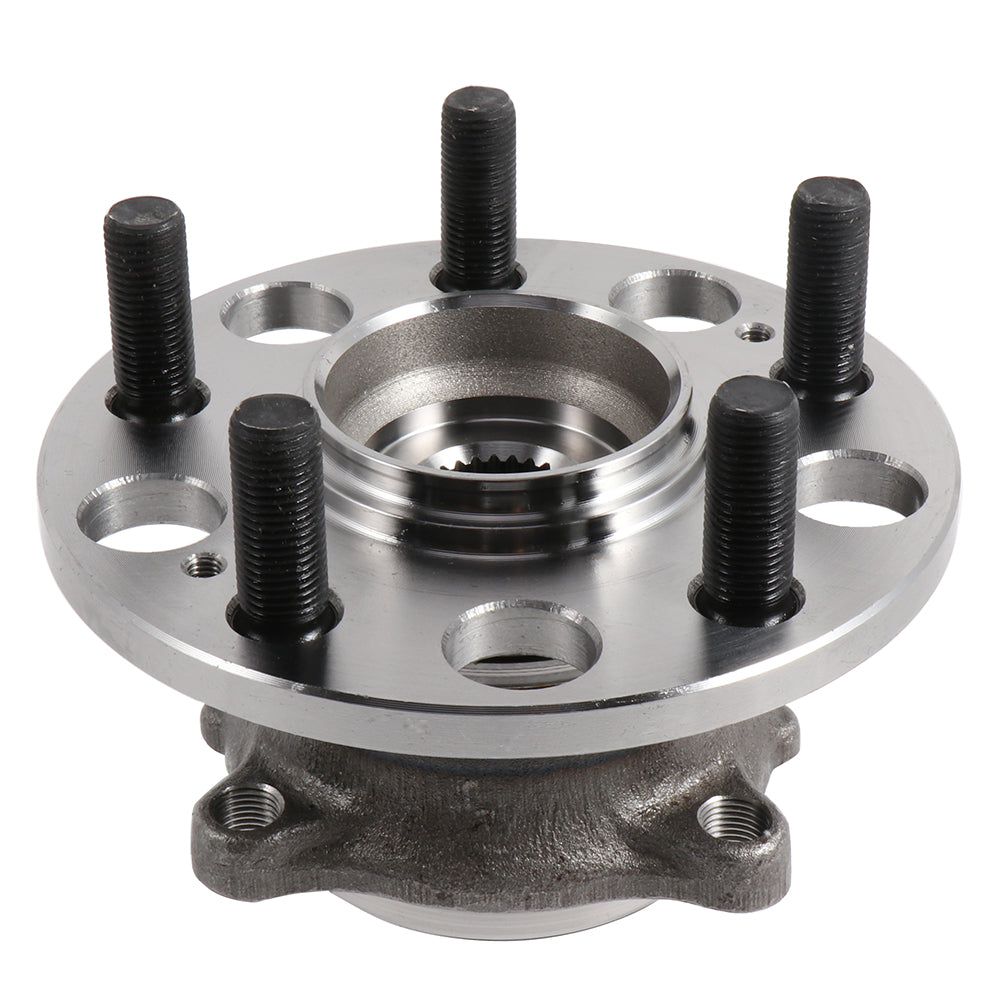

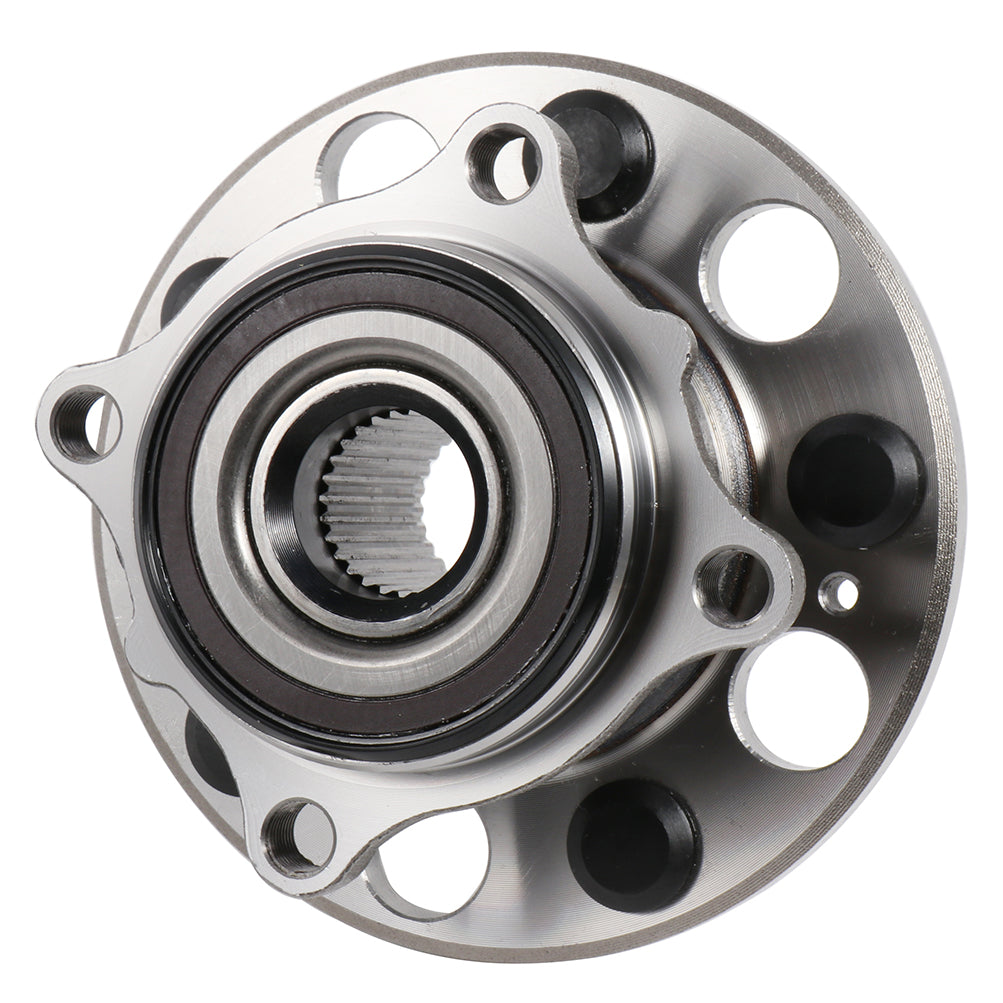

Rear Wheel Bearing & Hub For 2005-2012 Acura RL 2009-2013 Acura TL

Fitment

• Acura | RL | 2005~2012 | 3.5L/3.7L
• Acura | TL | 2009~2013 | 3.7L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 28
• Bolt Circle Diameter: 4.67 In
• Wheel Pilot Diameter: 2.5 In
• Brake Pilot Diameter: 2.73 In
• Flange Diameter: 5.95 In
• Flange Shape: Modified
• Flange Offset: 2.38 In
• Hub Pilot Diameter: 3.18 In
• Other Part Number: 42200SJA008
• Material: steel
• Weight: 17LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512321, WA512321, WB512321,712321,29512321

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

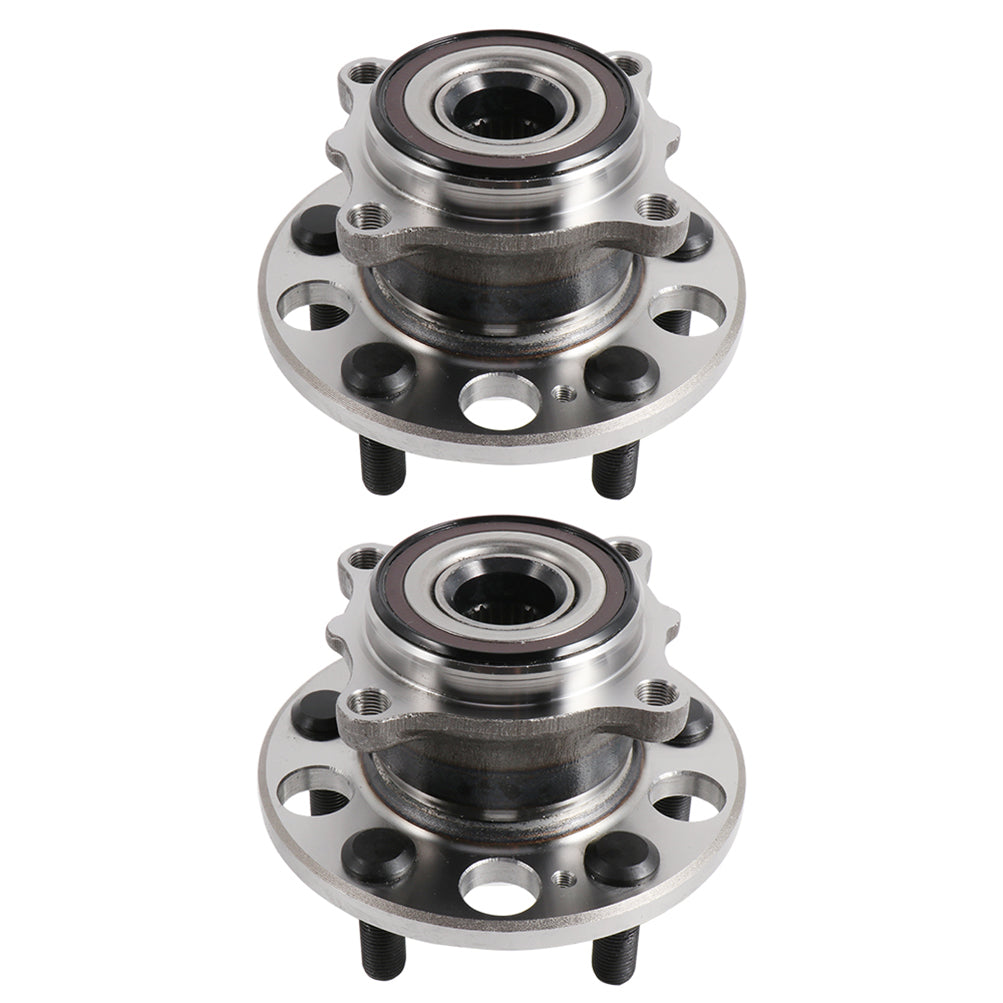

2 Pcs wheel hub bearing
