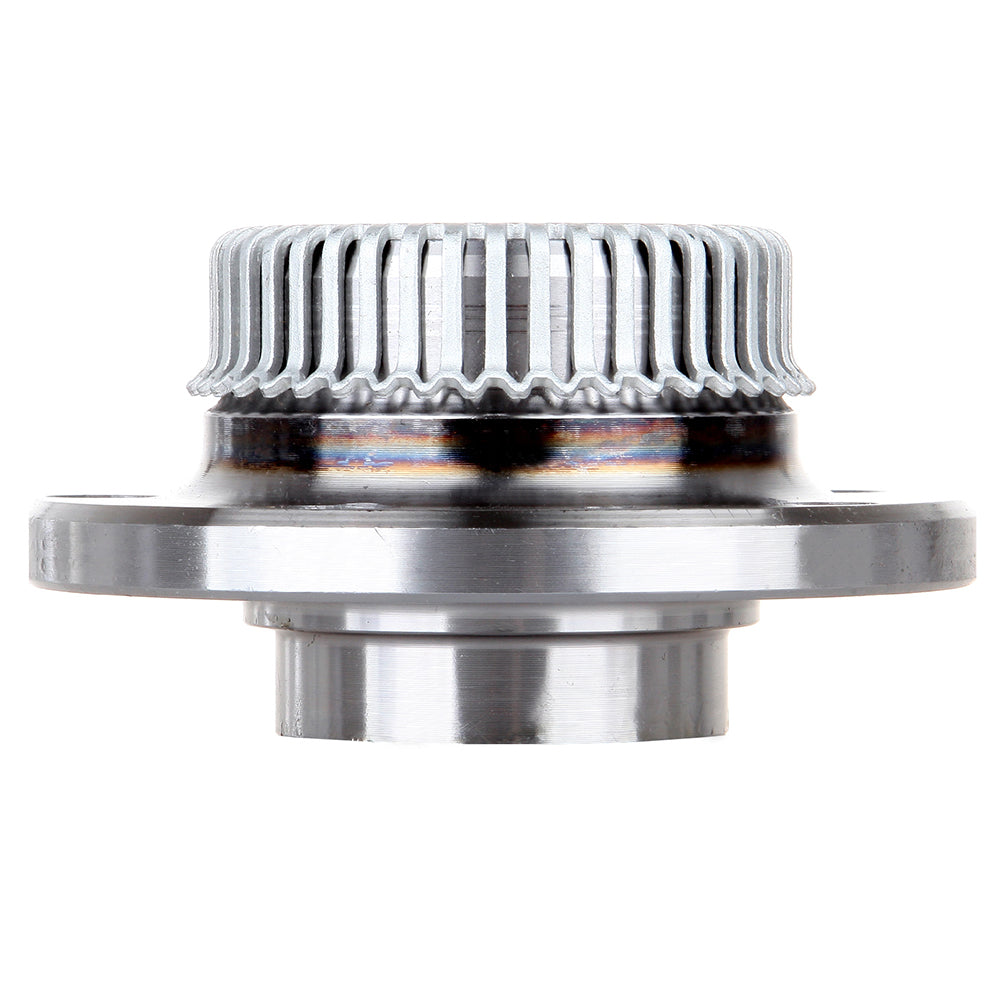

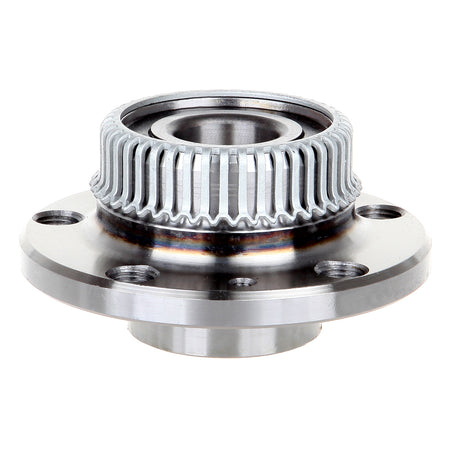

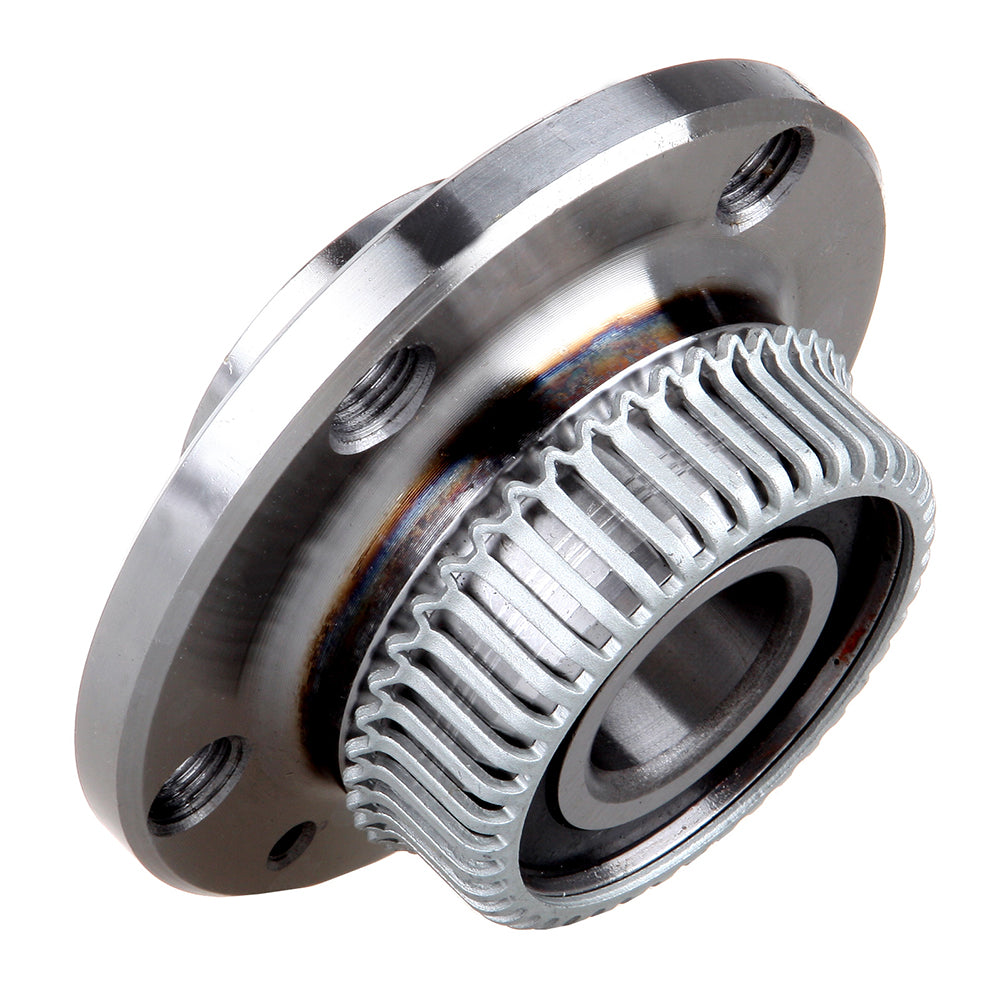

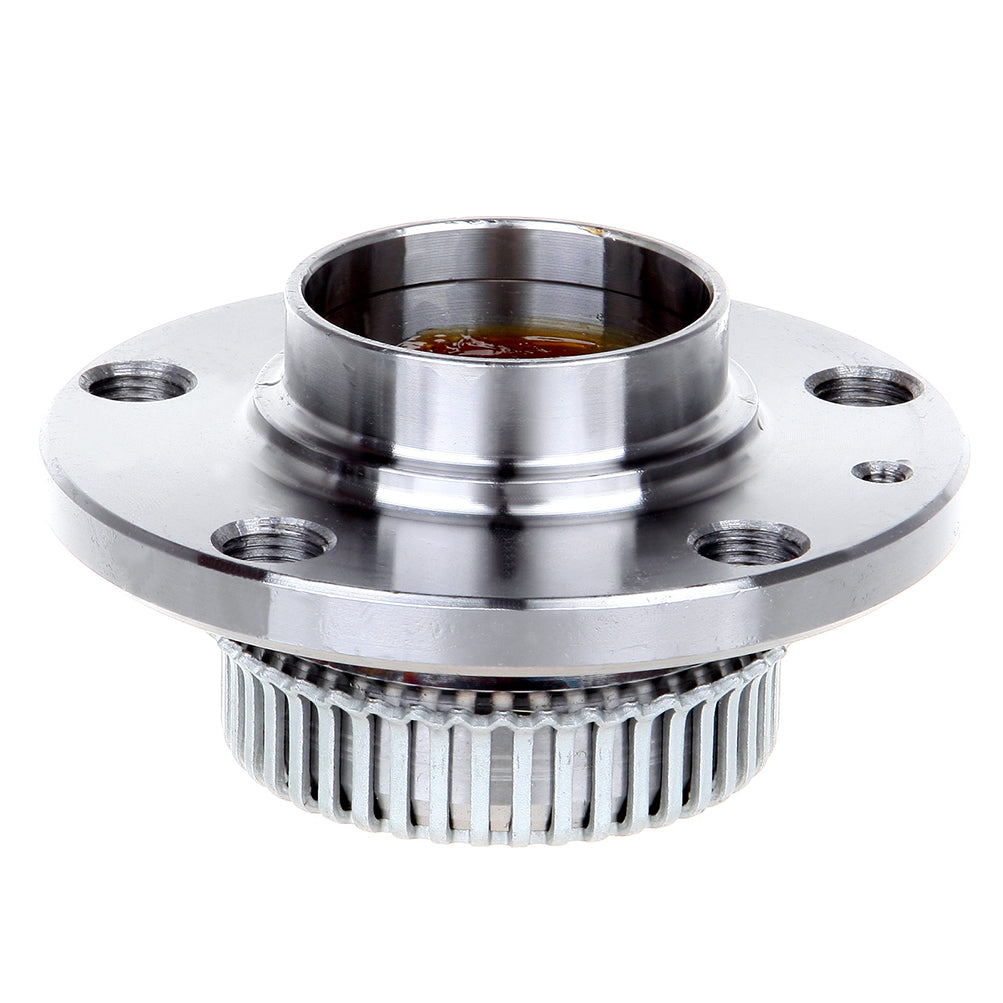

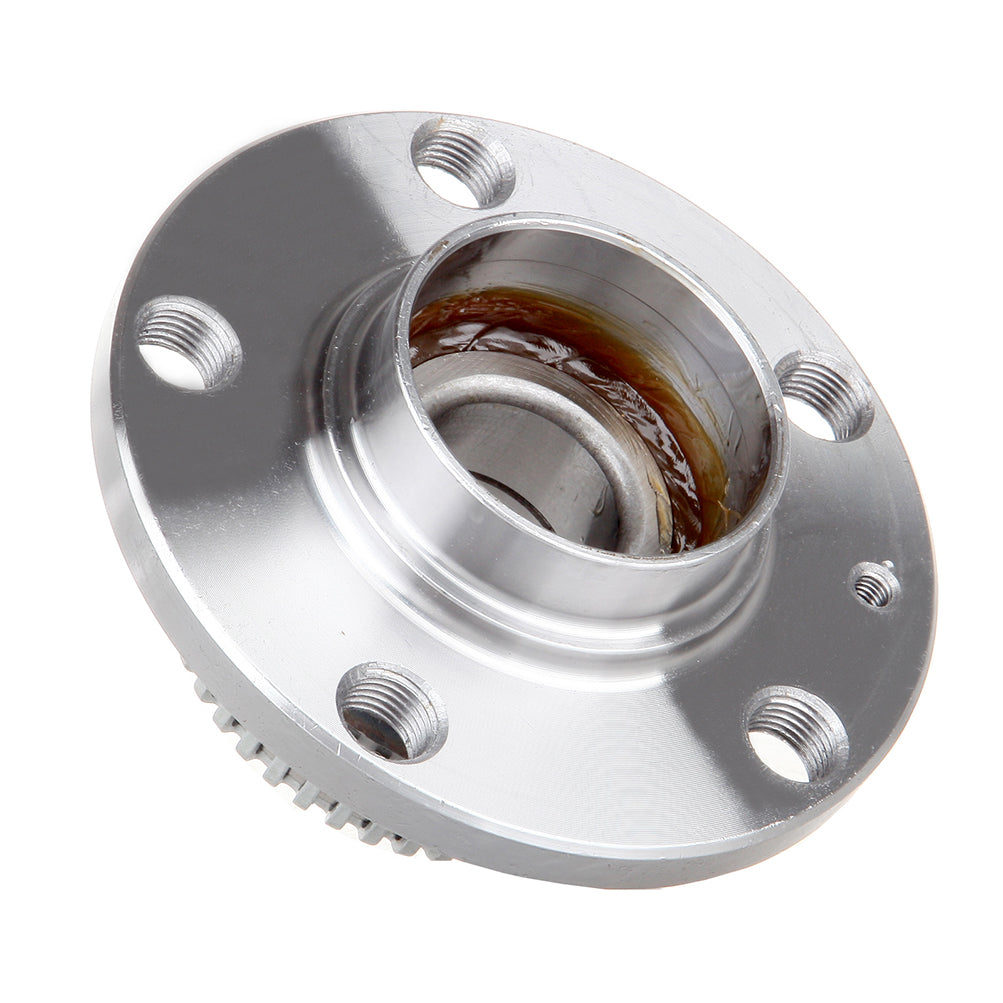

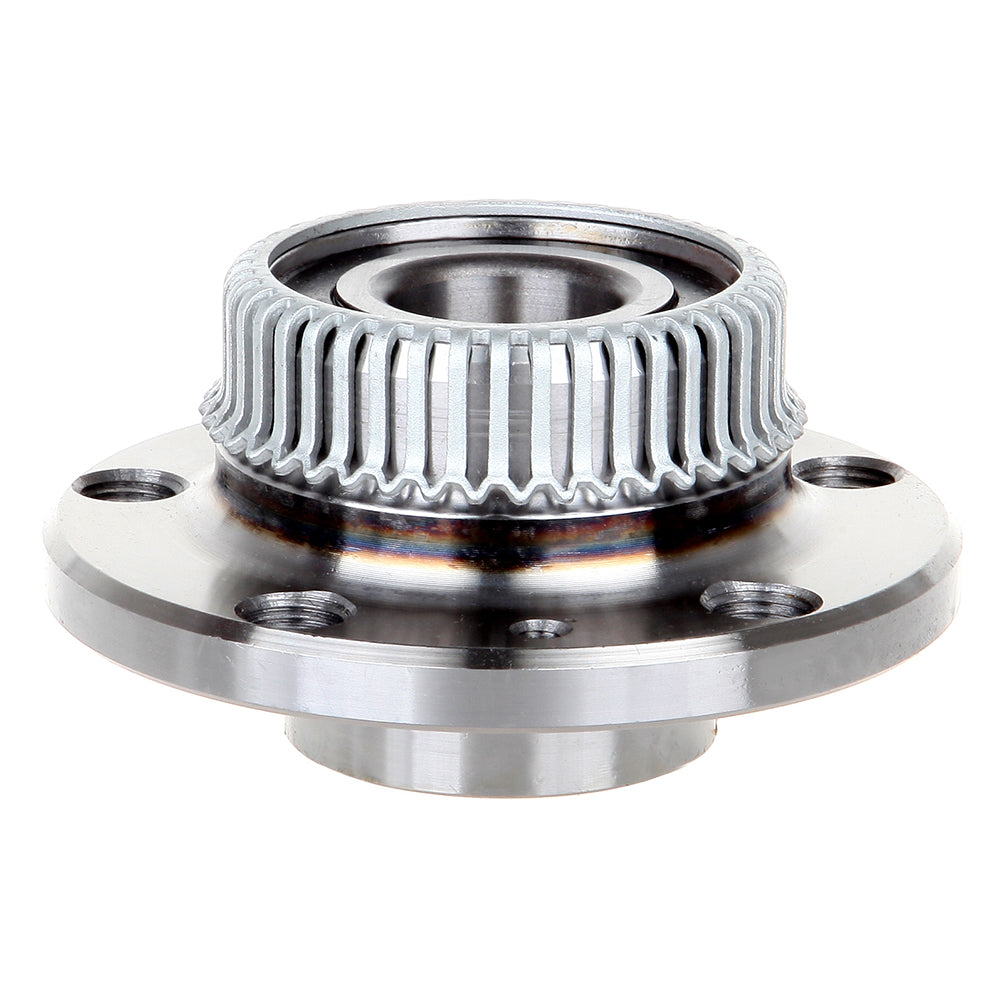

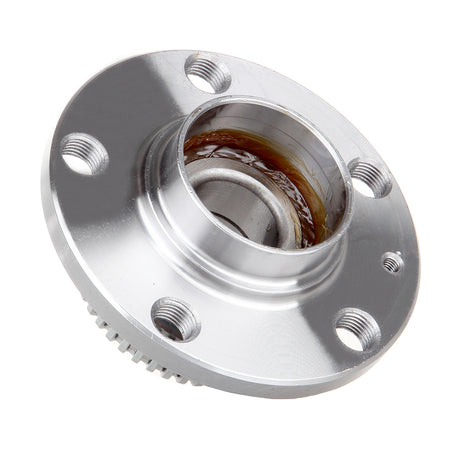

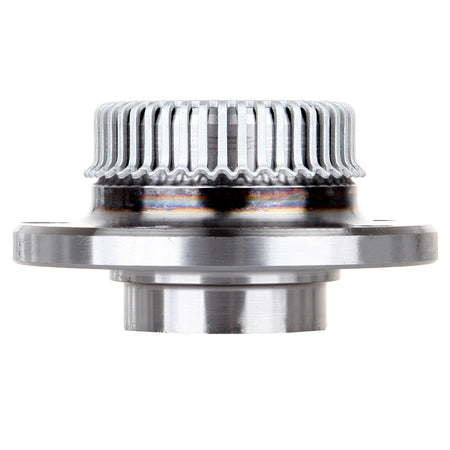

Rear Wheel Bearing Hub For 99-05 Volkswagen Golf 99-05 Volkswagen Jetta

Fitment

• Audi | TT | 2000~2006 | 1.8L
• Volkswagen | Beetle | 1998~2010 | 1.8L/1.9L/2.0L/2.5L
• Volkswagen | Golf | 1999~2005 | 1.8L/1.9L/2.0L/2.8L
• Volkswagen | Jetta | 1999~2005 | 1.8L/1.9L/2.0L/2.5L/2.8L
• Volkswagen | Jetta City | 2007~2009 | 2.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: N/A
• Spline Quantity: N/A
• Bolt Circle Diameter: 3.9 In
• Wheel Pilot Diameter: 2.22 In
• Brake Pilot Diameter: 2.535 In
• Flange Diameter: 4.68 In
• Flange Offset: 1.67 In
• Hub Pilot Diameter: 2.94 In
• Other Part Number: 1J0501477A, 1J0501477B, 1J0501477C, 1J0501611, 1J0501611A,
• Material: steel
• Weight: 4LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512012,1J0501611A, 1J0501611B, 1J0501611C, 1J0598477,WA512012

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
