Rear Wheel Bearings For 04-08 Suzuki Forenza 05-08 Suzuki Reno

Fitment

• Chevrolet | Epica | 2004~2006 | 2.5L
• Chevrolet | Optra | 2004~2007 | 2.0L
• Suzuki | Forenza | 2004~2008 | 2.0L
• Suzuki | Reno | 2005~2008 | 2.0L
• Suzuki | Verona | 2004~2006 | 2.5L

Product Specifics

• Placement on Vehicle: Left+Right+Rear
• Manufacturer Warranty: 1 Year
• Items Included: 2X wheel hub bearing
• Finish: Polished, Rust Protected
• Bolt Circle Diameter: 4.5 In
• Anti-lock Braking System: Yes
• Flange Diameter: 5.472 In
• Wheel Stud Quantity: 4
• Bolt Size: M12x1.5

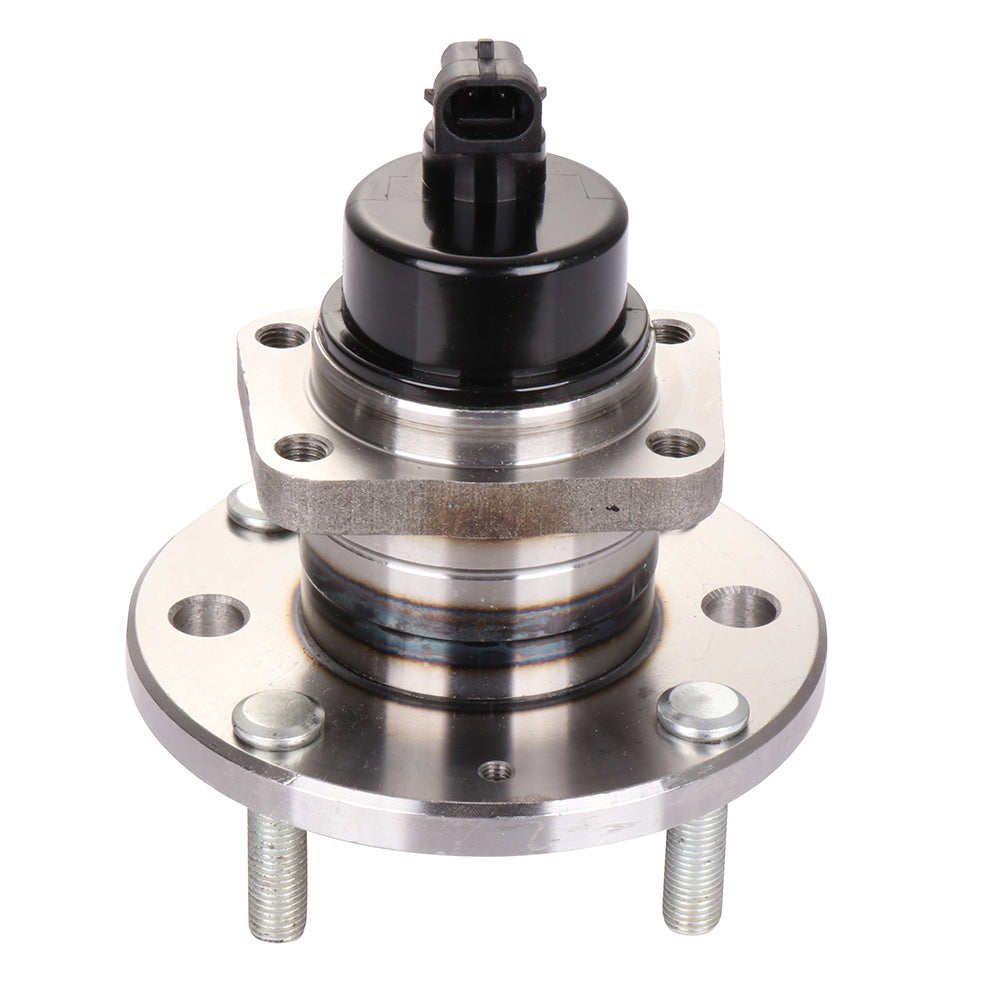

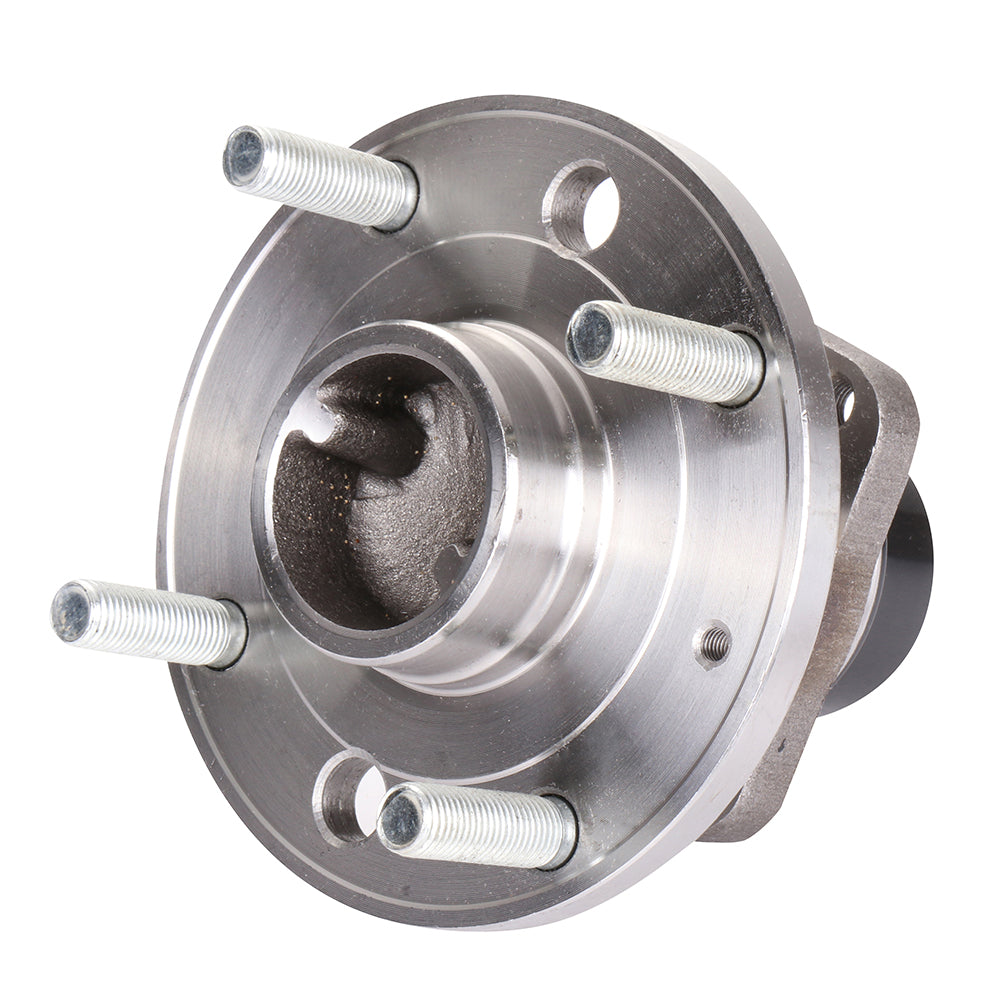

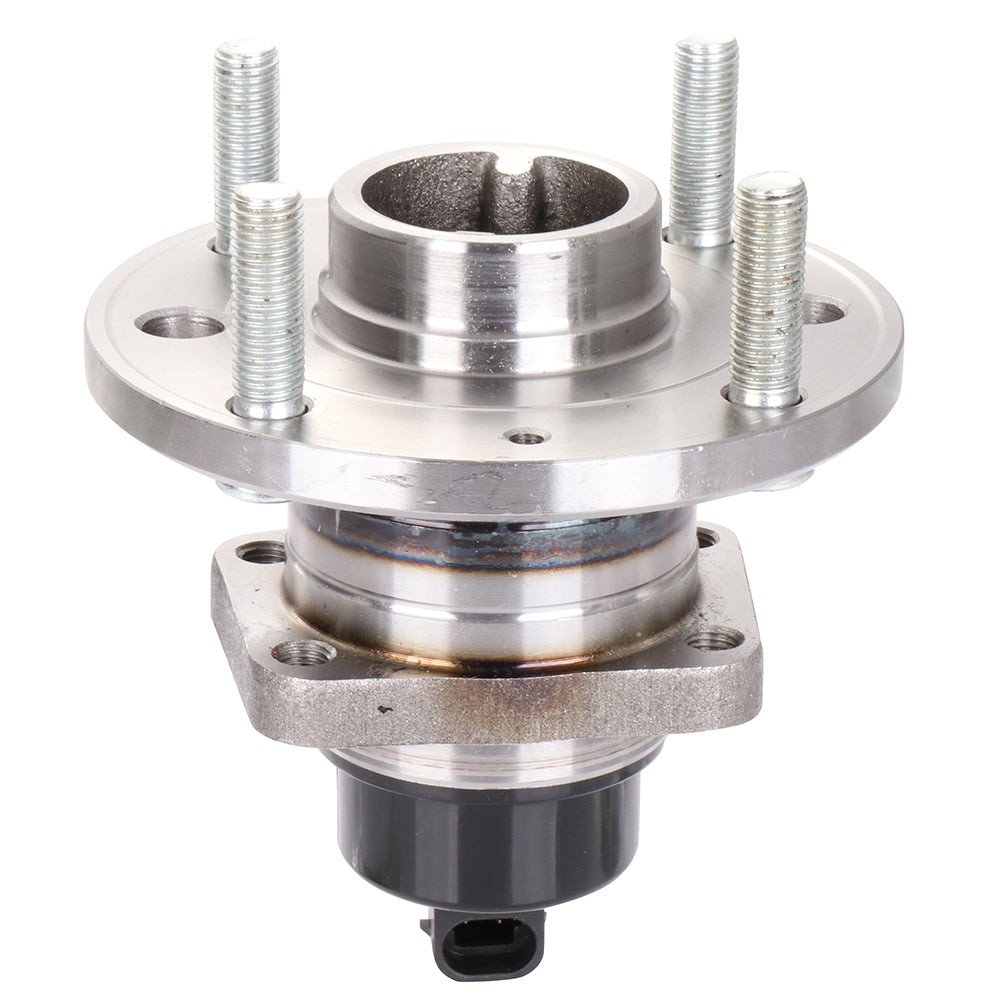

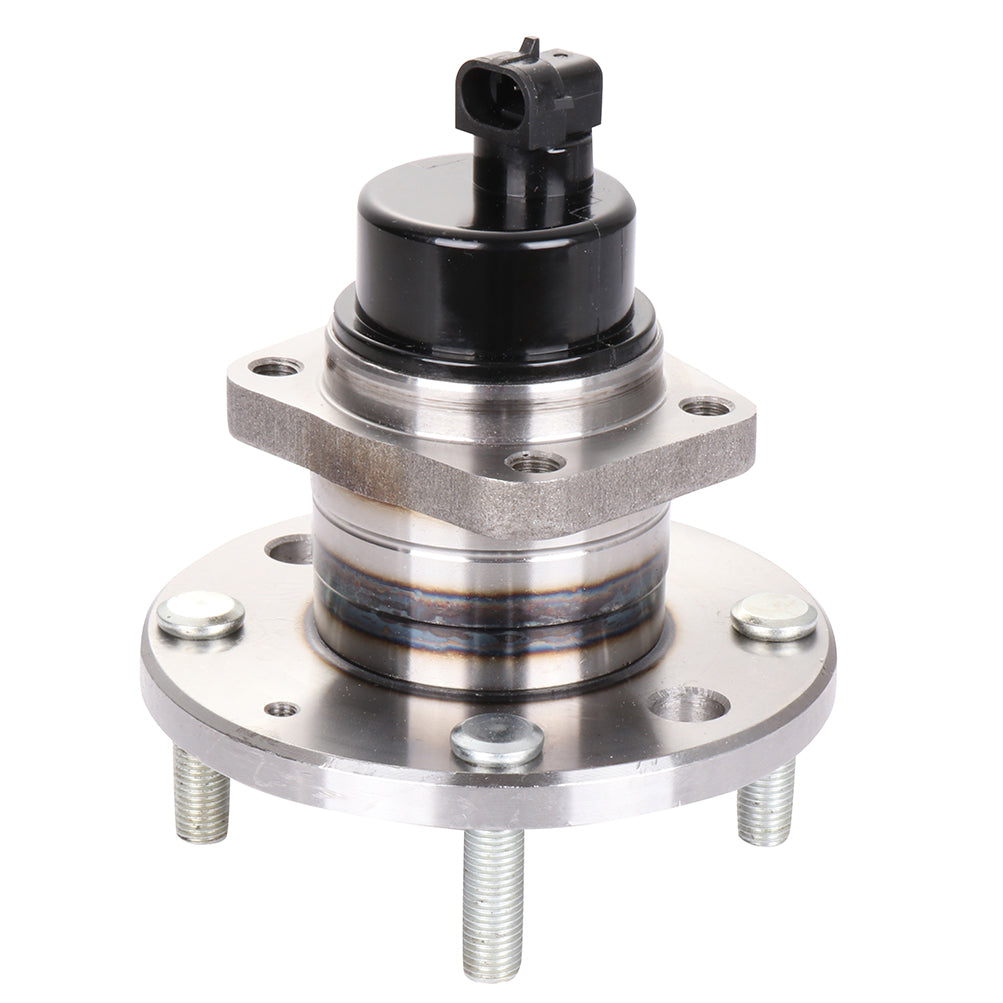

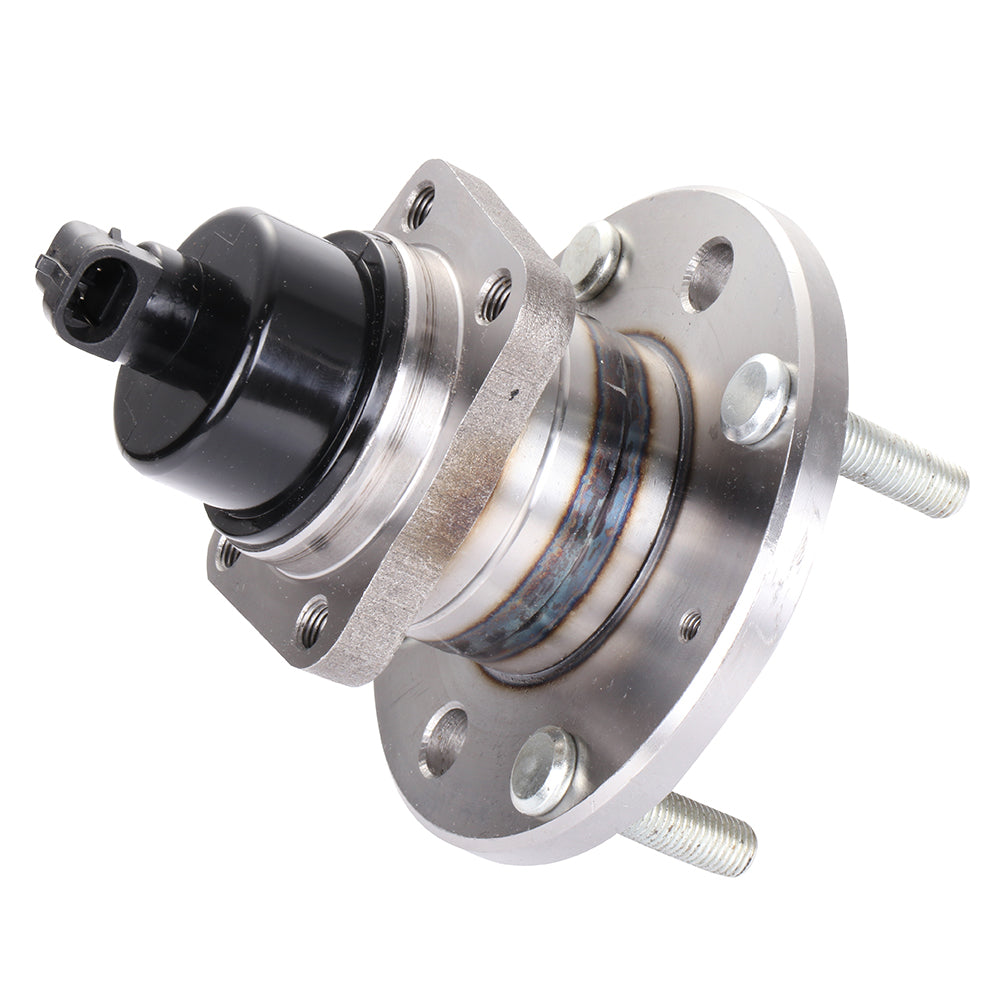

• Type: Wheel Hub & Bearing Assembly
• Material: Steel
• Brake Pilot Diameter: 2.36 In
• Flange Offset: 2.48 In.
• Hub Pilot Diameter: 2.6 In.
• Flange Shape: Modified
• Replaces dealer part numbers: 512316, WA512316, WB512316,712316,29512316

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

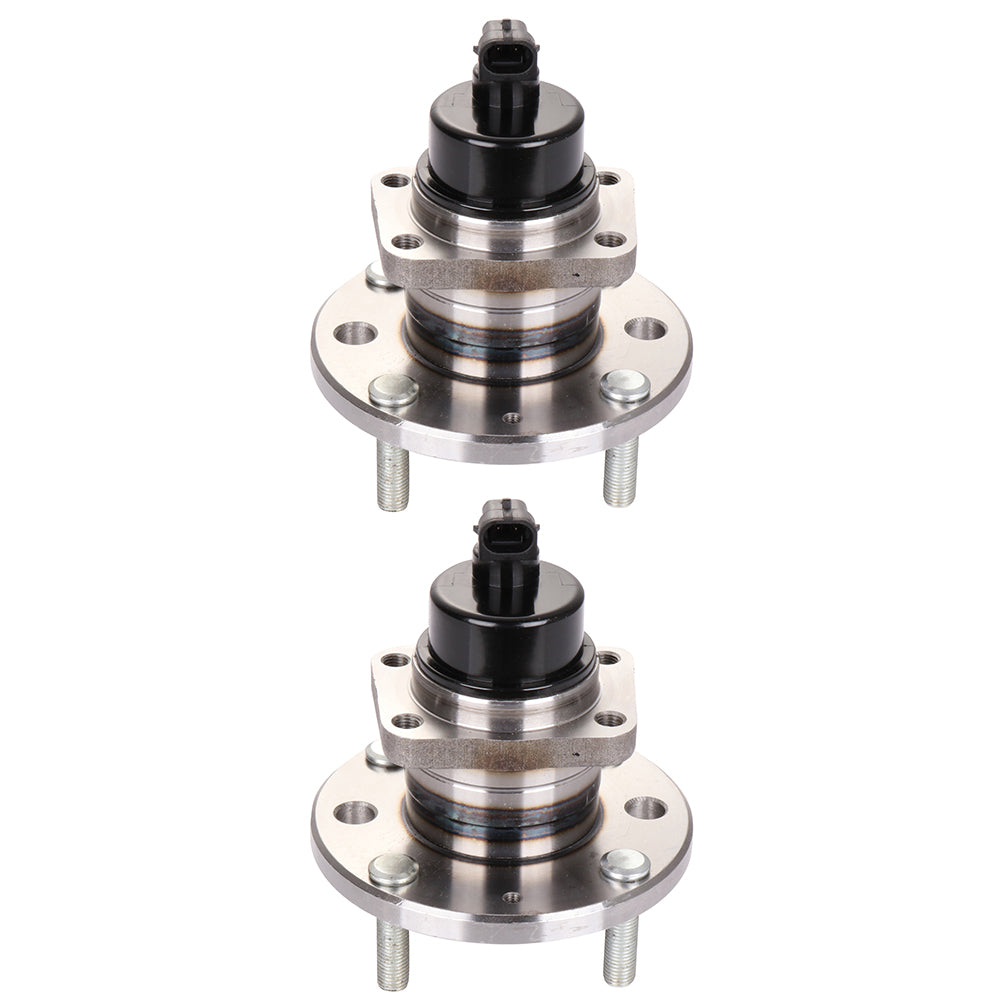

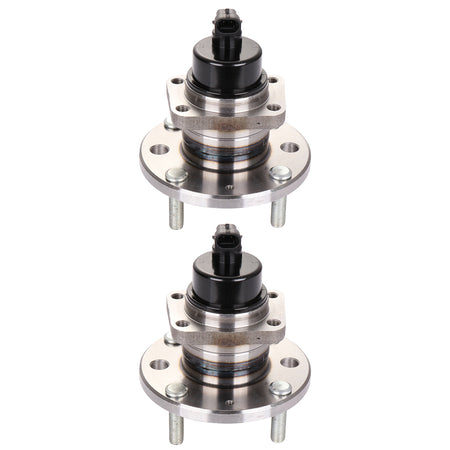

2 Pcs wheel hub bearings
