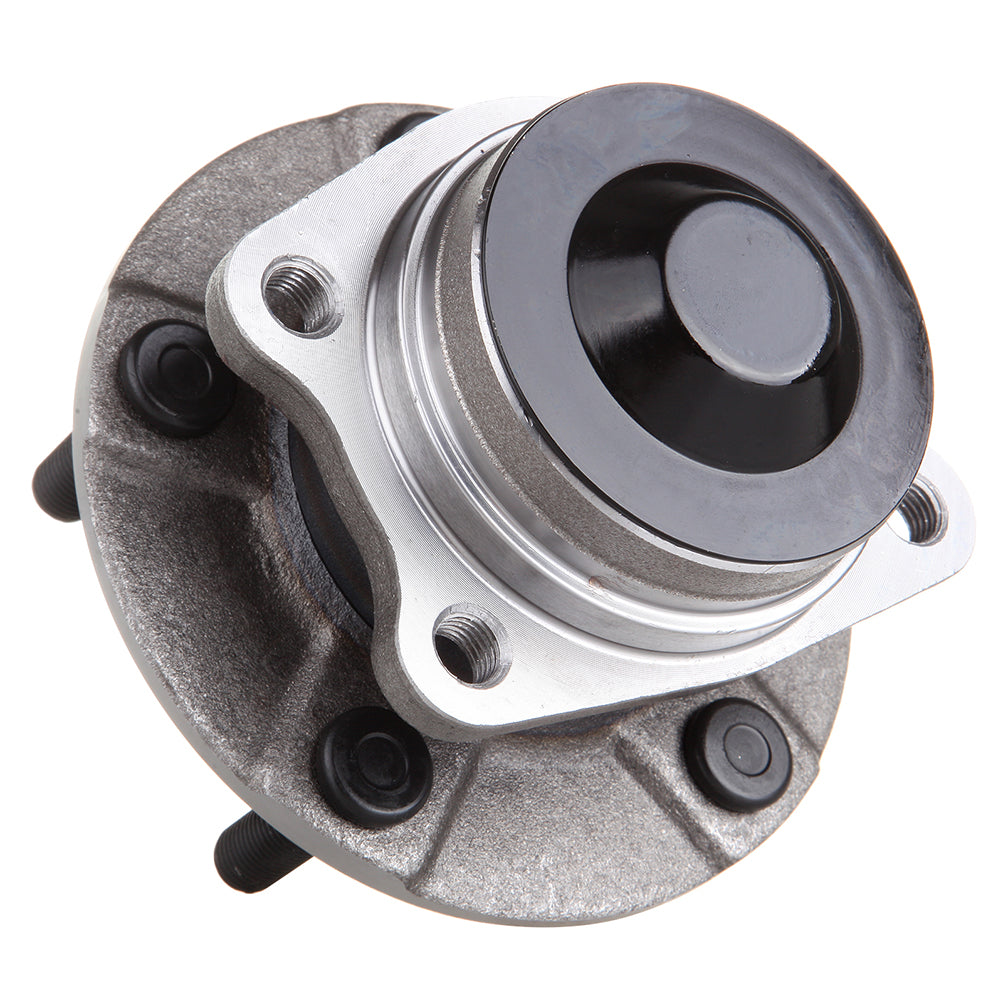

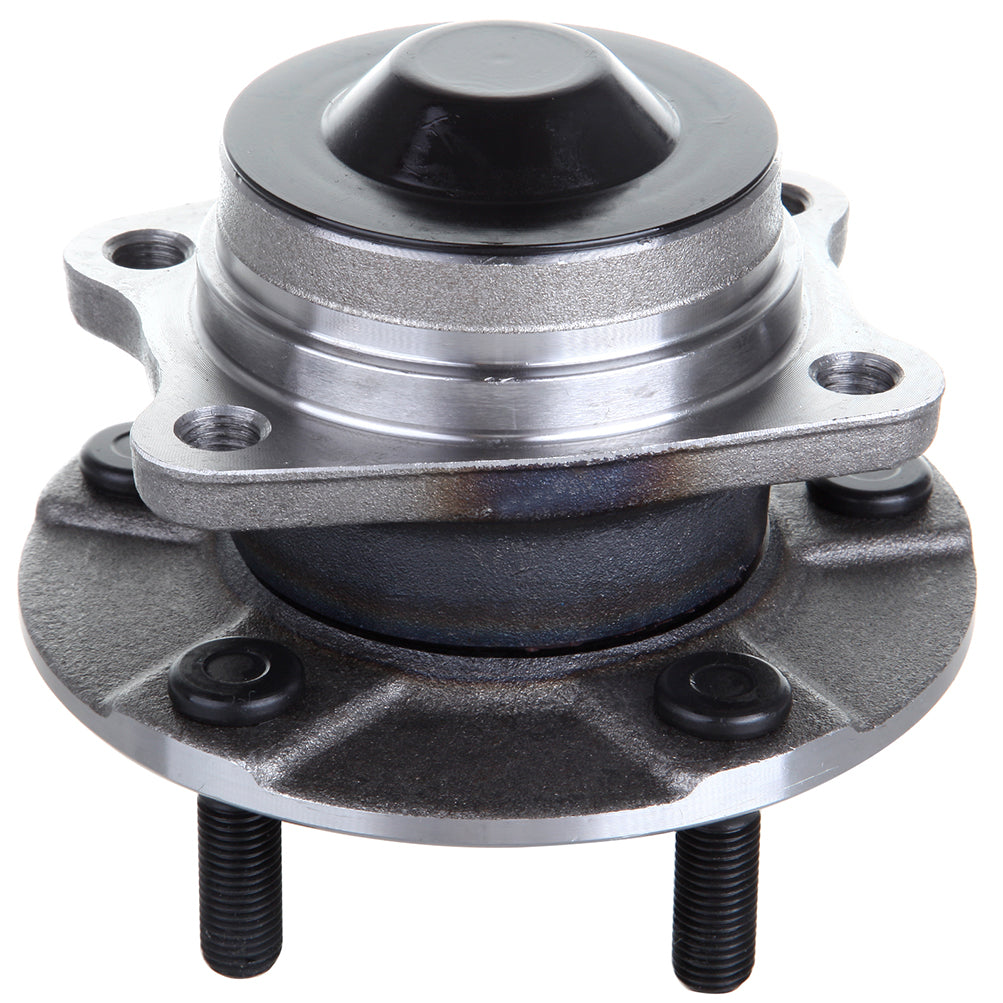

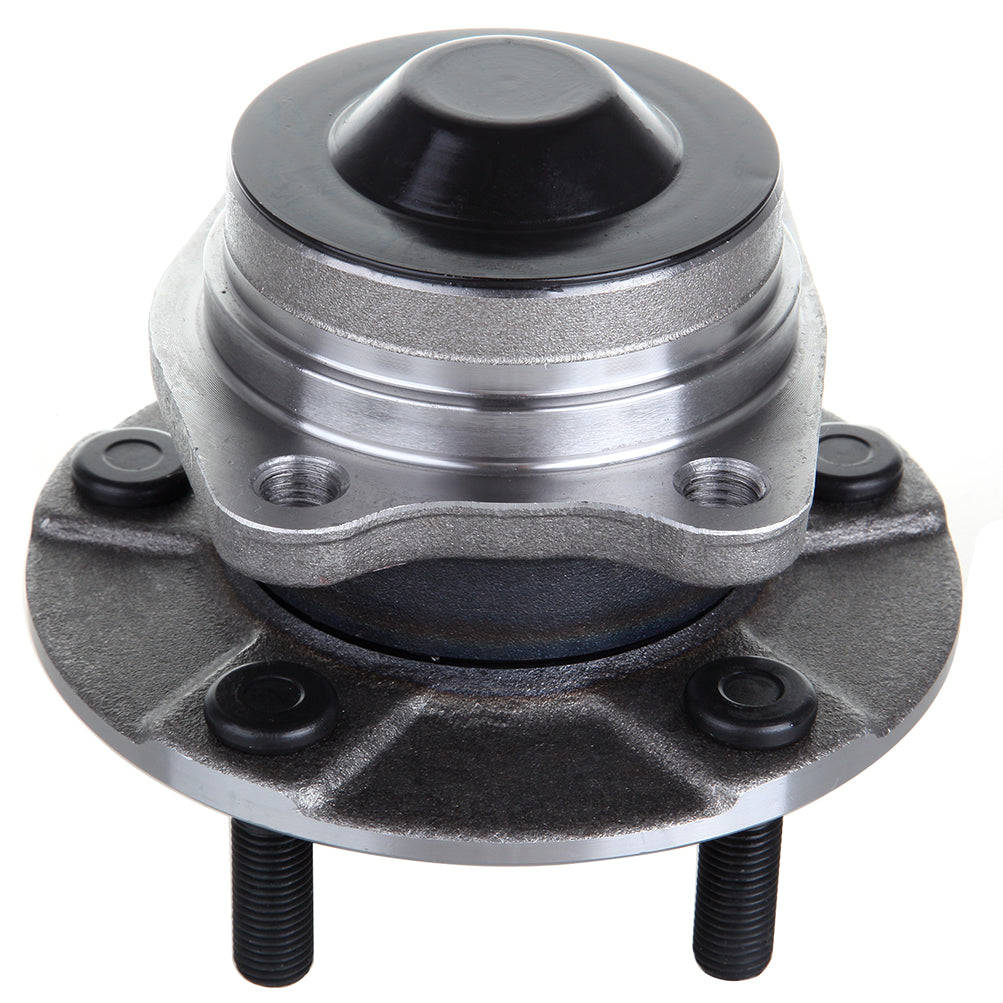

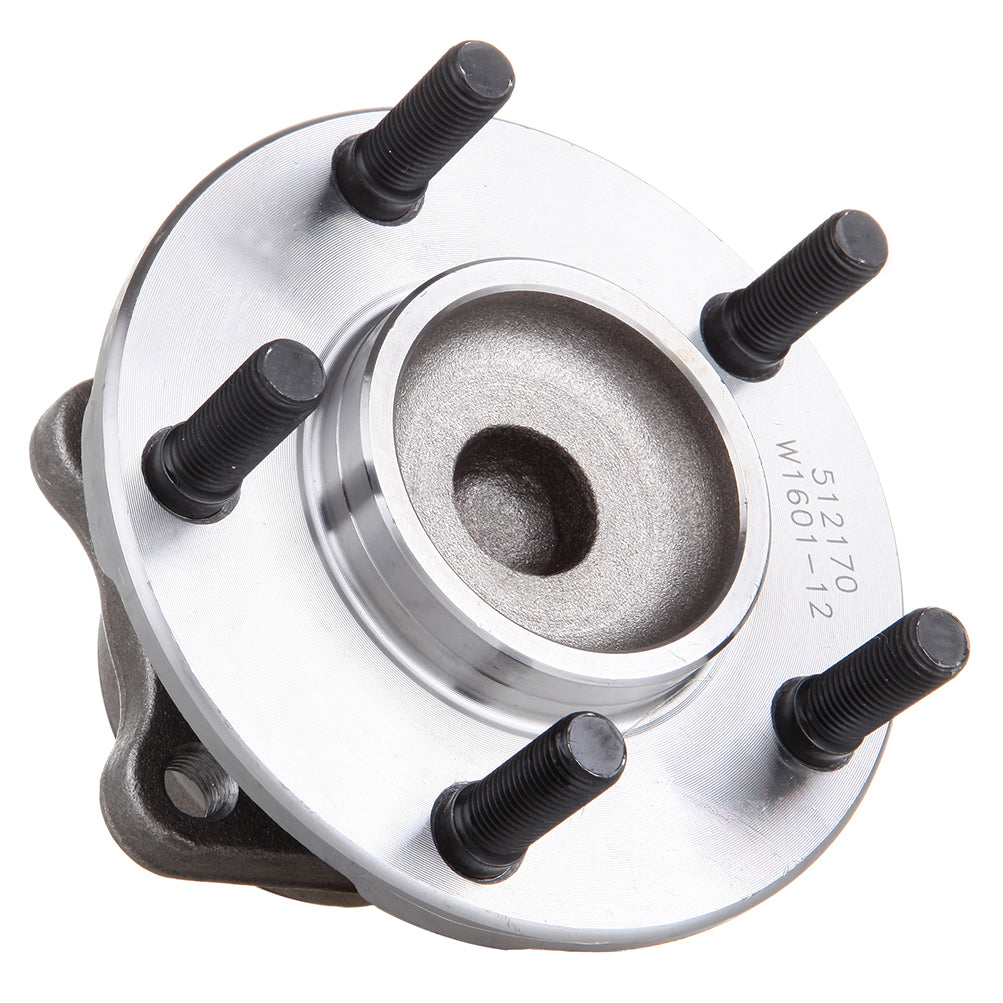

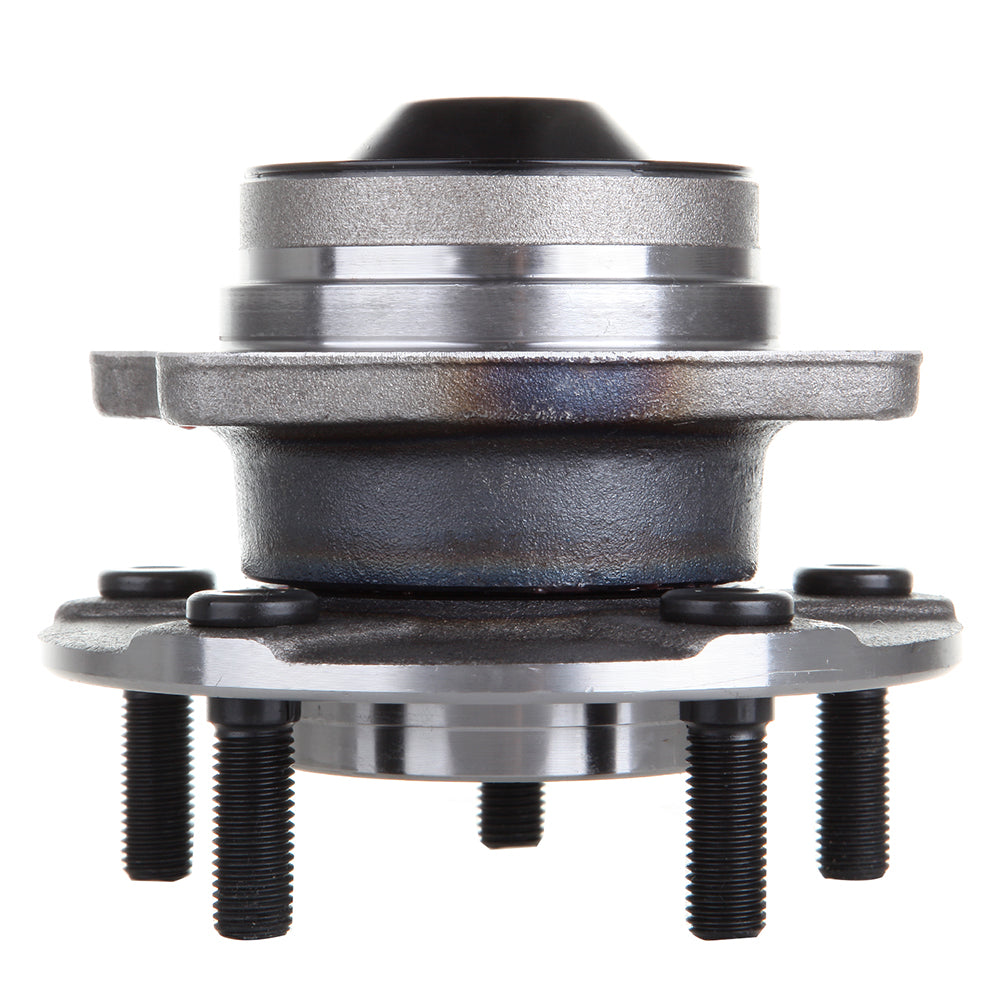

Rear Wheel Hub Bearing Assembly For 01-07 Dodge Caravan 01-03 Chrysler Voyager

Fitment

• Chrysler | Town & Country | 2004~2007 | 3.3L/3.8L
• Chrysler | Voyager | 2001~2003 | 2.4L/3.3L
• Dodge | Caravan | 2001~2007 | 2.4L/3.3L
• Dodge | Grand Caravan | 2001~2005 | 3.3L/3.8L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Not have an ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.46 In
• Wheel Pilot Diameter: 2.78 In
• Brake Pilot Diameter: 2.8041 In
• Flange Diameter: 5.47 In
• Flange Offset: 1.87 In
• Hub Pilot Diameter: 3.35 In
• Other Part Number: 4683869AA, 4683869AB
• Material: steel
• Weight: 8LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512170,4683869AA, 4683869AB, 52BWKH02LY5

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
