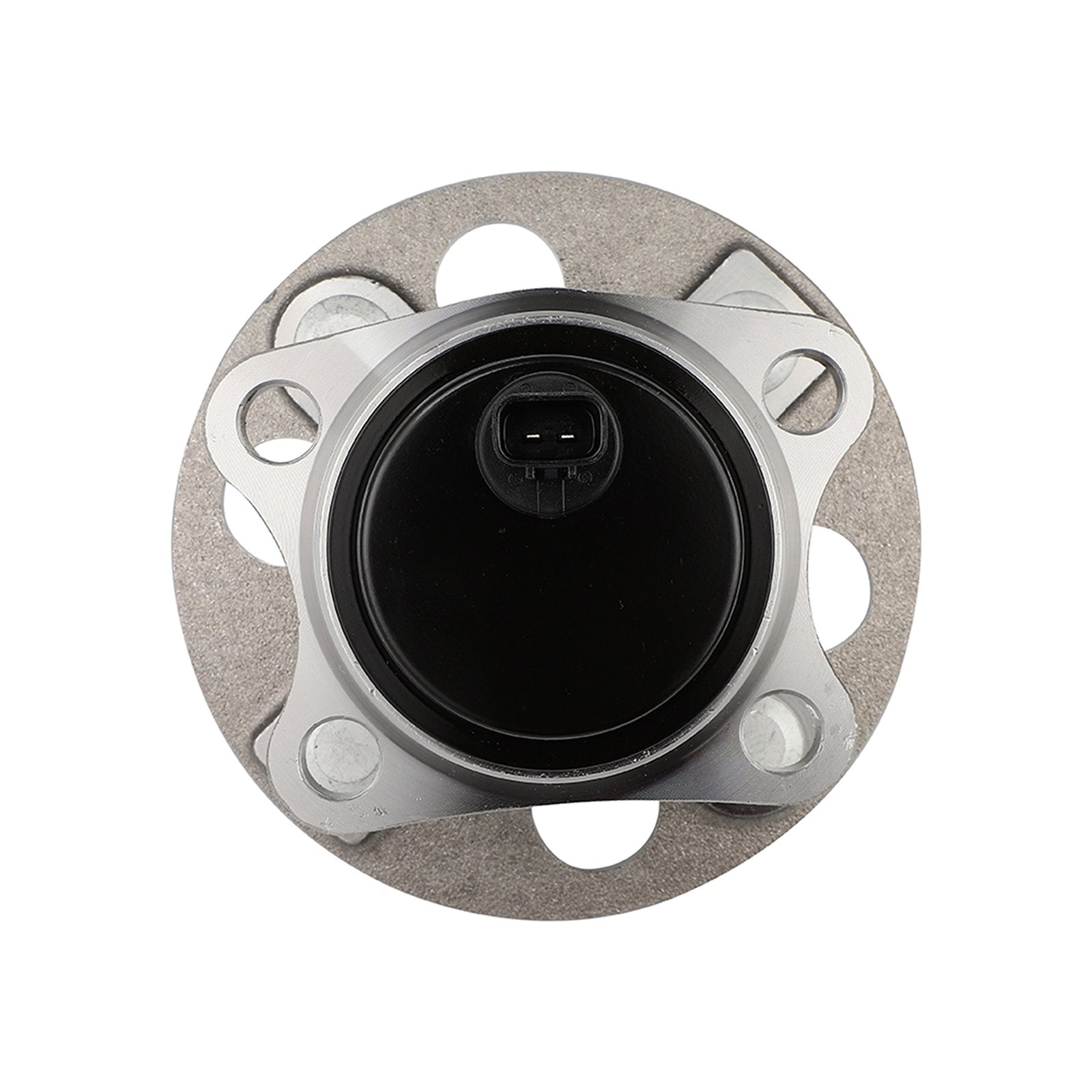

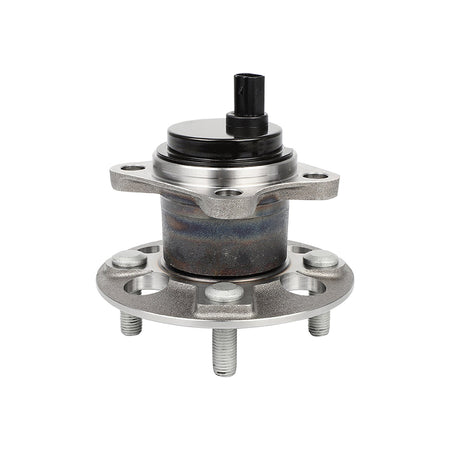

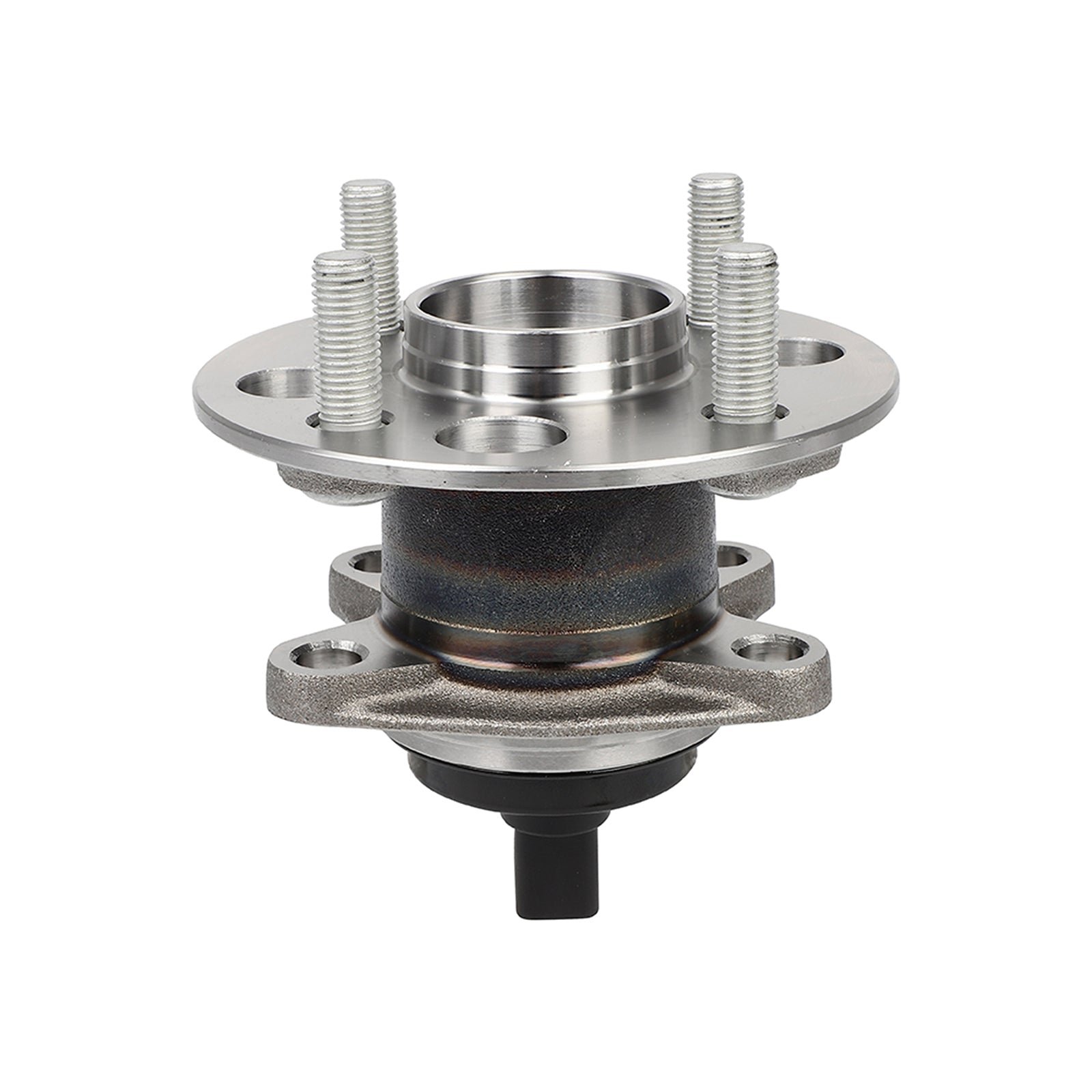

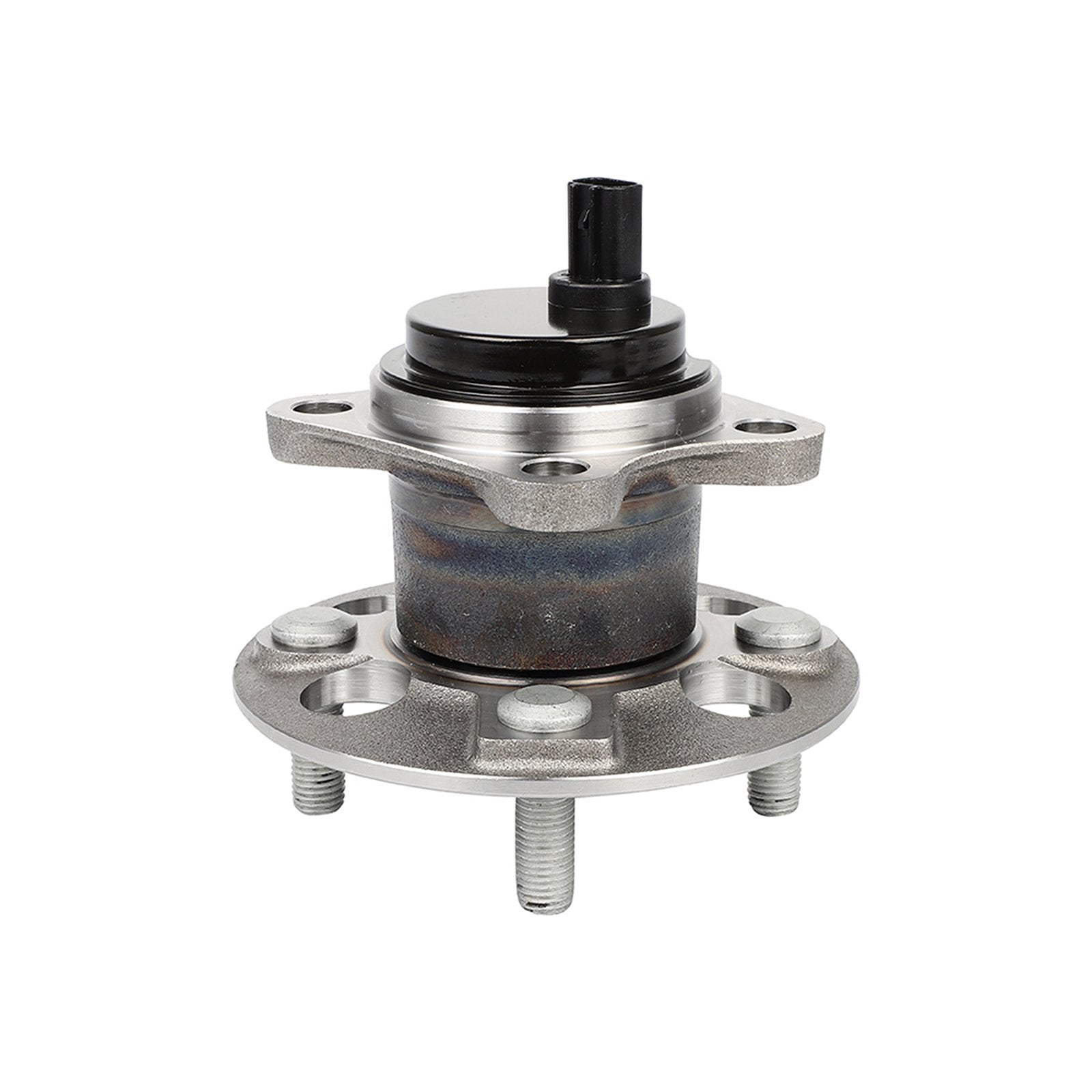

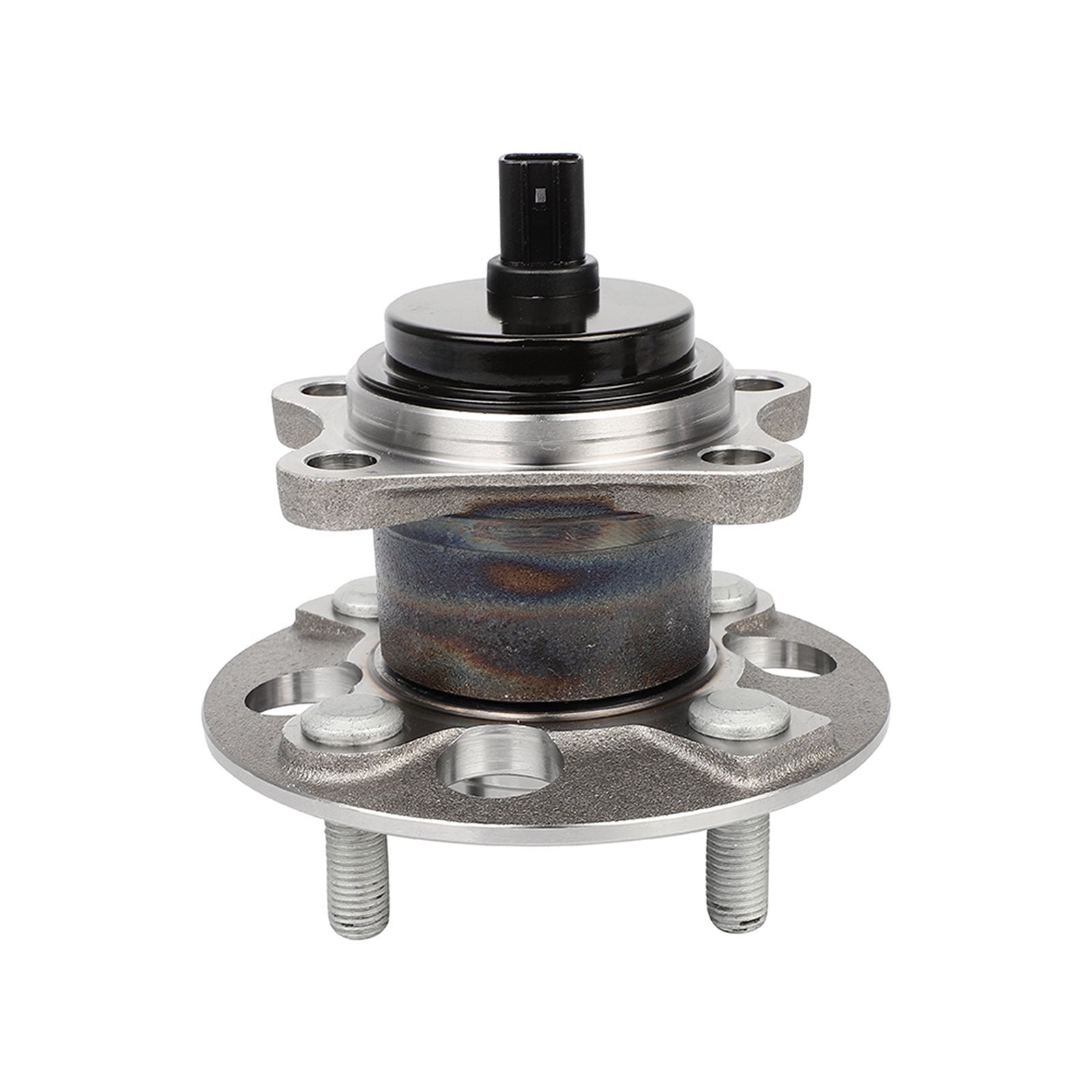

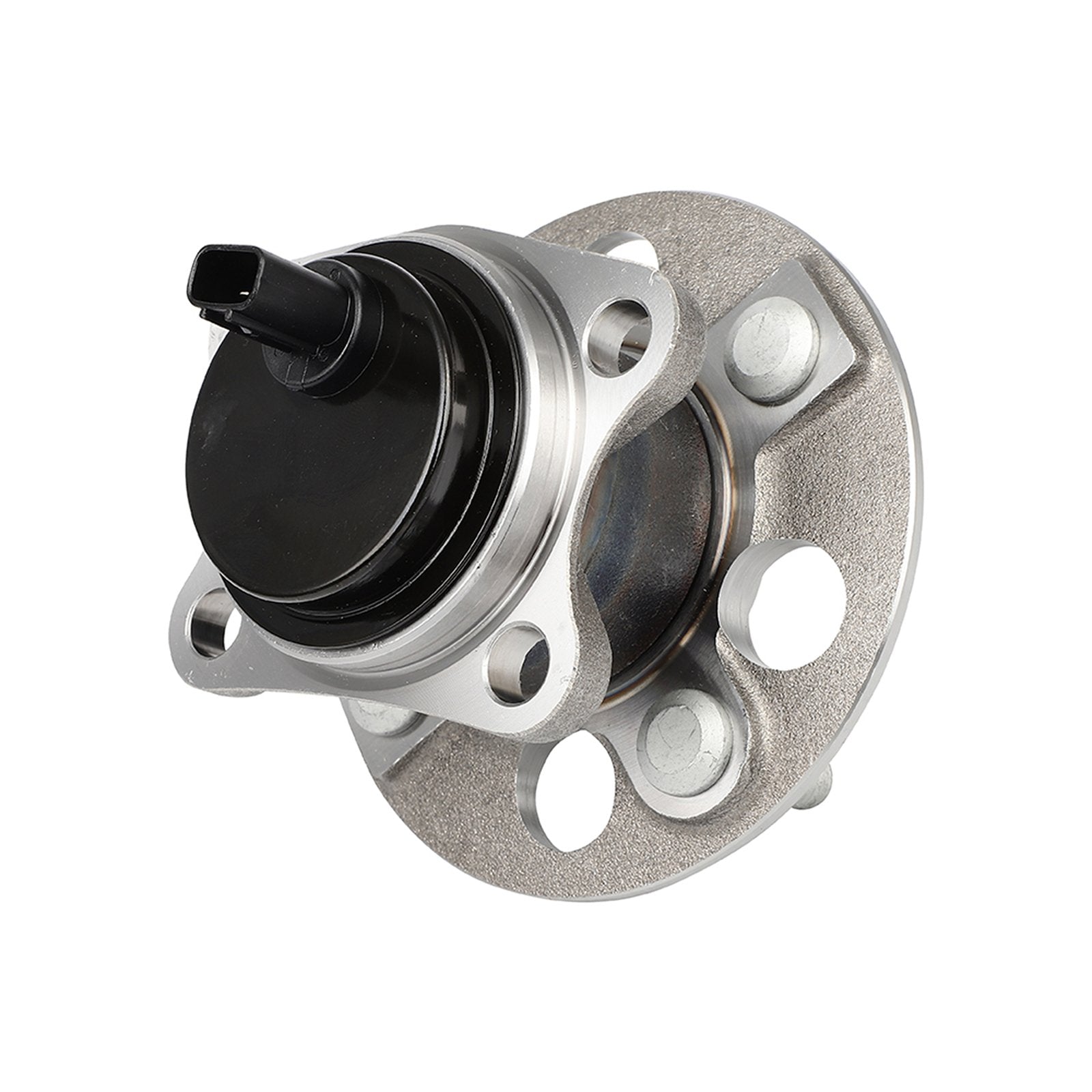

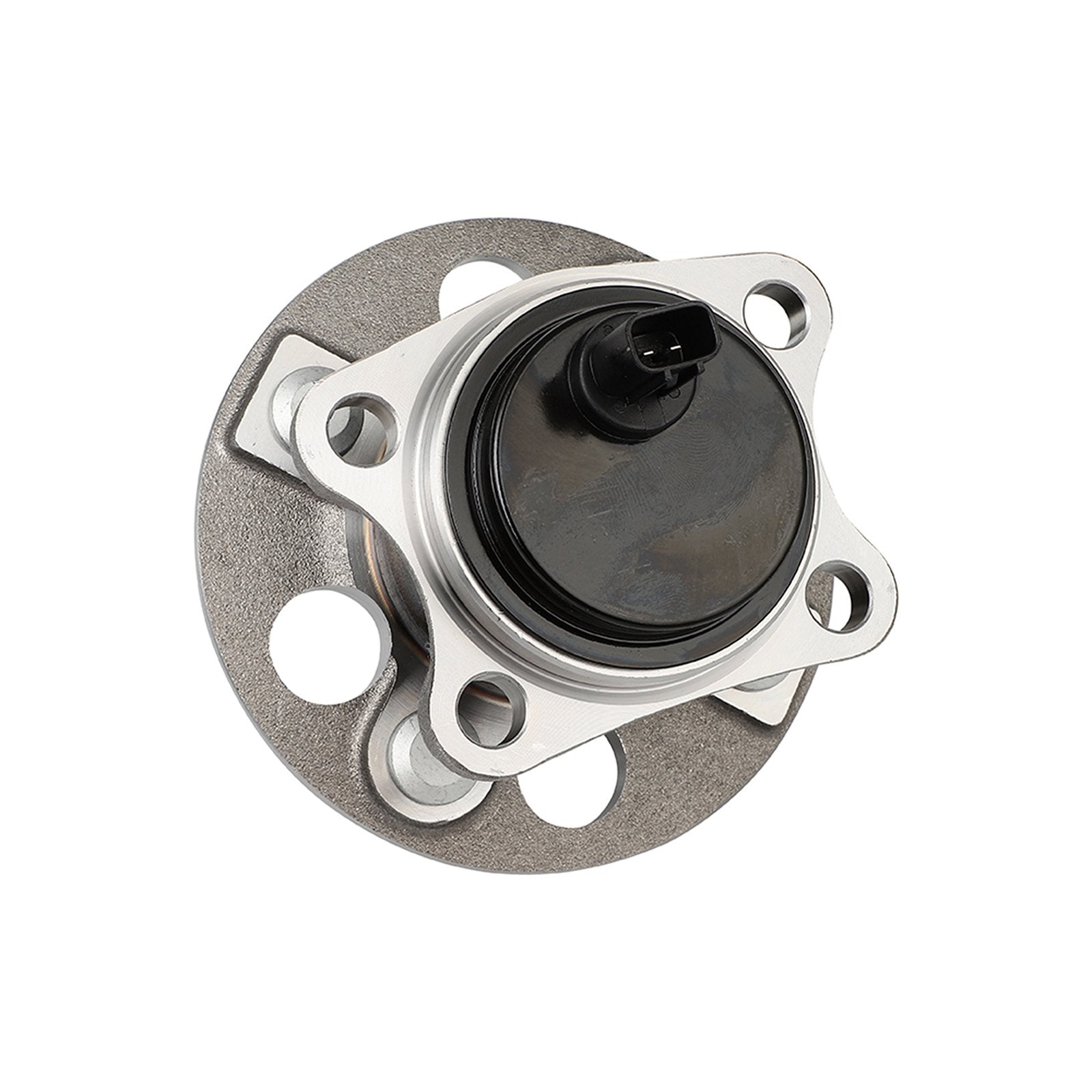

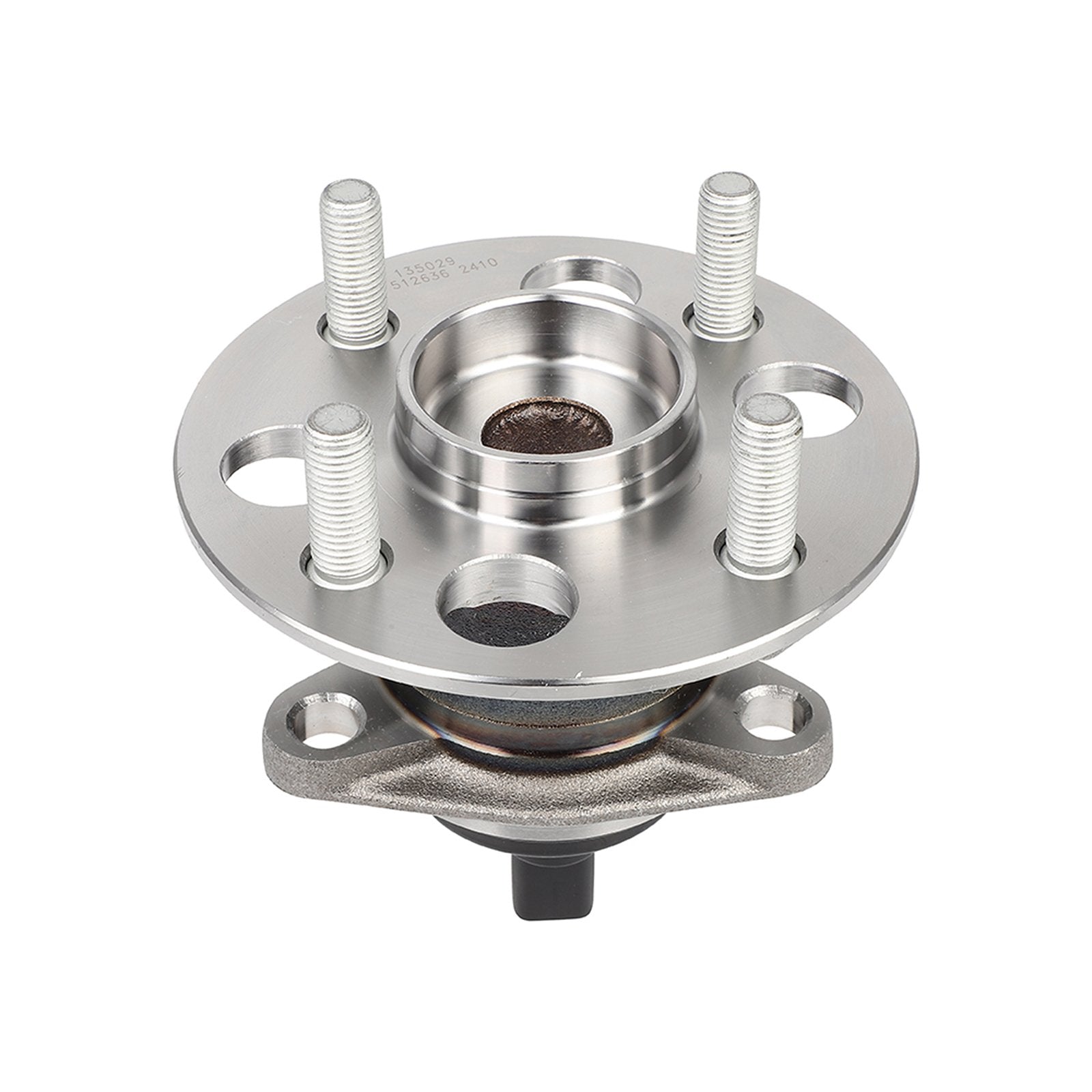

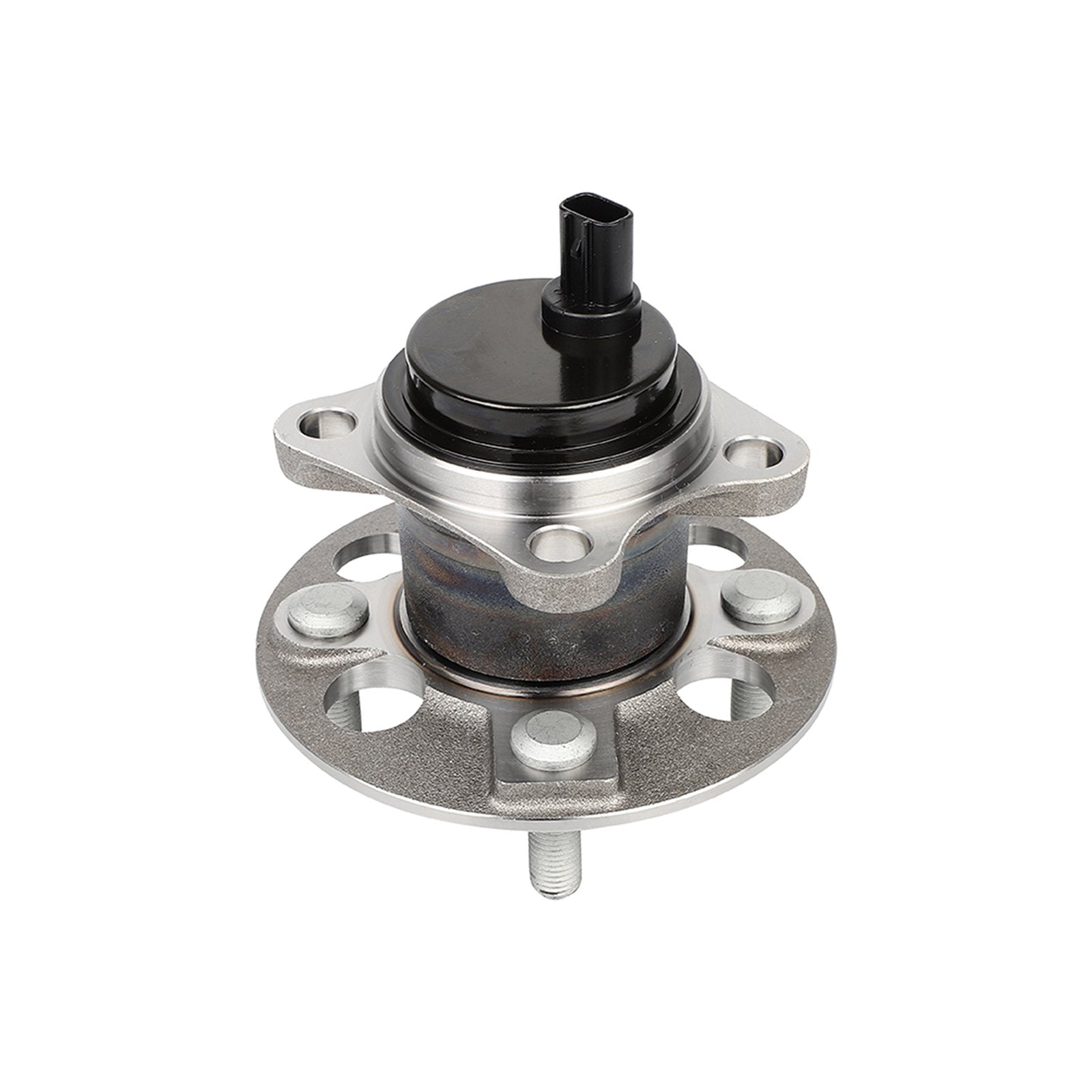

Rear Wheel Hub & Bearing Assembly For Toyota Yaris 2015 2016 2017 2018 2019 1.5L

Product Specifics

• Type: Wheel Hub & Bearing Assembly
• Placement on Vehicle: Rear
• ABS Sensor: ABS Sensor Connector
• OE/OEM Part Number: 512636
• Material: Steel
• Finish: Polished, Rust Protected
• Quantity: 1
• Fitment: For Toyota Yaris Hatchback 2015 2016 2017 2018 2019
• Drive Type: FWD
• Interchange Part Number: 424500D110, 424500D111, 424500D112, 693636, 1411-612766
• Anti-lock Braking System: Yes
• Bolt Pattern: 4 x 3.94 in (4 x 100 mm)
• Driven Or Non-Driven Type Hub Assembly: Non-Driven
• Bolt Circle Diameter: 3.94 in. / 100 mm
• Brake Pilot Diameter: 2.16 in. / 54.97 mm
• Flange Bolt Hole Quantity: 4
• Flange Bolt Hole Size: 0.49 in. / 12.5 mm
• Flange Bolts Included: No
• Flange Diameter: 5.31 in. / 134.91 mm
• Flange Offset: 2.36 in. / 60 mm
• Flange Shape: Rectangular
• Hub Pilot Diameter: 2.91 in. / 73.87 mm
• Wheel Pilot Diameter: 2.13 in. / 54 mm
• Wheel Stud Quantity: 4
• Wheel Stud Size: M12x1.5
• Wheel Studs Included: Yes
