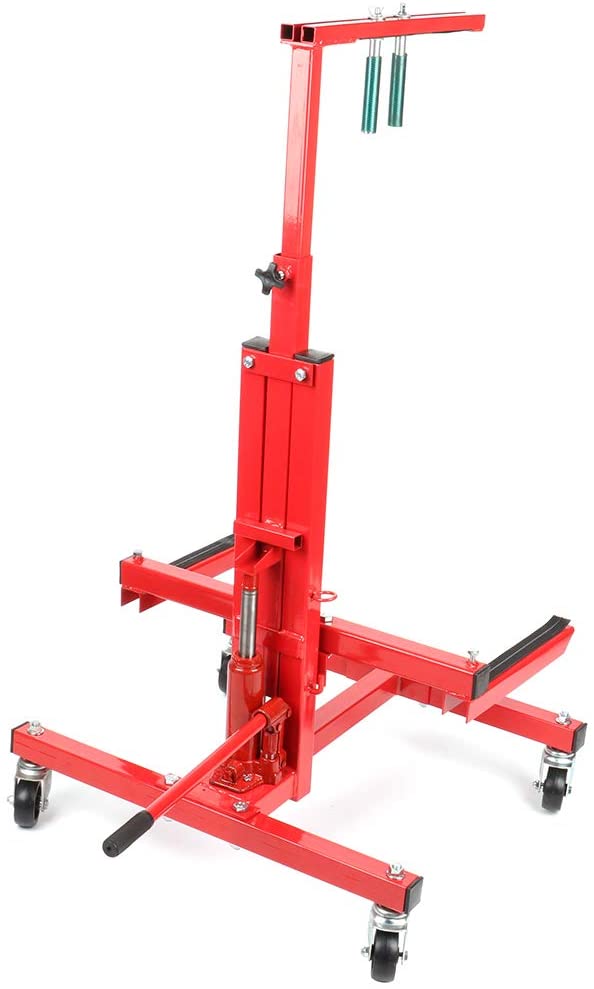

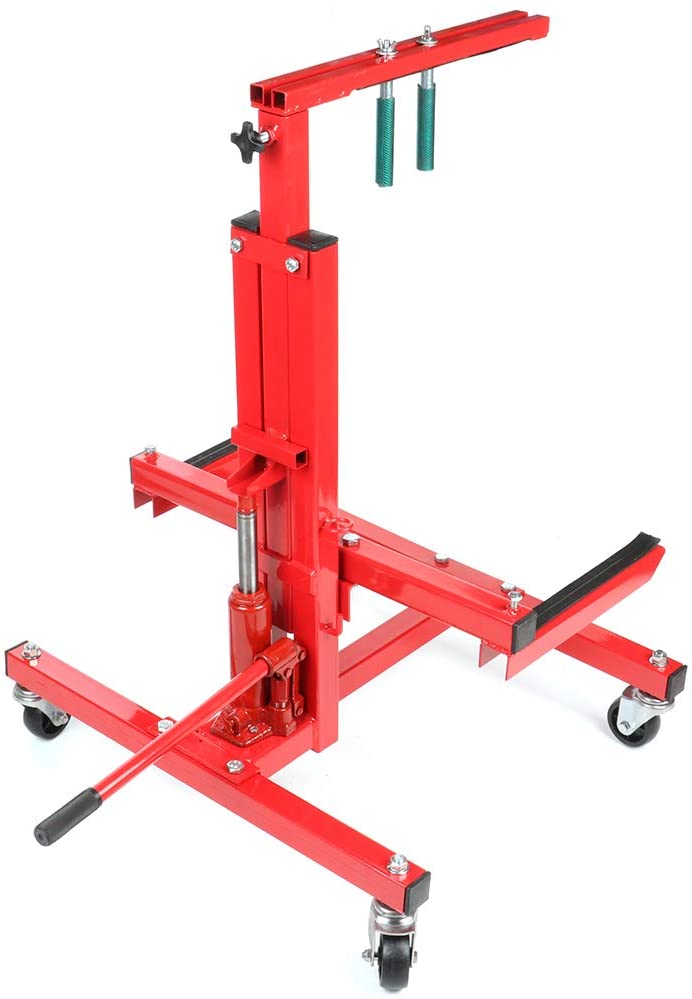

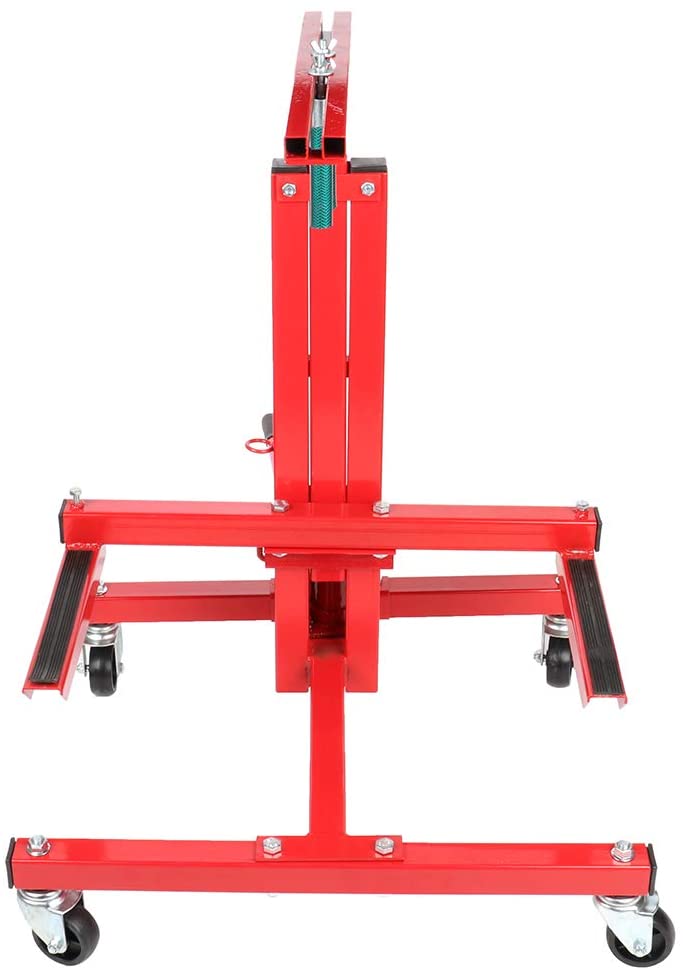

Red New Mechanical Hydraulic Press Car Door Jack & Bumper Handler Stand

Fitment:

• Chevrolet | Avalanche 2500 | 2002~2006 | 8.1L
• Chevrolet | Silverado 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• Chevrolet | Silverado 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 HD | 2001~2003/2005~2006 | 6.0L
• Chevrolet | Silverado 1500 HD Classic | 2007 | 6.0L
• Chevrolet | Silverado 2500 | 2000~2004 | 5.3L/5.7L/6.0L
• Chevrolet | Silverado 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• Chevrolet | Suburban 2500 | 2000~2013 | 6.0L/8.1L
• GMC | Sierra 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• GMC | Sierra 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 HD | 2001~2003/2005~2006 | 6.0L
• GMC | Sierra 1500 HD Classic | 2007 | 6.0L
• GMC | Sierra 2500 | 2000~2004 | 5.3L/6.0L
• GMC | Sierra 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• GMC | Yukon XL 2500 | 2000~2013 | 6.0L/8.436L

Red New Mechanical Car Door Jack & Bumper Handler Stand

Product Details

Now one tech can handle big bumpers and doors alone

Ample padding, no metal-on-metal contact, no damage

Industry inch only 8 inchfront-to-back tilting adjustment

Side-to-side tilt adjustment for easier part removal & installation

Wide stance for added stability

Maximum Load: 200kg

Min. Lift Height: 195mm

Max. Lift Height: 365mm

Heavy gauge steel construction

Powder coat finish

Packing Size:29.13"-24.21"-6.50"

Packing weight: 50.95 lbs.

Hydraulic for Easy Raising and Lowering

Rubber Coated Jack Feet for Secure Placement

OPERATING INSTRUCTIONS

1. Lower the giass window of the car door to the lowest position before using the RE80;

2. Release the valve of the bottle jack and adjust the support frame(#16) under the car door and maintain a small gap;

3. Adjust the top bar #1). leave a srall gap between the car door and the top bar;

4. Tighten the valve of the bottle jack and then operate , lifting the support frame ( #16) until it reaches the bottom of the car door ;

5. Lower the top bar ( #1), until it reaches the top of the car door then tighten the adj. knob(#5). Adjust position of the fixed rods (#4) ensuring the car door is securely between them and that it is vertical. Tighten the butterfly nuts;

6. Remove/ install the car door by operating the bottle jack.
