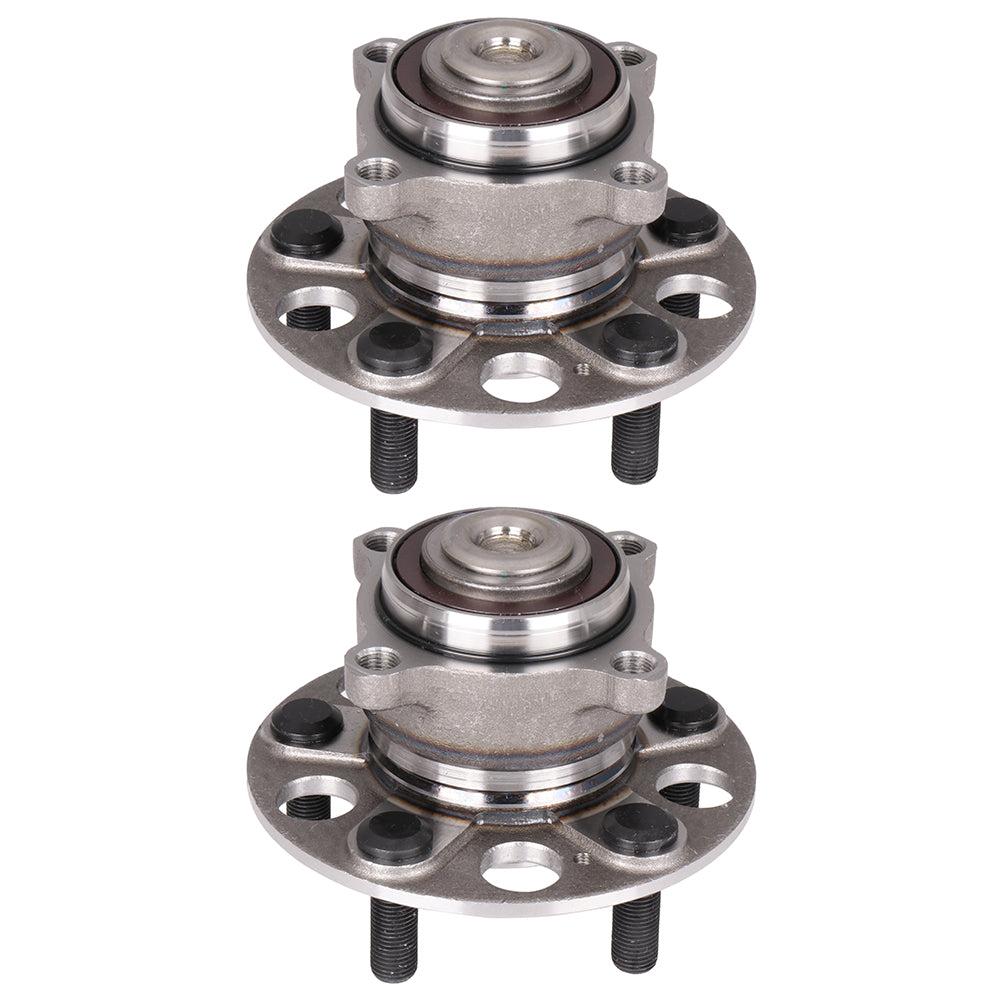

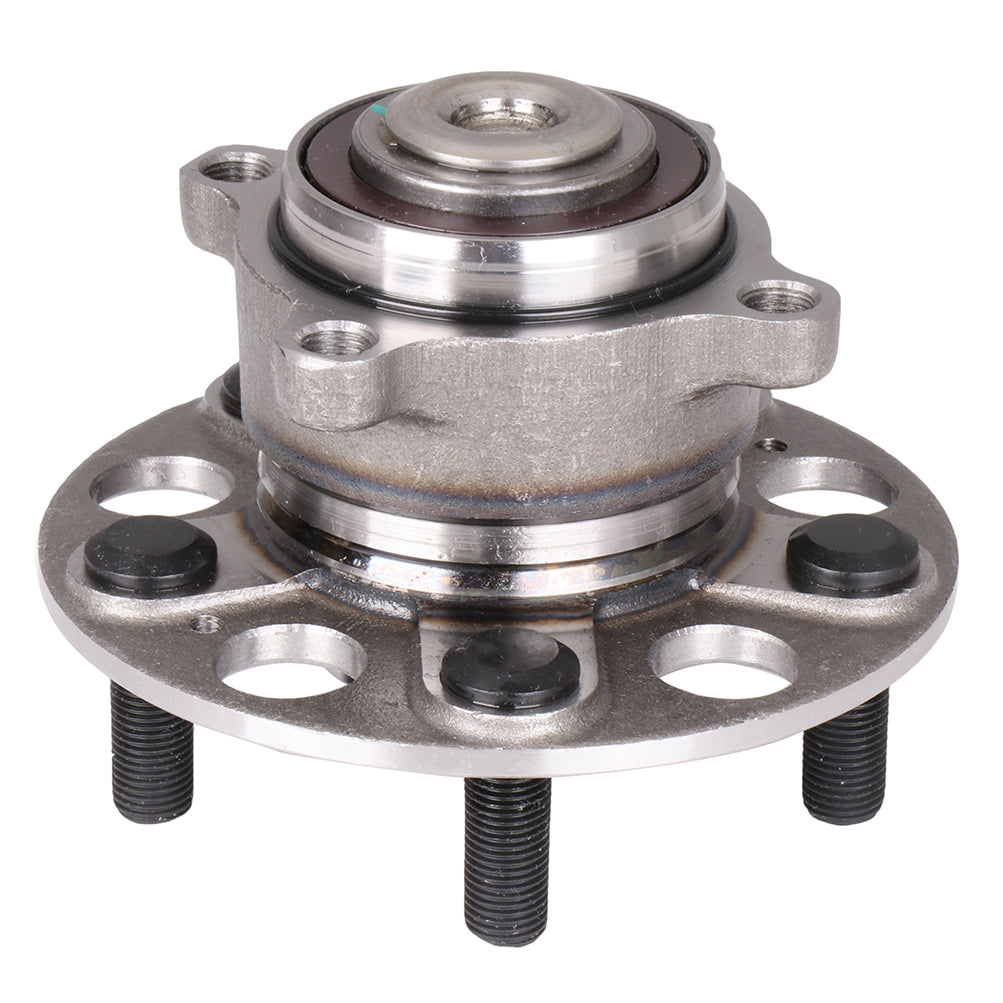

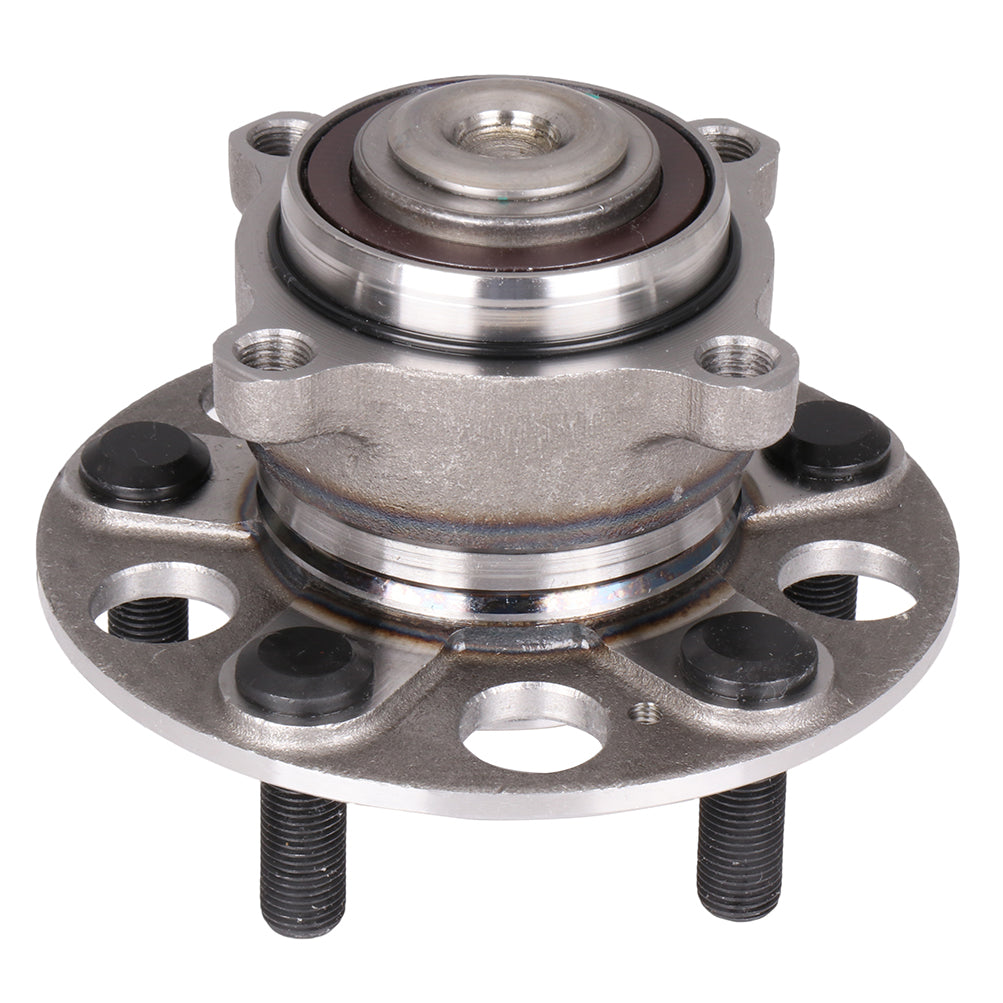

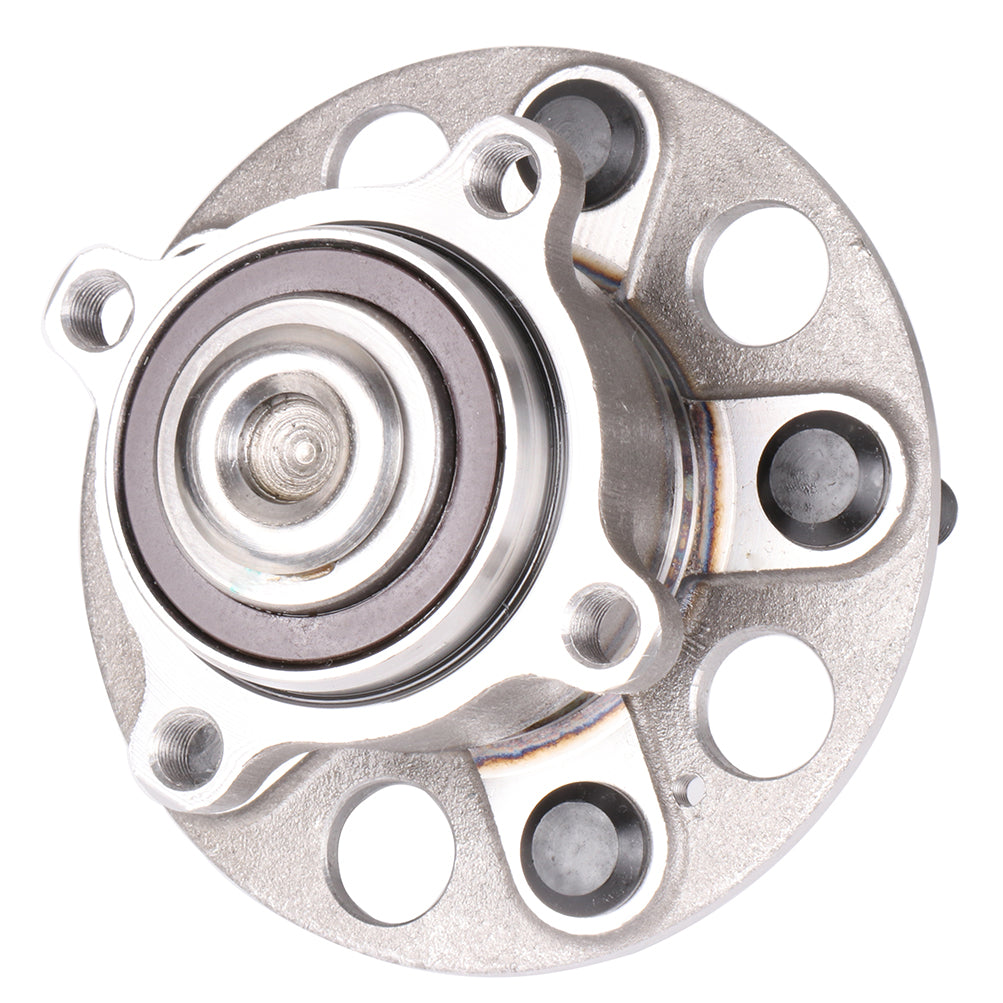

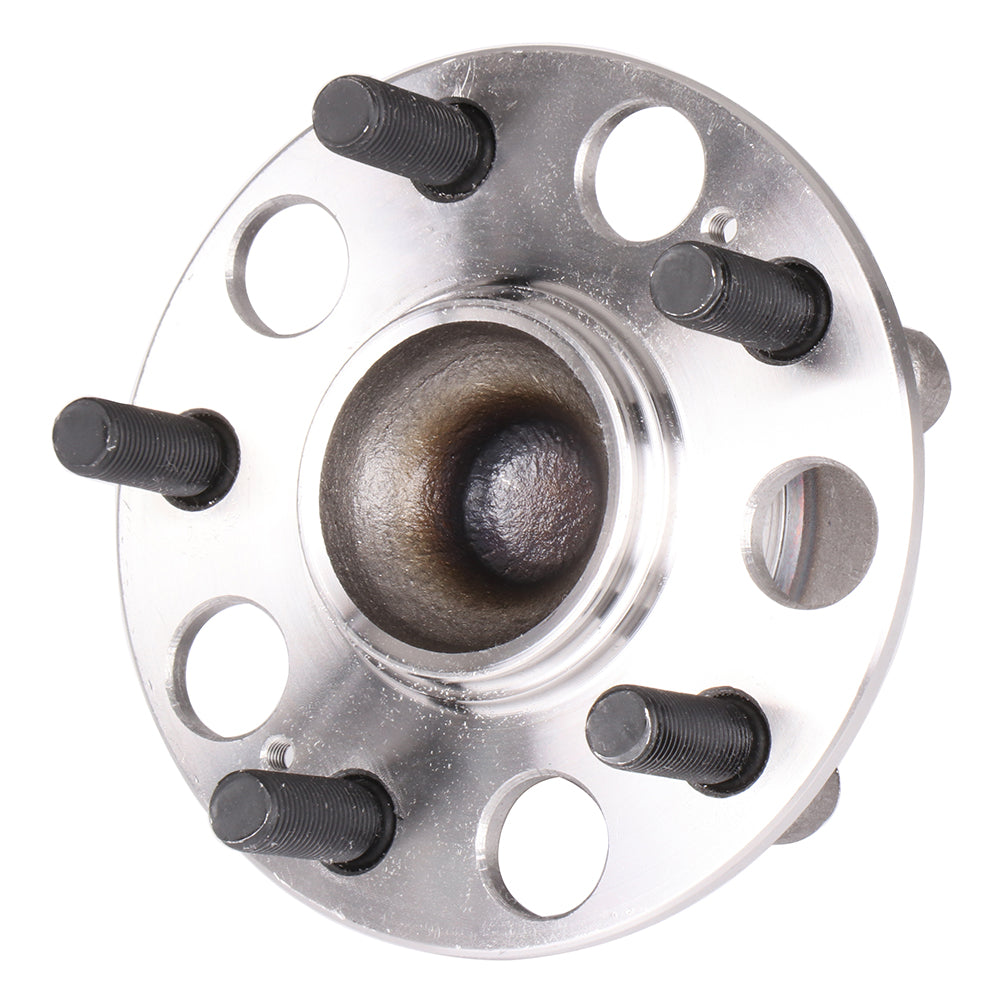

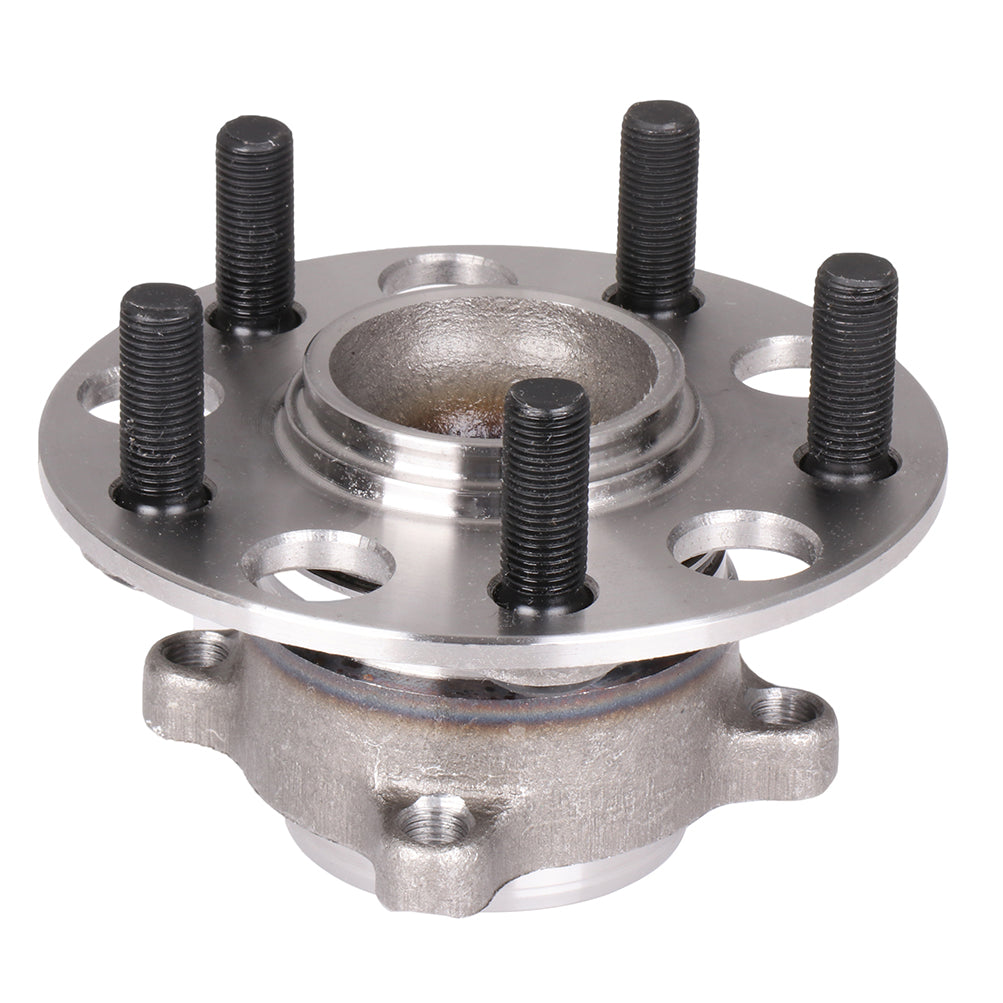

Set For 2009-2013 Acura TL Rear Wheel Bearing Hub Assembly W/ABS

Fitment

• Acura | TL | 2009~2014 | 3.5L/3.7L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 5.93 In
• Wheel Pilot Diameter: 2.5 In
• Brake Pilot Diameter: 2.7573 In
• Flange Diameter: 5.94 In
• Flange Shape: Square
• Flange Offset: 2.37 In
• Hub Pilot Diameter: 2.81 In
• Other Part Number: 42200TK4A01
• Material: steel
• Weight: 17LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512391, WA512391, WB512391, 712391, 29512391

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
