Suspension 2Pcs Rear Sway Bars For 06 - 2012 Mitsubishi Galant Eclipse Endeavor

Fitment:

• Mitsubishi | Eclipse | 2006~2012 | 2.4L/3.8L
• Mitsubishi | Endeavor | 2004~2011 | 3.8L
• Mitsubishi | Galant | 2004~2012 | 2.4L/3.8L

Sway Bar

A spring steel sway bar, or anti-roll bar, can be found on the front or rear of many suspension systems.

Front sway bar connects to both of the lower control arms, usually through sway bar links, each link having a set of four bushings. It is secured to the frame with brackets and one-piece bushings.

The bar prevents excessive body lean, or roll, by resisting the centrifugal forces that tend to make the inside of the body rise and the outside of the body drop during cornering. The resistance is provided through a twisting action of the bar.

Bushing Inspection

Bushings should be inspected for deterioration and splits in the rubber. Some surface cracking is acceptable, but the rubber should be in tact all the way around the bushing. With control arm bushings, look for missing chunks of rubber between the sleeves and for polished areas on shafts. With the vehicle properly lifted, rock the wheel in and out and feel for movement. Confirm visually.

Bushing Replacement

Some control arm bushings can be replaced with the arm still on the vehicle; others require removal of the arm. On a few applications, control arm bushings are threaded into the control arm, but most are press fitted.

Press fitted bushings can be removed and installed with a bushing driver. Some may be removed with an air chisel, and some may be pressed into the arm with the retaining nut. This method can require periodic vibration of the control arm to coax the bushing into place.

Care must be used in bushing replacement to avoid damage to the control arm. To properly position the bushing, the weight of the vehicle must be on the suspension before tightening the nut on most designs. Check the service information for the vehicle for the proper procedure.

Replacement of other types of suspension bushings is generally straightforward. Consult the service information.

Note

Some of the parts we have grease fittings and other parts come factory sealed,

you may receive one of the parts.but don't worry,

this does not affect the performance or quality of the parts.

Package Includes

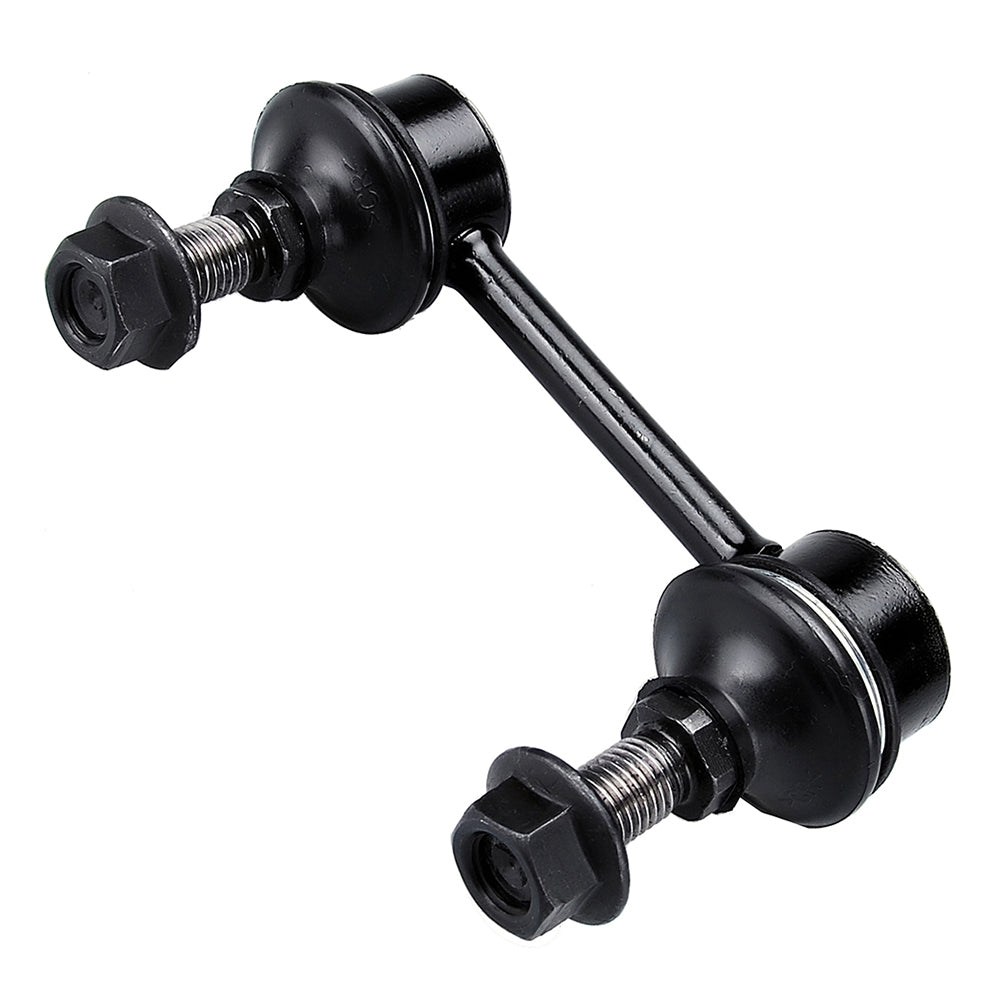

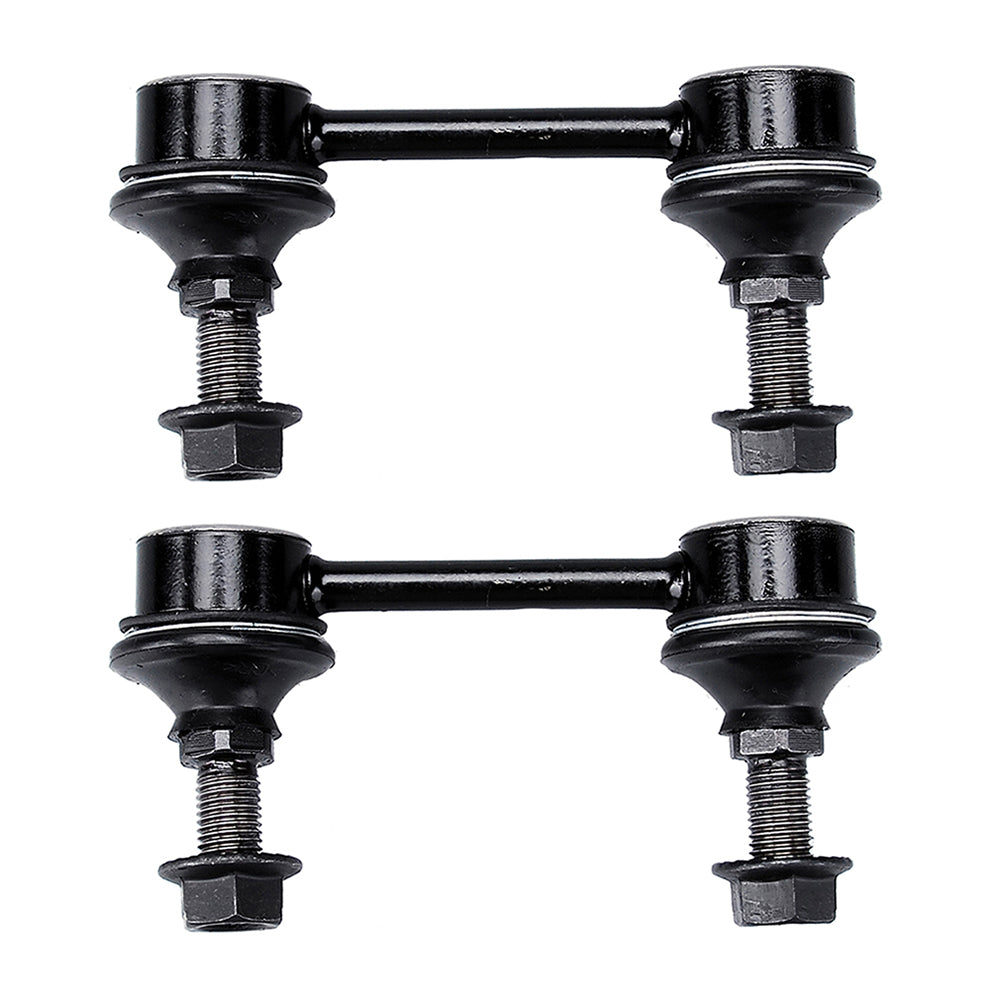

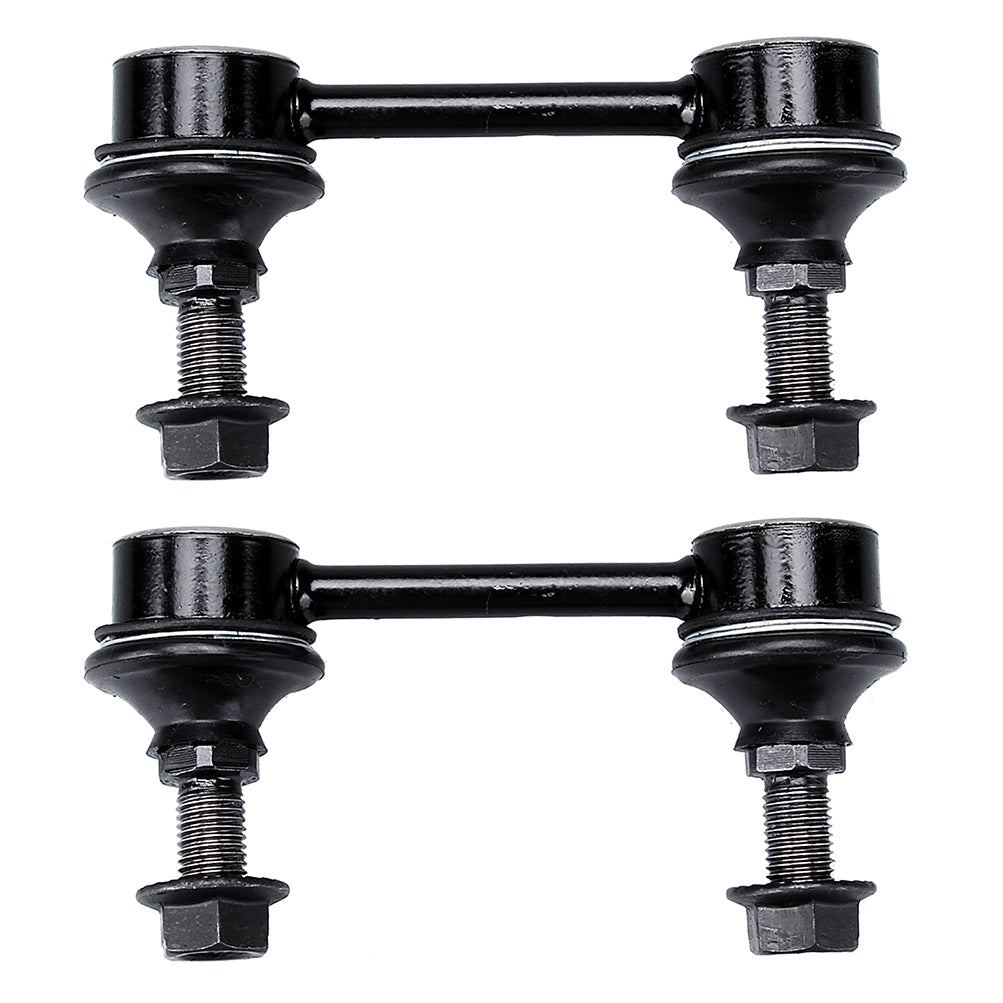

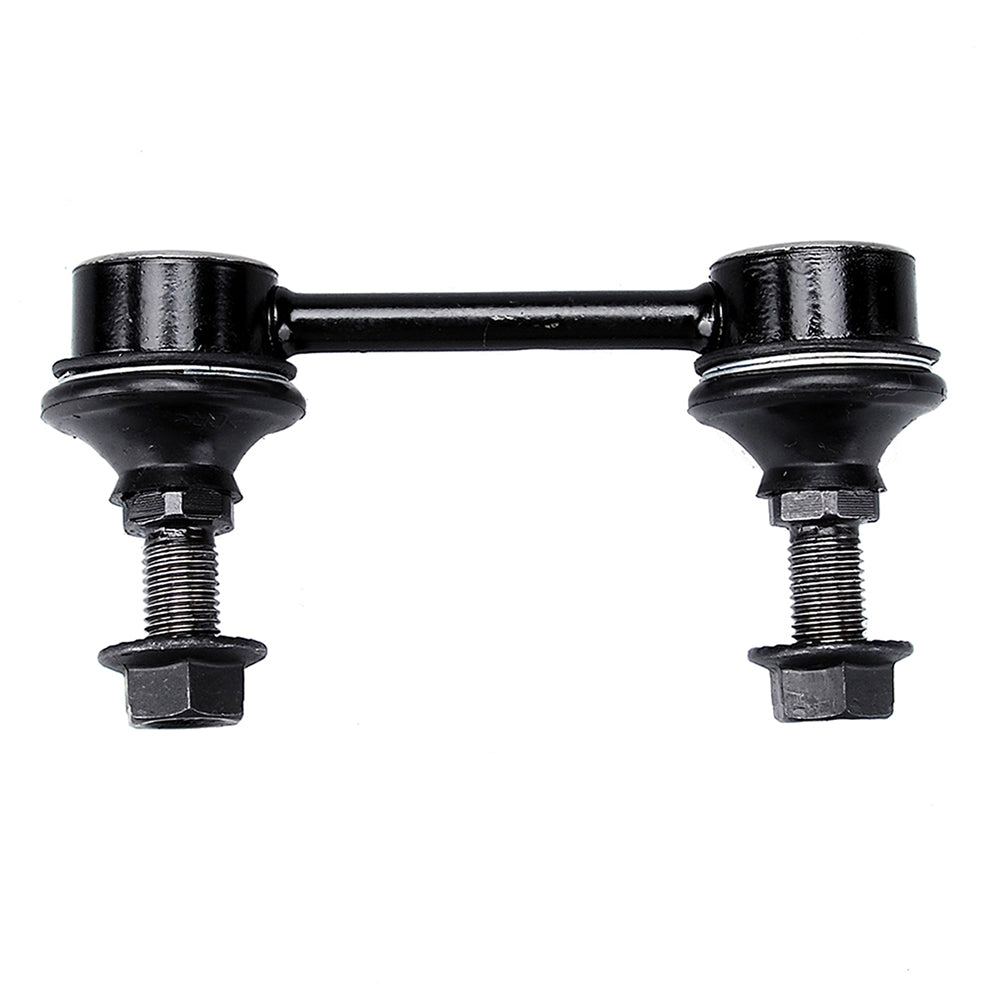

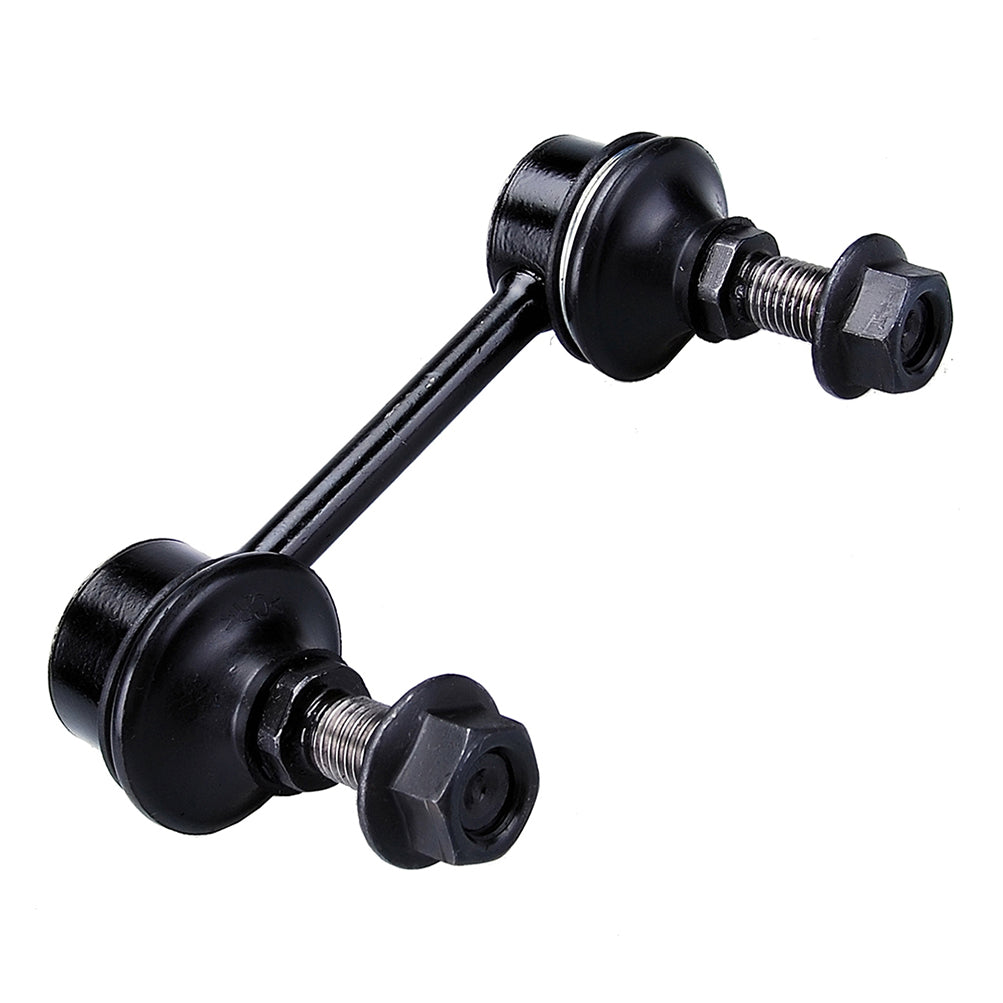

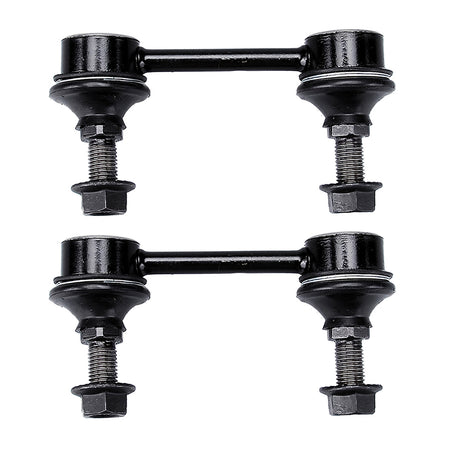

2 x Part# Rear Stabilizer Sway Bar End Link Driver and Passenger Side - K750030
