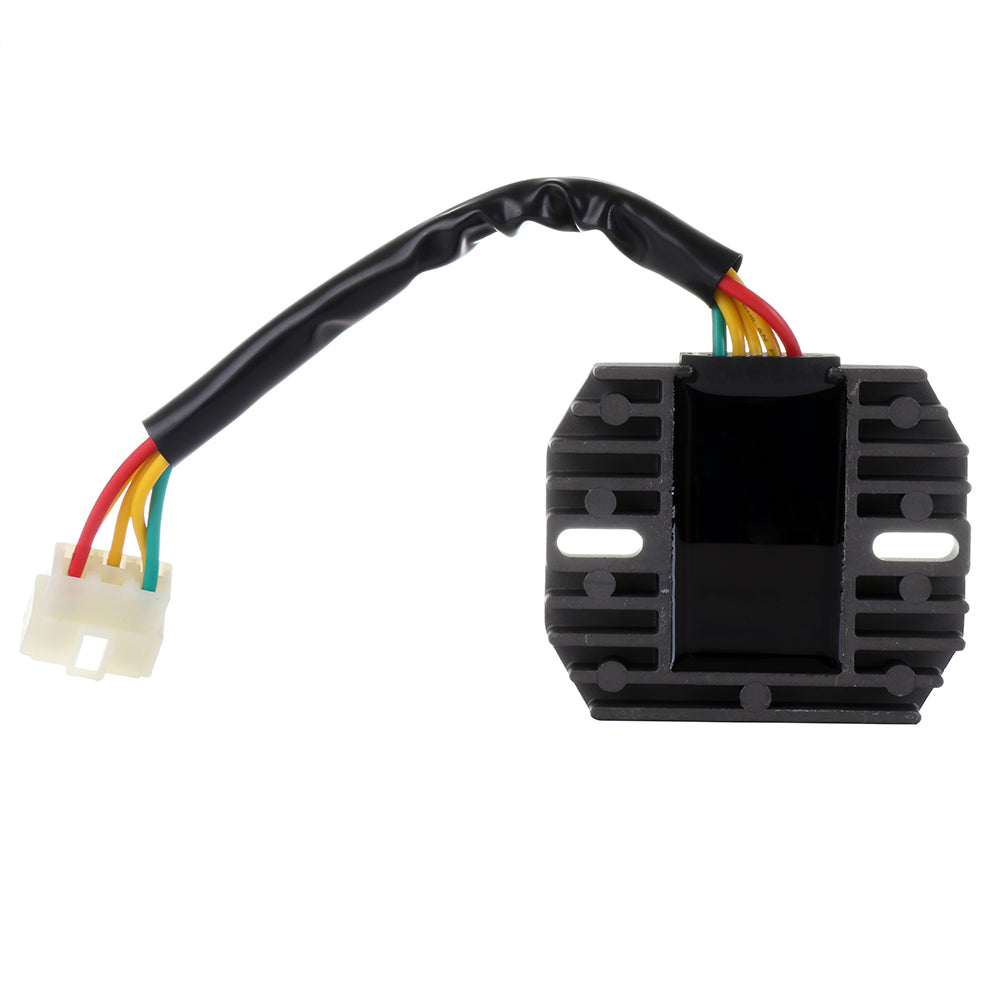

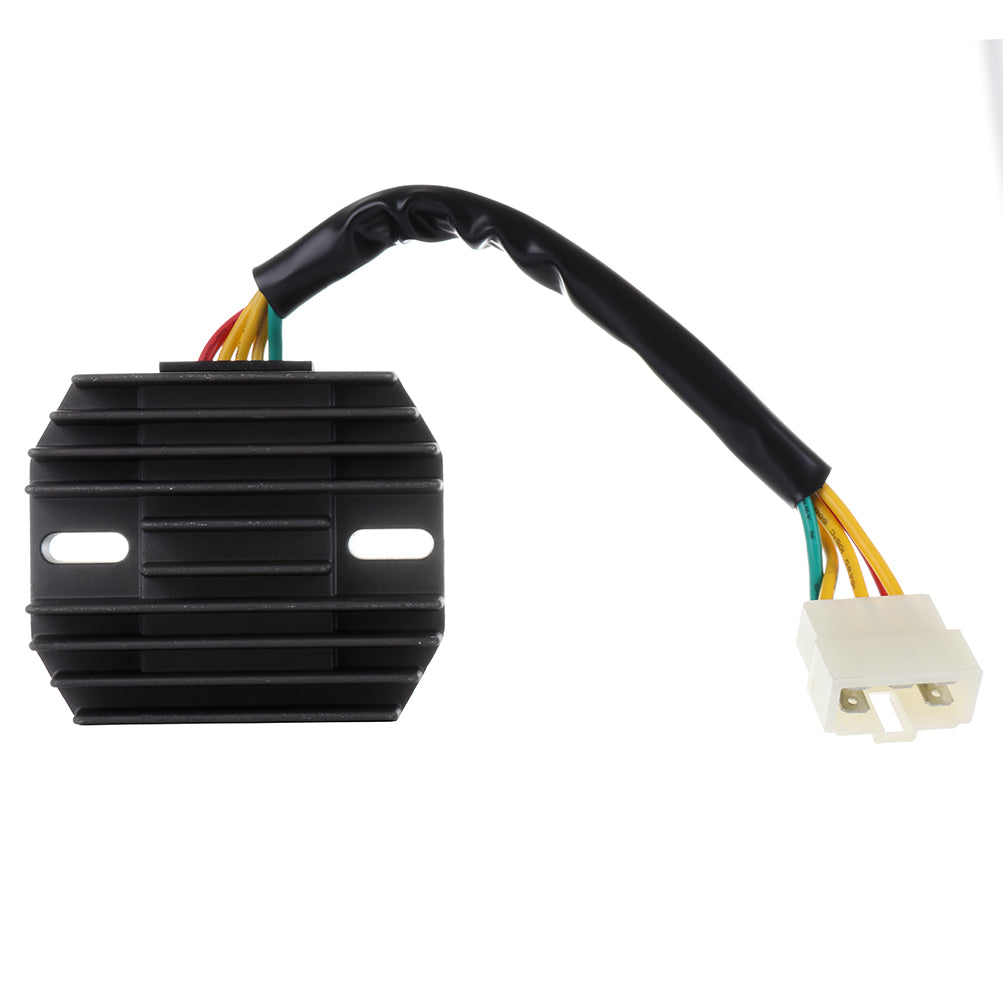

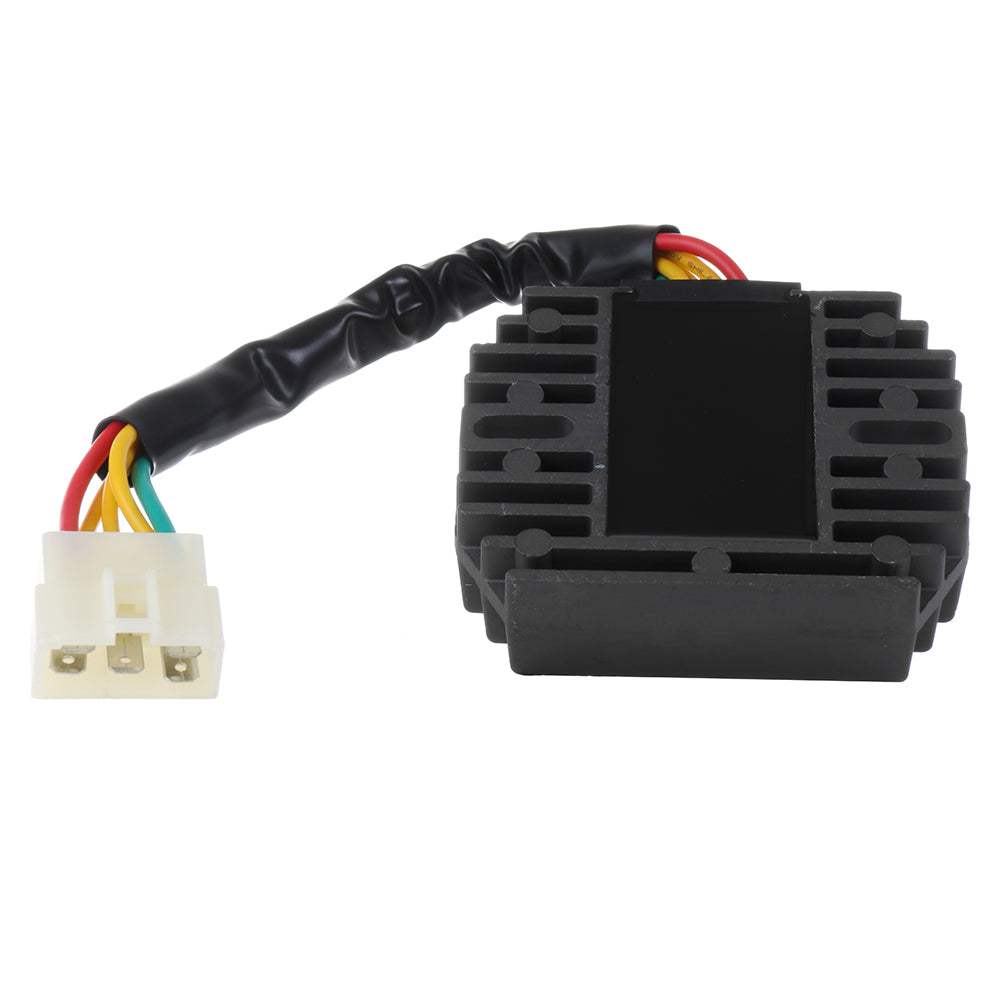

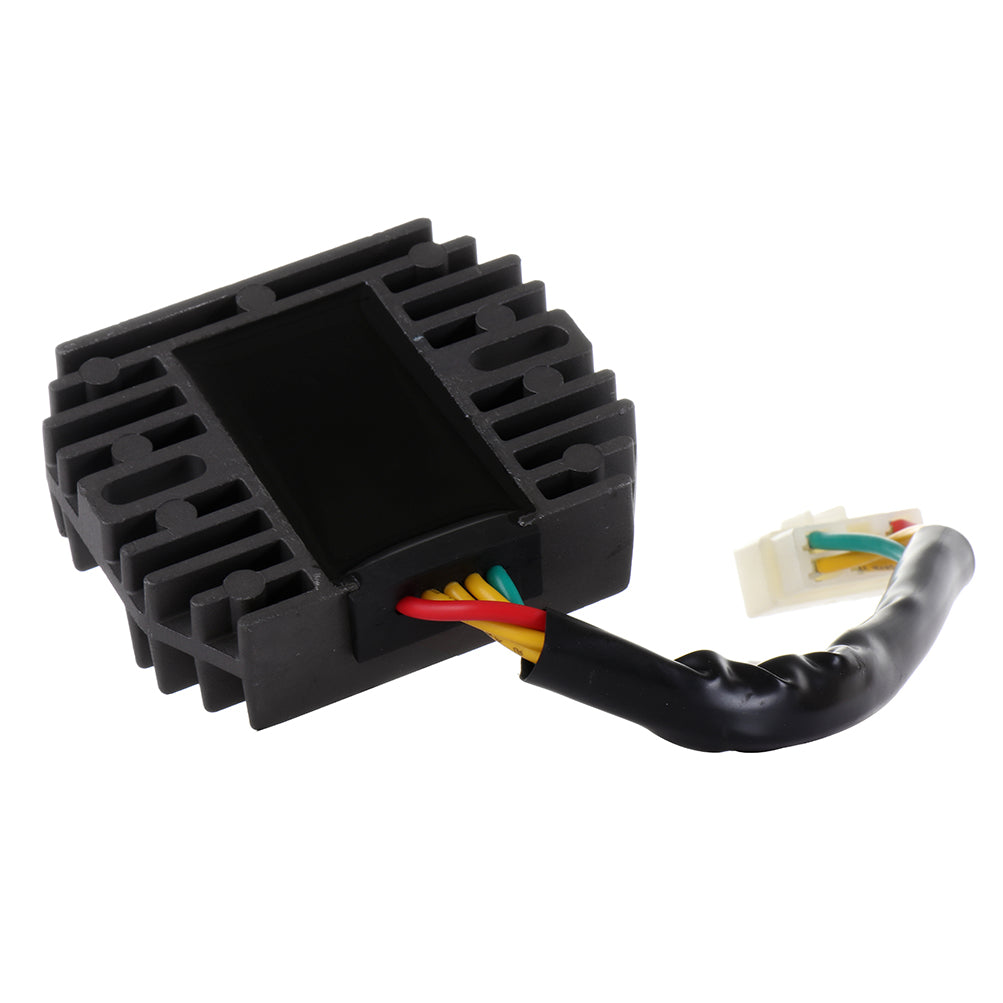

Voltage Regulator Rectifier For Arctic Cat 400 500 Bearcat 454 1997-1999
Regular price
$18.32
Regular price
$27.48
Sale
Sale price
$18.32
Feature

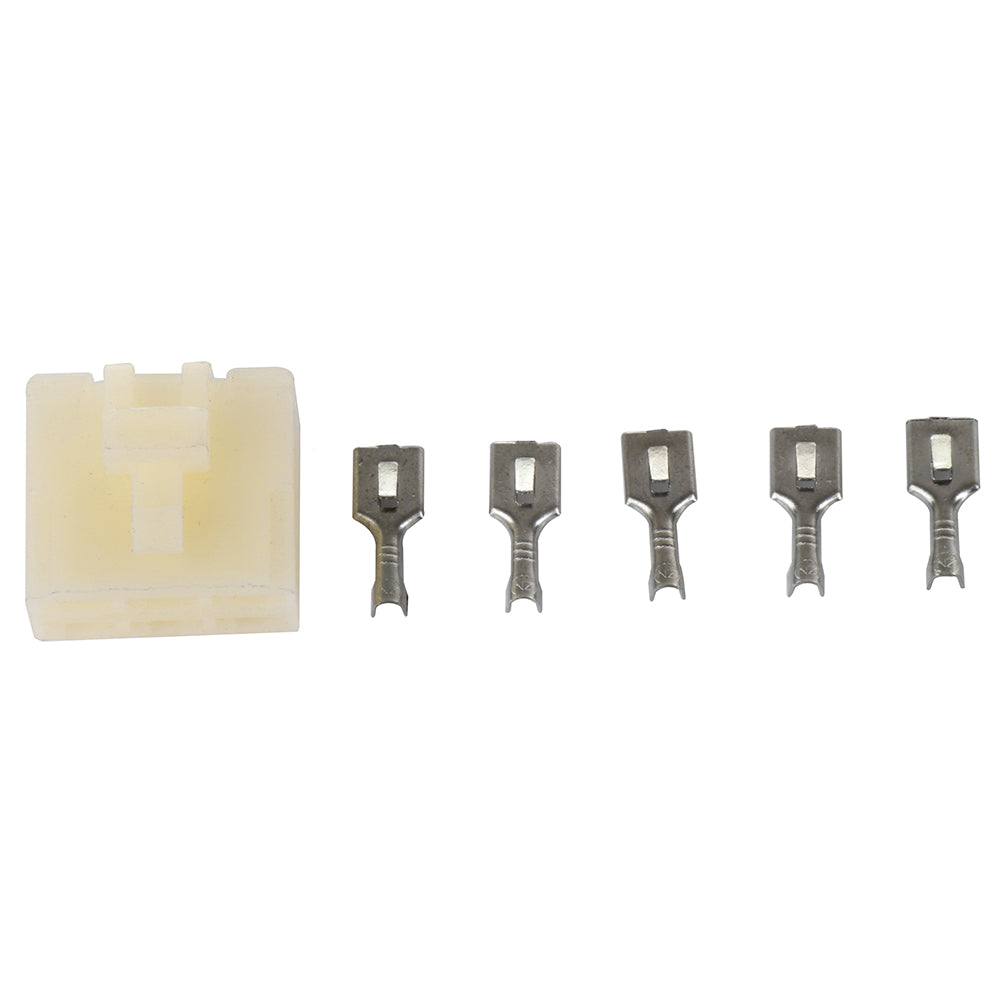

Number of plugs : 1
Number of pins : 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20 to 85
Hole Diameter:18mm / 0.78inch
Wires length: 230mm/9.05inch
Fixation holes center to holes center :87mm / 3.45"
Approx Size: 95 mm x 80 mm x 30 mm(Length x Width x Height) / 3.74x 3.14x 1.81inch
BEWARE : 1996 and early 1997 454 Bearcat 4x4 has a different plug : Please consult installation instruction before buying this product
Product Specifics
- Brand: Only For Auto
- Manufacturer Part Number: E10228401CP
- Warranty: 1 Year
- UPC: Does not apply
- Type: Rectifier
- Placement: Front,Right
- Intended Use: Replacement Part
- Colour: As shown in the figure
- Dimensions: 95 x 80 x 30 mm
- Surface Material: As the photos show
- Material: Metal+Plastic
- Voltage: 12volt
- OE Spec or Performance/Custom: OE Spec
- Modified Item: No
- Custom Bundle: No
- Package include: Regulator x 1
- Wireless Remote: No
- Cable length: No
- Hole Diameter: 0.6cm
- Fixation holes center to holes center: 7.4cm
- Other Part Number: 3430-016 ,3430-037 ,T1300819 ,T1300819A
- Interchange Part Number: Fit For Arctic Cat
- Condition: New
- Color: Silver
- Replacement Part Numbers: 3430-016 ,3430-037 ,T1300819
Before Installing Your New Voltage Regulator Rectifier
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulatorrectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Includes
1 x Voltage Regulator Rectifier
