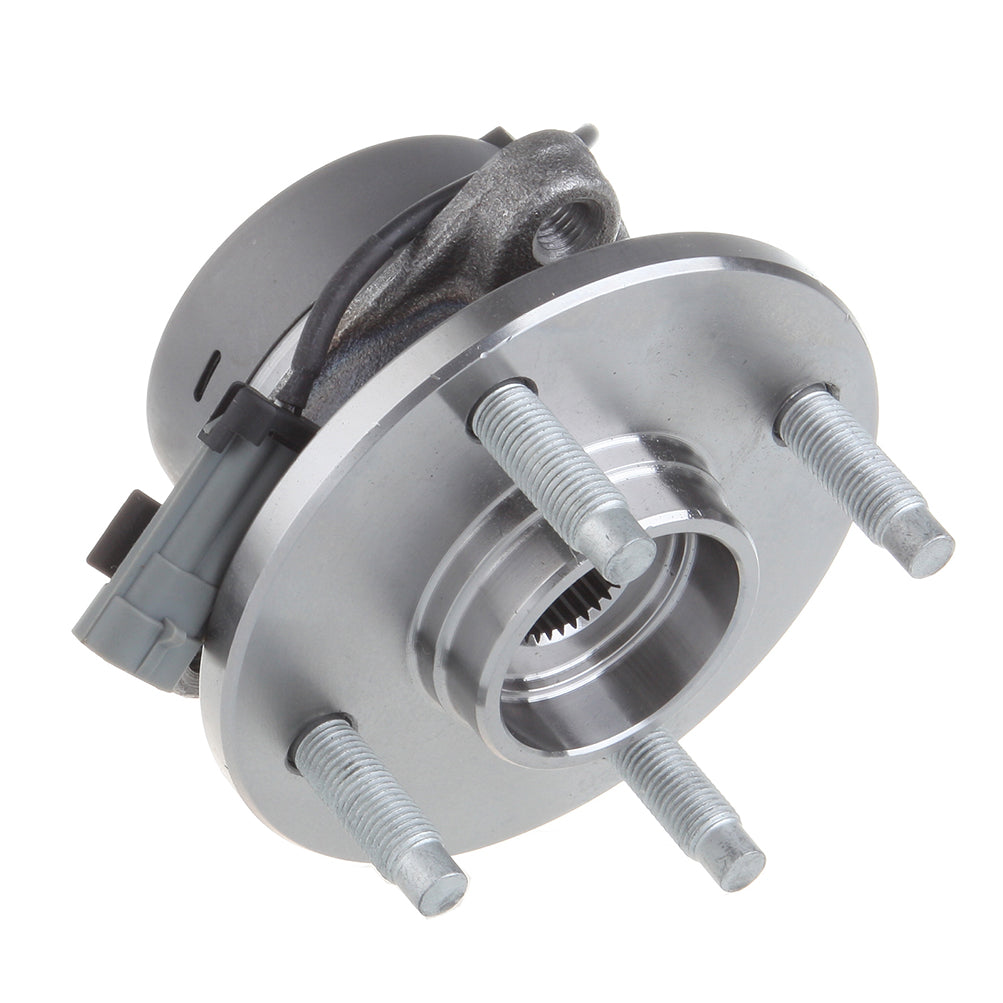

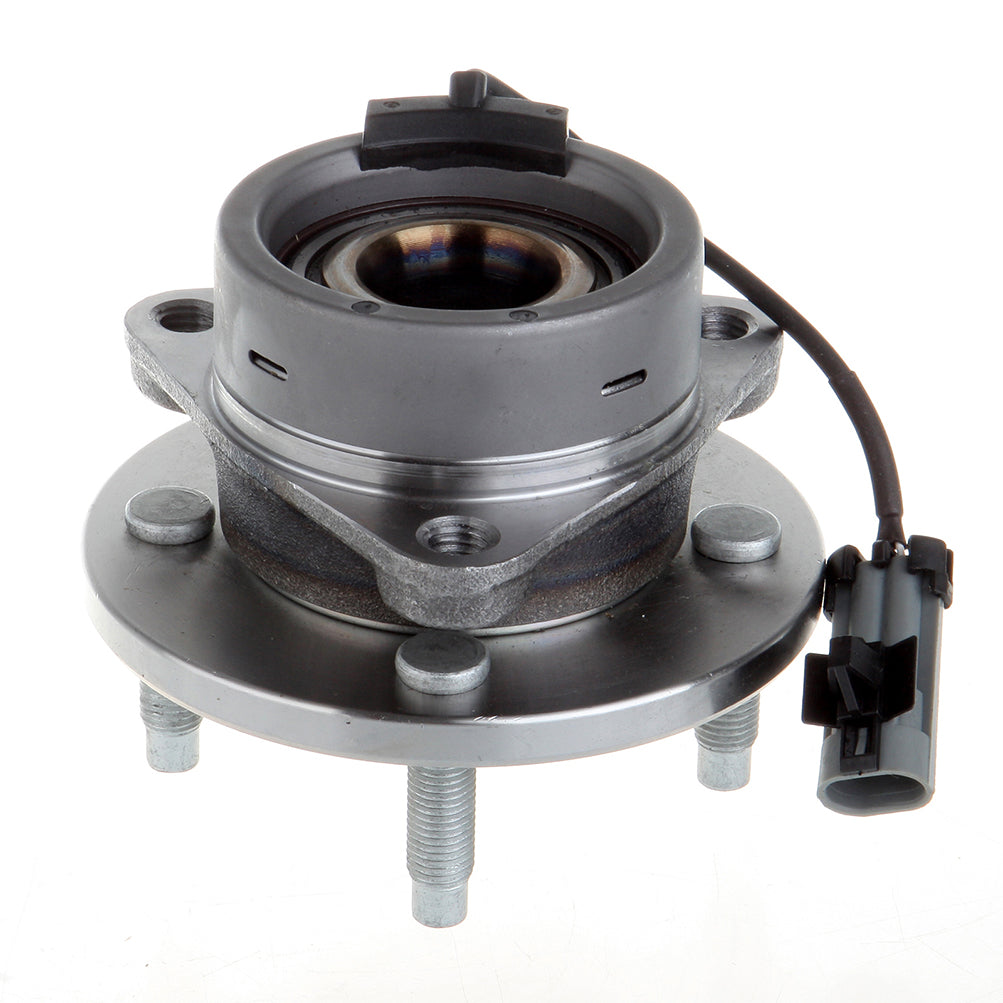

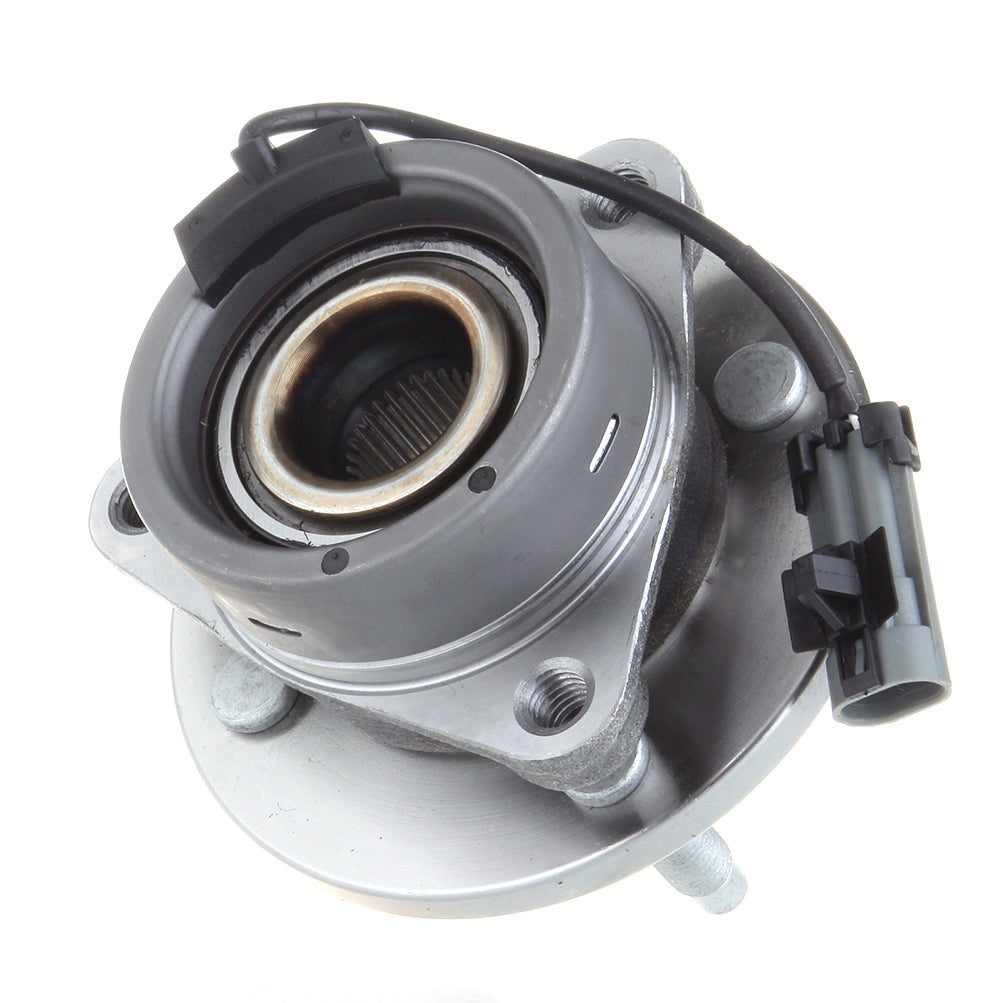

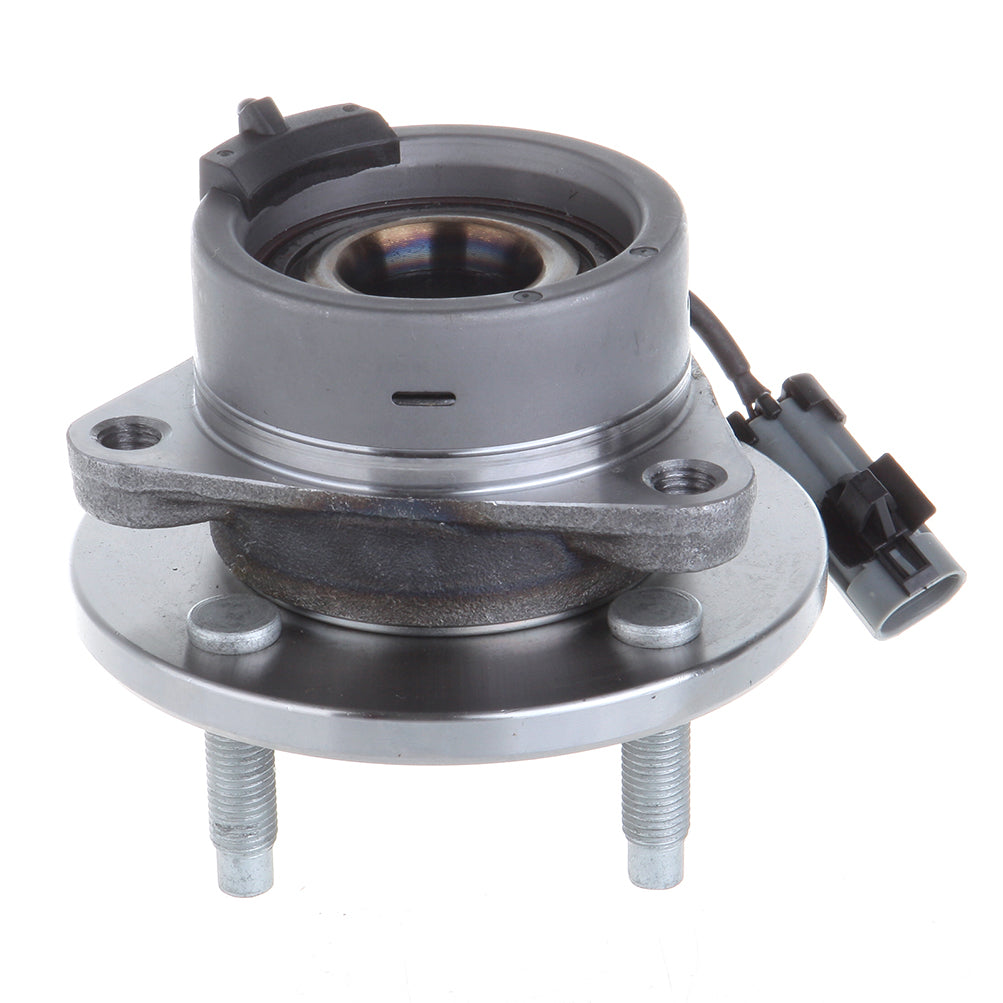

Wheel Bearing And Hub Front For 05-10 Chevrolet Cobalt 07-10 and Pontiac G5

Fitment

• Chevrolet | Cobalt | 2005~2010 | 2.0L/2.2L/2.4L
• Pontiac | G5 | 2007~2010 | 2.2L/2.4L
• Pontiac | Pursuit | 2005~2006 | 2.2L/2.4L
• Saturn | Ion | 2003~2007 | 2.0L/2.2L/2.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

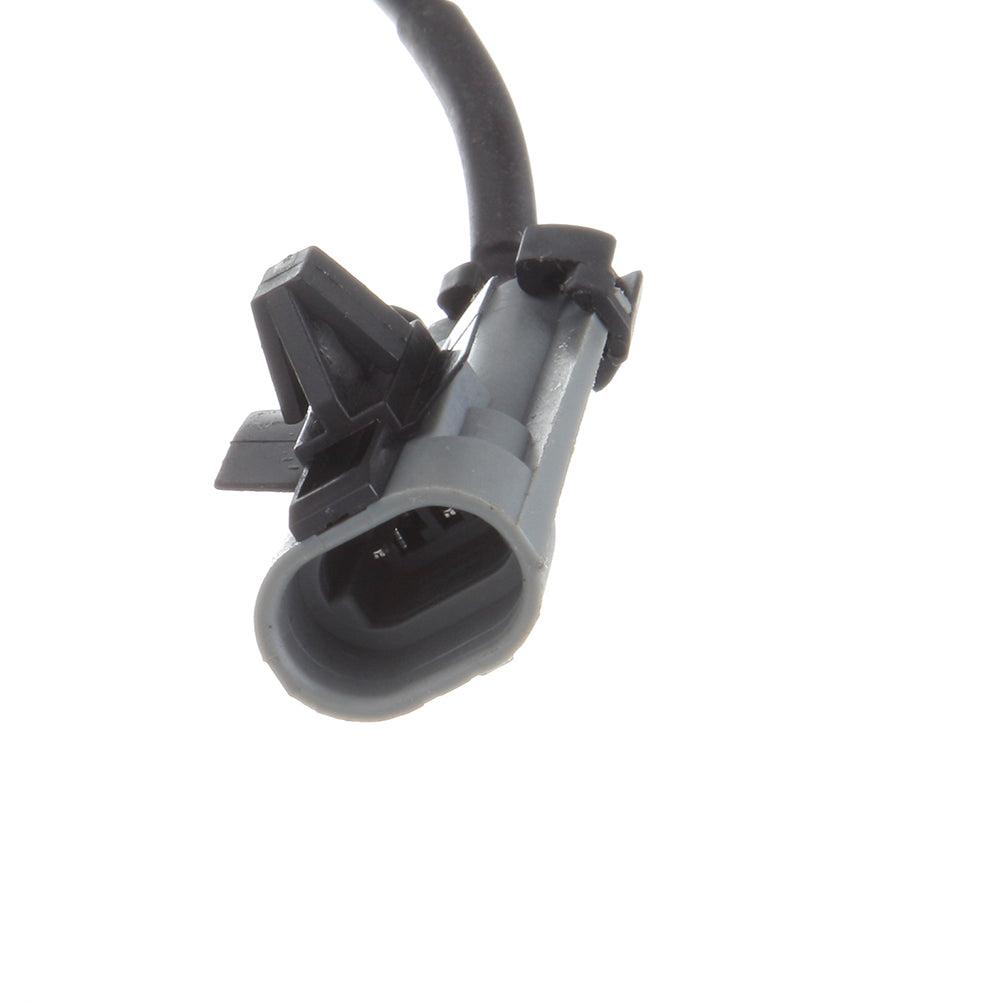

• ABS Sensor: Has ABS with integral Sensor
• Qty: 1 x wheel hub bearing
• Material: steel
• Surface Finish: Polished, Rust Protected
• Lug: 4 Bolts
• Flange Bolt Hole qty: 3
• Number of Splines: 33
• Weight: 7.28LB
• Bolt Circle Diameter: 3.94In.
• Brake Pilot Diameter: 2.36In.
• Flange Diameter: 5.2In.
• Flange Offset: 1.54In.
• Wheel Pilot Diameter: 2.22In.
• Hub Pilot Diameter: 3.35In.
• Other Part Numbers: 12413075, 12413076, 12413164, 22667146, 22701516, 7467575
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513204,538-01601,22701516, WA513204, 12413075, 12413076, 12413164, 22667146, 22701516, 7467575

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
