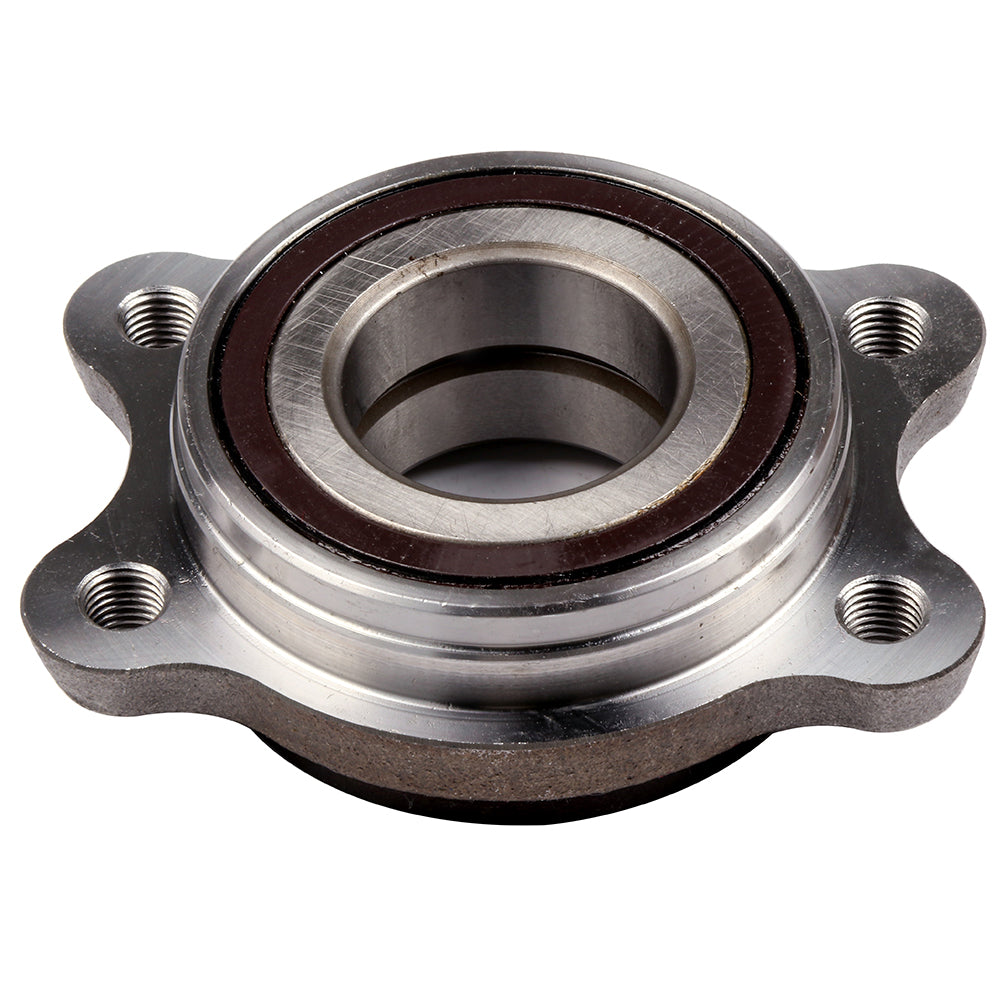

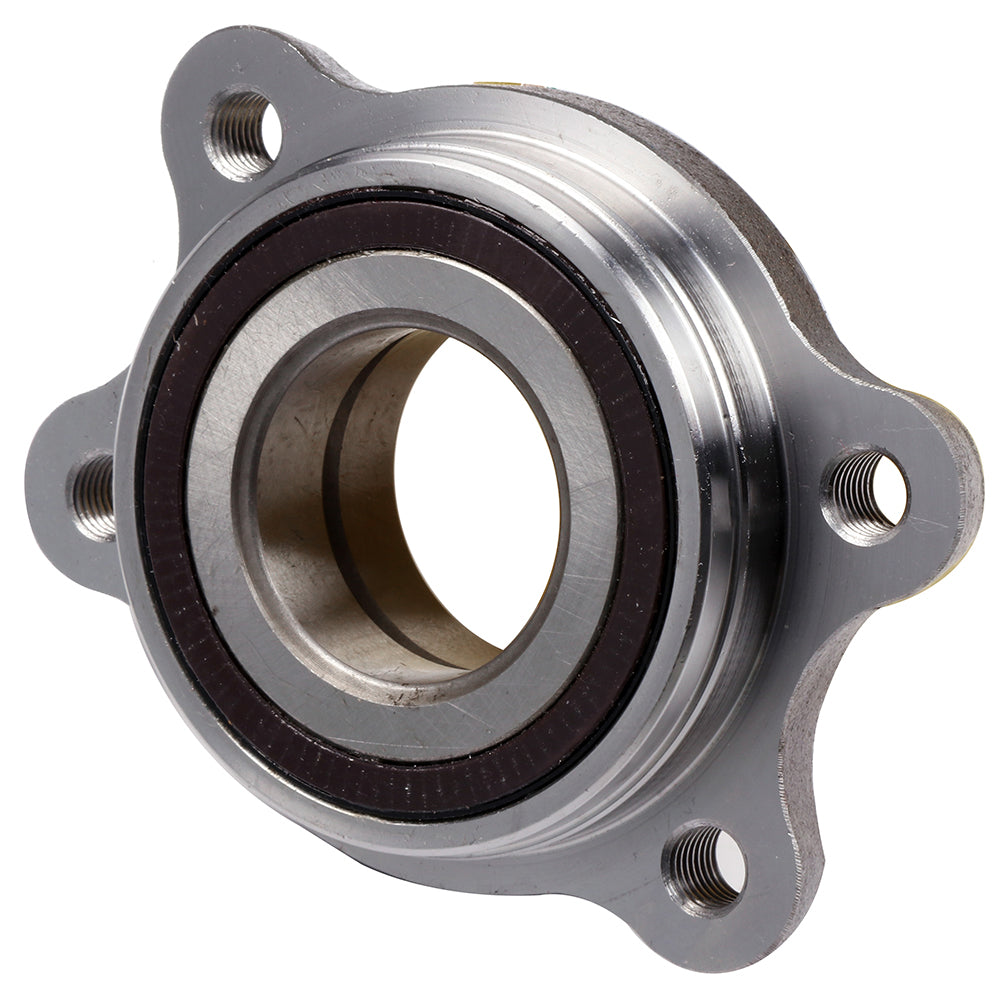

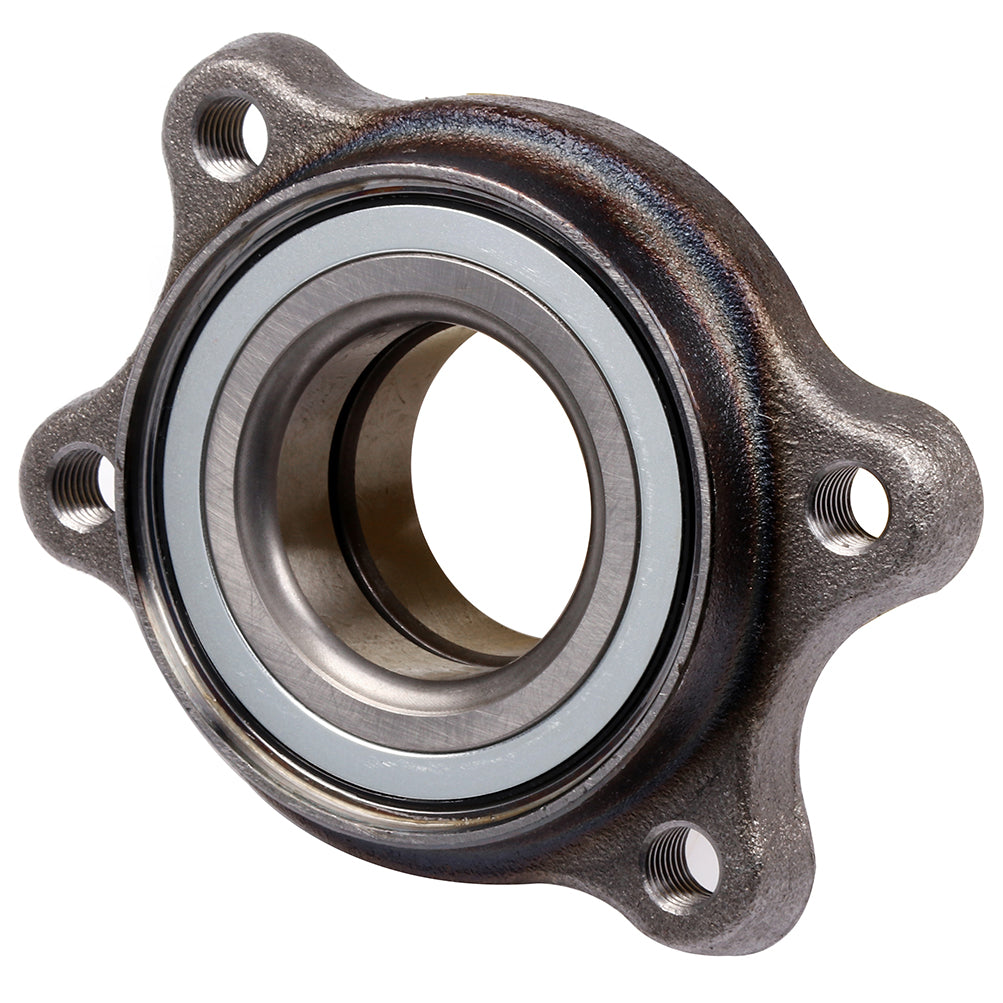

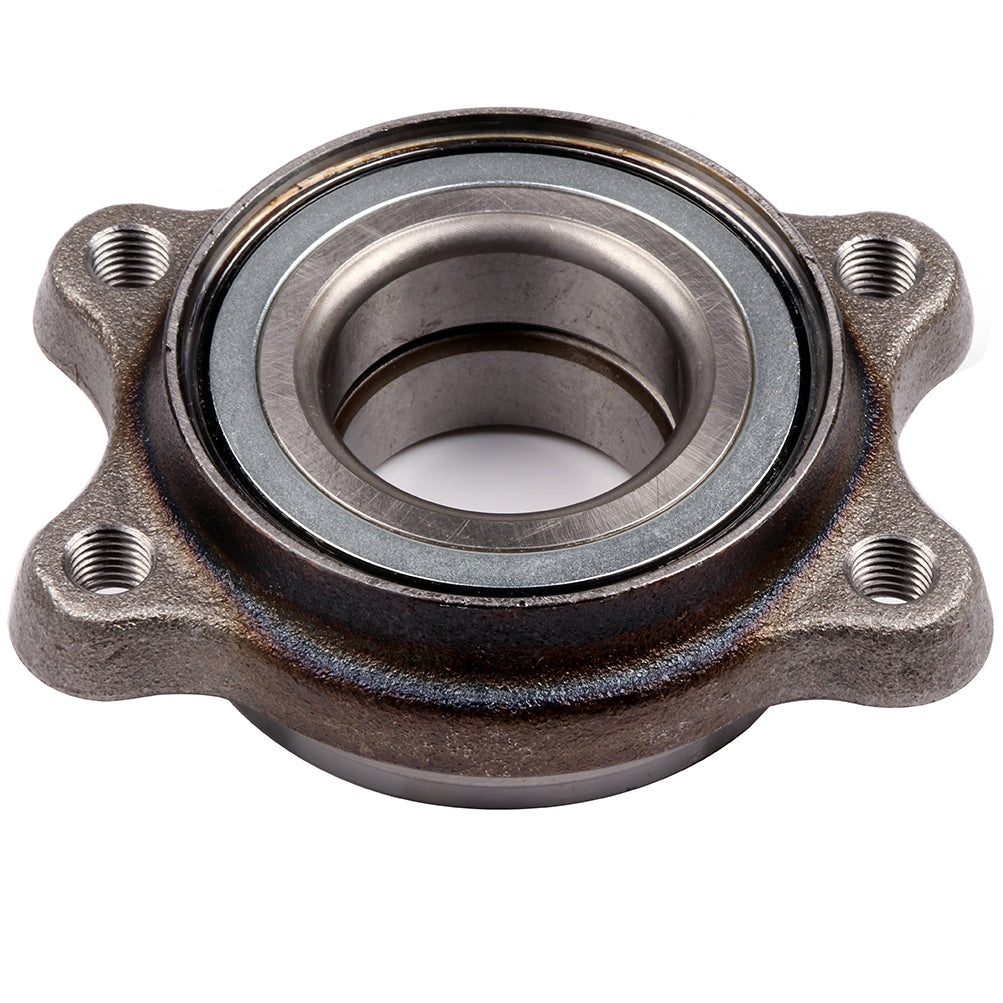

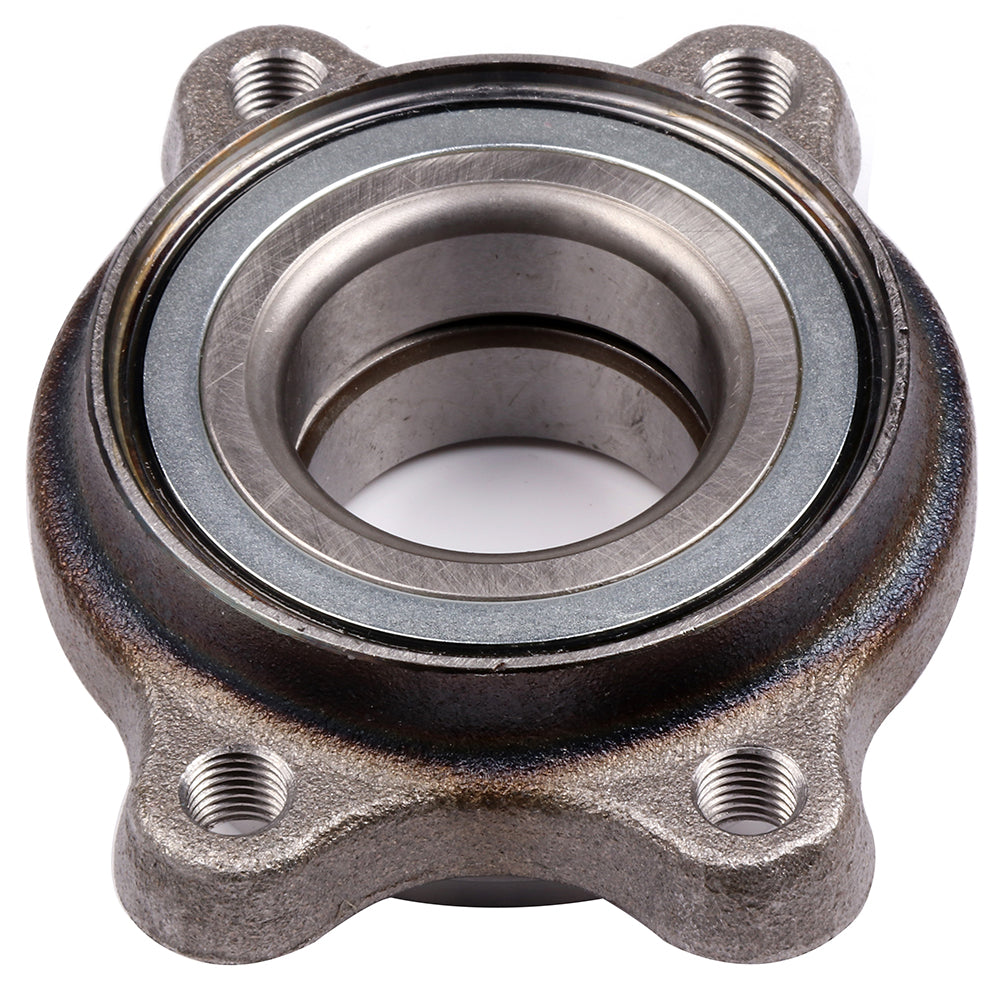

Wheel Bearing Assembly For 05-11 Audi A6 08-12 14-15 Audi R8

Fitment

• Audi | A6 | 2005~2011 | 2.8L/3.0L/3.2L
• Audi | A6 Quattro | 2005~2011 | 3.0L/3.2L/4.2L
• Audi | A8 Quattro | 2004~2012 | 3.0L/4.2L/6.0L/6.3L
• Audi | R8 | 2008~2012 | 4.2L/5.2L
• Audi | S6 | 2007~2011 | 5.2L
• Audi | S8 | 2007~2009 | 5.2L
• Volkswagen | Phaeton | 2004~2006 | 4.2L/6.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: N/A
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.46 In
• Hub Pilot Diameter: 3.6 In
• Other Part Number: 4D0498625, 4E0407625D, 4E0407625E, 4E0498625, 4E0498625A,
• Material: steel
• Weight: 3LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513227,713227,29513227

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
