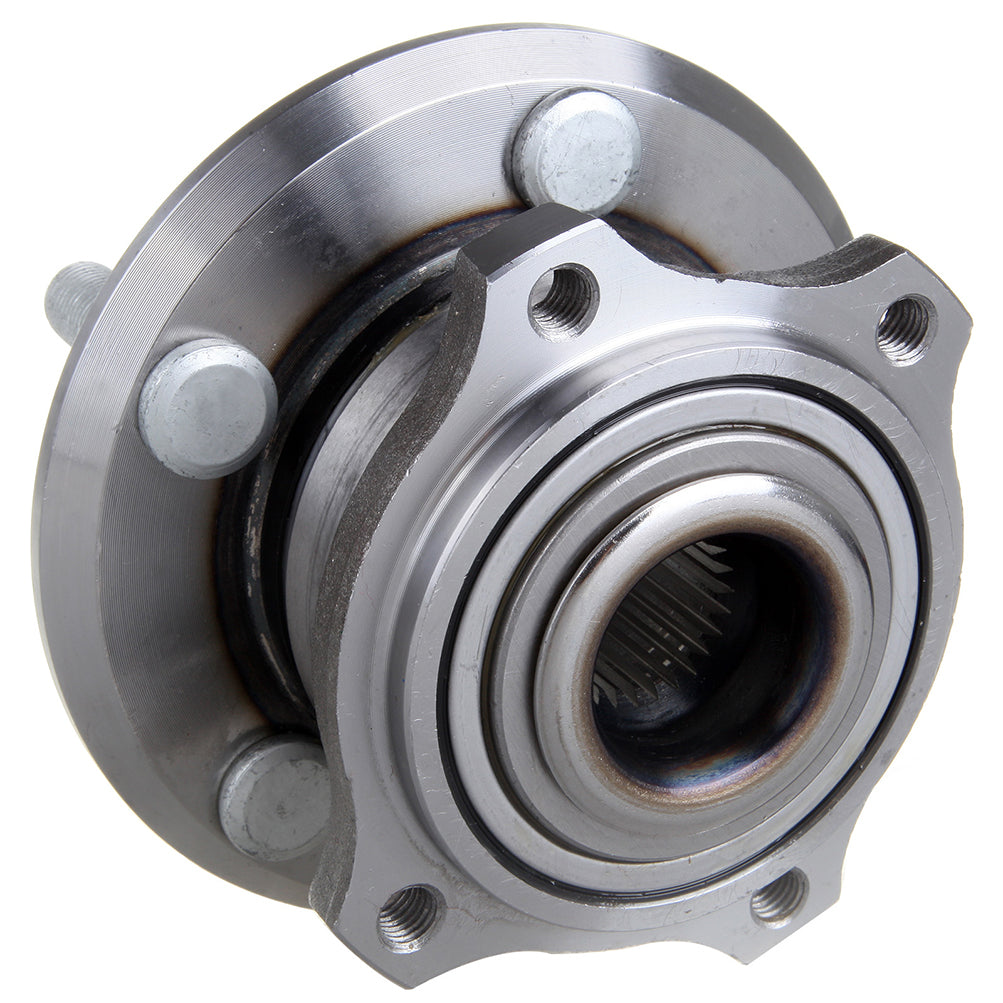

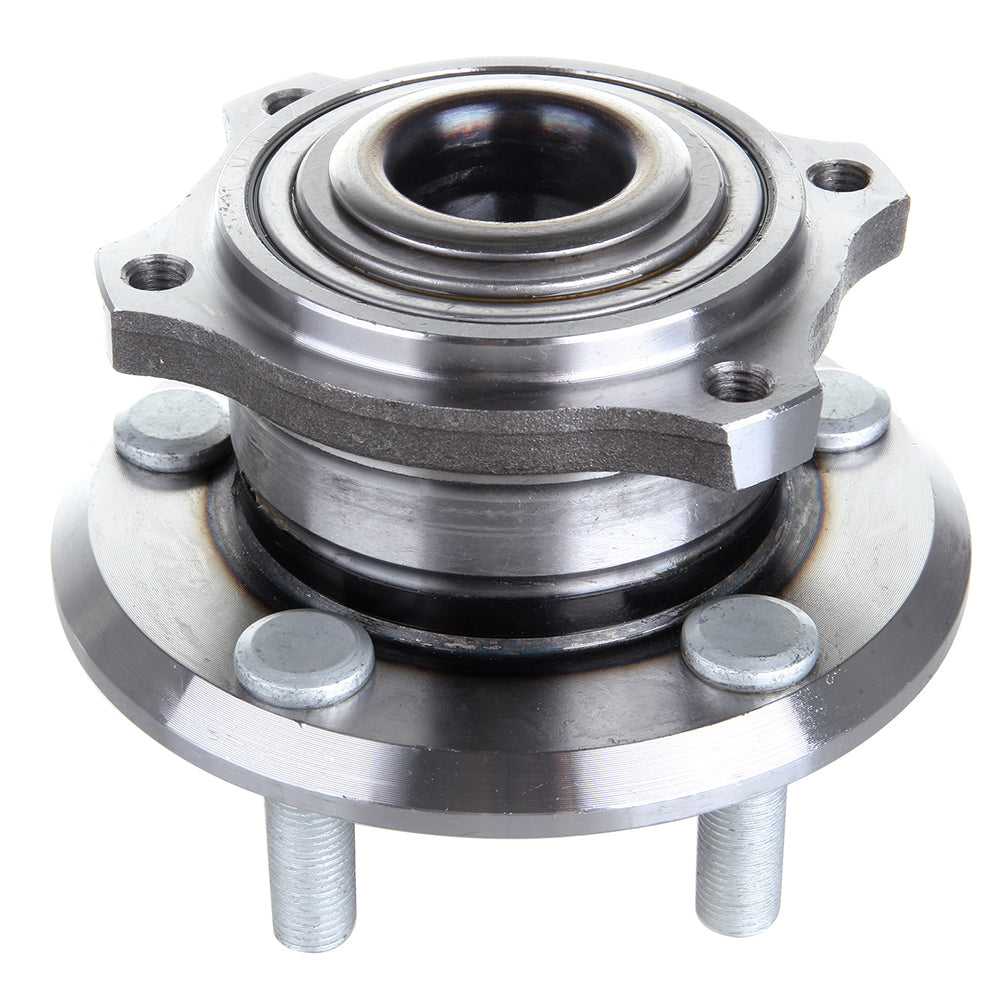

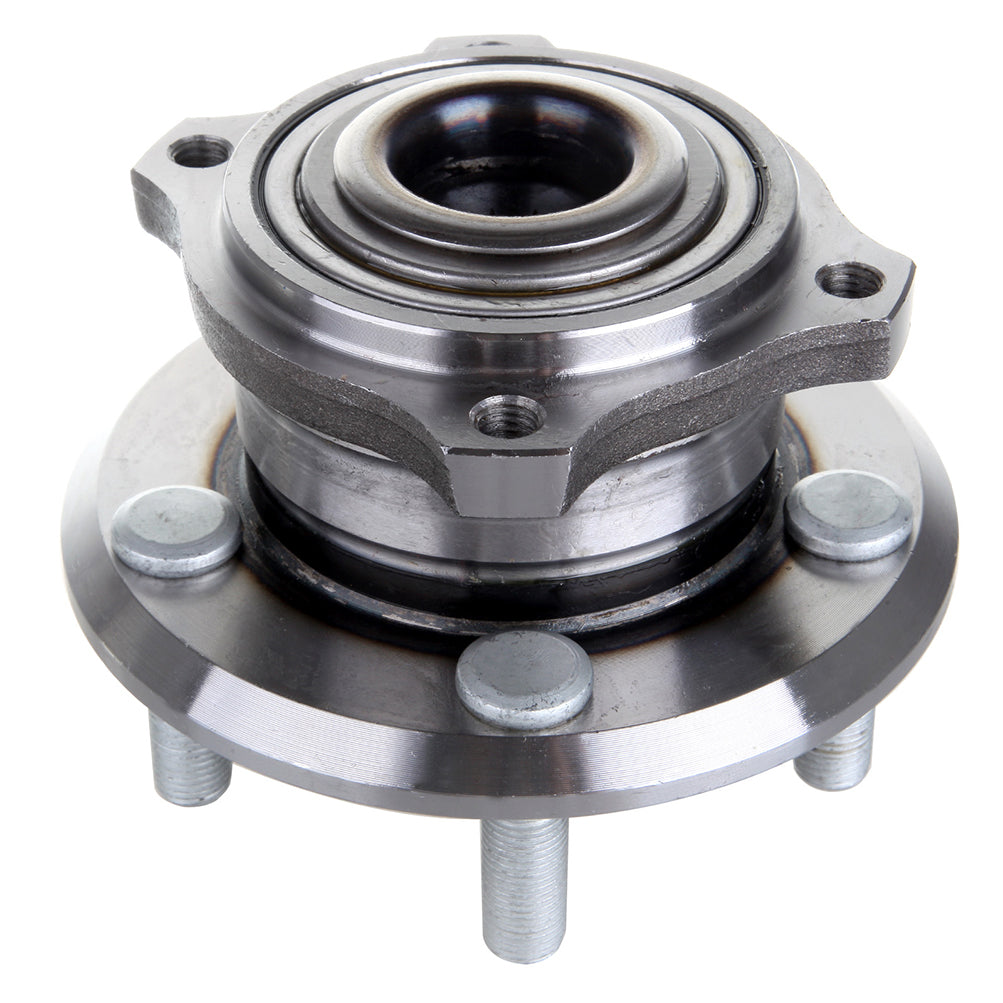

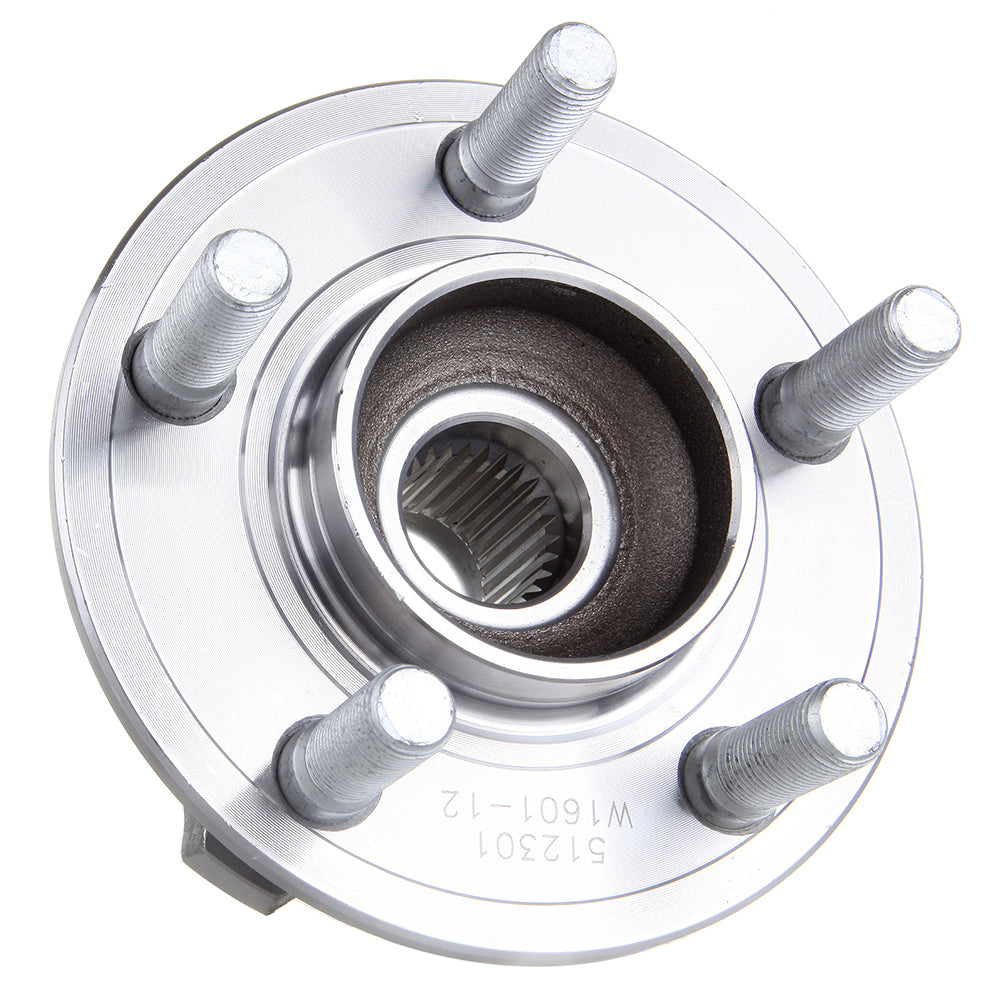

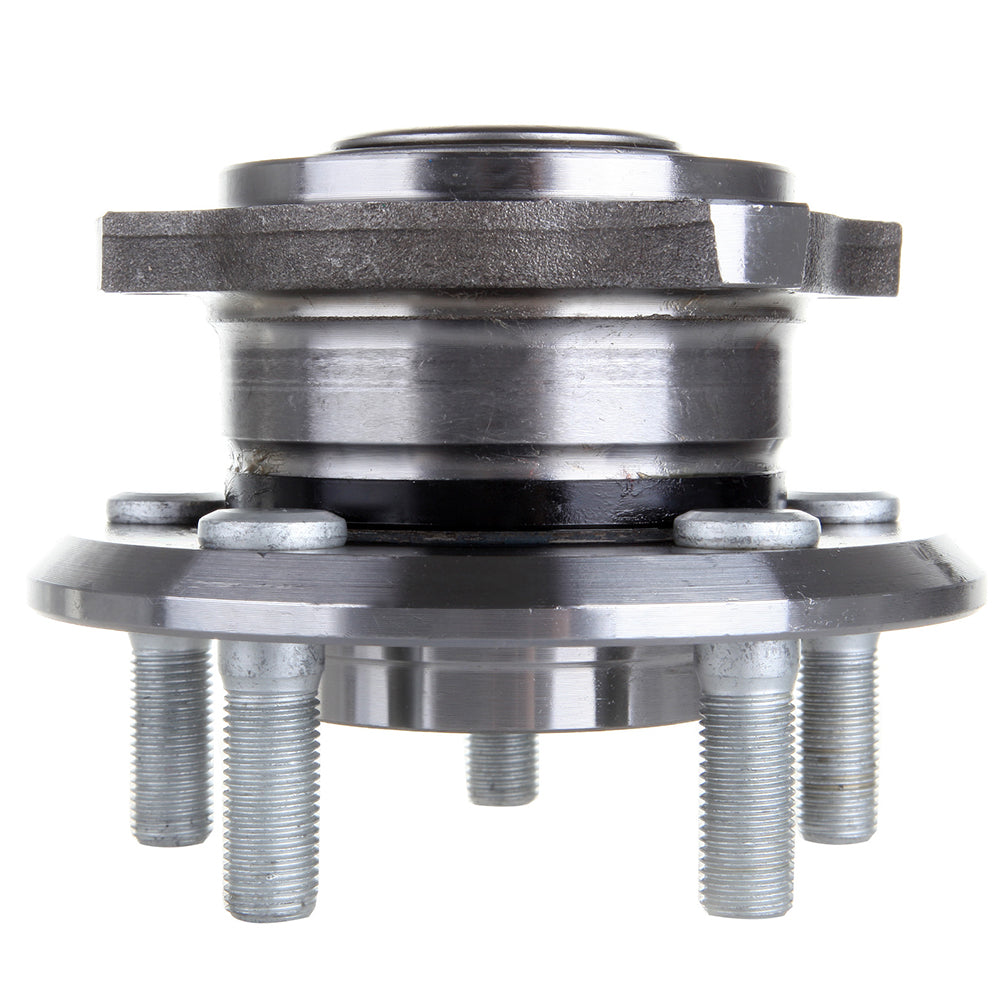

Wheel Bearing Hub Assembly For 05-09 Chrysler 300 07-09 Dodge Charger

Fitment

• Chrysler | 300 | 2005~2009 | 2.7L/3.5L/5.7L/6.1L
• Dodge | Charger | 2006~2009 | 2.7L/3.5L/5.7L/6.1L
• Dodge | Magnum | 2005~2008 | 2.7L/3.5L/5.7L/6.1L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Not have an ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 27
• Bolt Circle Diameter: 4.49 In
• Wheel Pilot Diameter: 2.78 In
• Brake Pilot Diameter: 2.8275 In
• Flange Diameter: 5.85 In
• Flange Offset: 2.35 In
• Hub Pilot Diameter: 3.53 In
• Other Part Number: 04779218AA, 04779218AB, 4779218AA, 4779218AB
• Material: steel
• Weight: 19LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512301,04779218AA, 04779218AB, 4779218AA

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

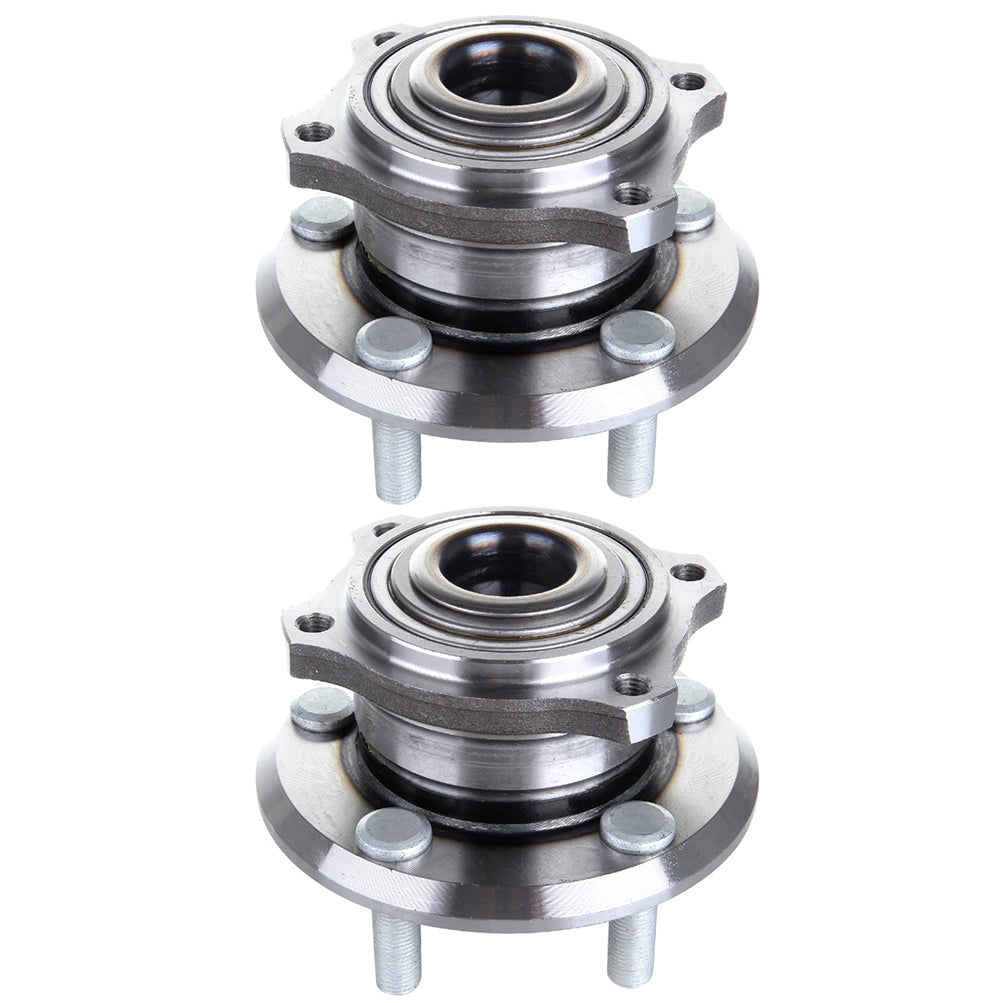

2 Pcs wheel hub bearing
