Wheel Bearing & Hub Assembly For 99-00 Cadillac Escalade 95-00 GMC Yukon

Fitment

• Cadillac | Escalade | 1999~2000 | 5.7L
• Chevrolet | K1500 | 1995~1999 | 4.3L/5.0L/5.7L/6.5L
• Chevrolet | K1500 Suburban | 1995~1999 | 5.7L/6.5L
• Chevrolet | K2500 | 1995 | 4.3L/5.0L/5.7L/6.5L/7.4L
• Chevrolet | K2500 Suburban | 1995 | 5.7L/6.5L/7.4L
• Chevrolet | Tahoe | 1995~2000 | 5.7L/6.5L
• GMC | K1500 | 1995~1999 | 4.3L/5.0L/5.7L/6.5L
• GMC | K1500 Suburban | 1995~1999 | 5.7L/6.5L
• GMC | K2500 | 1995 | 4.3L/5.0L/5.7L/6.5L/7.4L
• GMC | K2500 Suburban | 1995 | 5.7L/6.5L/7.4L
• GMC | Yukon | 1995~2000 | 4.8L/5.3L/5.7L/6.5L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with tegral Sensor
• include: 1 PCS wheel hub bearing

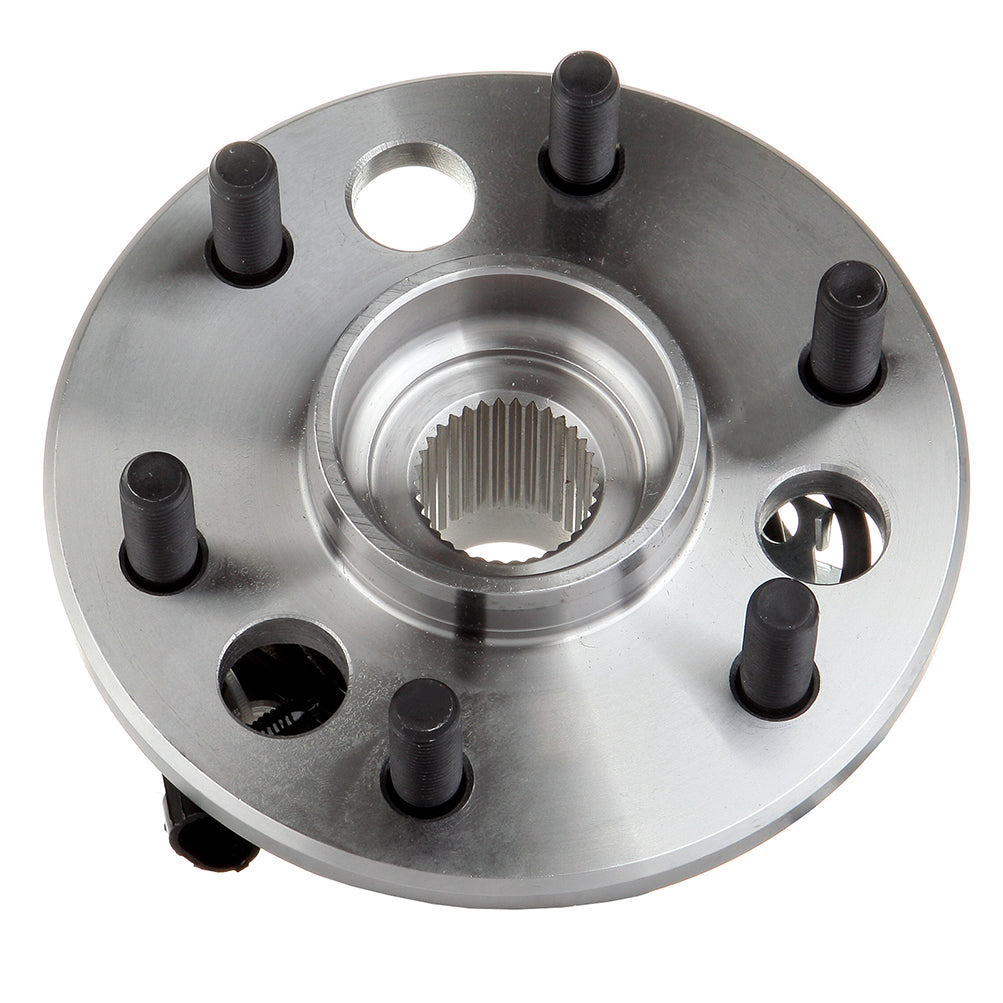

• Spline Quantity: 33
• Lug Quantity: 6 Lugs
• Flange Bolt Hole qty: 3
• Spline Quantity: 33
• Warranty: 12 months
• Flange Shape: Triangular
• Surface Finish: Polished, Rust Protected
• Material: steel
• Wheel Stud Size: M14 x 1.5
• Weight: 5.68kg
• Bolt Circle Diameter: 139.7MM
• Brake Pilot Diameter: 78.3MM
• Flange Diameter: 181.8MM
• Flange Offset: 56.8MM
• Hub Pilot Diameter: 99.2MM
• Wheel Pilot Diameter: 77.6MM
• Replaces dealer part numbers: 515024,538-01358R, 538-01359L,15997071,15997072,WA515024,29515024

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
