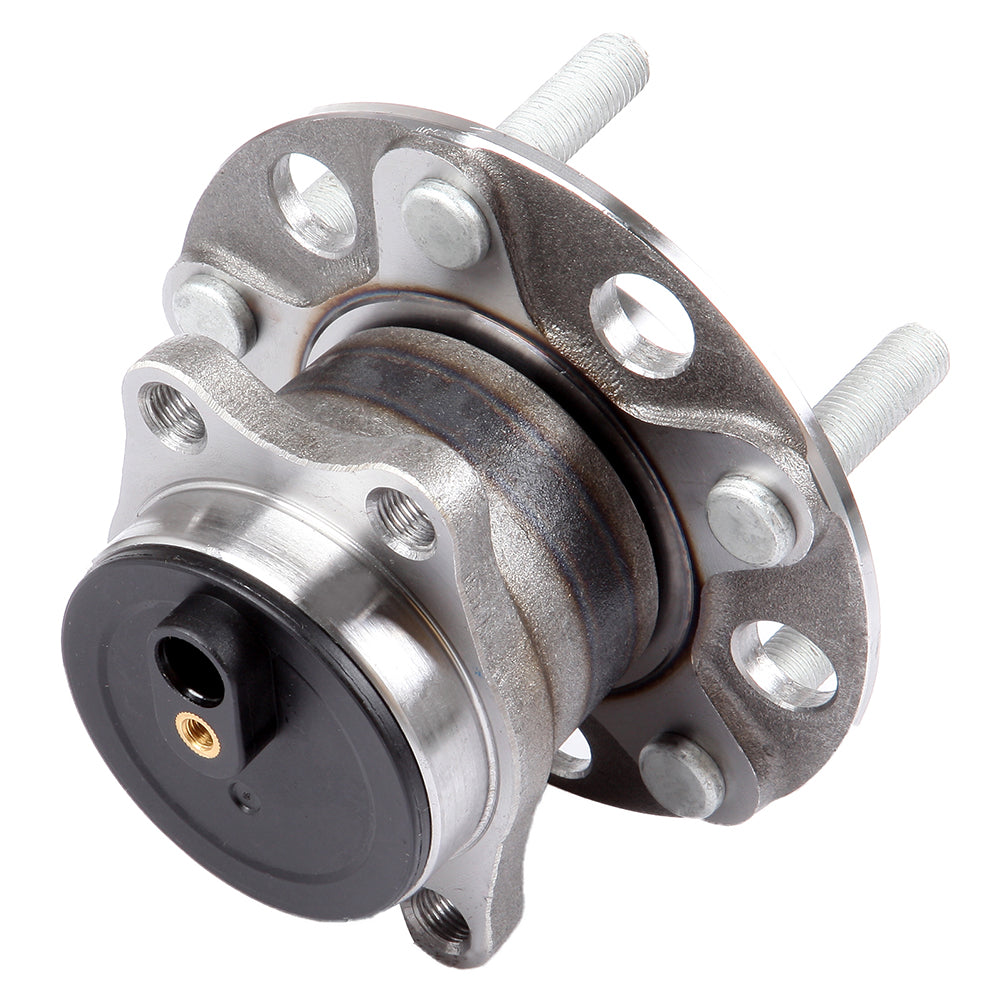

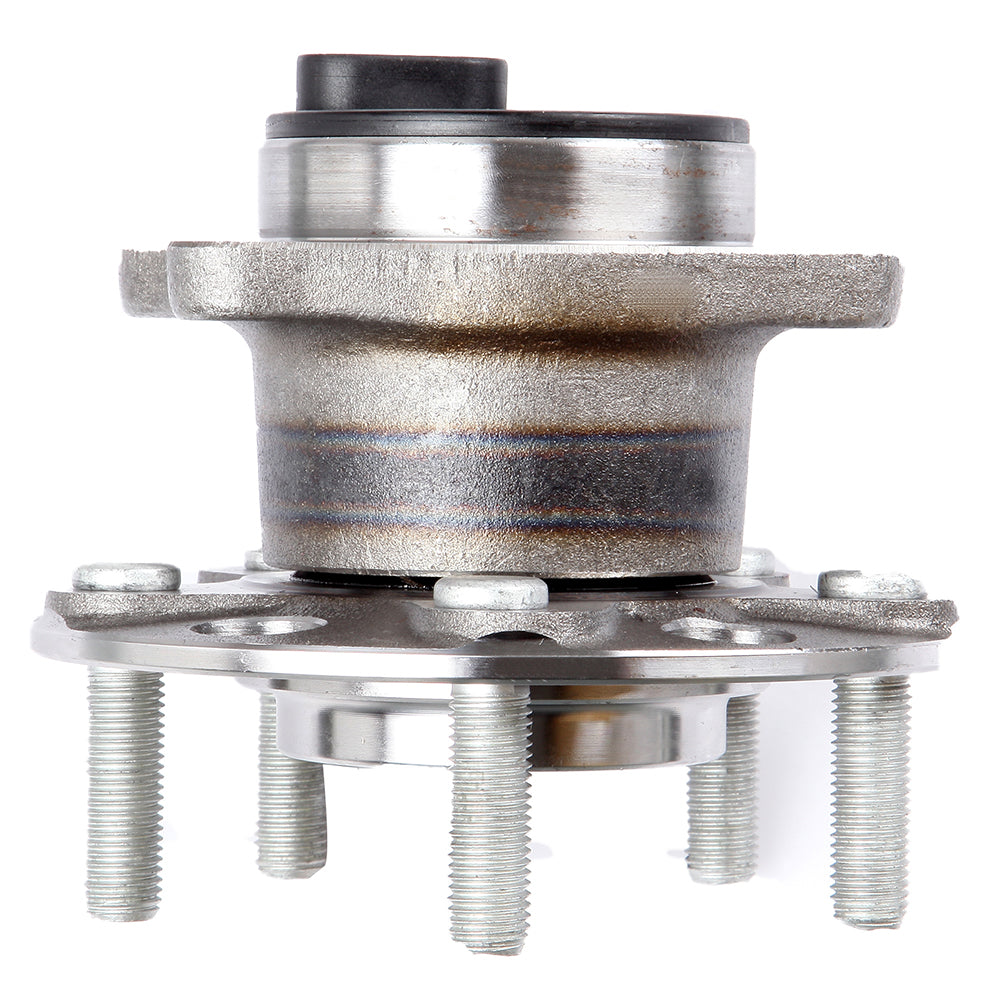

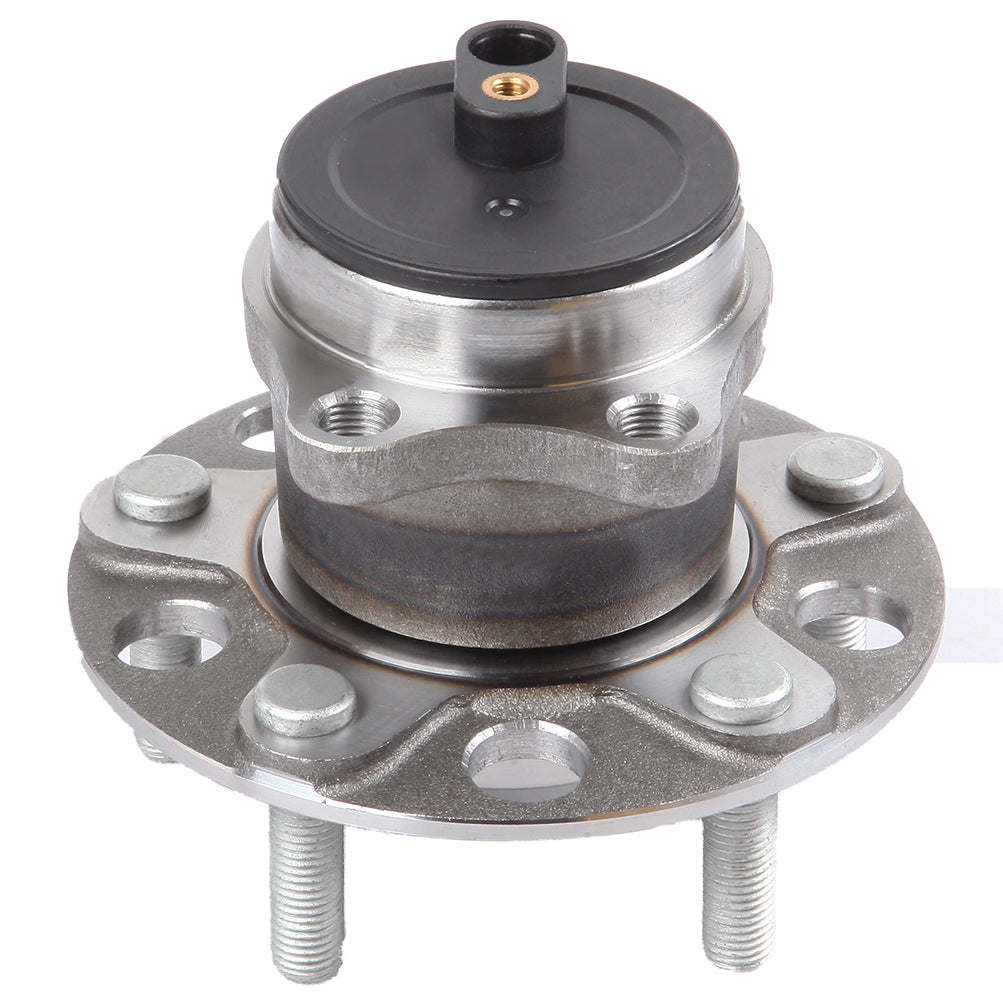

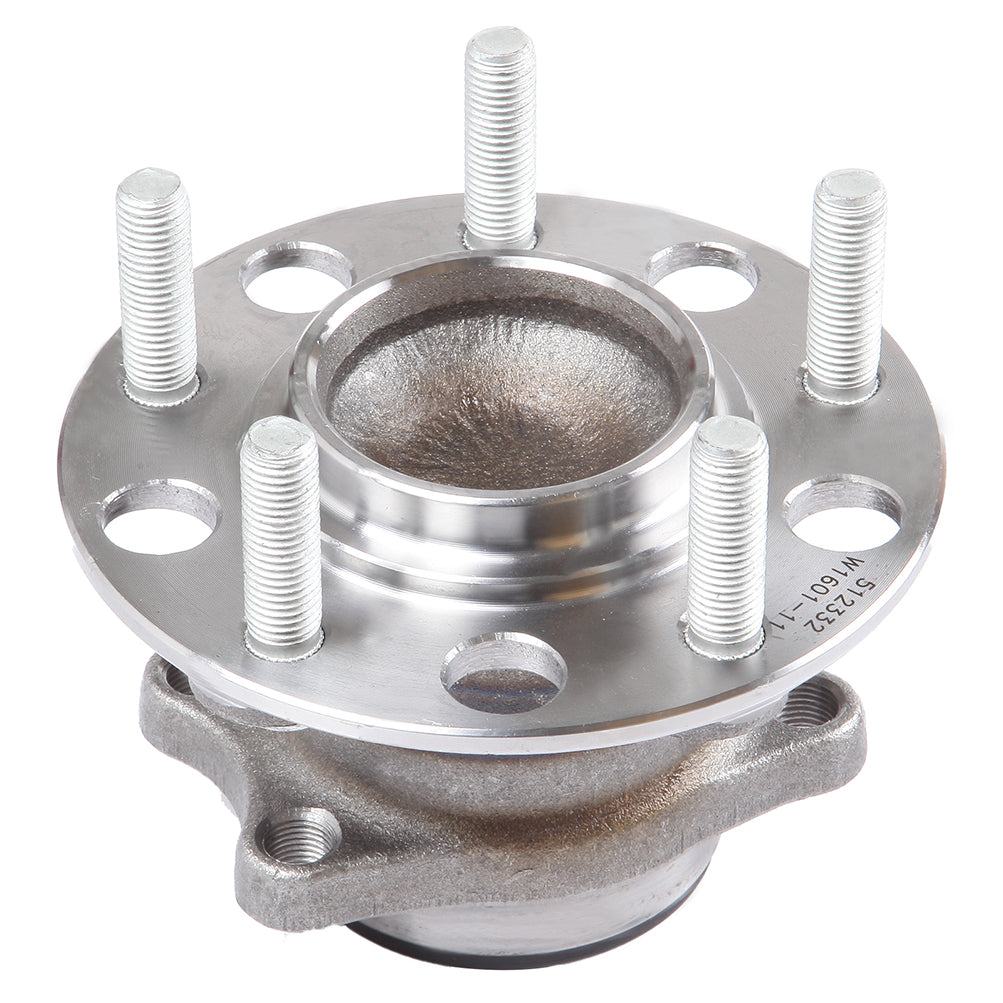

Wheel Hub And Bearing Assembly For 07-16 Jeep Compass Jeep Patriot

Fitment

• Chrysler | 200 | 2011~2014 | 2.4L/3.6L
• Chrysler | Sebring | 2007~2010 | 2.4L/3.5L
• Dodge | Avenger | 2008~2014 | 2.0L/2.4L/3.5L/3.6L
• Dodge | Caliber | 2007~2012 | 1.8L/2.0L/2.4L
• Jeep | Compass | 2007~2016 | --/2.0L/2.4L
• Jeep | Patriot | 2007~2016 | --/2.0L/2.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with tegral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.46 In
• Wheel Pilot Diameter: 2.61 In
• Brake Pilot Diameter: 3.12 In
• Flange Diameter: 5.48 In
• Flange Shape: Modified
• Flange Offset: 2.36 In
• Hub Pilot Diameter: 2.88 In
• Other Part Number: 04766719AA, 05105719AB, 4766719AA, 4766719AB, 5105719AB
• Material: steel
• Weight: 15LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512332,04766719AA, 05105719AB, 4766719AA, 4766719AB, 5105719AB,29512332

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

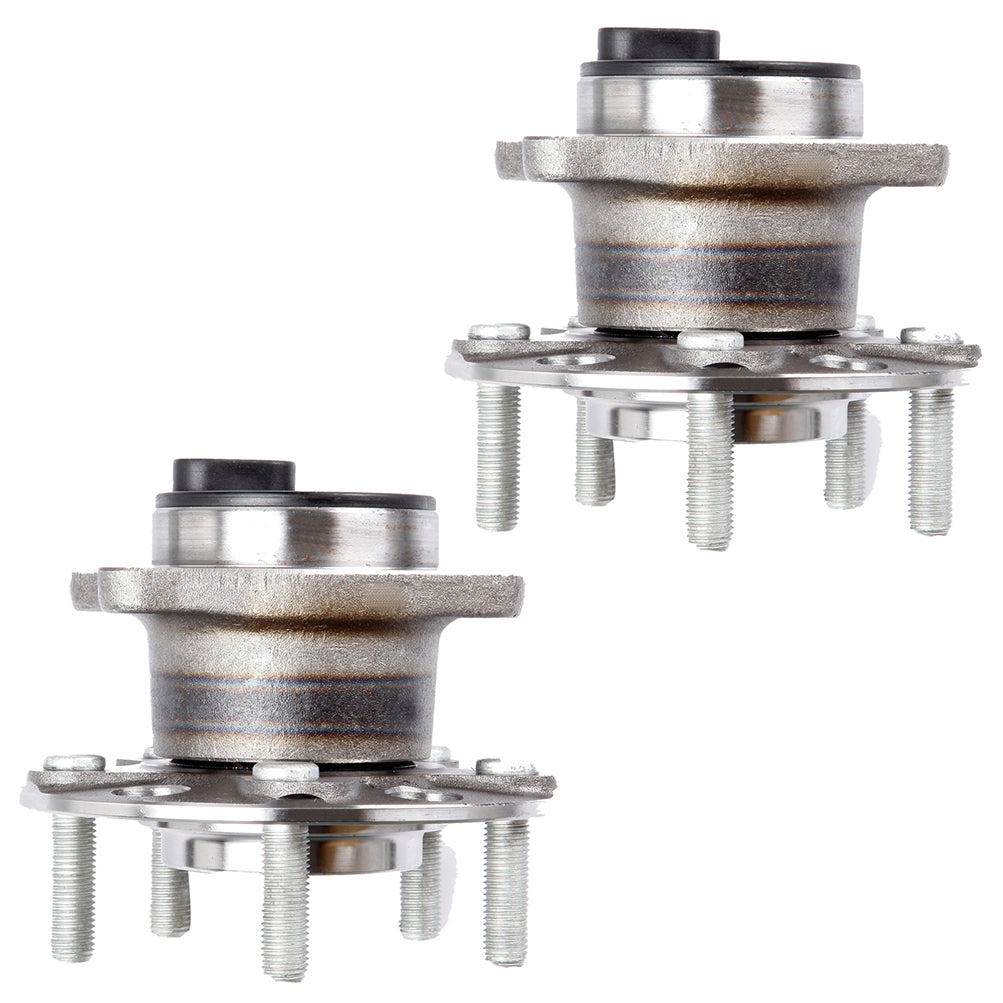

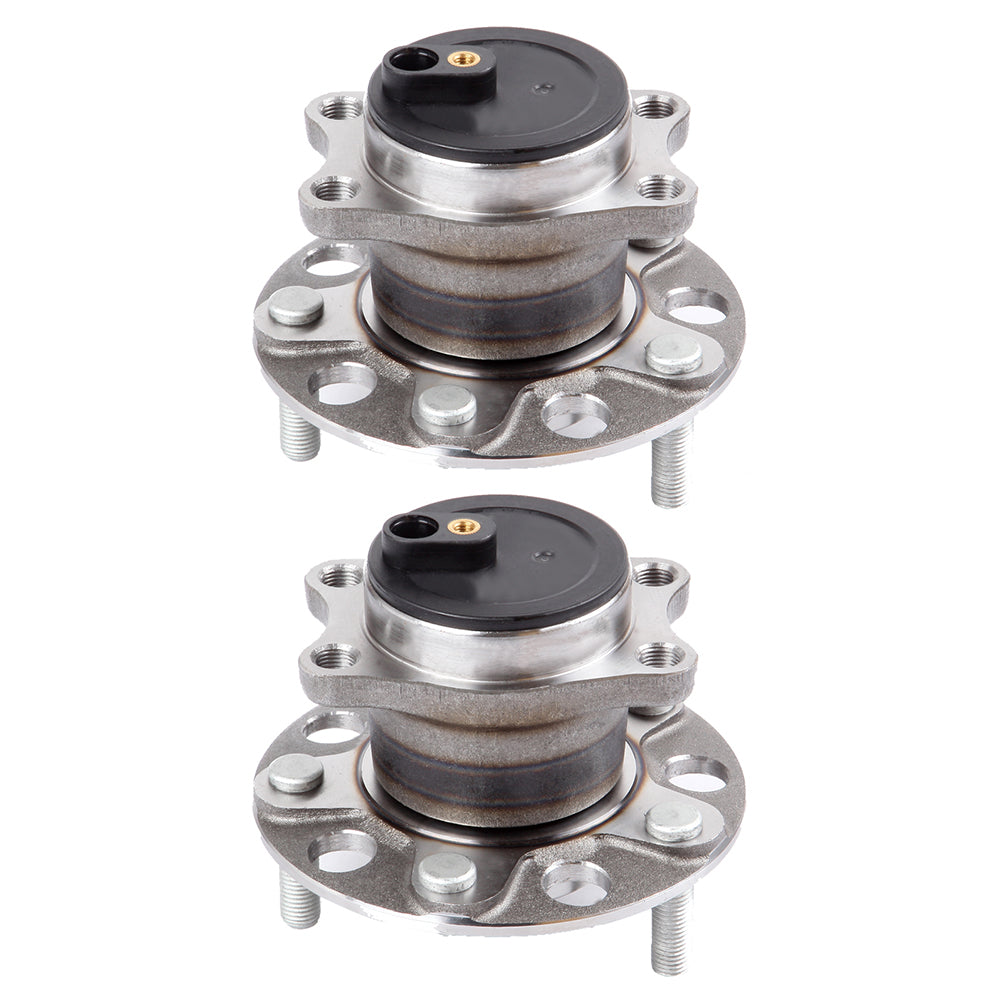

2 Pcs wheel hub bearing
