Wheel Hub And Bearing Assembly For 11-16 Scion tC 06-17 Toyota RAV4

Fitment

• Scion | tC | 2011~2016 | 2.5L
• Toyota | Mirai | 2016~2019 | FUEL
• Toyota | RAV4 | 2006~2018 | 2.5L/3.5L/BATT

Features

• Right for your vehicle and lifestyle
• Made from high-quality materials for ultimate durability
• Designed to deliver trouble-free, consistent performance
• Manufactured to meet or exceed strict quality requirements

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• Interchange Part Number: 513258 wheel bearings(2Pcs)
• Fitment: For Toyota Scion
• ABS Sensor: Has ABS with Tone Ring Sensor
• Warranty: 1 Year
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 30
• Bolt Circle Diameter: 4.46 In
• Wheel Pilot Diameter: 2.34 In
• Brake Pilot Diameter: 2.418 In
• Flange Diameter: 5.42 In
• Flange Shape: Modified
• Flange Offset: 1.85 In
• Hub Pilot Diameter: 3.51 In
• Other Part Number: 435500R020, 4355042020
• Material: steel
• Fitment Type: Direct replacement
• Weight: 16LB
• Package includes: 2 X wheel bearing
• Replaces dealer part numbers: 513258,29513258,435500R020, 4355042020

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

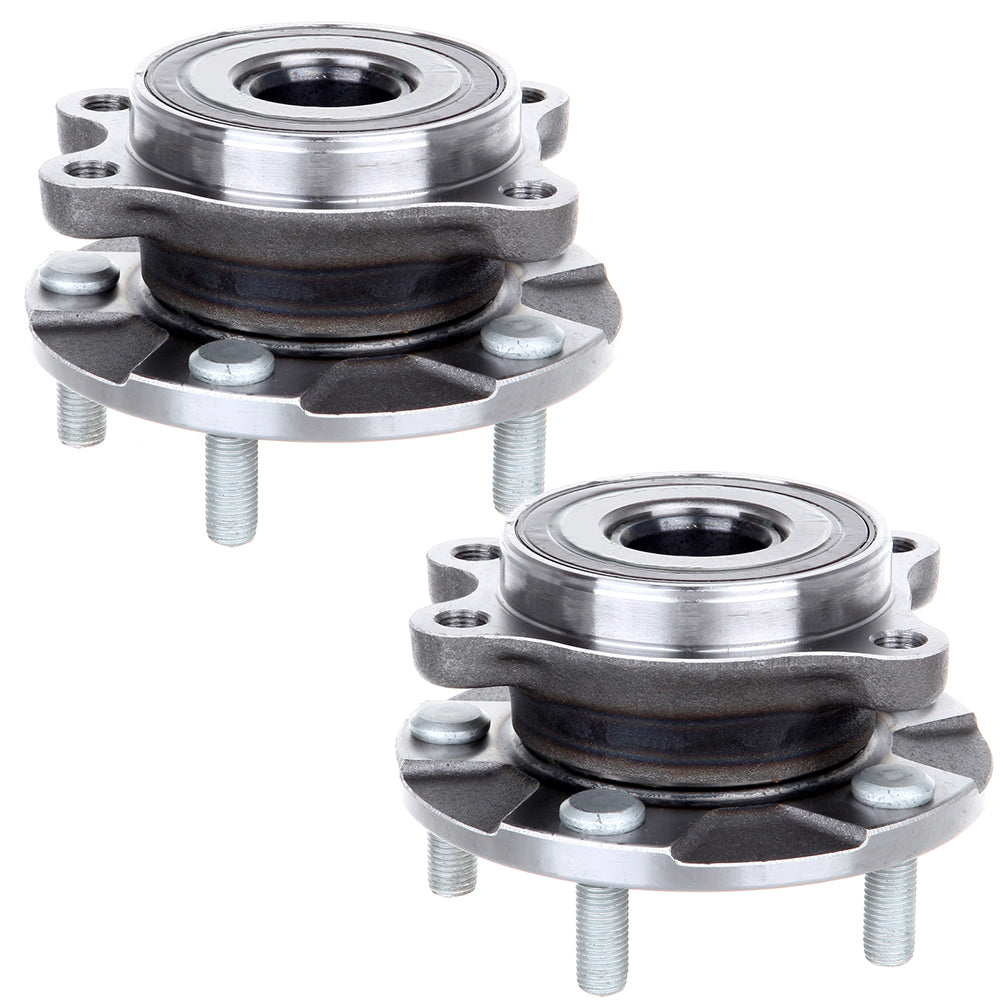

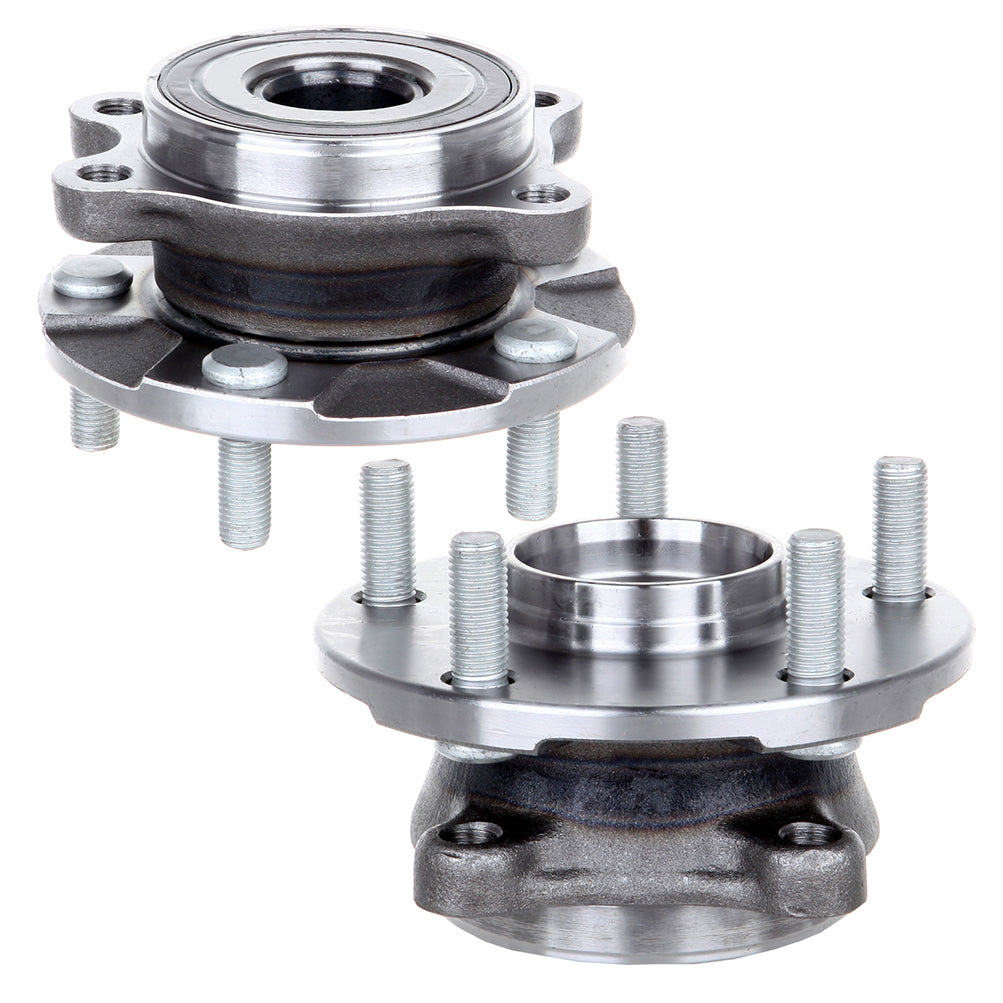

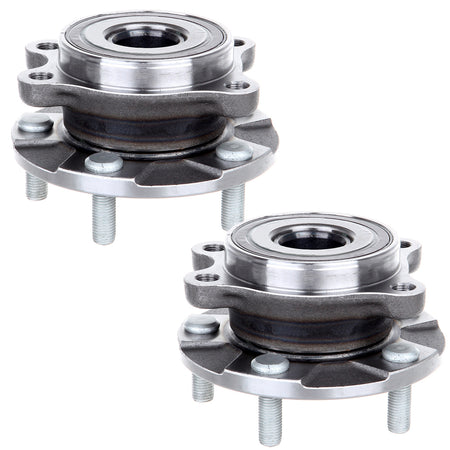

2 Pcs wheel hub bearing
