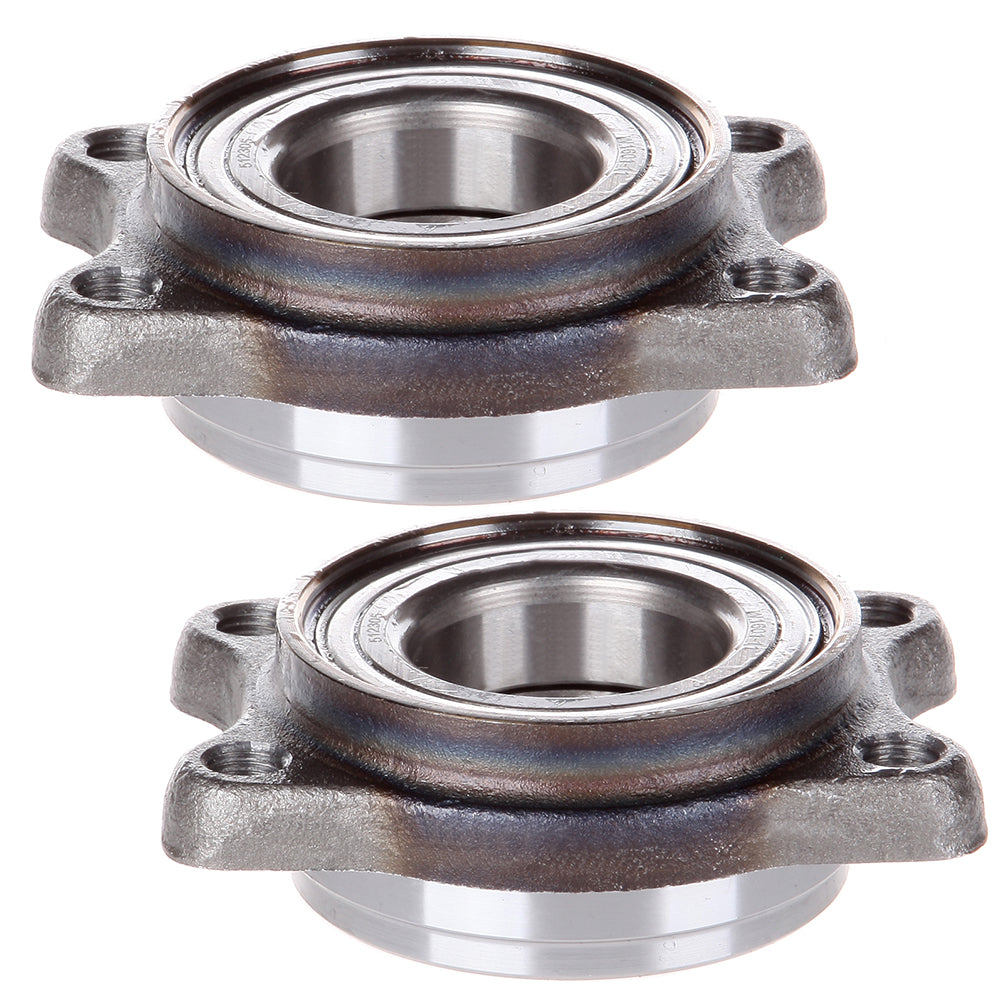

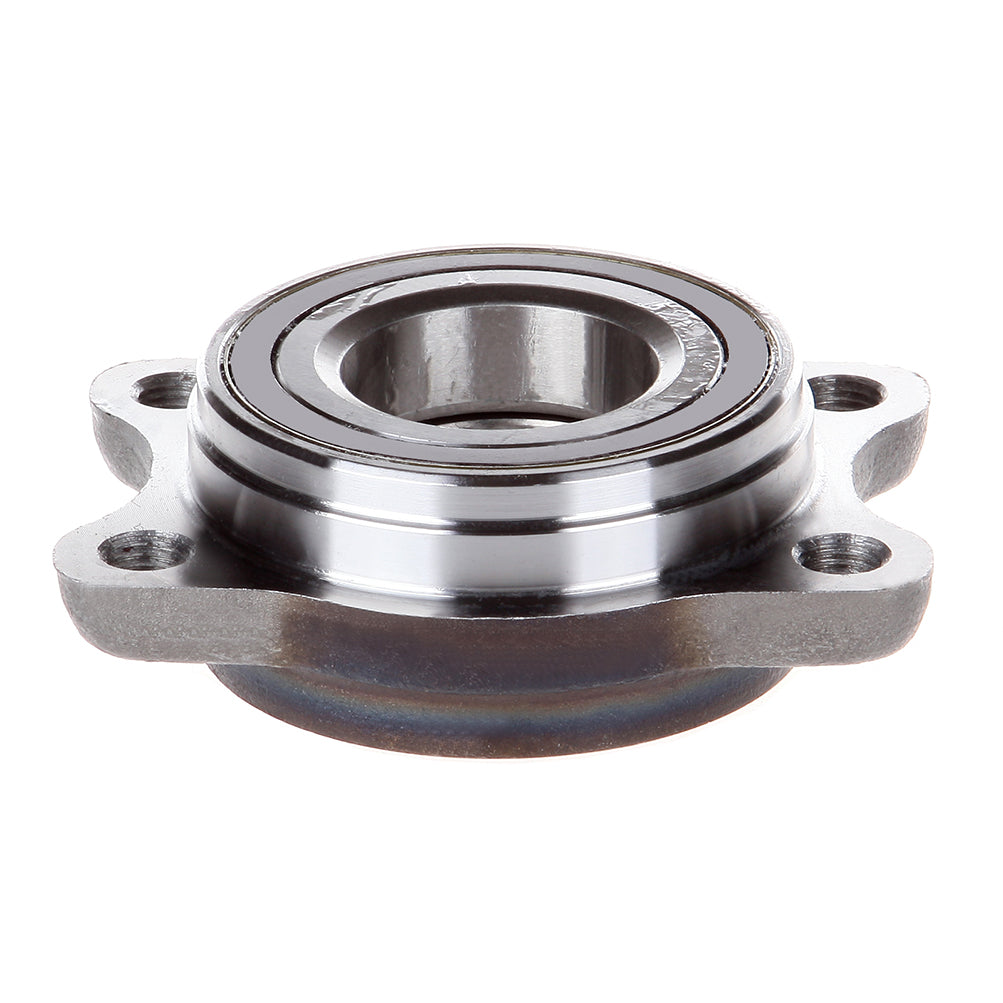

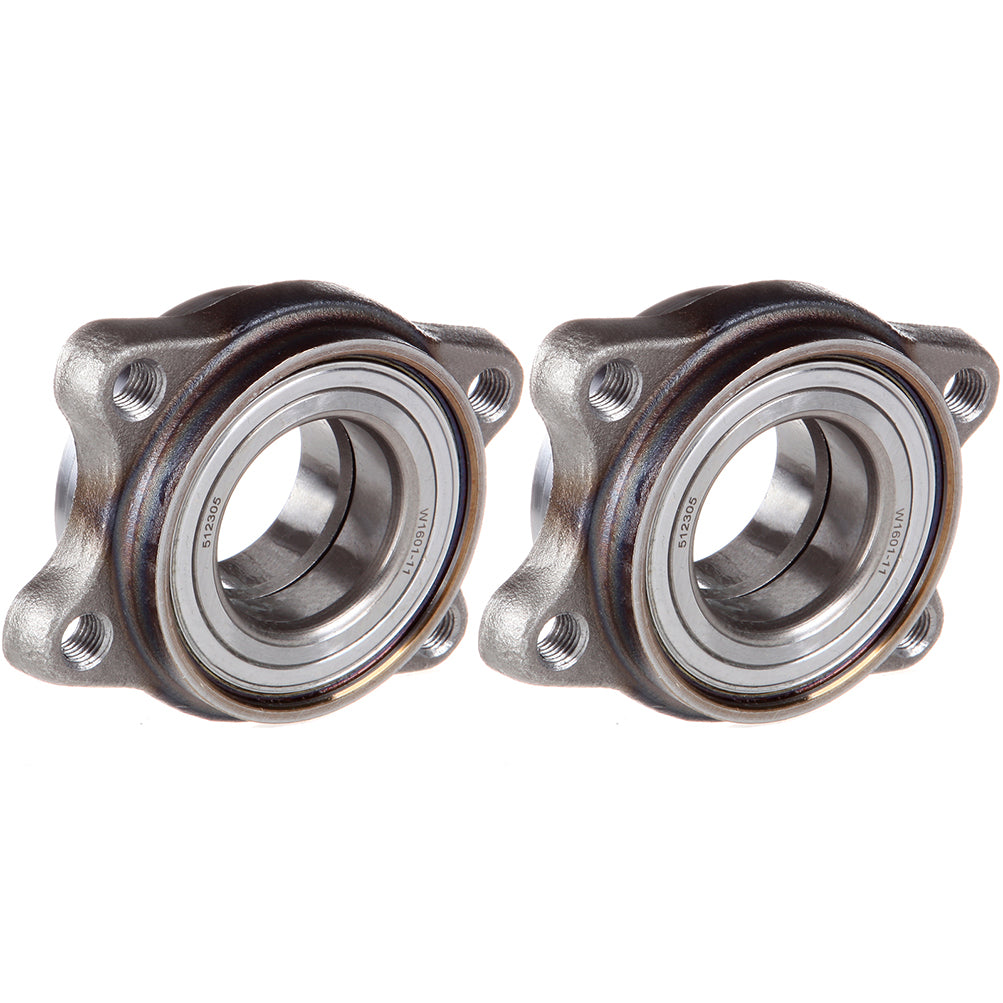

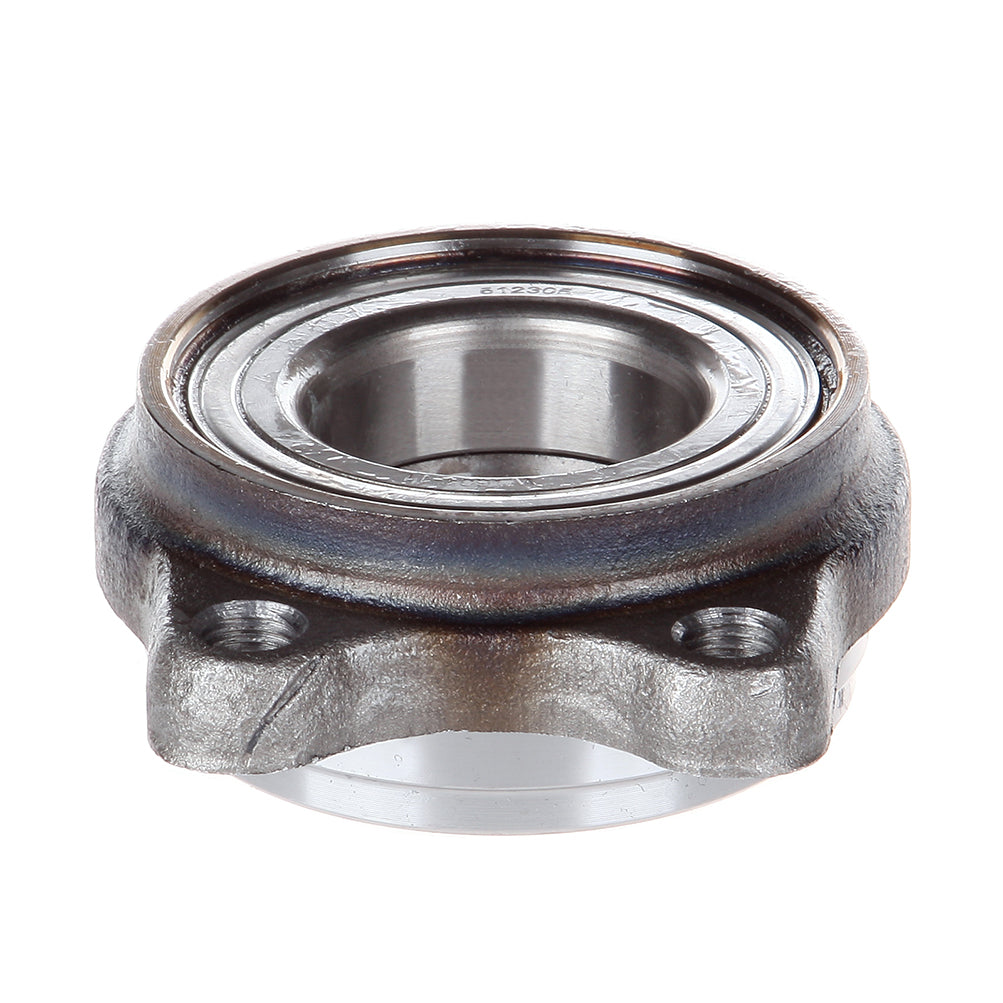

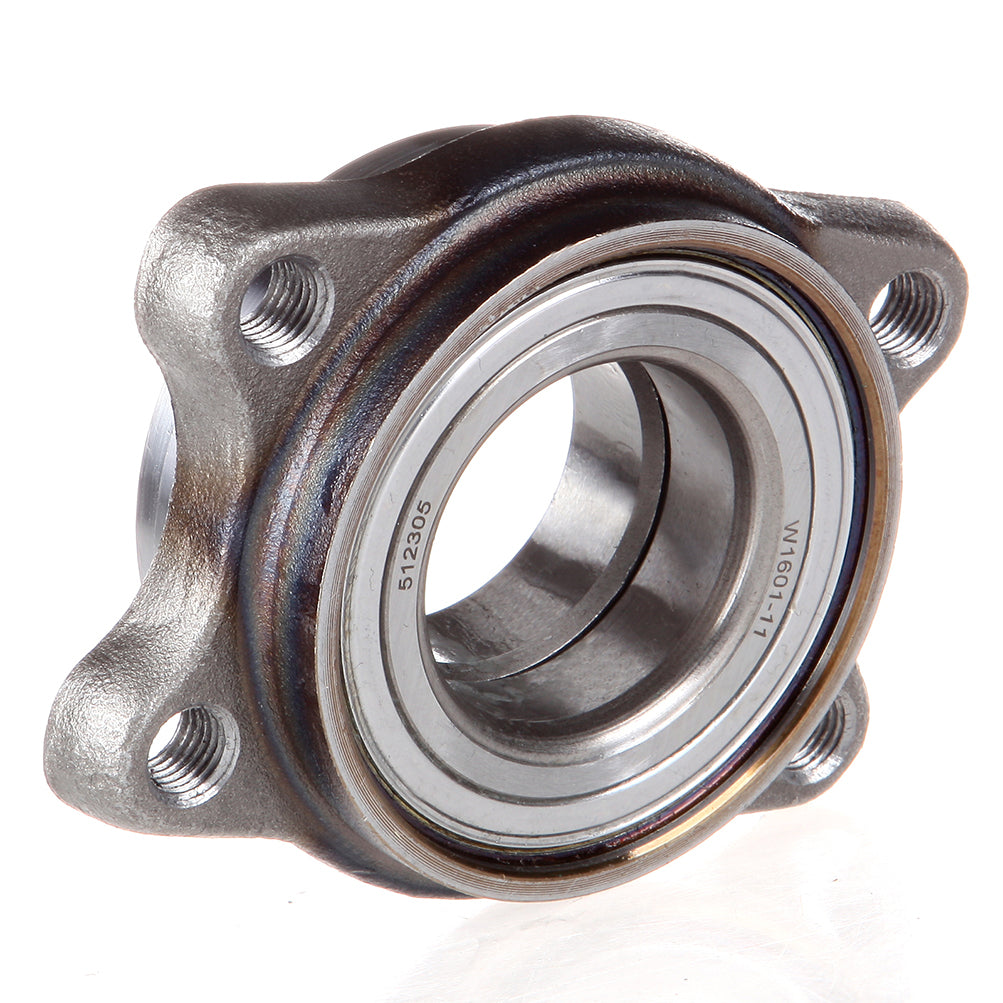

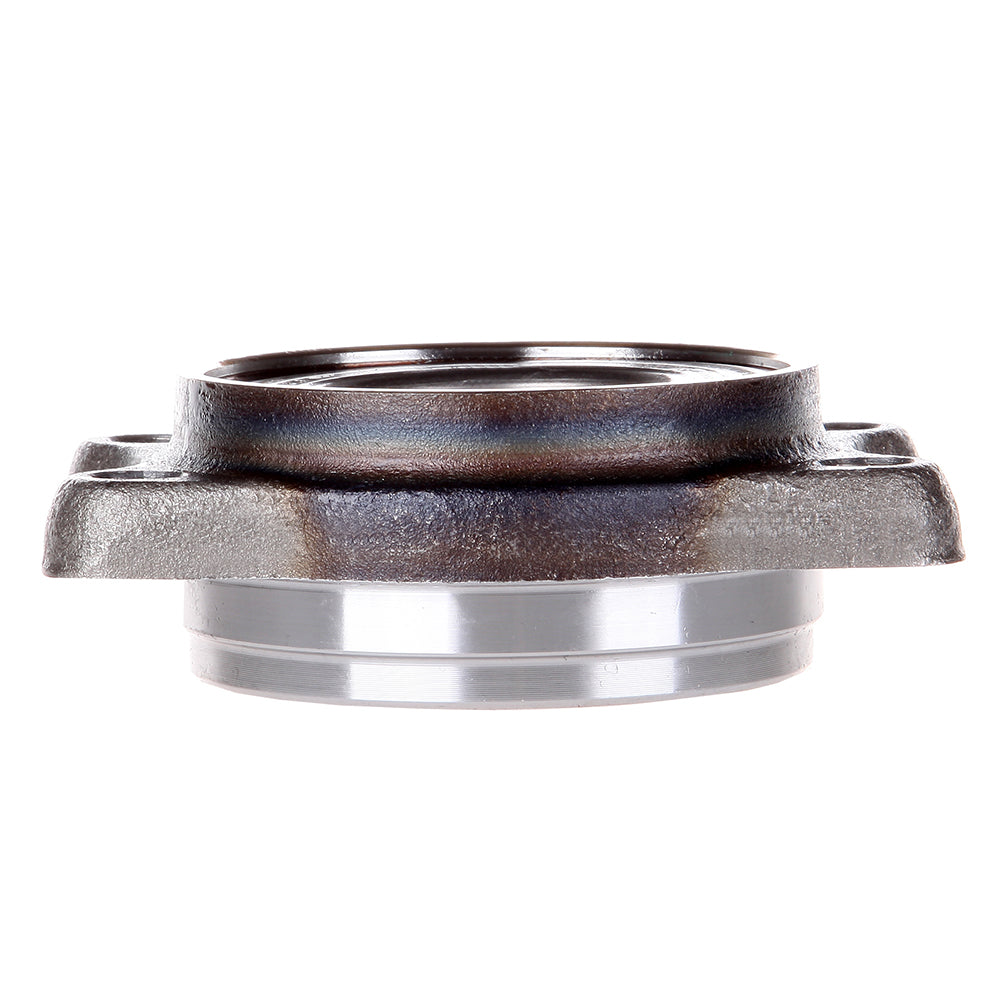

Wheel Hub Assembly For 2002-2009 Audi A4 2000-2004 Audi A6

Fitment

• Audi | A4 | 2002~2009 | 1.8L/2.0L/3.0L/3.2L
• Audi | A4 Quattro | 2002~2008 | 1.8L/2.0L/3.0L/3.2L
• Audi | A6 | 2000~2004 | 2.8L/3.0L
• Audi | A6 Quattro | 2000~2004 | 2.7L/2.8L/3.0L/4.2L
• Audi | A8 Quattro | 2000~2003 | 4.2L
• Audi | RS4 | 2007~2008 | 4.2L
• Audi | RS6 | 2003~2004 | 4.2L
• Audi | S4 | 2002/2004~2009 | 2.7L/4.2L
• Audi | S6 | 2001~2004 | 4.2L
• Audi | S8 | 2001~2003 | 4.2L
• Volkswagen | Passat | 2002~2004 | 1.8L/2.0L/2.8L/4.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front+Rear
• ABS Sensor: Not has an ABS sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: N/A
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.17 In
• Bolt Size: M12X1.5
• Flange Shape: Modified
• Hub Pilot Diameter: 1.76 In
• Other Part Number: 8E0498625B, HA590215
• Material: steel
• Weight: 6LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512305,4D0407625H, 8D0498625C, 8E0498625, 8E0498625A, 8E0498625B, 8E0598625A

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

2 Pcs wheel hub bearing
