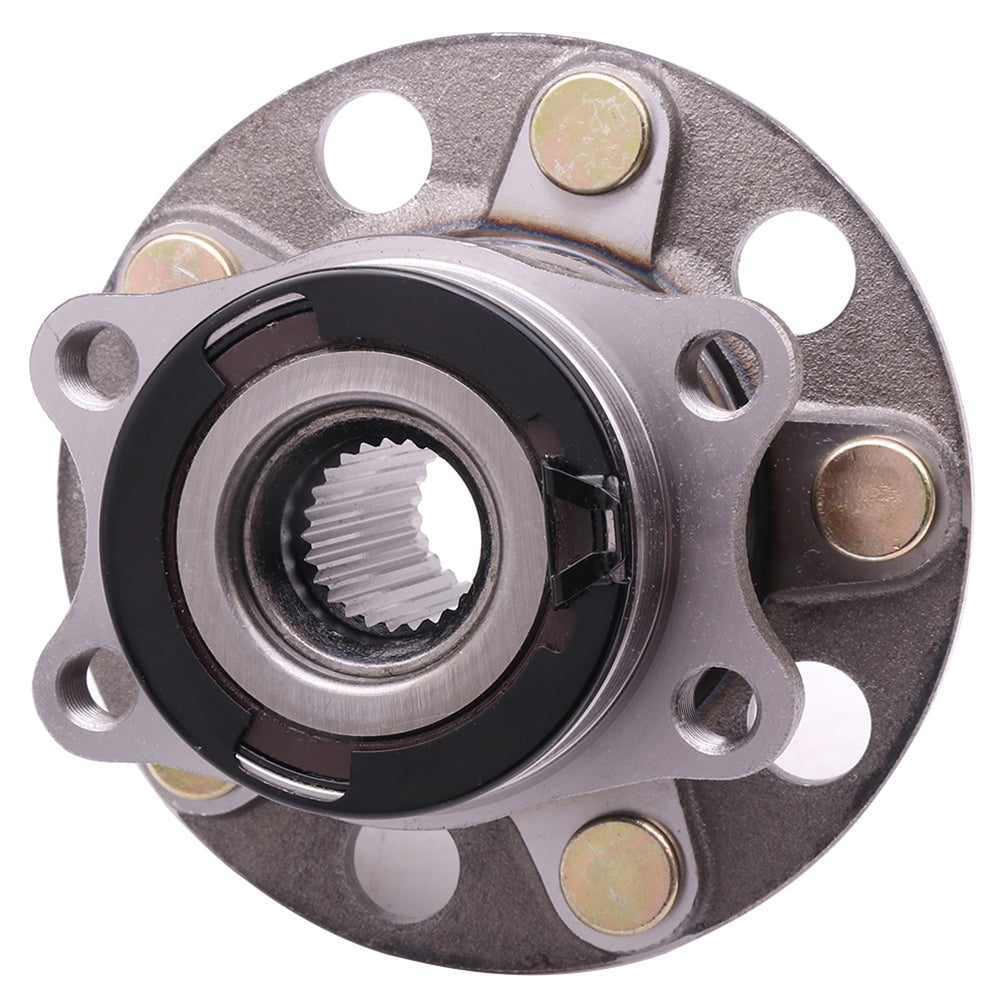

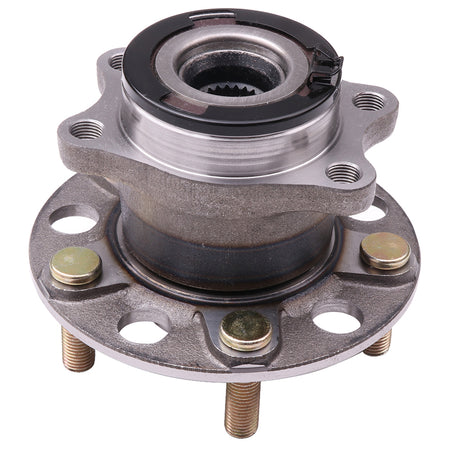

Wheel Hub Assembly Rear For 07-17 Jeep Compass Jeep Patriot

Fitment

• Dodge | Caliber | 2007~2008 | 2.4L
• Jeep | Compass | 2007~2017 | --/2.0L/2.4L
• Jeep | Patriot | 2007~2017 | --/2.0L/2.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 25
• Bolt Circle Diameter: 4.46 In
• Wheel Pilot Diameter: 2.61 In
• Brake Pilot Diameter: 3.12 In
• Flange Diameter: 5.48 In
• Flange Shape: Modified
• Flange Offset: 2.36 In
• Hub Pilot Diameter: 2.46 In
• Other Part Number: 05105770AC, 05105770AD, 5105770AA, 5105770AD, 5105770AE
• Material: steel
• Weight: 7LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512333,05105770AC, 05105770AD, 5105770AA, 5105770AB, 5105770AC, 5105770AD, 5105770AE, 5105770AF, MN101397

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
