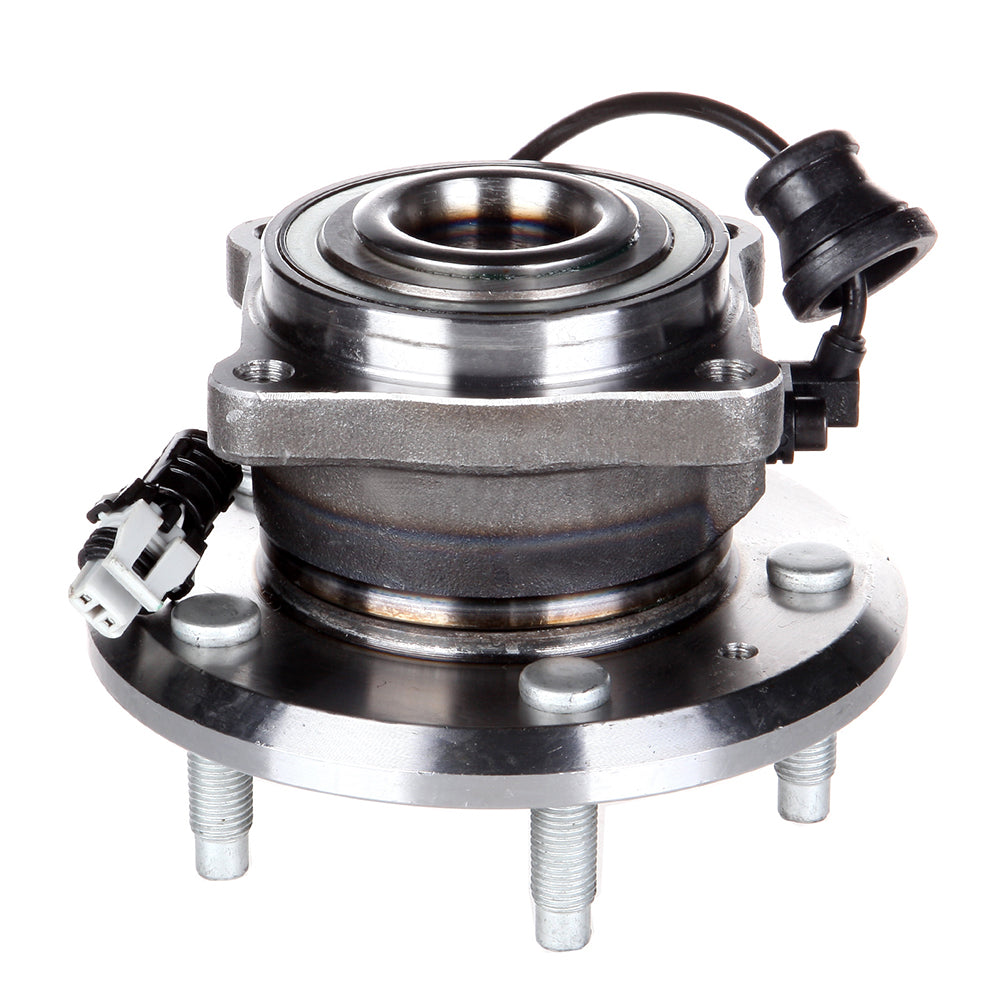

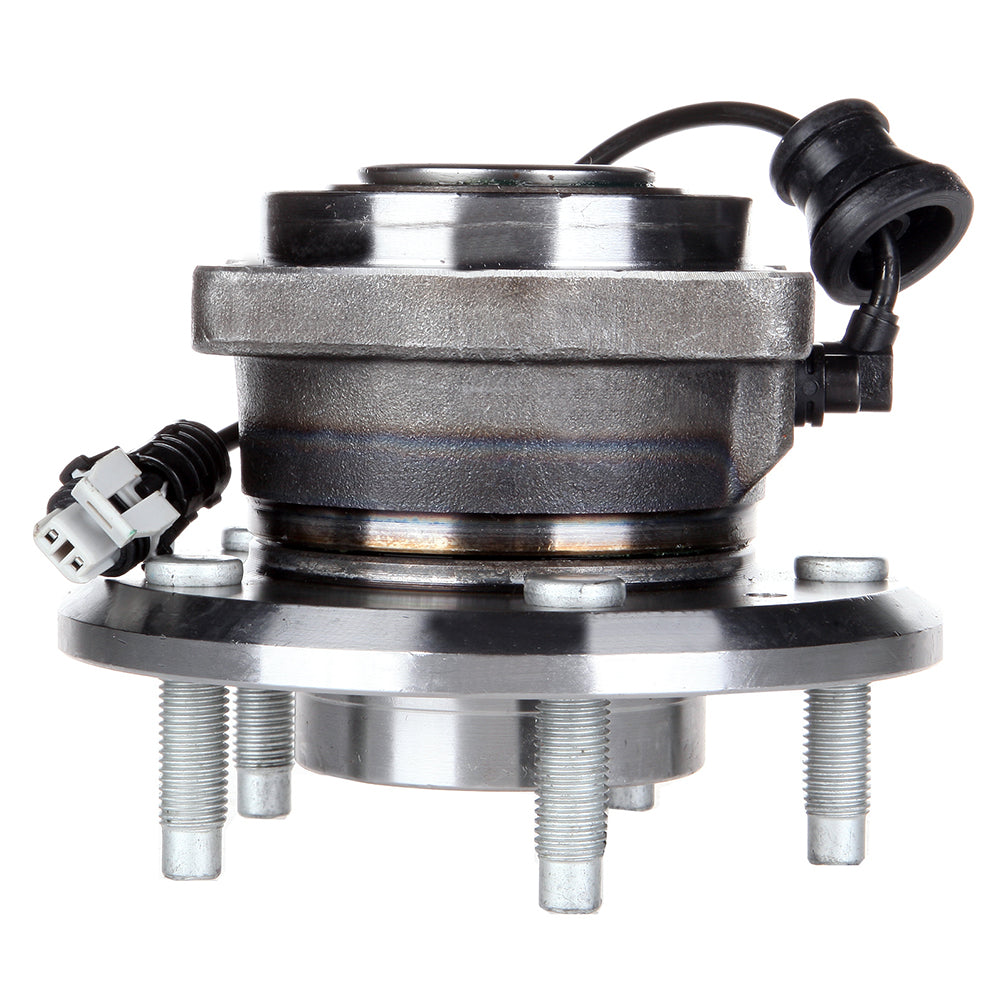

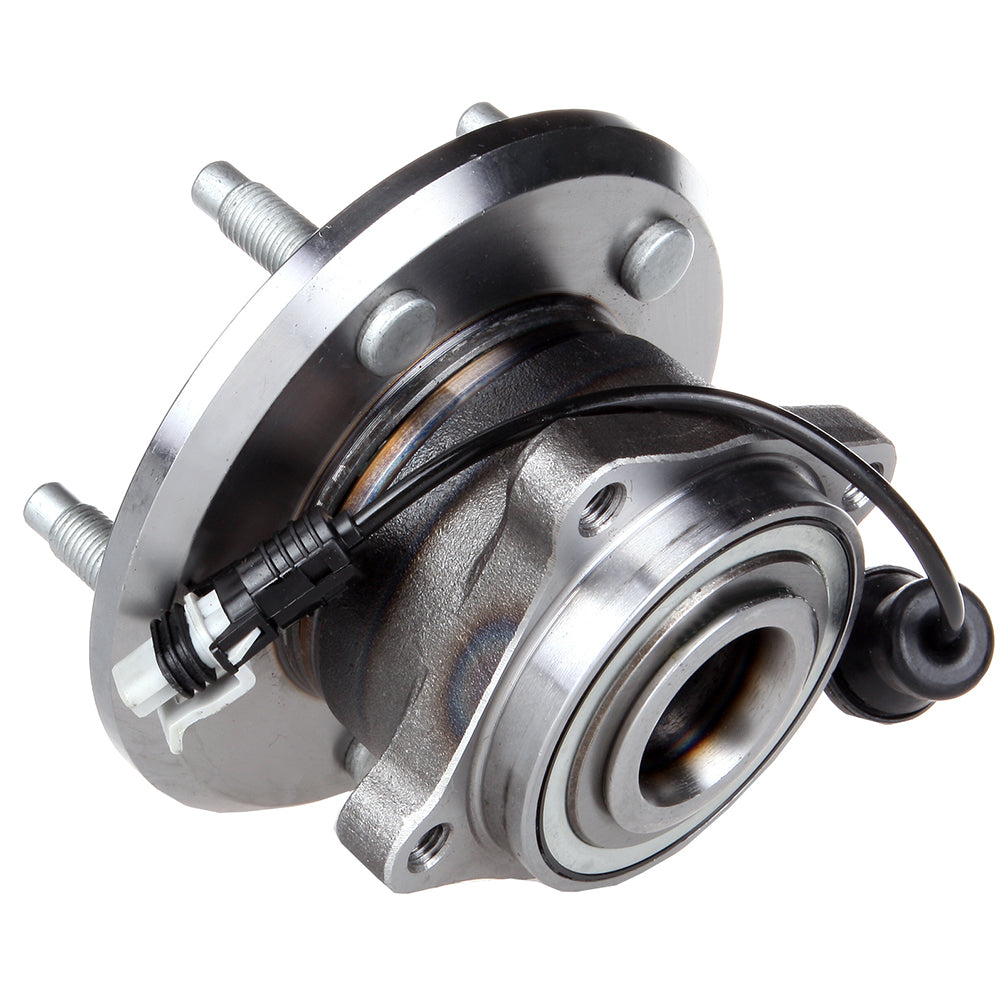

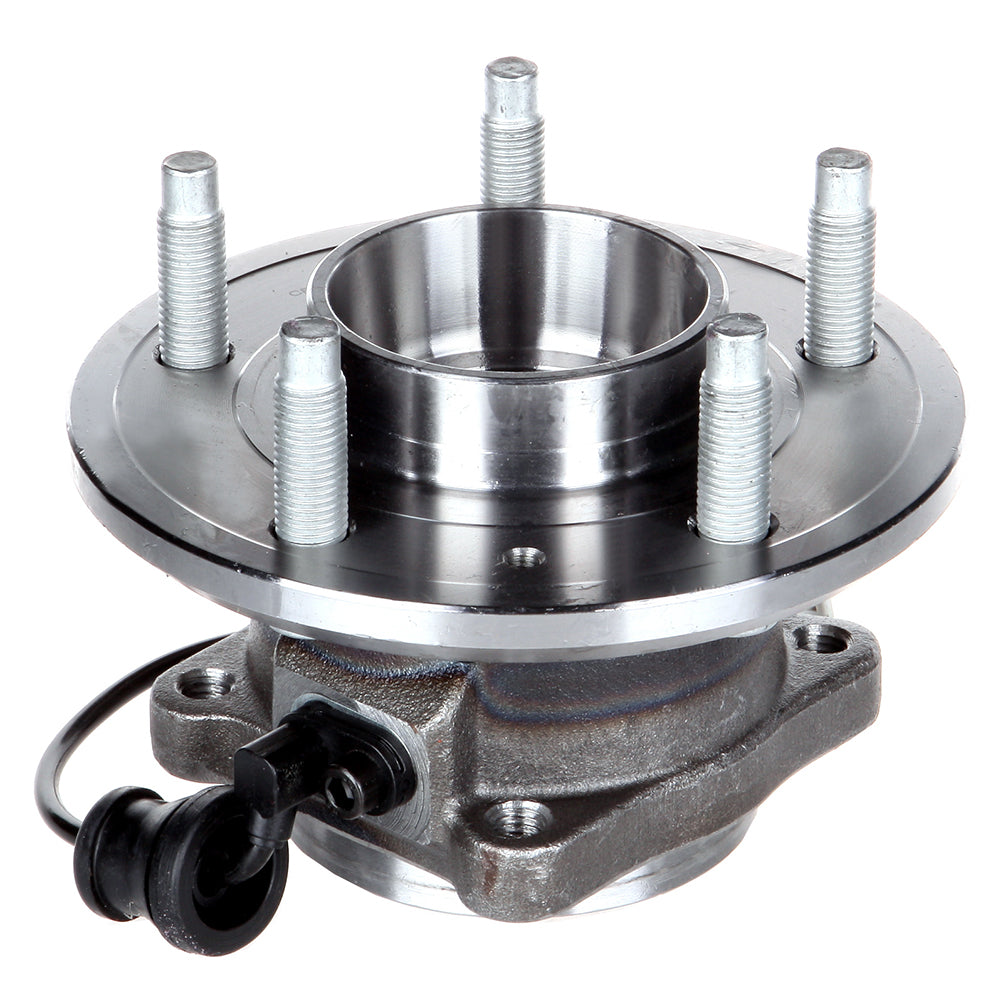

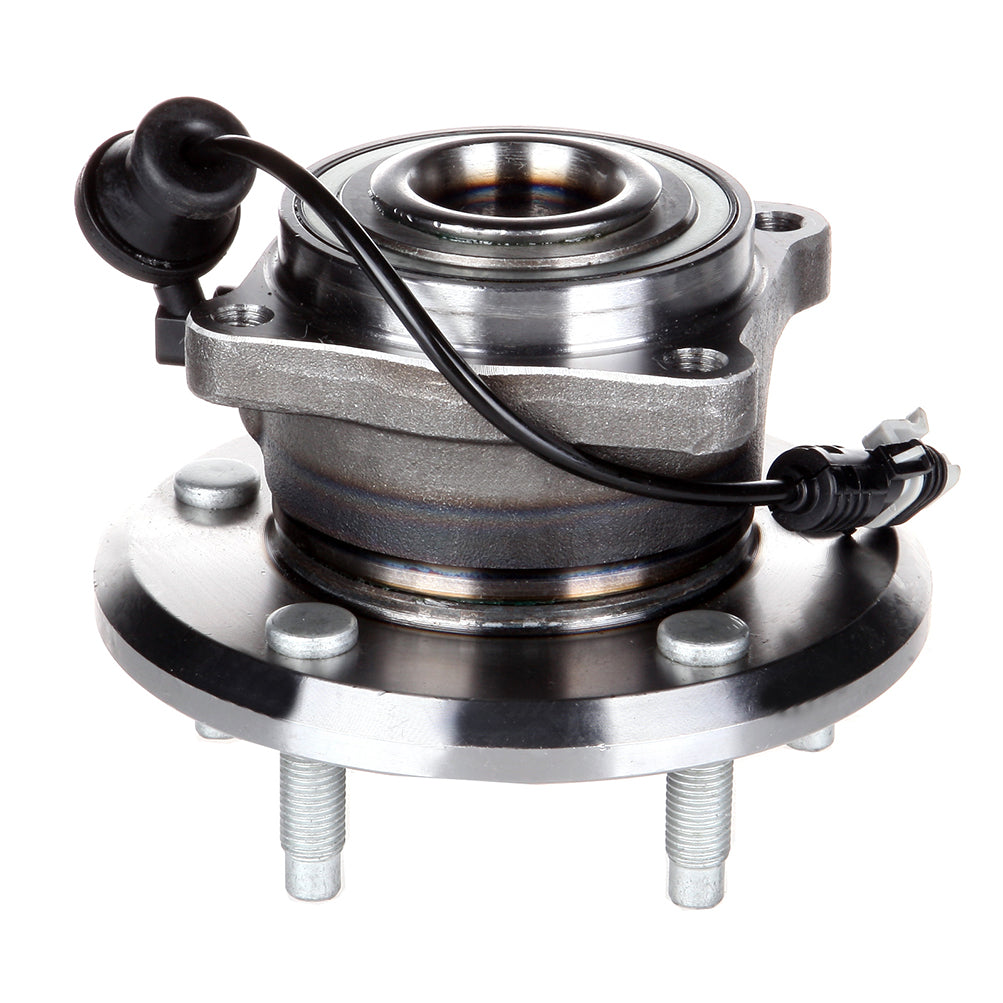

Wheel Hub Assembly Rear For 08-10 Saturn Vue 07-09 Chevrolet Equinox

Fitment

• Chevrolet | Captiva Sport | 2012~2015 | 2.4L/3.0L
• Chevrolet | Equinox | 2007~2009 | 3.4L/3.6L
• Pontiac | Torrent | 2007~2009 | 3.4L/3.6L
• Saturn | Vue | 2008~2010 | 2.4L/3.5L/3.6L
• Suzuki | XL-7 | 2007~2009 | 3.2L/3.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with tegral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 30
• Bolt Circle Diameter: 4.46 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.75 In
• Flange Diameter: 5.89 In
• Flange Shape: Modified
• Flange Offset: 2.53 In
• Hub Pilot Diameter: 3.27 In
• Other Part Numbers: 19151003, 19206600, 25903295, 4340278J00, 4340278J01, 96626439
• Material: steel
• Weight: 10LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512358,WA512358,19151003, 19206600, 25903295, 4340278J00, 4340278J01, 96626439

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
