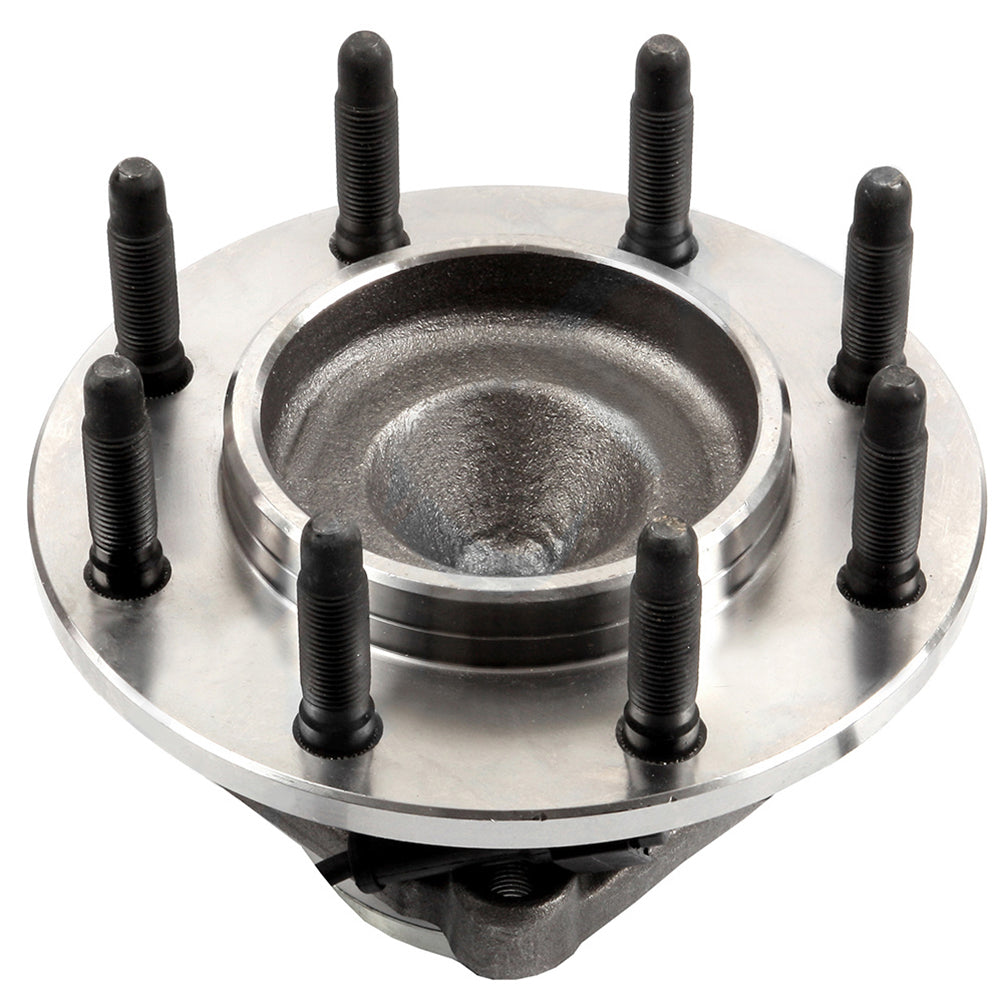

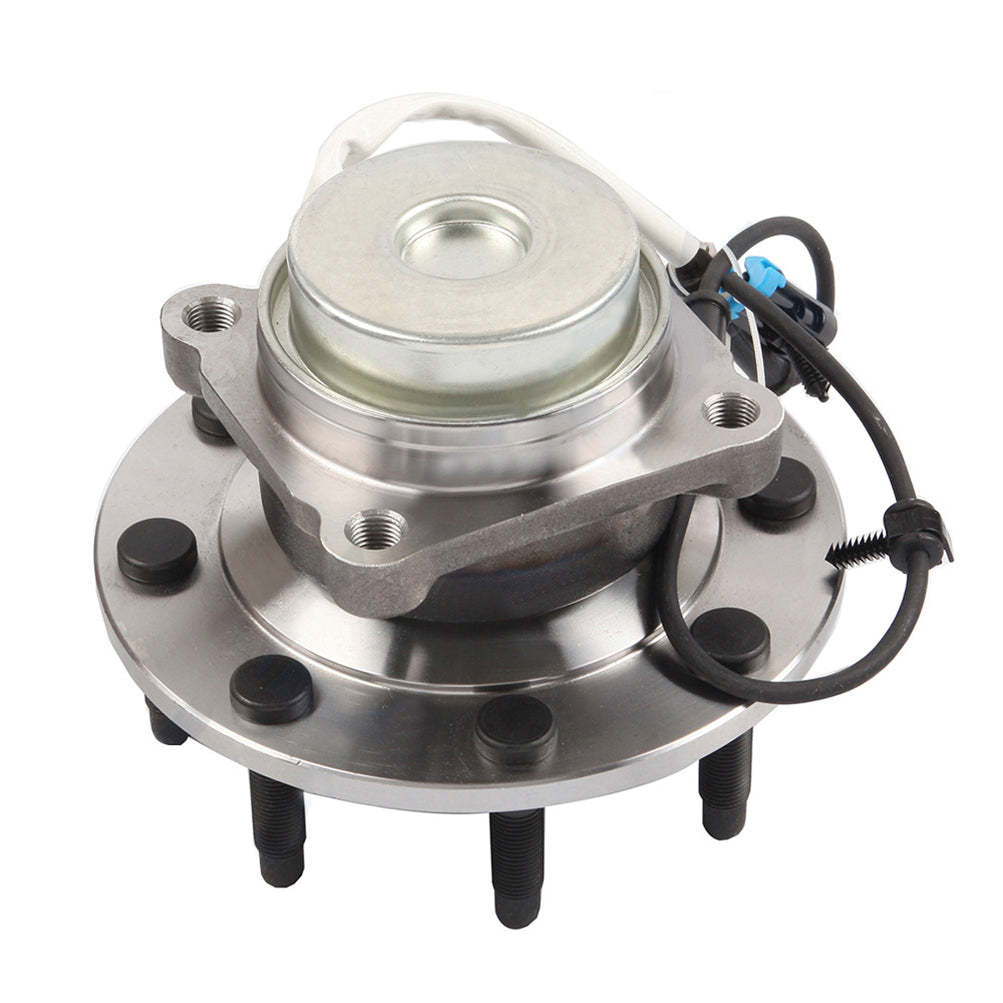

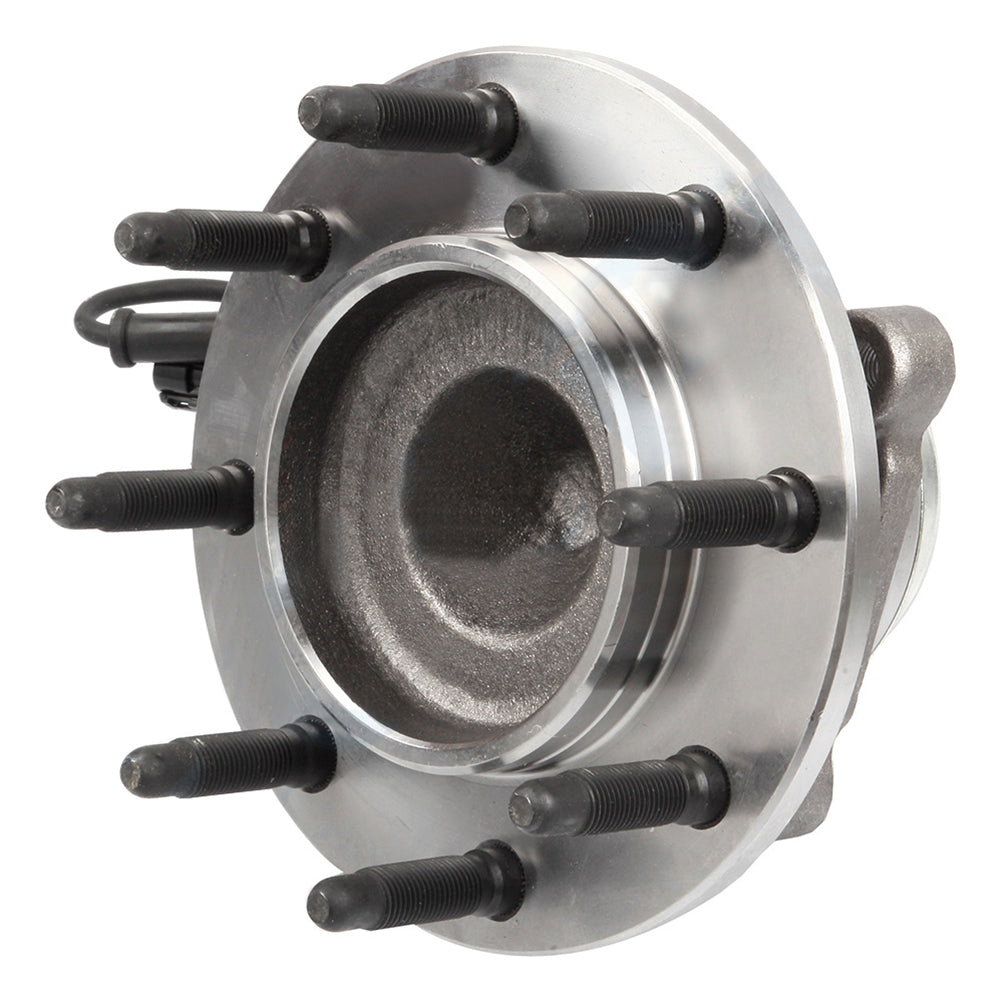

Wheel Hub Bearing Assembly For 03-17 GMC Savana 3500 Chevrolet Express 2500

Fitment

• Chevrolet | Express 2500 | 2003~2017 | 2.8L/4.3L/4.8L/5.3L/6.0L/6.6L
• Chevrolet | Express 3500 | 2003~2017 | 2.8L/4.8L/6.0L/6.6L
• Chevrolet | Express 4500 | 2009~2015 | 6.0L/6.6L
• GMC | Savana 2500 | 2003~2017 | 2.8L/4.3L/4.8L/5.3L/6.0L/6.6L
• GMC | Savana 3500 | 2003~2017 | 2.8L/4.8L/6.0L/6.6L
• GMC | Savana 4500 | 2009~2015 | 6.0L/6.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

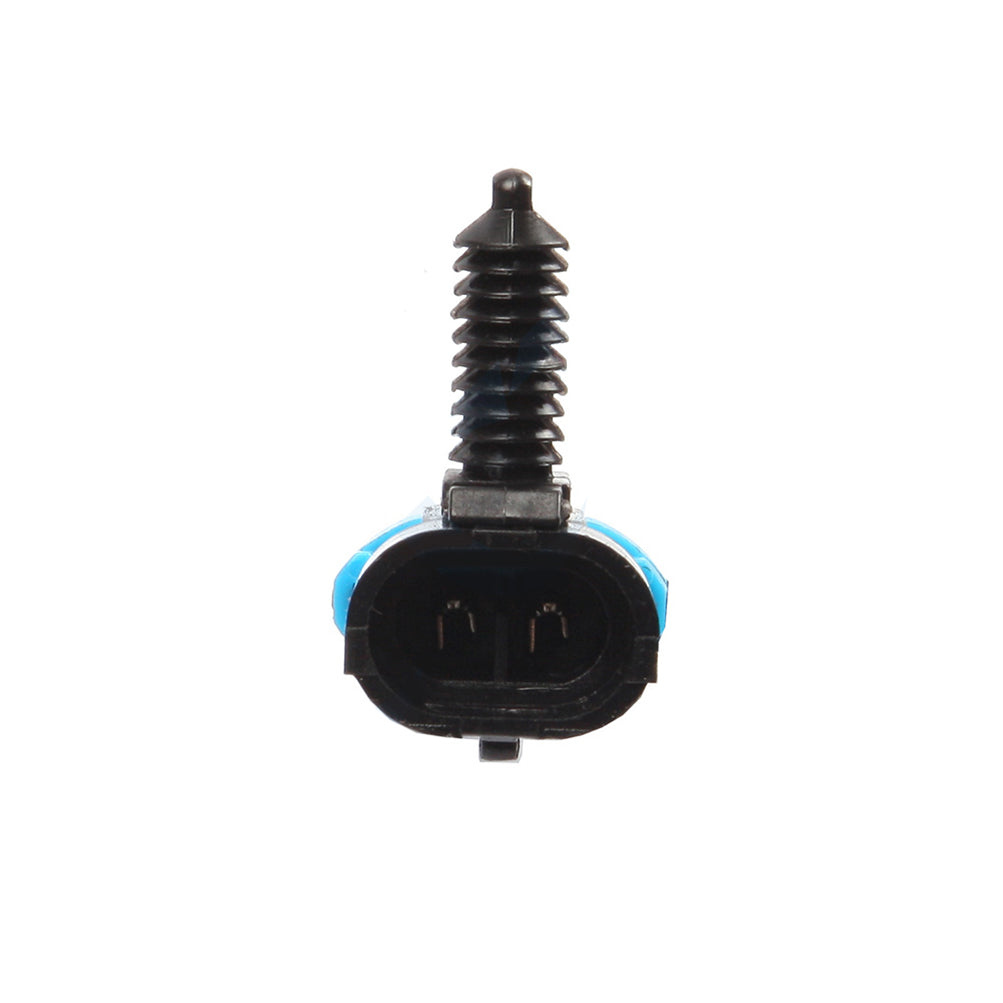

• ABS Sensor: Has ABS with tegral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 8
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 6.44 In
• Wheel Pilot Diameter: 4.55 In
• Brake Pilot Diameter: 4.5942 In
• Flange Diameter: 7.77 In
• Flange Shape: Modified
• Flange Offset: 2.55 In
• Hub Pilot Diameter: 4.12 In
• Other Part Number: 18061146, 19149001, 25840786
• Material: steel
• Weight: 36LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 515059,18061146, 19149001, 25840786, WA515059,29515059

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

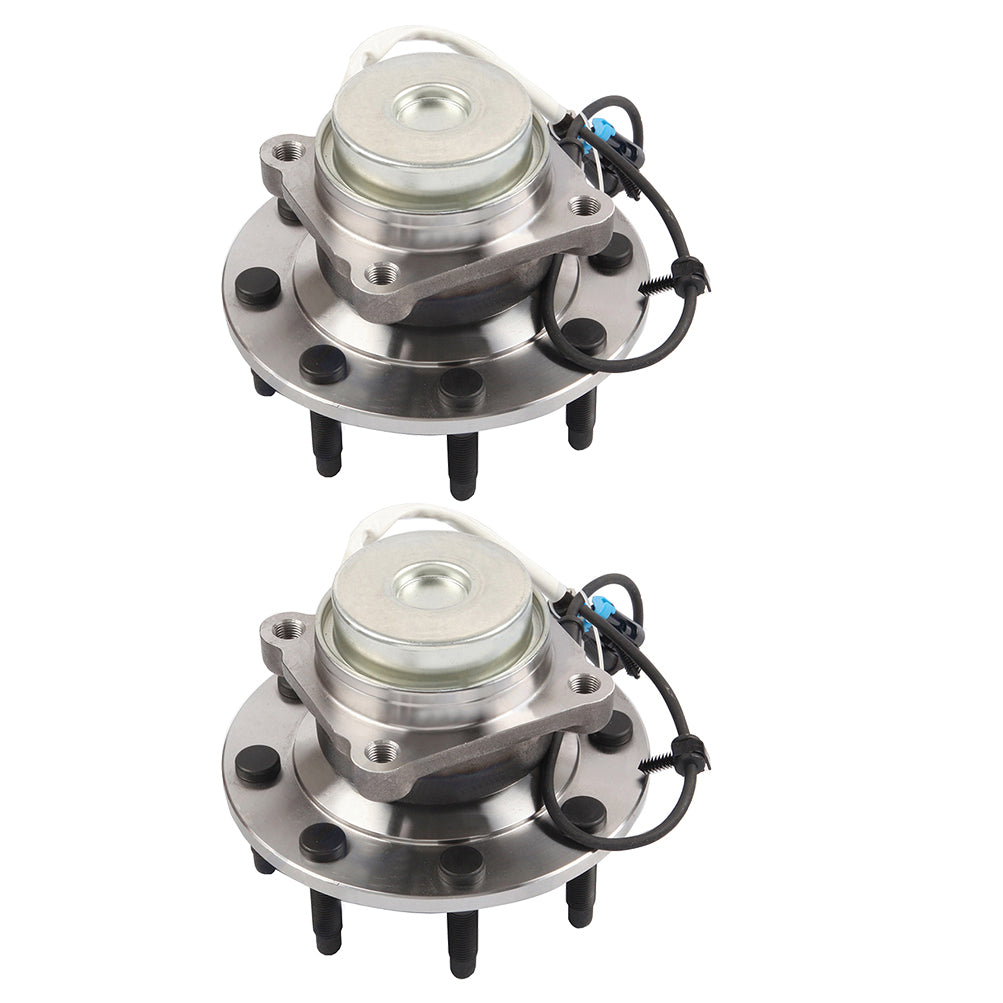

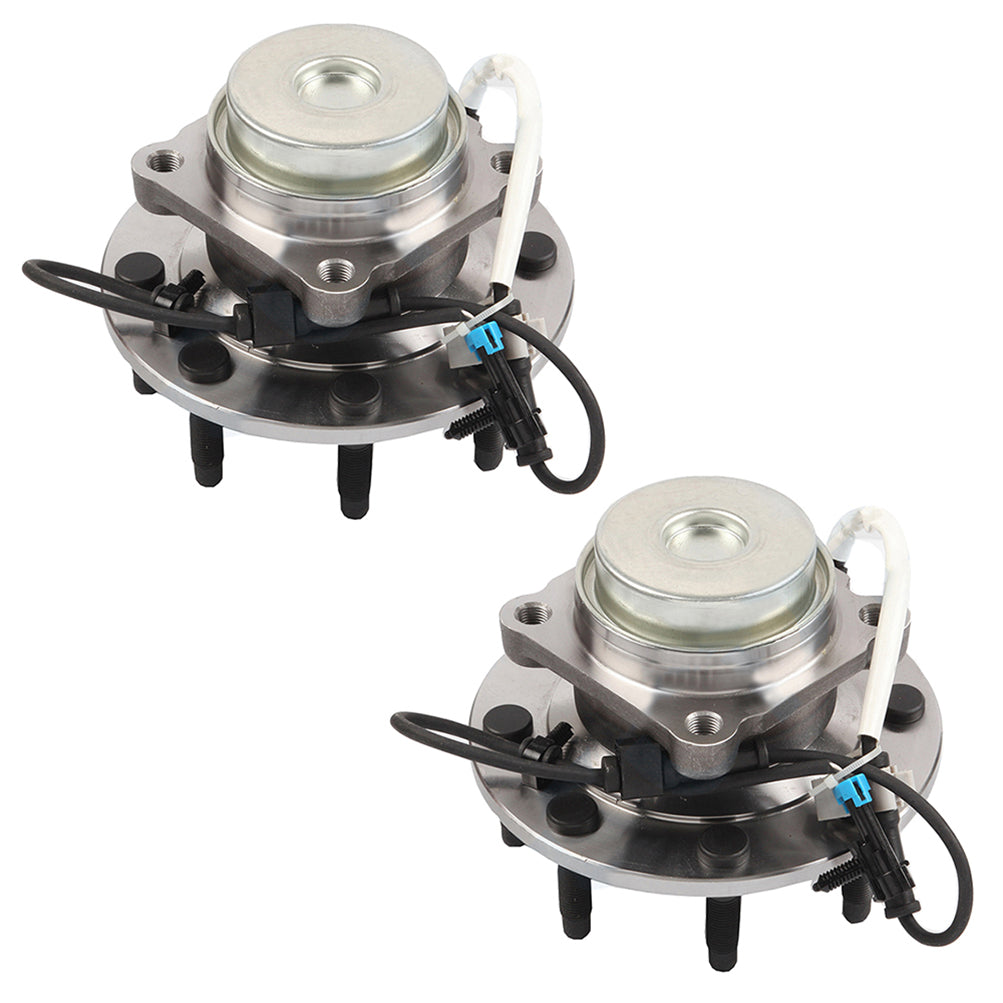

Include

2 Pcs wheel hub bearing
